AVPro Edge AC-CXWP-LPDHU-KIT ConferX HDBaseT Wall Plate System

AVPro Edge AC-CXWP-LPDHU-KIT ConferX HDBaseT Wall Plate System

SoundPro Item: 207204 | Part Number: AC-CXWP-LPDHU-KIT

$1,421.00
$1,421.00 $1,421.00
Your Price Sold out
MSRP: $1,421.00 | MAP: $1,421.00

Usually ships in 5-7 business days

  • Auto-Sensing Dual Input Eliminates Manual Source Switching Between HDMI And USB Type-C Devices
  • HDBaseT 2.0 Transport Delivers 4K/60 Signals Over Cat 6A Cable Runs Without Dedicated Power At Wall Plate
  • Rotary EDID Dial Provides 16 Preset Options Including Copy-From-Output For Display Compatibility Assurance
  • HDCP Dip Switch Disables Copy Protection Request To Prevent Handshake Failures In Non-Encrypted Environments
  • Invisible Compression Technology Extends Bandwidth Handling For High-Bitrate Sources Without Perceptible Artifacts
  • Single-Gang Workbox Compatibility Fits Standard And Low-Voltage Electrical Boxes For Straightforward Retrofit
  • LED Status Indicators Confirm Signal Lock And HDBaseT Link For Rapid Installation Verification
Log in or register for YOUR best price

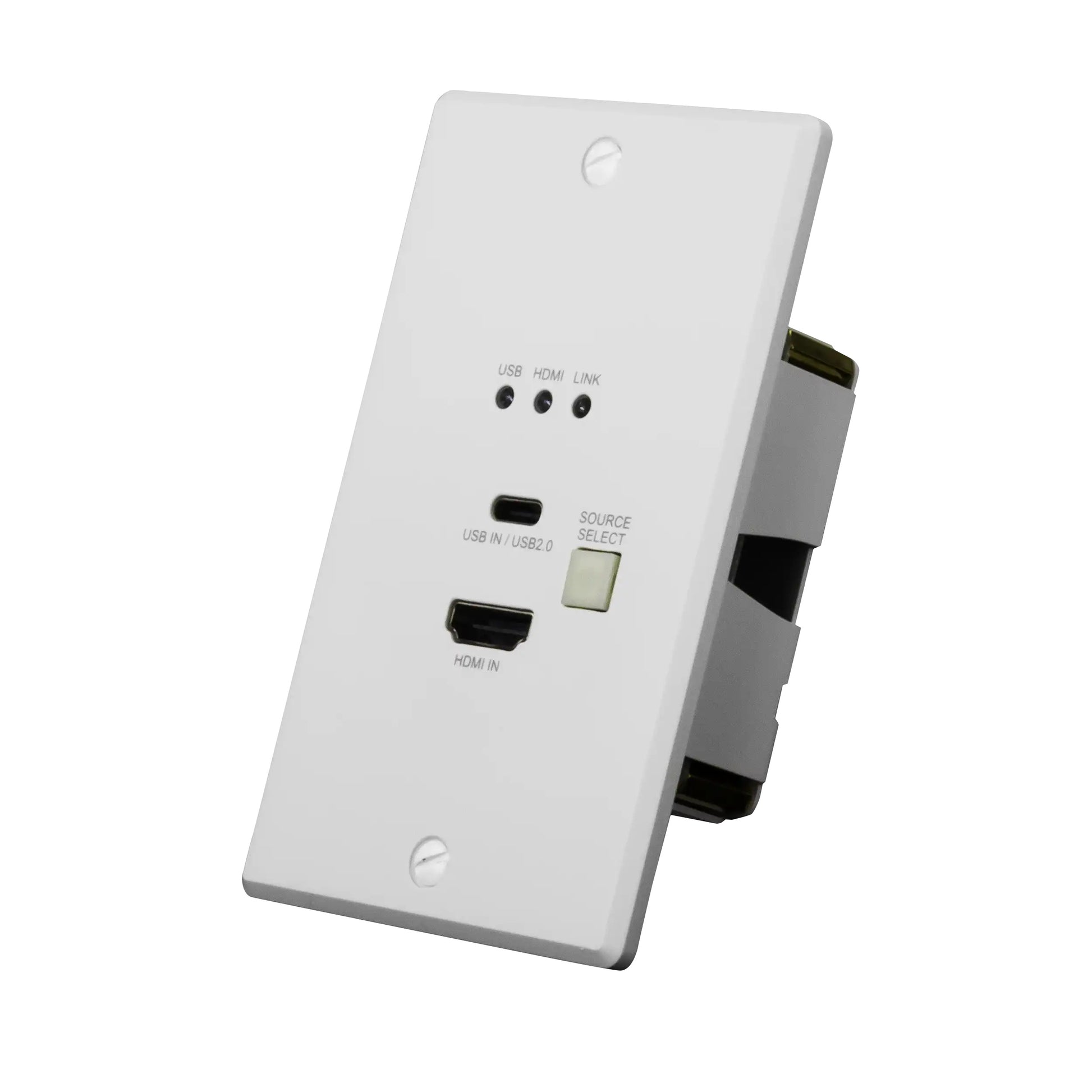

The AVPro Edge ConferX AC-CXWP-LPDHU-KIT is engineered for professional integrators installing collaborative spaces where cable management and aesthetic integration are critical. The low-profile transmitter mounts into standard single-gang workboxes with only 13/64 inch wall excursion, providing a clean modern appearance while accepting HDMI or USB Type-C laptop sources. Auto-sensing inputs eliminate manual switching, and an HDCP request dip switch ensures compatibility in environments where copy protection is not required.

HDBaseT 2.0 protocol transports 4K/60 Hz 4:2:0 signals up to 229 feet or 1080p to 328 feet over Cat 6A infrastructure. AVPro Edge Invisible Compression Technology extends bandwidth handling to 18 Gbps for demanding source content. Power-over-Cable eliminates the need for local AC outlets at the transmitter location, while the receiver unit includes two USB Type-A device ports for peripherals and supplies 48 VDC to the entire signal chain.

EDID management via 16-position rotary dial supports copy-from-output capability, simplifying display compatibility in mixed equipment environments. Designed for boardrooms, classrooms, and huddle spaces where presentation workflow and architectural discretion must coexist without compromise.

View full details

Specifications

Video
HDMI Video Resolution
Up to 4K/60 Hz 4:4:4
USB Type-C Video Resolution
Up to 4K/60 Hz 4:2:0
VESA Resolution
Up to DCI 4K (4096 x 2160)
HDR Format Support
Dolby Vision, HDR10, HDR10+, HLG
Color Space
YUV, RGB (ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Bit Depth
Up to 16-bit (1080p), Up to 12-bit (4K)
Bandwidth
18 Gbps (with ICT)
Audio
Audio Format Support
PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Connectivity
HDMI Connector
HDMI Type A 19-pin female
USB Type-C Port
USB 2.0 Host (up to 290 Mbps)
USB Type-A Ports (Receiver)
2x USB Device female
HDBaseT Port
RJ45
RS-232
3-pin terminal block
HDMI Cable Distance
Up to 50' (Bullet Train HDMI), Up to 130' (Bullet Train AOC)
HDBaseT Distance (4K)
229' (70 m) over Cat 6a
HDBaseT Distance (1080p)
328' (100 m) over Cat 6a
Certifications
HDCP
HDCP 2.3 and earlier
CEC Support
Yes
Control
Front Panel
Push-button input switch
Rear Panel

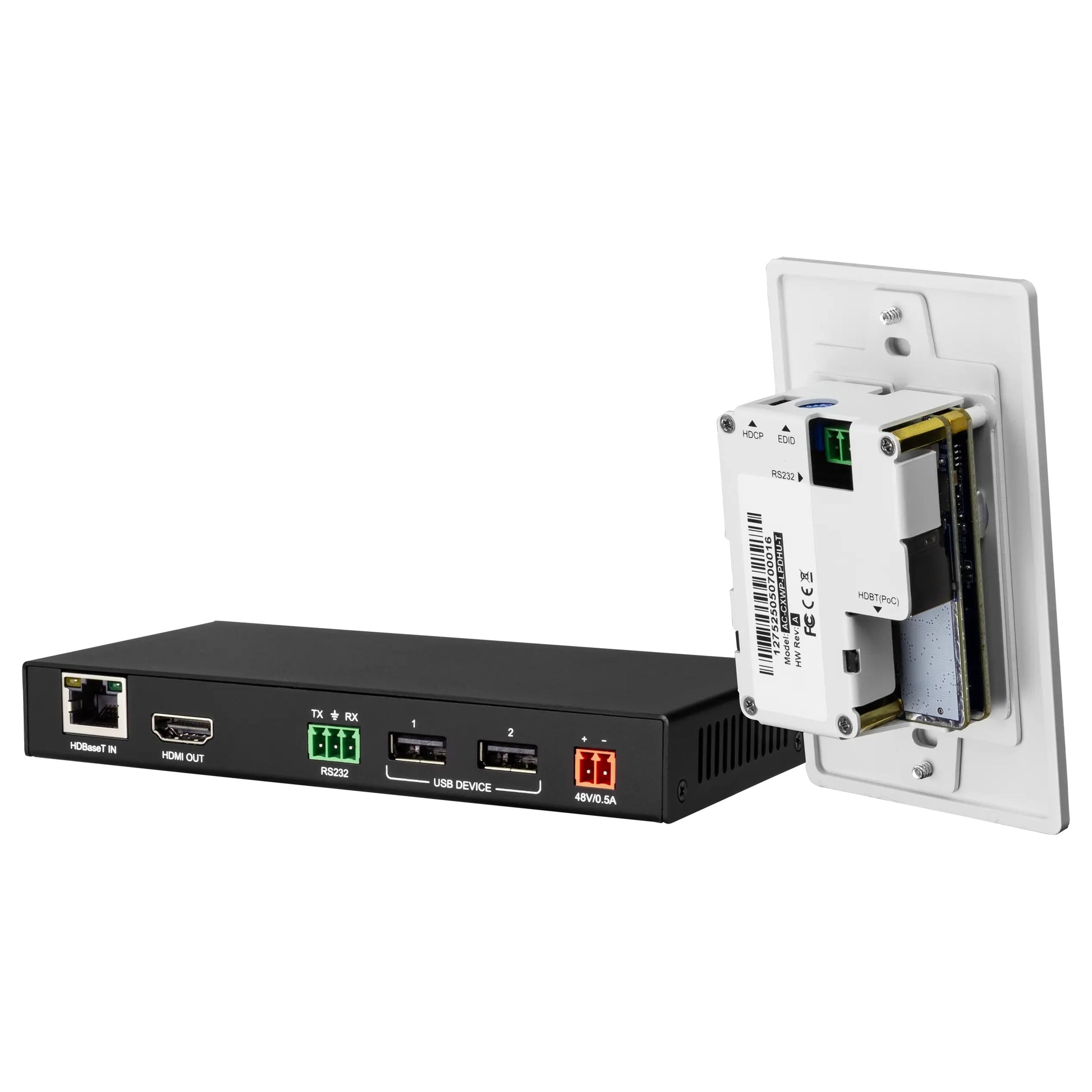

RS-232, HDCP dip switch, EDID rotary dial
Dimensions
Transmitter (W x D x H)
2.75" x 1.25" x 4.17"
Transmitter EU Unit (W x D x H)
3.11" x 1.25" x 3.11"
Receiver (W x D x H)
3.25" x 1.38" x 3.25"
Wall Space Required
Single-gang
Compatible Box Types
Mud rings, EU boxes, stud mount, clamp mount, metal & plastic boxes, LV boxes
Weight
Transmitter Unit
0.51 lbs (0.232 kg)
Transmitter EU Unit
0.53 lbs (0.240 kg)
Receiver Unit
0.69 lbs (0.31 kg)
Packaged Weight
0.79 lbs (0.36 kg)
Environmental
Operating Temperature
23 to 125°F (-5 to 51°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Humidity Range
5-90% RH (no condensation)
Power
Power Consumption
12 W maximum
Receiver Power Supply
Input: 100-240 VAC ~ 50/60 Hz; Output: 48 VDC, 0.5 A
Power Delivery
PoC (Power-over-Cable) via HDBaseT
Shipping
Package Dimensions (L x W x H)
6.25" x 5.375" x 3.5"
Included Items
Transmitter

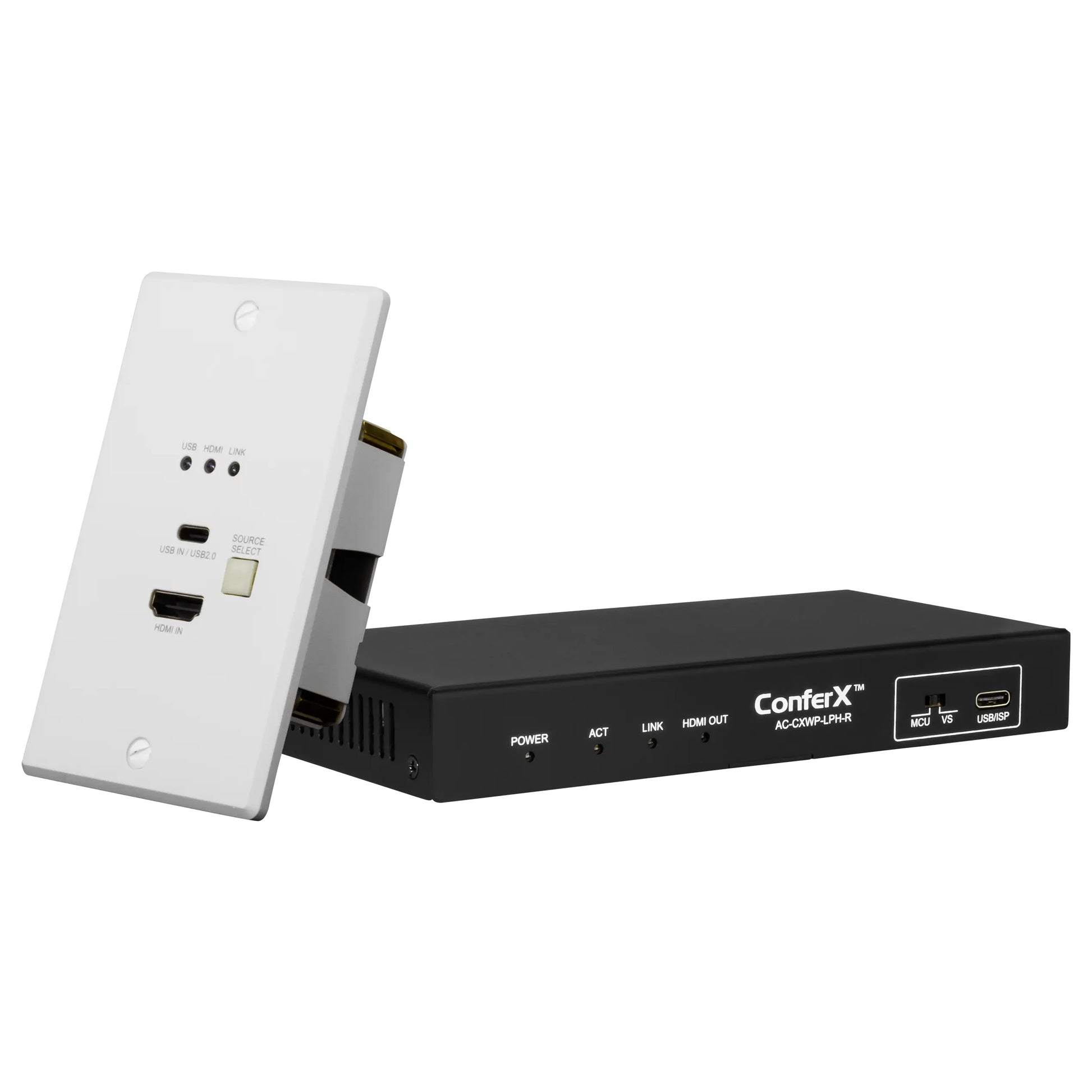

ConferX low-profile wall plate transmitter via HDBaseT
Receiver
ConferX low-profile wall plate receiver
Power Supply
48 VDC, 0.5 A PSU
Faceplate
White faceplate
Connectors
3-pin Euroblock connector
Mounting Hardware
2x mounting screws
