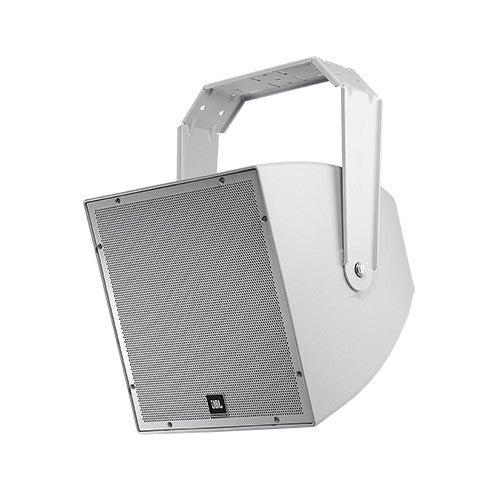

• JBL AWC129 12-Inch Weather-Resistant Speaker, black
1 1

JBL AWC129 12-Inch Weather-Resistant Speaker | Color: White

JBL AWC129 12-Inch Weather-Resistant Speaker | Color: White

SoundPro Item: 46636 | Part Number: AWC129

$1,050.00
$1,050.00 $1,050.00
Your Price Sold out
MSRP: $1,050.00 | MAP: $1,050.00

Usually ships in 5-7 business days

  • Highly weather-resistant IP56 rating
  • Consistent 90° x 90° broadband pattern control
  • Components:
    • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 55 Hz - 20 kHz frequency response
  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
Log in or register for YOUR best price

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

View full details
  • Frequency Range (-10dB) 55 Hz – 20 kHz
  • Frequency Response (±3 dB) 80 Hz – 20 kHz
  • Coverage Pattern 90° x 90°
  • Directivity Factor (Q) 10.1 (1 k – 16 kHz)
  • Directivity Index (DI) 9.5 dB (1k – 16 kHz)
  • System Power Rating 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
  • Sensitivity (2.83V @ 1m) 96 dB (Ave. 80 Hz – 20 kHz)
  • Maximum SPL (1m) Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
  • Crossover Network 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance 8 ohms
  • Transformer Taps 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
  • LF Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
  • HF Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
  • HF Driver Protection Minimum audibility SonicGuard™ HF overload protection
  • Enclosure ABS with Glass enclosure, heavily braced
  • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
  • Dimensions 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
  • Colors Available in gray (similar to Pantone 420C) and black (-BK)
  • Net Weight (each) 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
  • Shipping Weight 23.4 kg (51.5 lbs)
  • Crossover Modes Passive
  • Nominal LF Driver Impedance 8 ohms
  • Suspension Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
