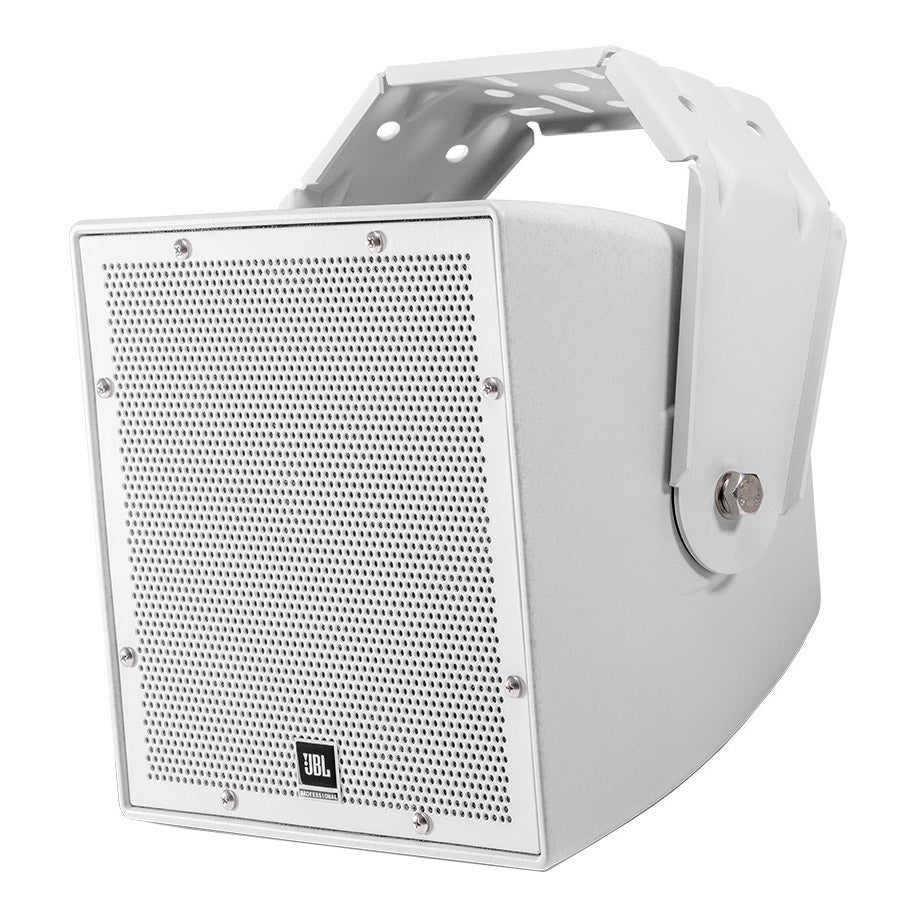

• JBL AWC62 6.5-Inch Weather-Resistant Speaker, black
1 1

JBL AWC62 6.5-Inch Weather-Resistant Speaker | Color: White

JBL AWC62 6.5-Inch Weather-Resistant Speaker | Color: White

SoundPro Item: 97450 | Part Number: AWC62

$745.00
$745.00 $745.00
Your Price Sold out
MSRP: $745.00 | MAP: $745.00

Usually ships in 5-7 business days

  • Highly weather-resistant IP56 rating
  • Consistent 110° x 110° broadband pattern control
  • Components:
    • 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil
    • 25 mm (1 in) exit compression driver
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 70 Hz - 18 kHz frequency response
  • 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
Log in or register for YOUR best price

The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

View full details
  • Frequency Range (-10dB) 70 Hz – 18 kHz
  • Frequency Response (±3 dB) 100 Hz – 16 kHz
  • Coverage Pattern 110º x 110º
  • Directivity Factor (Q) 7.2 (1 k – 16 kHz)
  • Directivity Index (DI) 7.9 dB (1 k – 16 kHz)
  • System Power Rating 175 W 2 hrs. 120 W 100 hrs (IEC rated)
  • Sensitivity (2.83V @ 1m) 92 dB (Ave. 100 Hz – 18 kHz)
  • Maximum SPL (1m)Direct 8Ω: 114 dB (peaks of 120 dB)120 W Tap: 112 dB
  • Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF
  • Nominal Impedance 8 ohms
  • Transformer Taps 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W
  • LF Driver Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.
  • HF Driver 25 mm (1 in) diaphragm and voice coil diameter
  • HF Driver Protection Minimum audibility SonicGuard™ HF overload protection
  • Enclosure ABS with Glass enclosure
  • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”).
  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
  • Dimensions 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet 288 mm (11.4 in) including gland nut 309 mm (12.2 in) including bracket extending to back
  • Colors Available in gray (similar to Pantone 420C) and black (-BK)
  • Net Weight (each) 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket
  • Shipping Weight 8.8 kg (19.5 lb)
  • Crossover Modes Passive
  • System Sensitivity (1w @ 1m) 92 dB (Ave. 100 Hz – 18 kHz
  • Suspension Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
