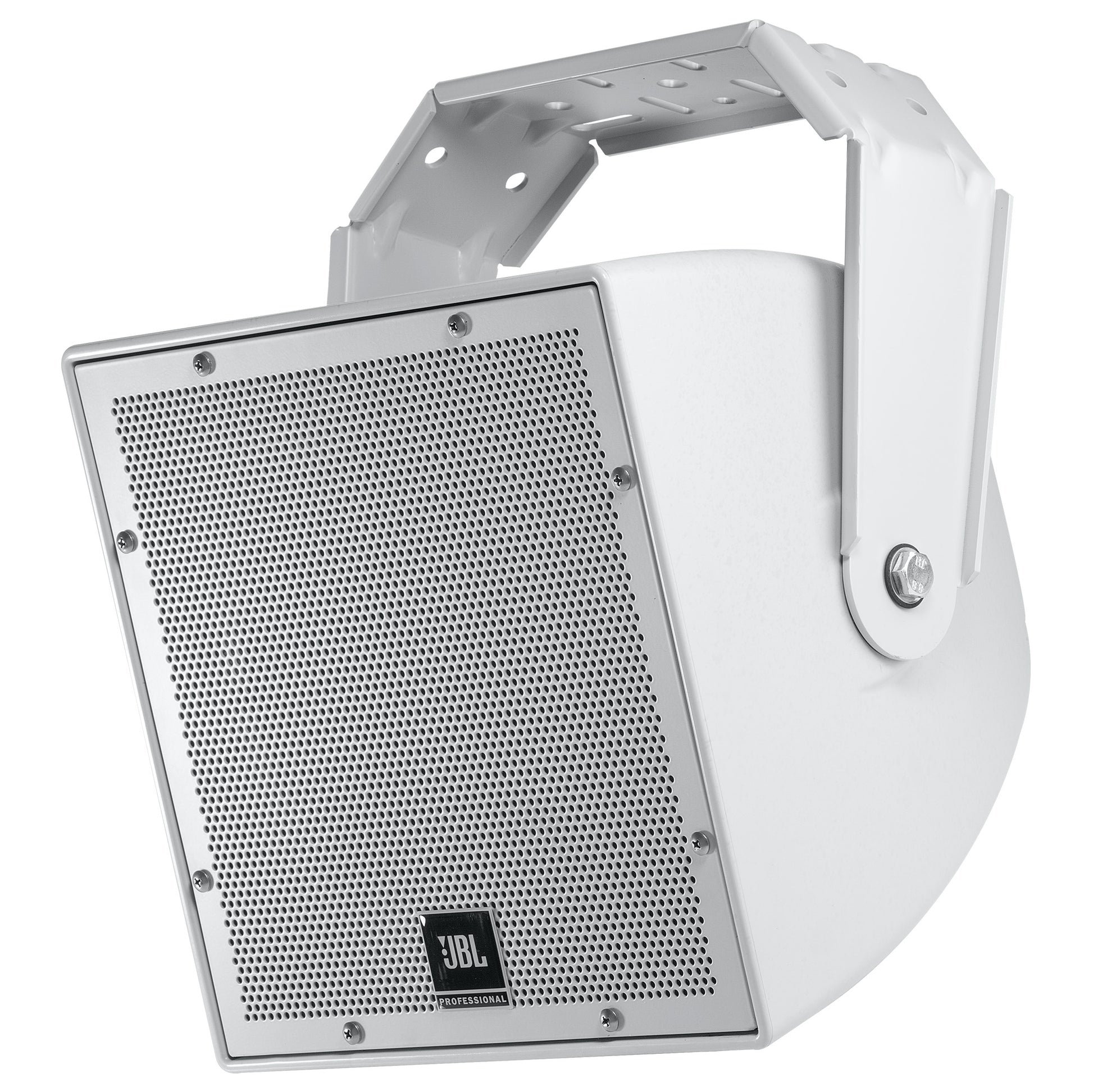

• JBL AWC82 8" 2-Way All-Weather Compact Speaker, white

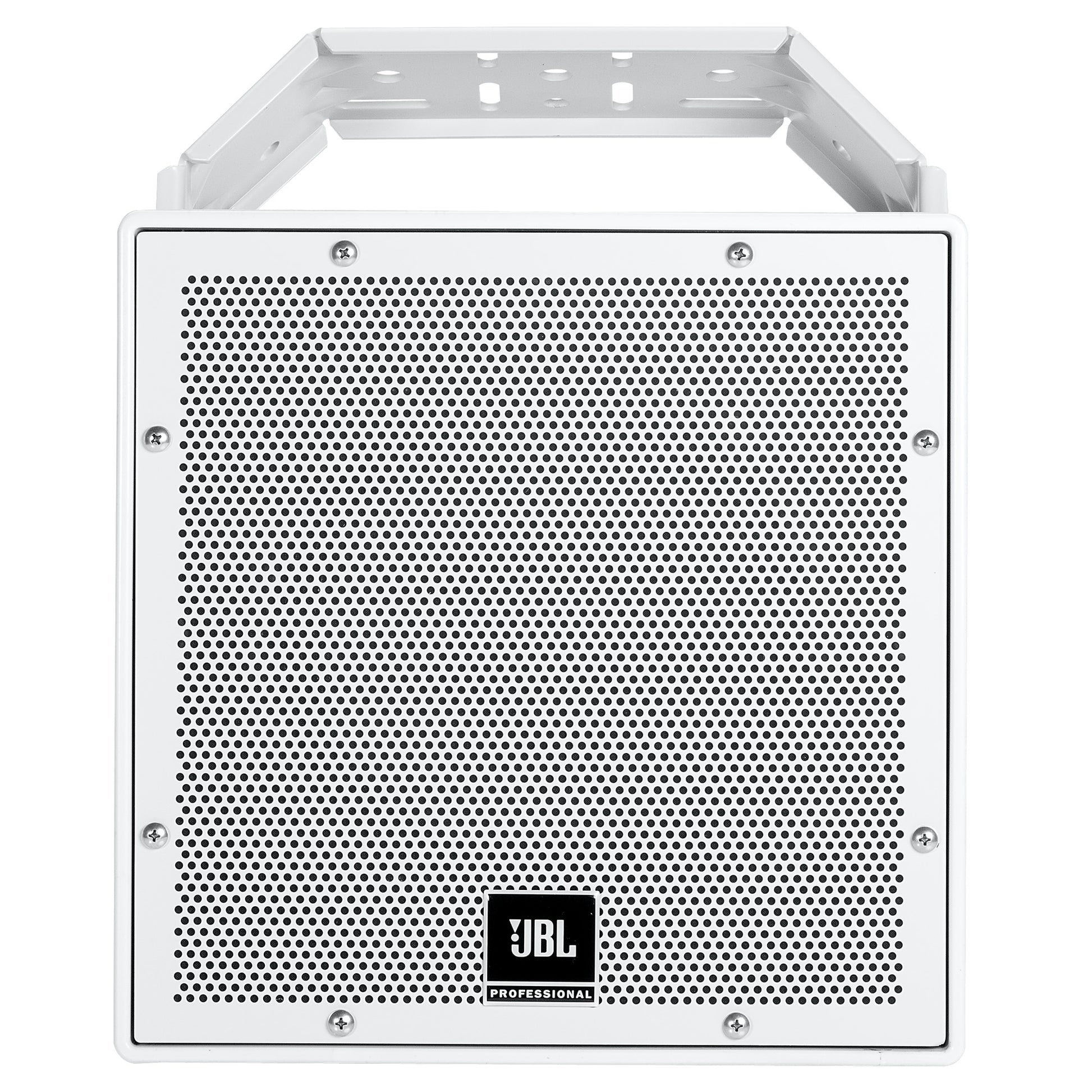

  • JBL AWC82 8" 2-Way All-Weather Compact Speaker, white front
1 2

JBL AWC82 8-Inch Weather-Resistant Speaker | Color: White

JBL AWC82 8-Inch Weather-Resistant Speaker | Color: White

SoundPro Item: 13828

$570.00
$570.00 $570.00
Your Price Sold out
MSRP: $570.00 | MAP: $570.00

In stock and ready to ship

  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control
  • Components:
    • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 80 Hz - 20 kHz frequency response
  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
Log in or register for YOUR best price

The AWC82 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

View full details
  • Frequency Range (-10dB) 80 Hz – 20 kHz
  • Frequency Response (±3 dB) 100 Hz – 20 kHz
  • Coverage Pattern 120° x 120°
  • Directivity Factor (Q) 8.1 (1 k – 16 kHz)
  • Directivity Index (DI) 8.4 dB (1 k – 16 kHz)
  • System Power Rating 250 W 2 hrs. 200 W 100 hrs
  • Sensitivity (2.83V @ 1m) 94 dB (Ave. 100 Hz – 20 kHz)
  • Maximum SPL (1m) Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB
  • Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance 8 ohms
  • Transformer Taps 70V: 200W, 100W, 50W, 25W100V: 200W, 100W, 50W
  • LF Driver Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
  • HF Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
  • HF Driver Protection Minimum audibility SonicGuard™ HF overload protection
  • Enclosure ABS with Glass enclosure, heavily braced
  • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
  • Dimensions 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
  • Colors Available in gray (similar to Pantone 420C) and black (-BK)
  • Net Weight (each) 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
  • Shipping Weight 14.1 kg (31.0 lb)
  • Crossover Modes Passive
  • Nominal LF Driver Impedance 8 ohms
  • Suspension Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
