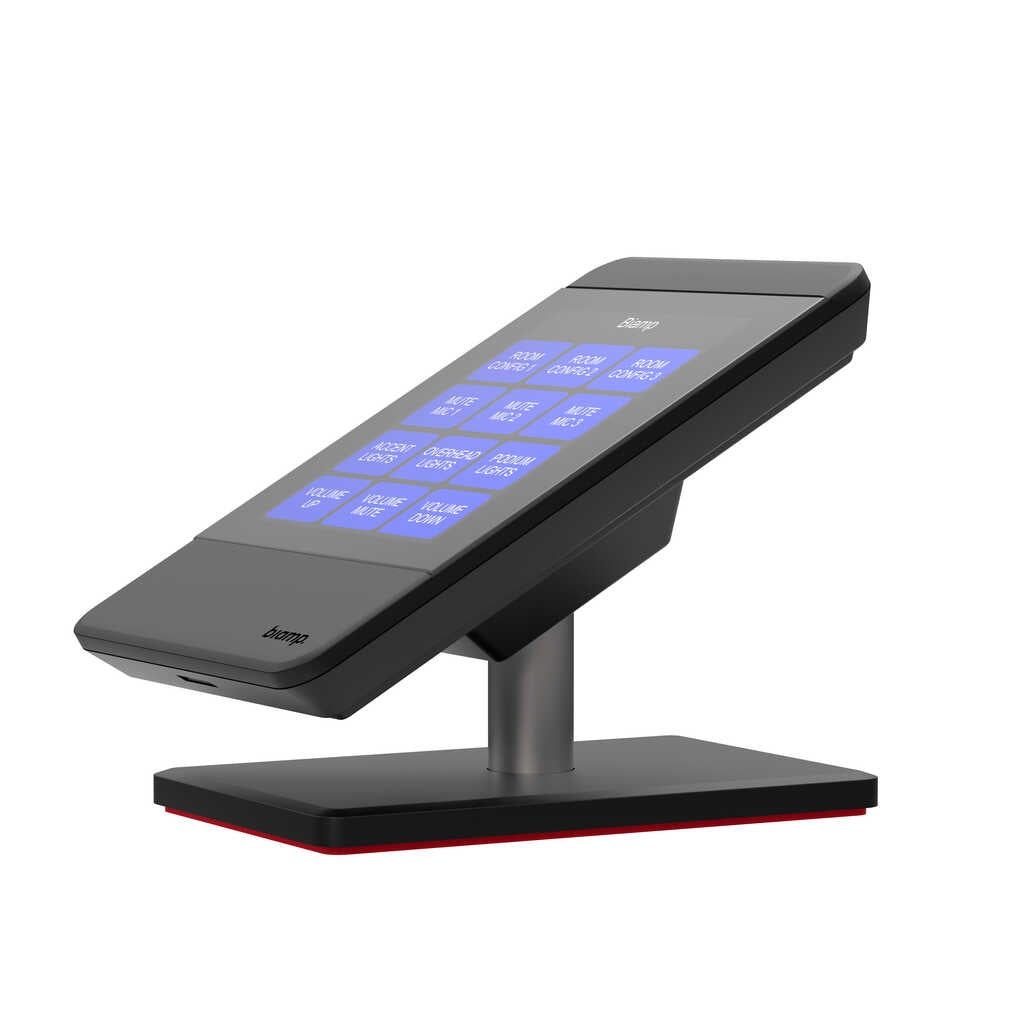

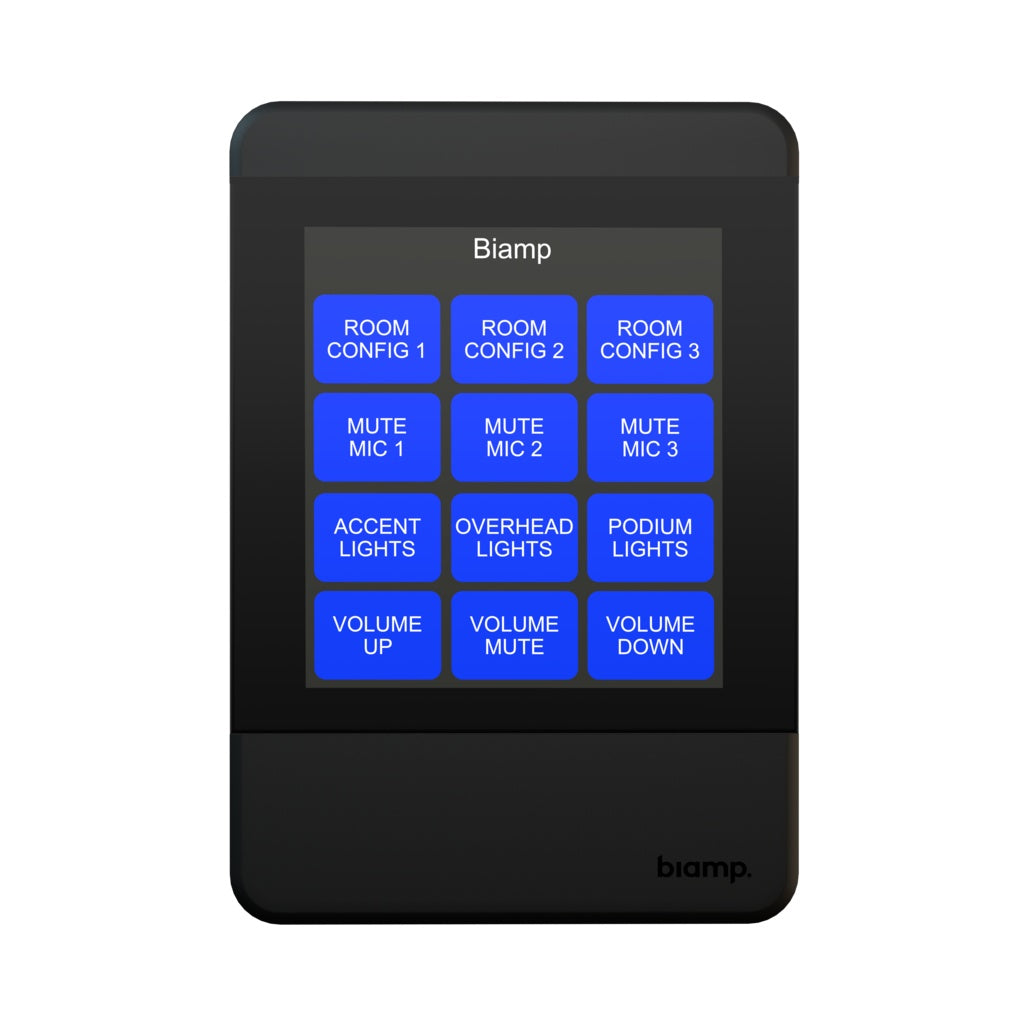

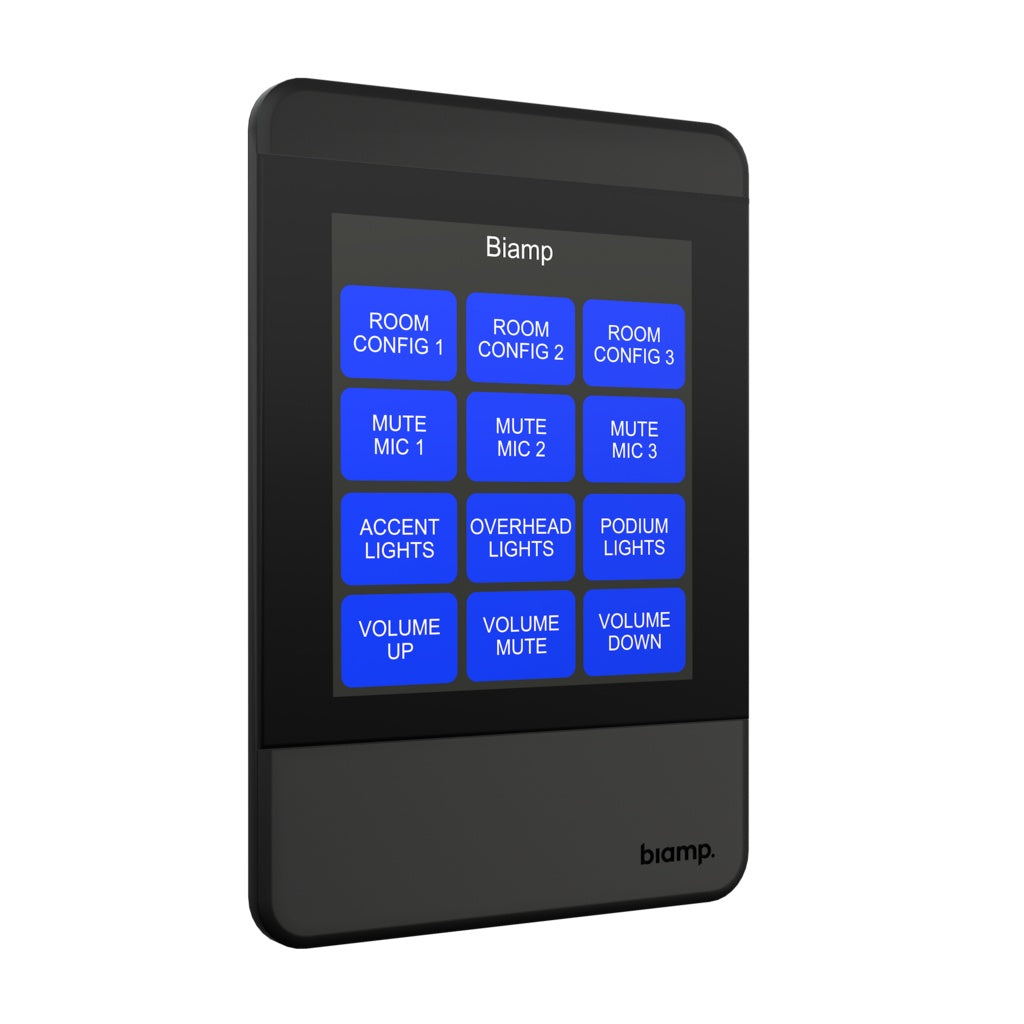

Biamp Apprimo TEC-X 2000 Networked Touch Control Pad | Black

Biamp Apprimo TEC-X 2000 Networked Touch Control Pad | Black

SoundPro Item: 110070 | Part Number: 920-10862-10000

$609.90
$642.00 $609.90
Your Price Sold out
MSRP: $642.00 | MAP: $609.90

Usually ships in 5-7 business days

  • Capacitive Touch LCD Accepts Up To 12 Programmable Buttons For Custom Room Control Layouts
  • Automatic Brightness Adjustment Responds To Ambient Light Levels For Optimal Readability
  • Daisy Chain Architecture Connects Up To Four Units On One Cable Run To Reduce Installation Labor
  • Assignable RGB LED Bar Delivers Visual Feedback For Mute Status And System State
  • Complete TTP Command Support Enables Integration With Existing Tesira Control Logic
  • TAA Compliance Qualifies For U.S. Federal Government Procurement Under GSA Schedule
Log in or register for YOUR best price

The Apprimo TEC-X 2000 brings modern user interface design to installed AV systems running on the Tesira platform. Integrators deploy this networked control pad in corporate conference rooms, education presentation spaces, and municipal meeting facilities where end users need straightforward access to room functions without complex button arrays or training requirements. The capacitive touch LCD supports up to 12 on-screen buttons that can be programmed directly within Tesira software, enabling rapid customization as room layouts or user workflows evolve post-installation.

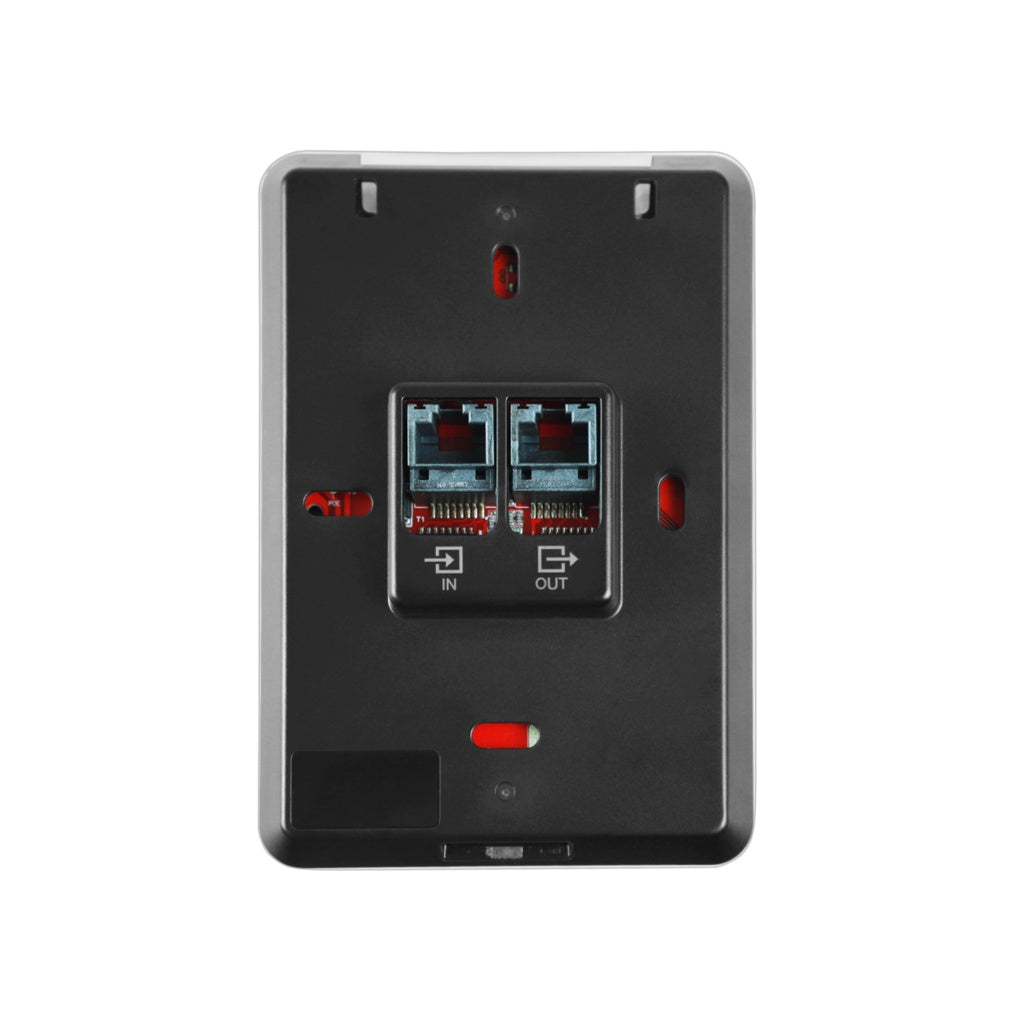

Four units can be daisy chained together across a single Cat5e or Cat6 cable run, dramatically reducing wire pulls and switch port consumption compared to traditional wall panel installations. The device draws under 2 watts during operation and meets IEEE 802.3at Class 3 PoE standards for reliable power delivery. An assignable RGB LED bar provides at-a-glance feedback for microphone mute status or system state without requiring users to read the display. TAA compliance makes this control solution eligible for U.S. federal procurement through GSA Schedule contracts.

View full details

Specifications

Certifications
TAA Compliant
Yes
FCC
Part 15B
CE
Yes
UL/C-UL
Yes
RoHS
Yes
Dimensions
Height
5.1"
Width
3.5"
Depth
0.5"
Weight
Weight
0.3 lbs
Power
Power Source
PoE (IEEE 802.3at Class 3, 15W)
Power Consumption
< 2W Max
Power Indicator
RGB LED bar with adjustable brightness
Display
Display Type
High-Contrast Capacitive Touch LCD
Display Size
3.8" diagonal
Maximum Buttons
12
Network
Network Connection
RJ-45 (Cat 5e and above)
Daisy Chain Capacity
4 devices max
Environmental
Operating Temperature
32 - 104° F (0 - 40° C)
Humidity
0-95% relative humidity (non-condensing)
Altitude
0-10,000 ft (0-3000m) MSL
