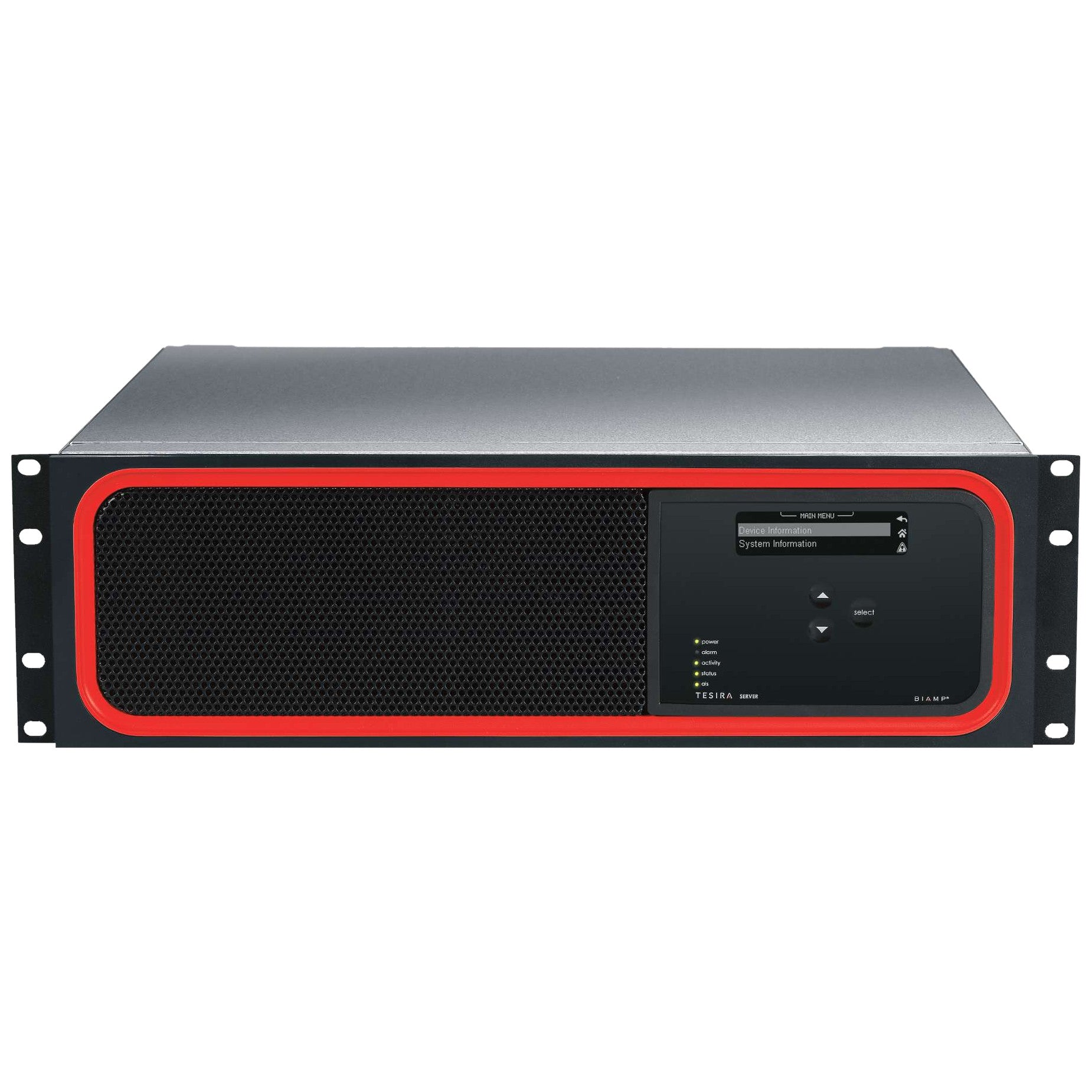

Biamp Tesira SERVER-IO AVB Configurable I/O DSP
Biamp Tesira SERVER-IO AVB Configurable I/O DSP
Soundpro Item: 36071 | Part Number: TESIRA SERVER-IO AVB
- Supports up to 3 DSP-2 cards
- Supports up to 12 I/O cards with a maximum of 48 channels of analog audio
- Up to 420 x 420 channels of digital I/O over AVB
- Supports optional 32 x 32 CobraNet audio networking
- Supports optional 64 x 64 Dante audio networking
- System configuration and control via Ethernet or serial connection
- Front panel OLED display for device and system information
- SpeechSense™ and AmbientSense™ processing algorithms
- Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
- Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
- Rack mountable (3RU)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' five-year warranty
Couldn't load pickup availability
The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and FXO telephone interface). The SERVER-IO can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.
Specifications
- Tesira SERVER-IO
- Frequency Response (20Hz~20kHz @ +4dBu): +0/-0.25dB
- THD+N (20Hz~20kHz)
- @ 0dB Gain, +4dBu In: < 0.006%
- @ 54dB Gain, -50dBu In: < 0.040%
- EIN (20Hz~20kHz, 66dB Gain, 150Ω): < -125dBu
- Dynamic Range (20Hz~20kHz, 0dB): > 108dB
- Input Impedance (balanced):8kΩ
- Maximum Input+24dBu
- Input Gain Range (6dB Steps):0 - 66dB
- Output Impedance (balanced):200Ω
- Maximum Output:+24dBu
- Power Consumption (100~240VAC 50/60Hz):< 150W
- Phantom Power: +48 VDC (7mA/input)
- Cross Talk (channel to channel @ 1kHz)
- @ 0dB Gain, +4dBu In: < -85dB
- @ 54dB Gain, -50dBu In: < -75dB
- Overall Dimensions
- Height: 5.25 inches (133 mm)
- Width: 19.0 inches (483 mm)
- Depth: 17.0 inches (432 mm)
- Weight: 18 lbs (8.2 kg)
- Sampling Rate: 48kHz
- A/D Converters: 24-bit
- Compliance
- FCC Part 15B (USA)
- FCC Part 68 (USA)
- Industry Canada CS-03 (Canada)
- CE marked (Europe)
- UL and C-UL listed (USA & Canada)
- RCM (Australia)
- EAC (Eurasian Customs Union)
- RoHS Directive (Europe)
- AVB Card
- IEEE Standards based
- 802.1AS
- 802.1Qav
- 802.1Qat
- 1722
- 1722.1
- IEEE Standards based
