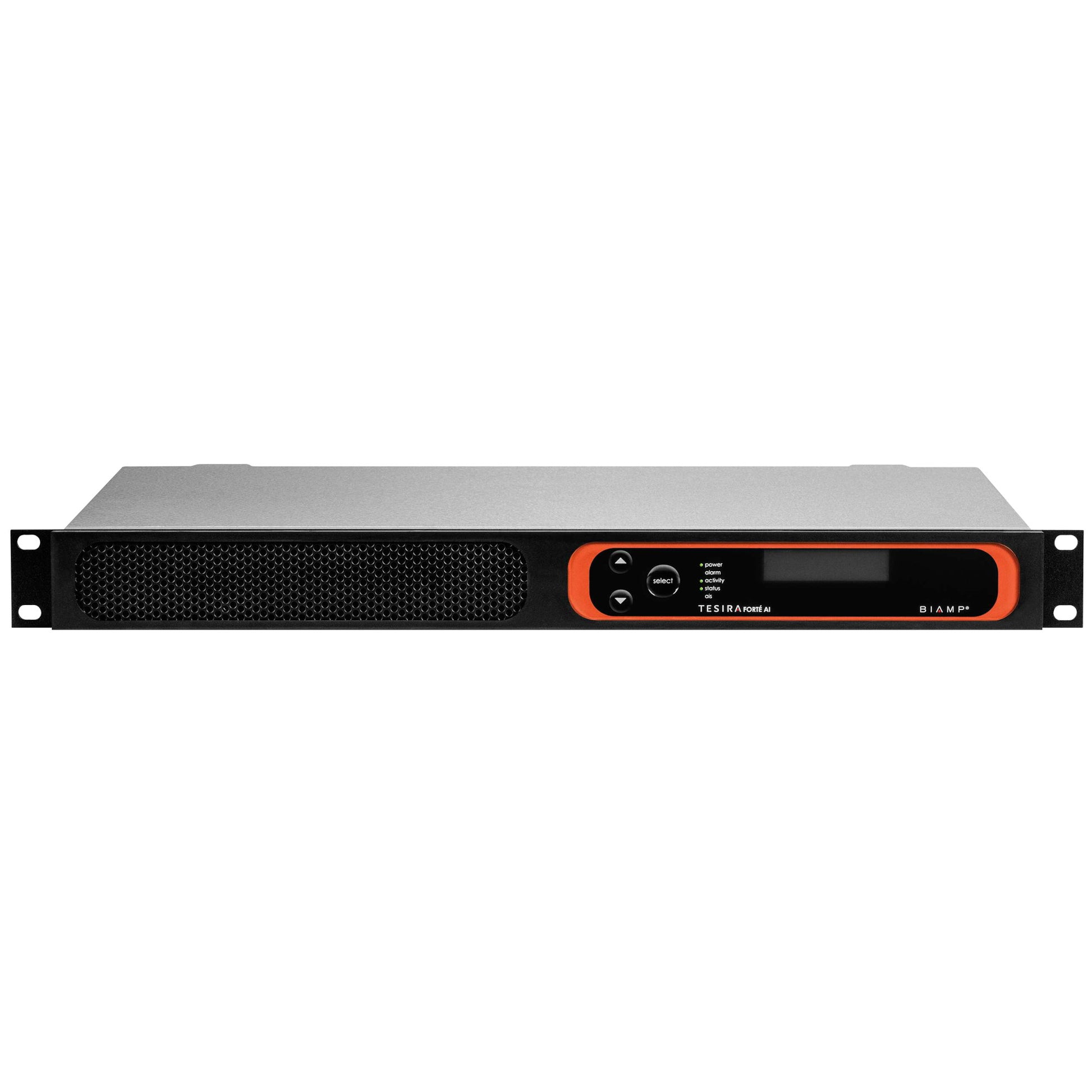

• Biamp TesiraFORTE AI Fixed I/O DSP
1 1

Biamp TesiraFORTE AI Fixed I/O DSP

Biamp TesiraFORTE AI Fixed I/O DSP

SoundPro Item: 35908 | Part Number: 0400.900

$3,192.00
$3,192.00 $3,192.00
Your Price Sold out
MSRP: $3,192.00 | MAP: $3,192.00

Usually ships in 5-7 business days

  • 12 mic/line level inputs, 8 mic/line level outputs
  • Gigabit Ethernet port
  • RS-232 serial port
  • 4-pin GPIO
  • 2-line OLED display with capacitive-touch navigation
  • Rack mountable (1RU)
  • System configuration and control via Ethernet
  • Internal universal power supply
  • Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
Log in or register for YOUR best price

The TesiraFORTÉ AI is a digital audio server (fixed audio I/O DSP) with 12 analog inputs and 8 analog outputs, and includes up to 8 channels of configurable USB audio.

The TesiraFORTÉ AI complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

View full details
  • Frequency Response20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
  • THD+N (22Hz to 22kHz)
    • 0dB gain, +4dBu input: < 0.006%
    • 54dB gain, -50dBu input: < 0.040%
  • EIN (no weighting, 22Hz to 22kHz)< -125dBu
  • Dynamic Range (in presence of signal)22Hz to 22kHz, 0dB gain: > 108dB
  • Input Impedance (balanced)8kΩ
  • Output Impedance (balanced)207Ω
  • Maximum Input +24dBu
  • Maximum Output (selectable)+24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
  • Input Gain Range (6dB steps)0-66dB
  • Overall Dimensions
    • Height: 1.75 inches (44 mm)
    • Width: 19.0 inches (483 mm)
    • Depth: 10.5 inches (267 mm)
    • Weight: 8 lbs (3.63 kg)
  • Phantom Power+48VDC (7mA/input)
  • Crosstalk, channel to channel, 1 kHz
    • 0dB gain, +4dBu input: < -85dB
    • 54dB gain, -50dBu input: < -75dB
  • Sampling Rate48kHz
  • A/D - D/A Converters24-bit
  • Power Consumption100-240VAC 50/60Hz: < 35W
  • USB
    • Bit Depth: 16- or 24-bit
    • Number of Channels: up to 8
    • Sample Rate: 48kHz
  • Environment
    • Ambient Operating
    • Temperature Range: 32-104°F (0–40°C)
    • Humidity: 0–98%, non-condensing
    • Altitude: 0-6,600 feet (0–2000 Meters) MSL
  • Compliance
    • FCC Part 15B (USA)
    • CE marked (Europe)
    • UL und C-UL listed (USA and Canada)
    • RCM (Australia)
    • RoHS Directive (Europe)
