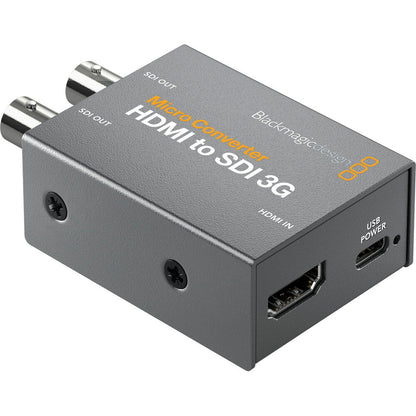

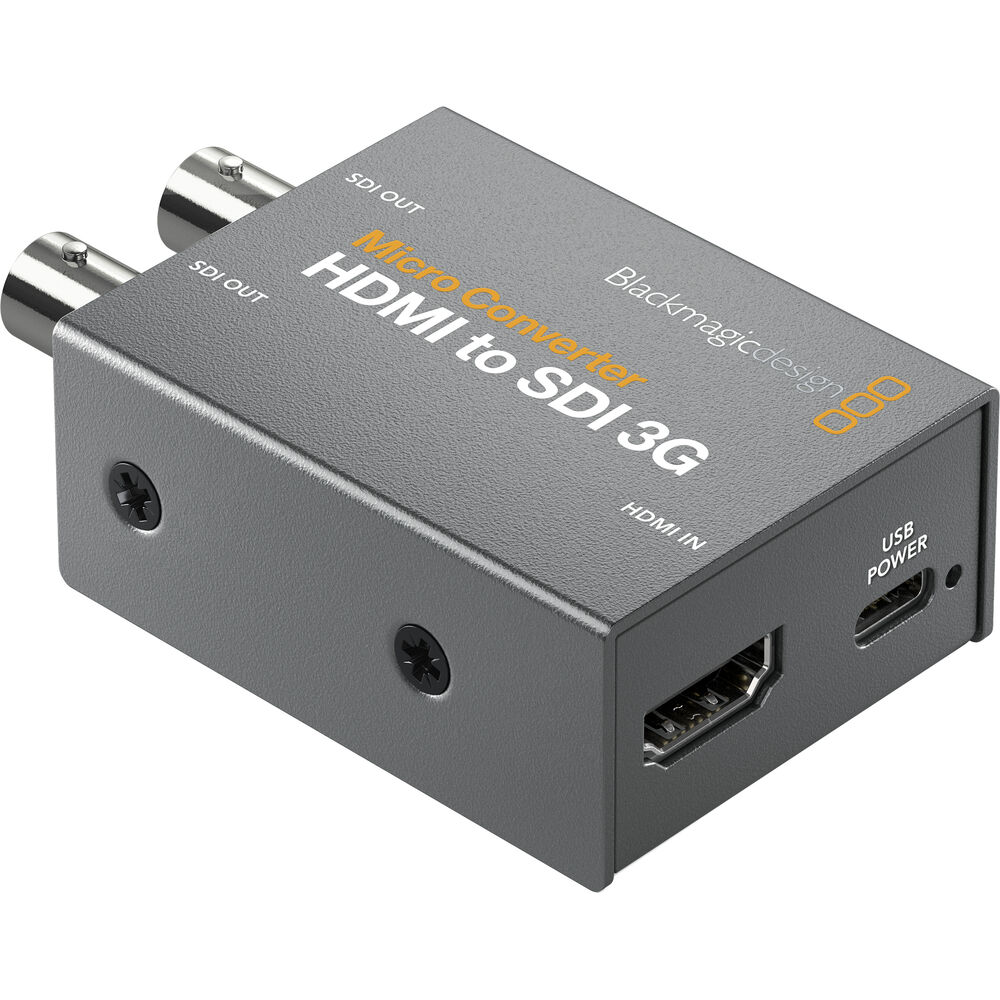

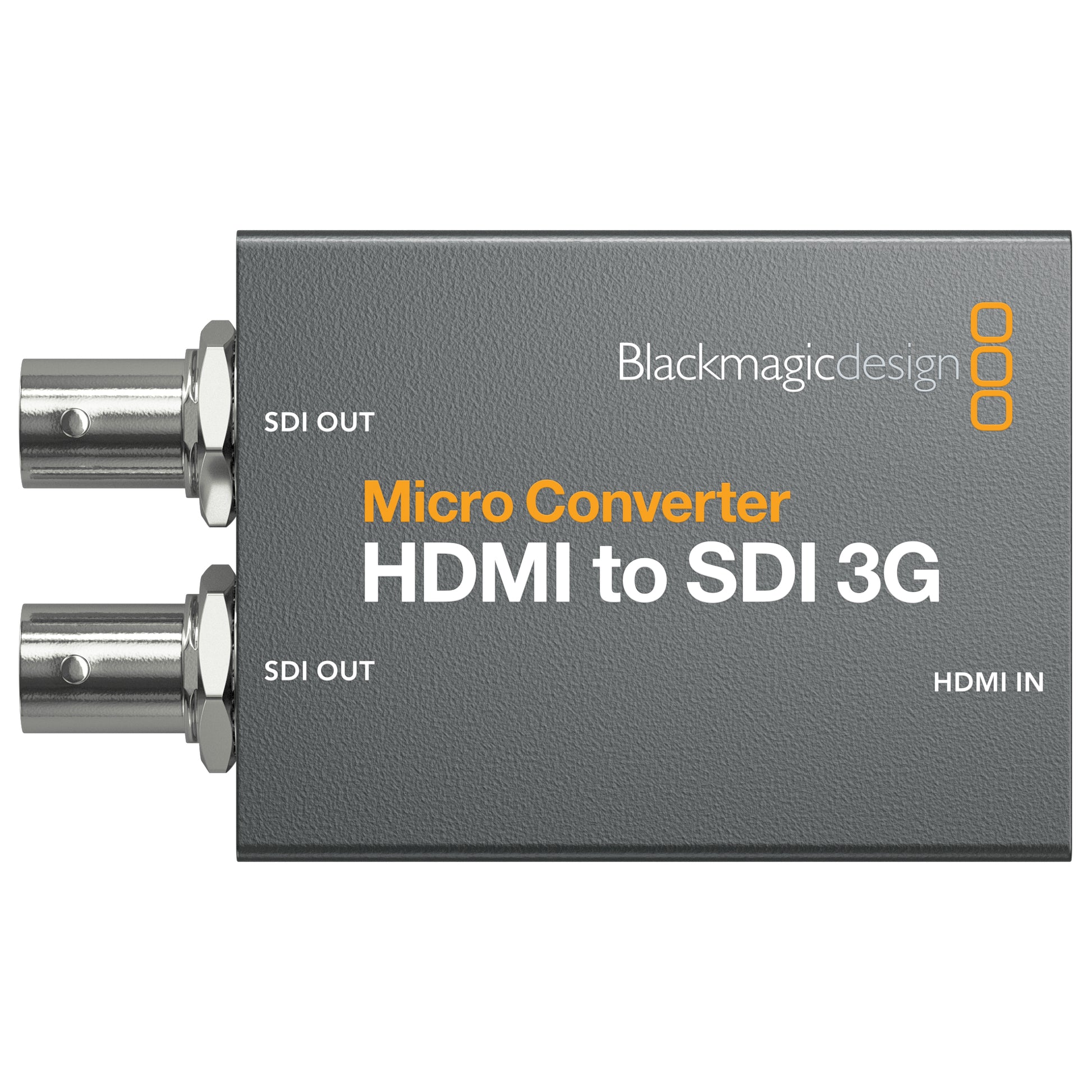

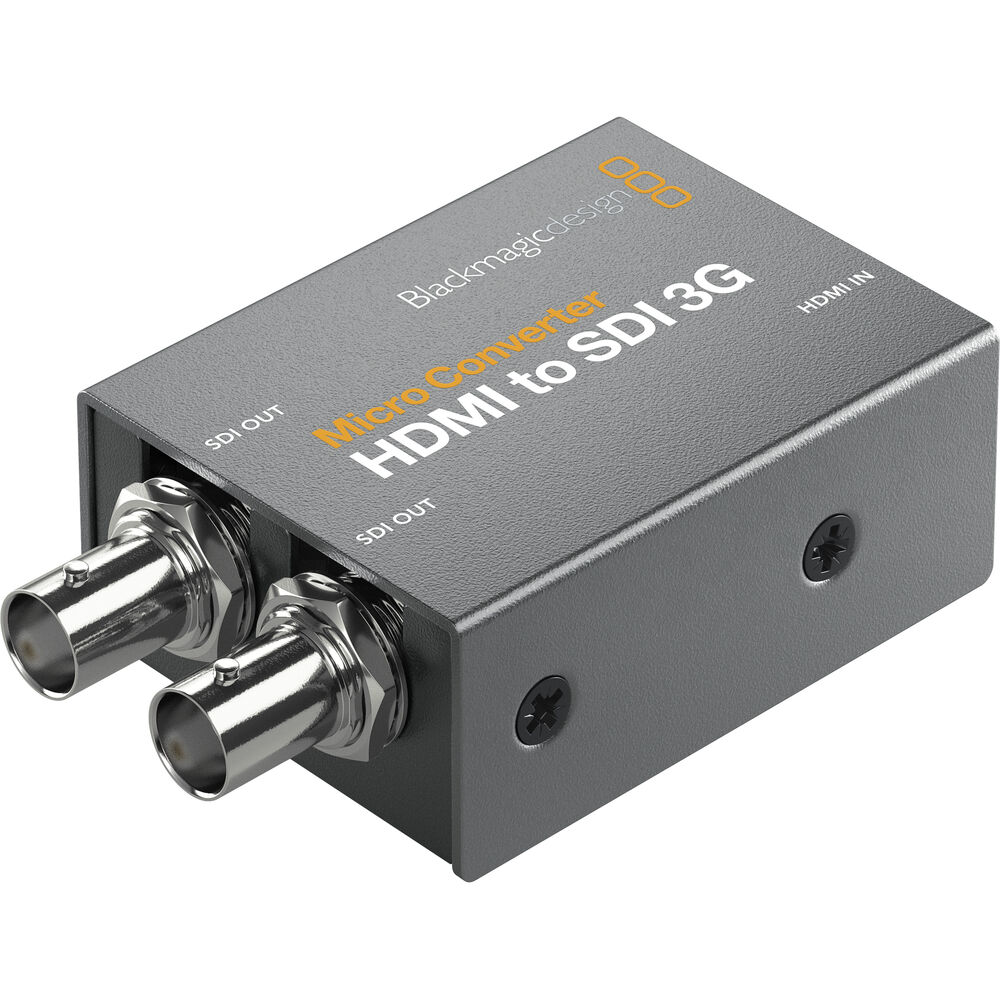

Blackmagic Design Micro Converter HDMI to SDI 3G | Configuration: Power Supply Included
Blackmagic Design Micro Converter HDMI to SDI 3G | Configuration: Power Supply Included
SoundPro Item: 105970 | Part Number: BMD-CONVCMIC/HS03G/WPSU
In stock and ready to ship
- Connects HDMI cameras and computer to pro SDI gear
- Two 3G-SDI outputs can be set to level A or level B formats
- Supports feature film video formats including 1080p24, 1080p47.95 and 1080p48
Blackmagic Design's Micro Converter connects pro HDMI cameras & computers to pro SDI gear for broadcast-quality video. Supports 1080p24, 1080p47.95, & 1080p48.
The HDMI to SDI 3G Micro Converter from Blackmagic Design is the perfect model for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
- Connections
- SDI Video Outputs: 2 x SD, HD or 3G-SDI. Automatically matches the HDMI input.
- HDMI Video Inputs: HDMI Type A in
- Multi Rate Support: Auto detection of SD or HD
- Updates, Configurations and Power: USB Type-C
- Reclocking: Yes
- Standards
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
- SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G-SDI via setup utility.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
- HDMI Video Standards
- 525i29.97 NTSC, 625i25 PAL
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision: 4:2:2
- HDMI Color Space: YUV
- Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Settings ControlVia MacOS™ and Windows™ software utility connected by USB
- Operating Systems
- Mac 10.15 Catalina
- Mac 11.1 Big Sur or later
- Windows 10, 64-bit
- SoftwareInternal software upgrade via USB
- Power Requirements
- Power Consumption: 2 W
- Operational Voltage Range: 4.4 to 5.25V DC
- Physical Specifications
- Dimensions (H x W x D): 0.98 x 3.01 x 1.8 inches
- Weight: 5.29 oz
- Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
