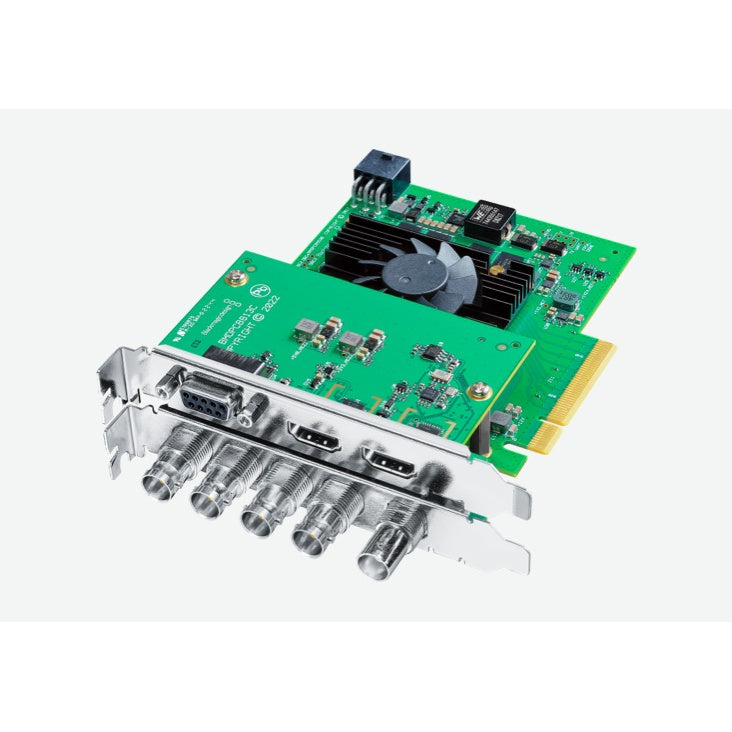

Blackmagic Design DeckLink 8K Pro G2 PCIe Capture and Playback Card

Blackmagic Design DeckLink 8K Pro G2 PCIe Capture and Playback Card

SoundPro Item: 145425 | Part Number: BMD-BDLKHCPRO8K12GG2

$855.00
$855.00 $855.00
Your Price Sold out
MSRP: $855.00 | MAP: $855.00

Usually ships in 5-7 business days

  • Quad Link 12G-SDI Bidirectional Ports Enable Flexible SDI Signal Routing
  • HDMI 2.1 Input And Output With Dolby Vision And HDR Metadata Support
  • Full Rec. 2020 Color Space Coverage For Wide Gamut Cinema Workflows
  • Hardware Colorspace Conversion On Output Reduces Host CPU Load
  • RS-422 Remote Control Output For Deck And Device Integration
  • Broadcast-Standard Tri-Sync And Black Burst Sync Input For Facility Lock
  • DaVinci Resolve Included For Immediate Color Grading Capability
Log in or register for YOUR best price

The DeckLink 8K Pro G2 is engineered for colorists, post-production engineers, and broadcast technicians who demand the highest-fidelity I/O in a PCIe form factor. Installed into any Mac, Windows, or Linux workstation with an 8 or 16-lane Gen 3 PCIe slot, the card delivers bidirectional Quad Link 12G-SDI and HDMI 2.1 connections that cover every relevant video standard from SD through 8K DCI — including high-frame-rate modes up to 4320p60 over SDI and HDMI. For facilities running DCI pipelines, the card's native 12-bit RGB 4:4:4 sampling and full Rec. 2020 color space support mean no compromises between camera-native quality and editorial delivery.

Where competing 8K capture options either sacrifice bit depth at higher resolutions or require external breakout hardware, the DeckLink 8K Pro G2 consolidates bidirectional SDI and HDMI on a single card with an RS-422 remote control output, Tri-Sync and Black Burst sync inputs, and 16-channel embedded SDI audio. Hardware-based colorspace conversion on output reduces CPU overhead, while deep codec support — including Apple ProRes 4444, DNxHR, DPX, and uncompressed 10-bit 4:4:4 — keeps the card compatible with virtually every professional NLE and color grading application. DaVinci Resolve is included at no additional cost, adding immediate production value for facilities evaluating or expanding their color grading infrastructure.

The card includes a pre-installed HDMI 2.1 mezzanine card, external power cable, spacers, and a software download code, so integration into an existing rack workstation or edit bay is straightforward from day one.

Downloads

View full details

Specifications

Connectivity
SDI Video Inputs
4 x bi-directional 12G-SDI
SDI Video Outputs
4 x bi-directional 12G-SDI
HDMI Video Input
1 x HDMI 2.1
HDMI Video Output
1 x HDMI 2.1
SDI Audio Inputs
16 channels embedded in SD/HD/2K
SDI Audio Outputs
16 channels embedded in SD/HD/2K
HDMI Audio Inputs
8 channels embedded in TMDS
HDMI Audio Outputs
8 channels embedded in TMDS
Sync Input
Tri-Sync or Black Burst
Remote Control
1 x RS-422 Out
Computer Interface
PCIe 8-lane Gen 3, compatible with 8 and 16-lane PCIe slots
Audio
SDI Audio Sampling
48 kHz, 24-bit
HDMI Audio Sampling
48 kHz, 24-bit
Video
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 up to 8Kp30 DCI; 8, 10-bit YUV 4:2:2 in all modes
HDMI Video Sampling
4:2:2, 4:4:4, 4:2:0 (asterisked modes)
HDMI Color Precision
8, 10, 12-bit (asterisked modes)
Color Space
Rec. 601, Rec. 709, Rec. 2020
HDR Support
HDR static metadata packing, HLG, PQ transfer characteristics
SDI Metadata
RP 188/SMPTE 12M-2 and closed captioning
SDI Compliance
SMPTE 259M, 274M, 292M, 296M, 372M, 424M, 425M Level A and B, 2036-1, 2048-1, 2081-10, 2081-11, 2081-12, 2082-10, 2082-11, 2082-12, ST2108-1
Supported Video Standards
SD
525i59.94 NTSC, 625i50 PAL
HD (SDI)
720p50/59.94/60; 1080i50/59.94/60; 1080p23.98–1080p120; 1080PsF23.98–1080PsF30
2K DCI
2Kp23.98–2Kp120 DCI; 2KPsF23.98–2KPsF30 DCI
Ultra HD
2160p23.98–2160p120
4K DCI
4Kp23.98–4Kp120 DCI
8K
4320p23.98–4320p60
8K DCI
8Kp23.98–8Kp60 DCI
Codecs
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software
Included Software
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic driver
OS Support
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later; Windows 10 64-bit, Windows 11; Linux
Firmware Upgrade
Built into software driver; loaded at system start or via updater software
Electrical
Power Consumption
30 W
Power Connection
External power cable to computer power supply
PCIe Slot Requirement
Requires 2 PCI slots
Environmental
Operating Temperature
5° to 50° C (41° to 122° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Included Items
In the Box
DeckLink 8K Pro G2, HDMI 2.1 mezzanine card, external power cable, spacers and screws, welcome wallet with QR code for software download
Identifiers
MPN
BMD-BDLKHCPRO8K12GG2
Warranty
3-year limited manufacturer's warranty
