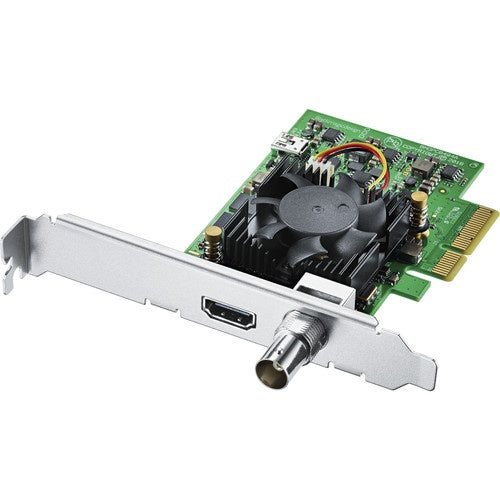

• Blackmagic Design DeckLink Mini Monitor 4K PCIe card at an angle showing HDMI and BNC outputs on bracket

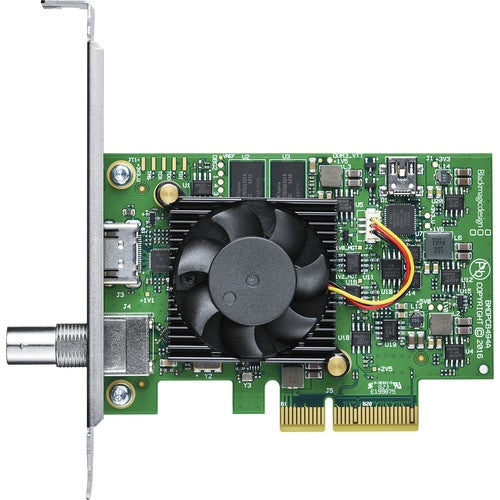

  • Blackmagic Design DeckLink Mini Monitor 4K top-down view of circuit board, cooling fan, and PCIe edge connector
1 2

Blackmagic Design DeckLink Mini Monitor 4K

Blackmagic Design DeckLink Mini Monitor 4K

SoundPro Item: 23768 | Part Number: BMD-BDLKMINIMON4K

$229.00
$229.00 $229.00
Your Price Sold out
MSRP: $229.00 | MAP: $229.00

Usually ships in 5-7 business days

  • Monitor formats up to 2160p30
  • SDI and HDMI outputs to connect to TV or monitor
  • Card automatically detects and switches between formats
  • High dynamic range playback and metadata over HDI
  • Support for Rec. 2020 color space
  • Develop custom playback solutions with Blackmagic Desktop Video SDK, compatible with Mac Windows and Linux
  • Includes 2 PCIe shields
Log in or register for YOUR best price

Blackmagic Design’s DeckLink cards support embedded SDI audio for use with professional broadcast decks, monitors, projectors, and more. DeckLink products are often used for work on feature films, episodic TV shows, music videos, and commercials.

The Blackmagic Design DeckLink Mini Monitor 4K can monitor all formats up to 2160p30 from your computer. This is an ideal solution to monitor from editing software while you work.

SDI and HDMI outputs allow the DeckLink Mini Monitor 4K to connect to any TV or monitor. Easily and smoothly handle different video formats with the Mini 4K’s ability to automatically detect and switch between formats.

DeckLink Mini Monitor 4K also has high dynamic range playback and metadata over HDI, and support for Rec. 2020 color space. Develop custom playback solutions with the Blackmagic Desktop Video SDK for Mac, Windows and Linux operating systems.

Two PCIe shields are included for full height and low profile slots.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601
Electrical
Power Consumption
10 Watts
Audio
SDI Audio Outputs
16 channels embedded in SD, HD, Ultra HD
HDMI Audio Outputs
8 Channels embedded in SD, HD, Ultra HD
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit
Connectivity
SDI Video Outputs
1 x 10 bit SD/HD/Ultra HD switchable
HDMI Video Outputs
1 x HDMI 2.0a connector
HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0
HDMI Configuration
HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
HDMI Resolution
Pixel for pixel HD resolution output to connected device
HDMI Color Precision
Up to 12-bit (Deep Color)
HDMI HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics
Construction
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes
Color Space
REC 601, REC 709, REC 2020
Included Items
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Environmental
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
3.17 oz
Identifiers
Length
4.7 inches
General
Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, Adobe Photoshop CC
Other Supported Applications Include
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite
Tools on Air Just
Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
Video Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60, 2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
SDI Video Sampling
4:4:4 & 4:2:2
SDI HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K
HD to SD Down Conversion
Software based down conversion during video playback
HD Cross Conversion
Software based cross conversion from 720p to 1080HD on playback
Colorspace Conversion
Hardware based real time
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 8.1, 10 and 11, all 64-bit, Linux
