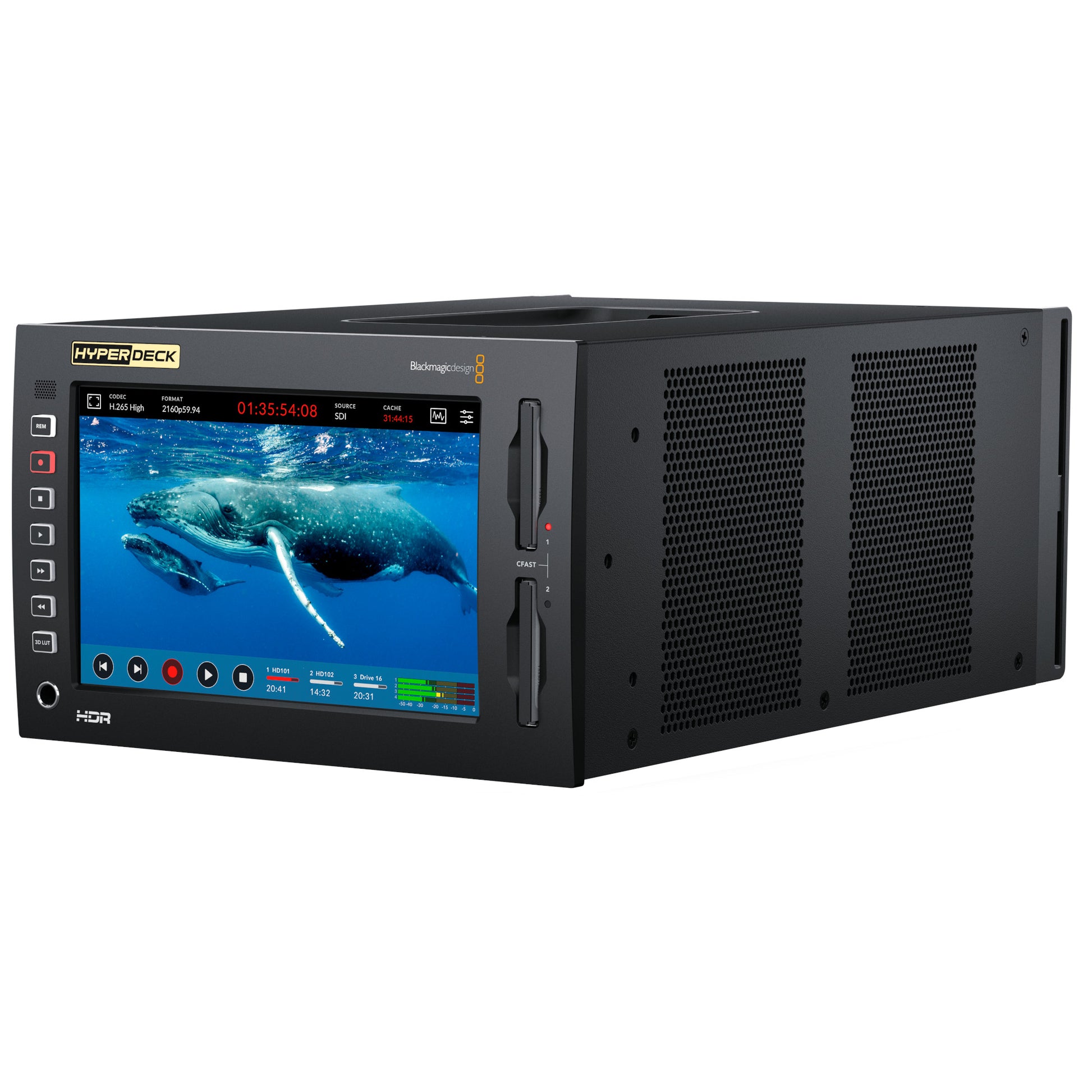

Blackmagic Design HyperDeck Extreme 4K HDR
Blackmagic Design HyperDeck Extreme 4K HDR
SoundPro Item: 134690 | Part Number: BMD-HYPERD/RSTEX4KHDR
Regular price
$3,415.00
Regular price
$3,415.00
Sale price
$3,415.00
Unit price
per
MSRP: $3,415.00
| MAP: $3,415.00
Usually ships in 5-7 business days
- Space-saving H.265 files
- Optional internal cache
- 3D LUTs and HDR support
- Record up to native 4K in H.265
- Large touch screen
HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touchscreen ensures a perfect view of your recording as well as control over all deck settings.
Specifications
Certifications
Standards
HD Video Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI Video Standards 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
Electrical
Power Requirements
Power Supply 1 x Internal 100 - 240V AC1 x 4 pin XLR 12V DC IN for external power or battery use
Audio
Analog Audio Inputs
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
SDI Audio Inputs
16 channels embedded audio
SDI Audio Outputs
16 channels embedded audio
HDMI Audio Inputs
8 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Audio Sampling
Television standard 24-bit, 48 kHz sample rate

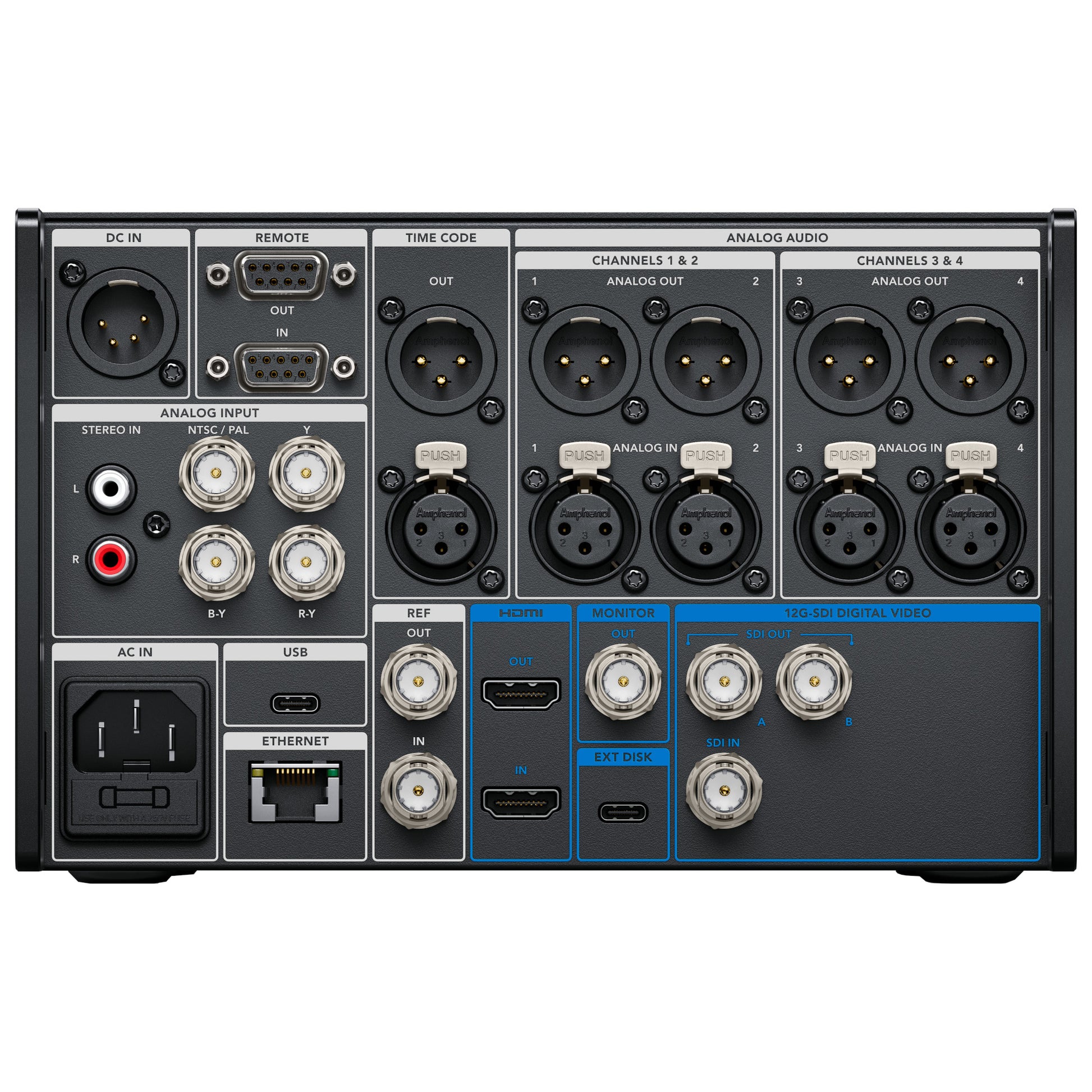

Connectivity
SDI Video Inputs
1
SDI Video Outputs
3 (12G-SDI A and B plus 3G-SDI Monitor Out)
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC
Analog Video Outputs
None
Reference Input
Tri-Sync or Black Burst
Ethernet
10Gb/s
Construction
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab
Controls
Built in Control Panel
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus
Displays
Built in LCD for video, audio and timecode monitoring and menu settings
Environmental
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
General
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
Built in Speaker
Mono

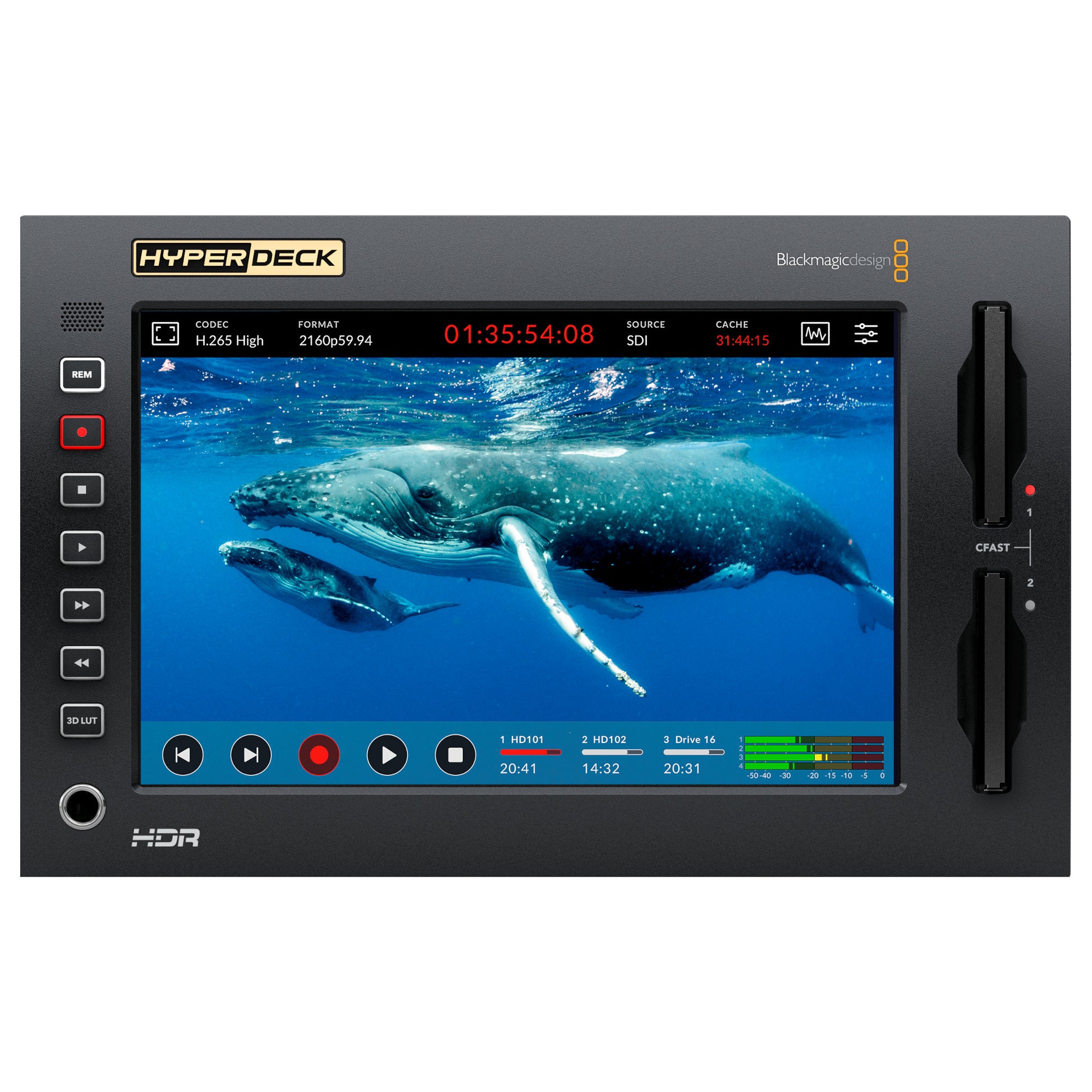

Screen
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode Connections
1 x XLR in and 1 x XLR out
Remote Control
1 x RS-422 In, 1 x RS-422 Out
Recorder Configuration
Via user interface or Blackmagic HyperDeck Ethernet Protocol
External Recording
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording
Computer Interface
1 x USB-C for software updates
SD Video Standards
525i59.94 NTSC, 625i50 PAL
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards
2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
SDI Metadata Support
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI
Video Sampling
4:2:2 YUV
Multi Rate Support
Auto detection of SD, HD, 6G SDI, and 12G-SDI
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Cache Recording
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
Media
2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, and Ultra HD
Media Type
CFast card and external USB-C flash drives
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
Video Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10 bit, H.265 Medium 4:2:0 10 bit, H.265 Low 4:2:0 10 bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10 bit, H.264 High 4:2:0 8 bit, H.264 Medium 4:2:0 8 bit, H.264 Low 4:2:0 8 bit for all formats up to 1080p60.
Supported Codecs
Audio Codecs AAC 2 ChannelsPCM 2, 4, 8, 16, 32 or 64 Channels
Scopes
Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit
Viewing Modes
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Computer Capture
None
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Software
Software Included Blackmagic OSBlackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 10 and 11
Power Usage
190W max.
Physical Installation
3 rack units height, half rack width.
