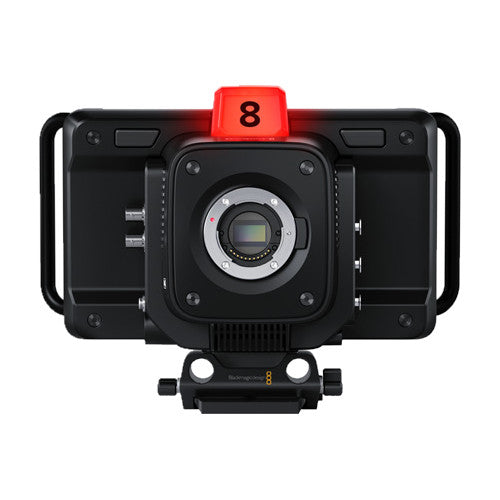

Blackmagic Design Studio Camera 4K Pro G2
Blackmagic Design Studio Camera 4K Pro G2
SoundPro Item: 139085 | Part Number: BMD-CINSTUDMFT/G24PDFG2
Regular price
$2,135.00
Regular price
$2,135.00
Sale price
$2,135.00
Unit price
per
MSRP: $2,135.00
| MAP: $2,135.00
Usually ships in 5-7 business days
- Professional 12G-SDI and 10G Ethernet connections
- 12G-SDI output and a 12G-SDI program return input that includes camera control, talkback and tally
- Powerful HDMI output with control features
- 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow
Designed for powerful SDI switchers, Blackmagic Studio Camera 4K Pro G2 adds professional 12G-SDI and 10G Ethernet connections. That's perfect when the camera is located a long distance from a switcher. There's a 12G-SDI output and a 12G-SDI program return input that includes camera control, talkback and tally. You also get the same powerful HDMI output with control features. Plus the 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow that's much lower cost.
Specifications
Certifications
SDI Compliance
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081 1, SMPTE 2081 10, SMPTE 2082 1 and SMPTE 2082 10
Dimensions
Effective Sensor Size
17.78mm x 10mm (Four Thirds)
Screen Dimensions
7 inch 1920 x 1200
Dimensions (HxWxD)
6.59x18.77x6.68" (camera only)
Electrical
Power Requirements
Power Inputs 1 x 12V DC locking 5.5 mm barrel connector.1 x 12V DC 4 pin XLR input for external power supply or battery use.1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies., Power Usage 26 40 W using DC input.30 46 W using PoE input.
Audio
Signal to Noise Ratio
63dB for 2160p.
SDI Audio Output
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Microphone
Integrated stereo microphone.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Optics
Focus
Auto focus available using compatible lenses.
Connectivity
SDI Video Inputs
1
SDI Video Outputs
1
HDMI 2.0 Video Outputs
1
Connections
Analog Audio Input 2 x XLR analog switchable between mic and line levels. Phantom power support.1 x 3.5mm Stereo Input. Can also be used for Timecode input., Analog Audio Output 1 x 5-pin XLR for talkback headset.1 x 3.5mm TRRS mini jack for headphones with mic.
Reference Inputs
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
Ethernet
10Gb/s
Construction
Lens Mount
Active MFT Mount.
Lens Control
Iris, focus, zoom on supported lenses.
Color Corrector
DaVinci YRGB
Included Items
Software Included
Blackmagic Camera Setup for Mac and Windows.
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
3.71 lbs (camera only)
General
Dynamic Range
13 Stops.
Dual Native ISO
0dB and 18dB gain.
Camera Features
Sensitivity at 0dB Gain f11 with 2160p59.94.f12 with 2160p50.at 2,000 lux with 89.9% reflectance., Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.Off-speed frame rates up to 60 fps in Ultra HD., Screen Brightness:, 2000 nits, Mounting Options 2 x 1/4 inch tripod mount.1 x 3/8 inch tripod mount.
Shooting Resolutions
3840 x 2160 (Ultra HD) up to 60 fps.
Screen Type
LCD capacitive touchscreen.
Controls
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
SDI Rates
1.5G, 3G, 6G, 12G.
Remote Control
Remote camera control over SDI, HDMI or Ethernet.
Computer Interface
2 x USB Type C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB C Port A.
Built in Speaker
1 x mono speaker.
Direct Streaming
Blackmagic Studio Camera 4K Pro G2 supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB C.
Streaming Platforms
ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Media
2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5
Storage Type
2 x USB C 3.1 Gen 1 expansion ports for external media.
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage Features
Storage Rates Storage rates based on 30 frames per second.3840 x 2160 (Ultra HD)Blackmagic RAW 3:1 - 127 MB/sBlackmagic RAW 5:1 - 77 MB/sBlackmagic RAW 8:1 - 48 MB/sBlackmagic RAW 12:1 - 32 MB/sBlackmagic RAW Q0 - 96 to 190 MB/sBlackmagic RAW Q1 - 64 to 153 MB/sBlackmagic RAW Q3 - 43 to 109 MB/sBlackmagic RAW Q5 - 26 to 64 MB/s
NOTES
Constant Quality storage rates quoted are indicative only.Actual storage rates are entirely dependent on image subject matter.
External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles., Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
Live Tally Indicator
1 x front facing for talent, 1 x rear facing for operator.
Talkback
SDI Channels 15 and 16.
Operating Systems
Mac 12.0 Monterey, Mac 13.0 Ventura or later., Windows 10, 64-bit.
Power Supply
1 x External 12V DC 60W power supply.
