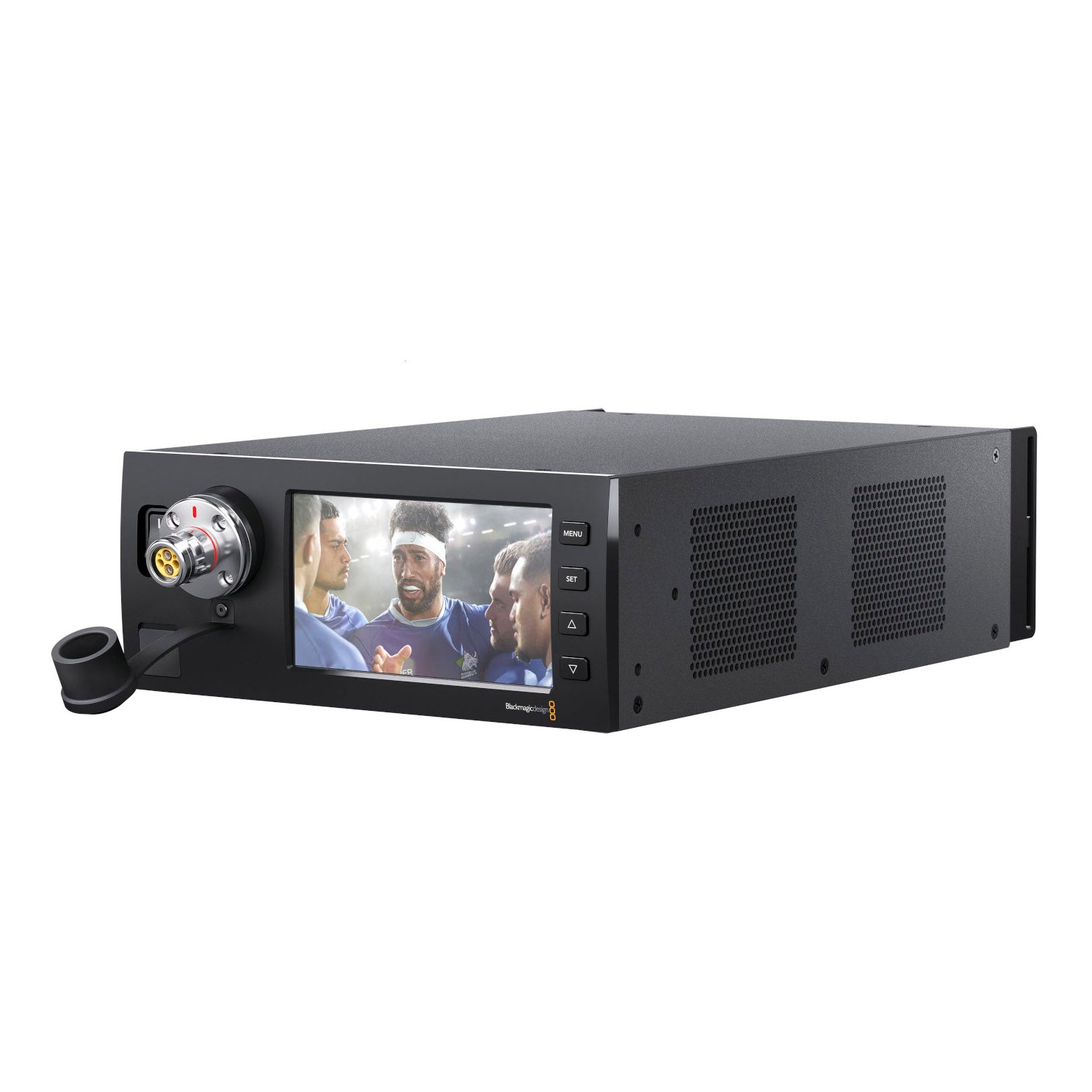

Blackmagic Design Studio Fiber Converter
Blackmagic Design Studio Fiber Converter
SoundPro Item: 31627 | Part Number: BMD-CINEURSANWFRSTUD
Usually ships in 5-7 business days
- Work with remote cameras up to 2 km away using SMPTE fiber
- Converts SDI video, audio, and remote camera control connections into a single optical fiber cable
- All video and data are transmitted using standard IP for extremely low latency broadcast quality video
- Get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections
- For camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds.
- Provides power for your remote cameras and accessories
Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.
- Connections
- Optical Fiber Input: 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector
- SDI Video Input: 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1
- SDI Video Output: 2x 12G SDI for Ultra HD up to 60p
- Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support
- Balanced XLR Audio Outputs: 4x camera analogue audio outputs
- Optical Fiber Outputs: 1x Optical I/O via 10 Gb-E (not currently active)
- Computer Interface: 1x USB-C
- Standards
- HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compliance: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
- Audio Sampling: television standard sample rate of 48kHz, 24 bit A/D conversion
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 709, REC 2020
- Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI
- Software (included)Camera Utility for firmware update
- Operating SystemsMac 10.14 Mojave, Mac 10.15 Catalina or later; Windows 8.1 and 10
- Power Supply100-240V AC input
- Physical Specifications
- Storage Temperature: -4° to 113° F (-20° to 45° C)
- Relative Humidity: 0% to 90% non-condensing
- Dimensions: 14.64" x 8.28" x 3.48"
- Weight: 6.17 pounds
