Specifications
Electrical
Recommended Amplifier / Impedance
30 - 60 W / 8Ω
Audio
Max SPL @ 1m
111 dB
Pressure Sensitivity @ 1W/1m
86 dB
Connectivity
Connectors
Screw
Construction
Enclosure Material
ABS
Grille Material
Perforated Steel
General
Color/Finish
White
Frequency Response (-10dB)
60 - 20 Hz
Sensitivity
86dB
Country of Origin
CHN
UPC
810103860919
HTS Code
8518.22.0000
Product Dimensions
7.48" x 15.75" x 5.71" (189.99 mm x 400.05 mm x 145.03 mm)
Height
15.75" (400.05 mm)
Width
7.48" (189.99 mm)
Depth
5.71" (145.03 mm)
Weight
5.95 lbs. (2.7 kg)
Base UOM
EA
Base Dimensions
10.7" x 20.0" x 10.7" (271.78 mm x 508.0 mm x 271.78 mm)
Base Height
20.0" (50.8 cm)
Base Width
10.7" (27.18 cm)
Base Depth
10.7" (27.18 cm)
Base Weight
10.8 lbs. (4.9 kg)
Master Pack Height
20.0" (50.8 cm)
Master Pack Width
10.7" (27.18 cm)
Master Pack Depth
10.7" (27.18 cm)
Master Pack Weight
10.8 lbs. (4.9 kg)
Master Pack Units
2
Pallet Units
78
Frequency Response: (+/-3dB)
60-20.000 Hz
Coverage (-6dB)
100° vertical / 100° horizontal

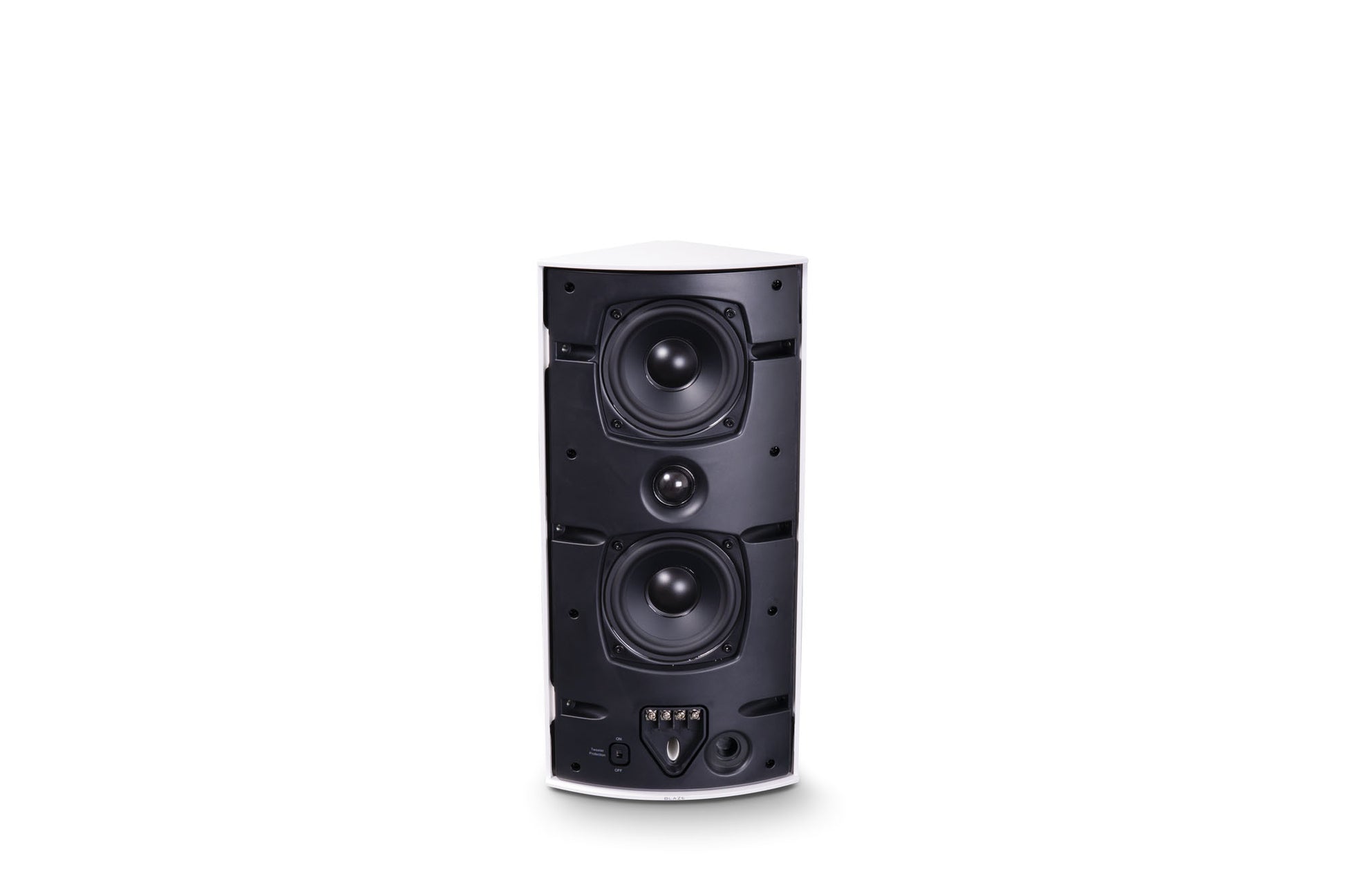

Lo-Frequency Drivers
4" woofer + 4" passive radiator
Hi-Frequency Drivers
1" silk dome tweeter
Environmental
EN54, IP65
Suspension/ Mounting
Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling, coupled
Physical Unit (H/W/D)
15.75 x 7.48 x 5.71 in
