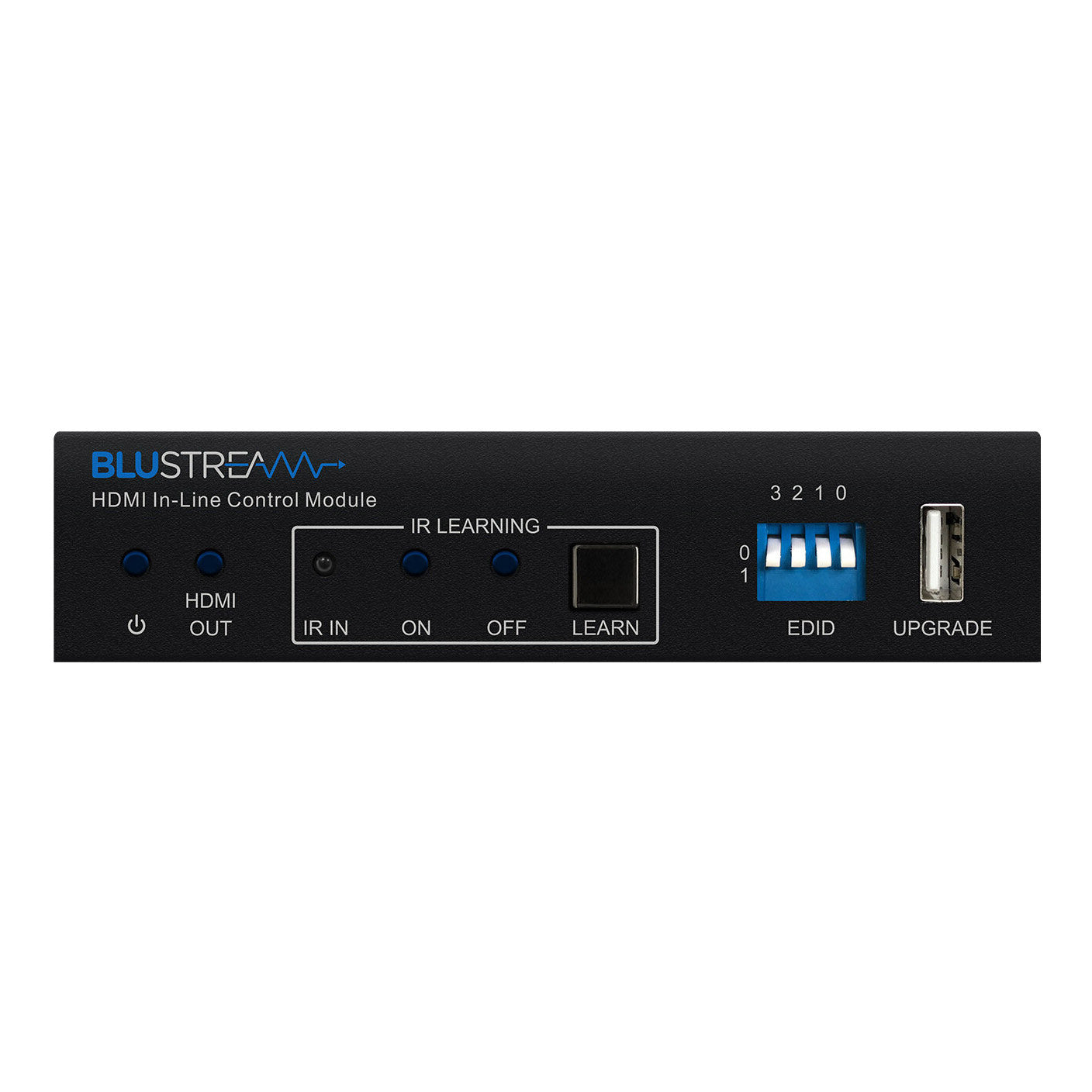

• Blustream HD11CTRL HDMI In-line Controller

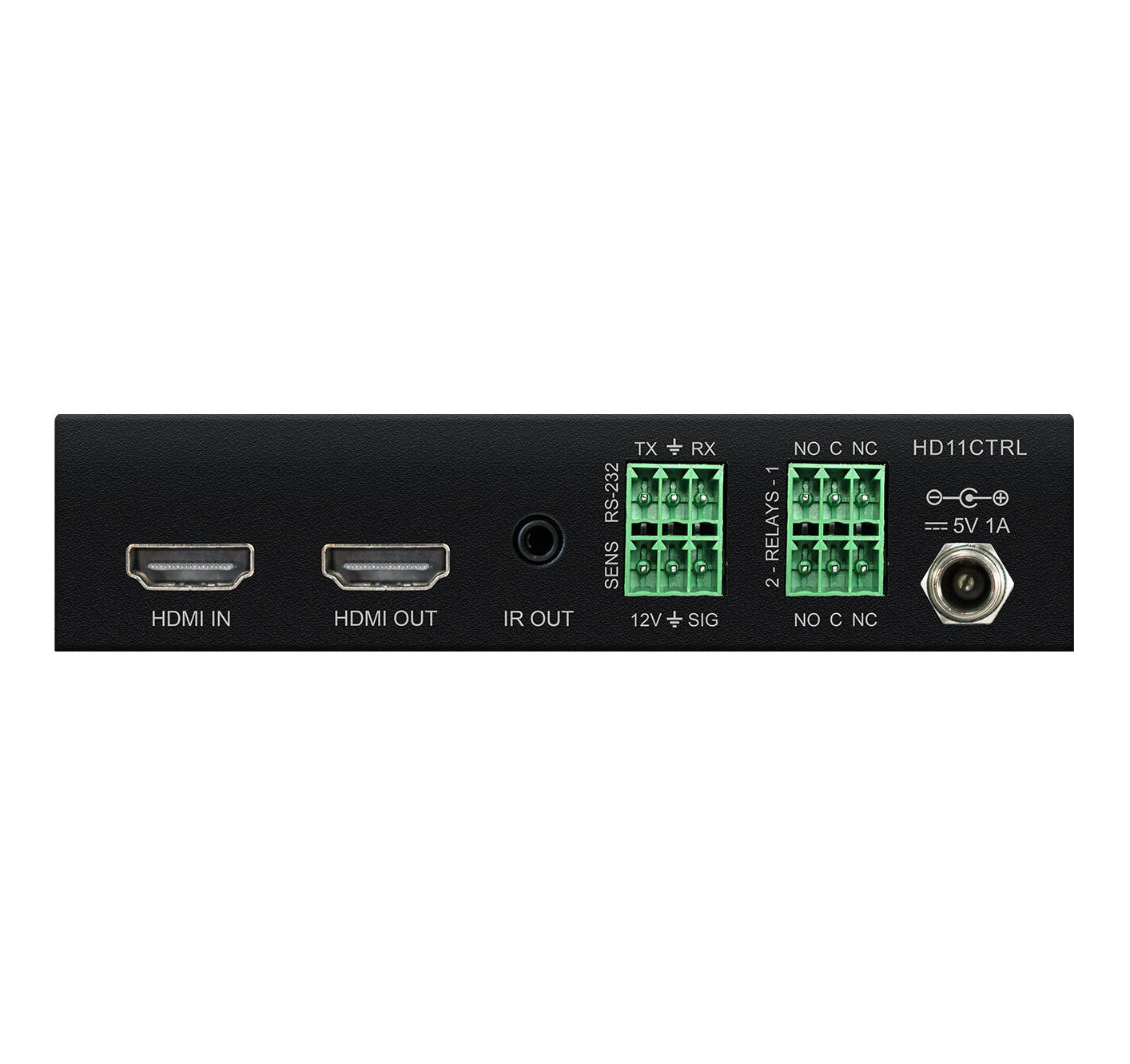

  • Blustream HD11CTRL HDMI In-line Controller back
1 2

Blustream HD11CTRL HDMI In-line Controller

Blustream HD11CTRL HDMI In-line Controller

SoundPro Item: 124026 | Part Number: HD11CTRL

$478.95
$483.95 $478.95
Your Price Sold out
MSRP: $483.95 | MAP: $478.95

Usually ships in 5-7 business days

  • Automated in-line HDMI control module
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports resolutions up to 4K UHD 60Hz 4:4:4 8-bit (18Gbps)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues
  • Automatic display on / off control via CEC, RS-232 or IR
  • Relay control for interface to third-party devices such as automated projector screens
  • Contact closure input for connection from third-party devices such as sensors or switches
  • HDCP 2.2 compliant with advanced EDID management
Log in or register for YOUR best price

Blustream's HD11CTRL HDMI in-line controller is an automated room control solution including display on / off control via CEC, RS-232 and IR when a HDMI signal is sensed on the input.

External relay inputs allow third-party triggers for integration with devices such as sensors or switches. The HD11CTRL will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can be common problems when distributing HDMI signals especially 4K.

The HD11CTRL supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

View full details

Specifications

Dimensions
Casing Dimensions (WxHxD)
4.72" x 1.1" x 3.31"
Connectivity
Video Input Connectors
1 x HDMI Type A, 19-pin, female
Video Output Connectors
1 x HDMI Type A, 19-pin, female
RS-232 Serial Port
1 x 3-Pin Phoenix connector
IR Output Port
1 x 3.5mm mono jack
Sensor Input
1 x 3-Pin Phoenix connector
Environmental
Operating Temperature
32°F to 104°F (-5°C to 55°C)
Storage Temperature
-4°F to 140°F (-25°C to 70°C)
General
Relay Control
2 x 3-Pin Phoenix connector
EDID
4-pin DIP switch
Product Upgrade
1x USB Type A female
Power Supply
5V/1A DC
