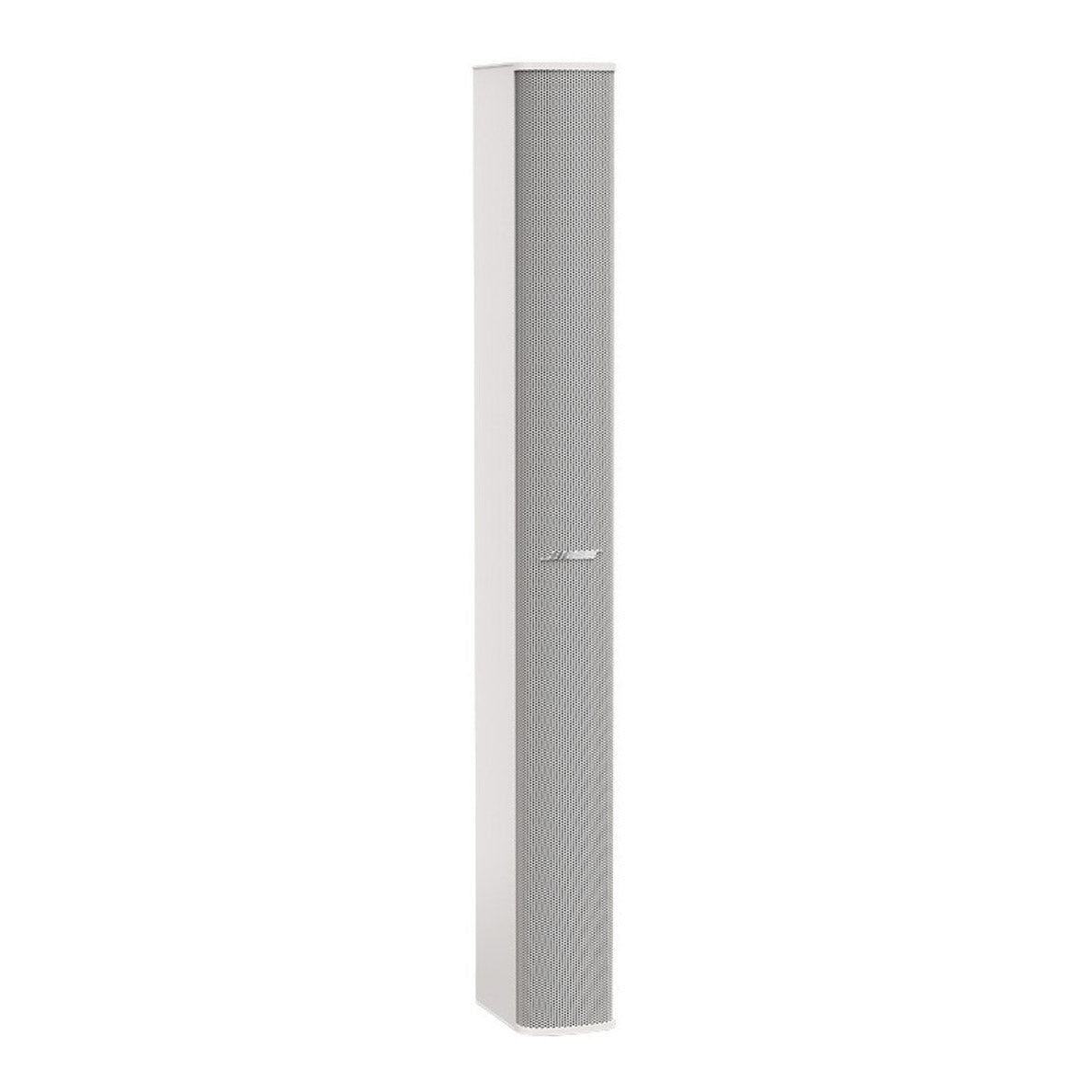

• Bose Panaray MSA12X Digital Beam-Steering Speaker black
1 1

Bose Panaray MSA12X Digital Beam-Steering Speaker | Color: White

Bose Panaray MSA12X Digital Beam-Steering Speaker | Color: White

SoundPro Item: 106926 | Part Number: 787856-1210

$3,999.00
$4,499.00 $3,999.00
Your Price Sold out
MSRP: $4,499.00 | MAP: $3,999.00

Usually ships in 5-7 business days

  • Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
  • Family sound profile with the Panaray MA12EX Loudspeaker
  • Twelve 2.25" full-range transducers with 58 Hz – 18 kHz frequency range
  • Dante® digital audio network interface and line-level analog input
  • Articulated Array® configuration allows wide, 160° horizontal coverage
  • Modular design allows building vertical arrays using 1-3 units
  • Multiple algorithms for beam steering control
  • Supports independent level and EQ control of 2 separate beams per array
  • Integrated mounting bracket allows up 90° of horizontal yaw adjustment
  • Advanced steering and acoustic coverage prediction using Bose Modeler® software
  • System setup, control and monitoring with Bose ControlSpace® Designer™ software
Log in or register for YOUR best price

The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.

Applications

  • Houses of worship
  • Auditoriums
  • Transportation facilities
  • Conference Rooms
  • Lecture Halls
View full details
  • Frequency Range (-10 dB)58 Hz - 18,000 Hz
  • Driver Compliment12 x 2.25" full-range transducers
  • Horizontal Dispersion160°
  • Amplifier Power Handling600 W (12 x 50 W)
  • Vertical Opening Angles (software adjustable)
    • 1 Module: up to 30°
    • 2-3 Modules: up to 40°
  • Vertical Beam Steering Angles+/- 20°
  • Max SPL @ 1 m112 dB SPL (118 dB SPL peak)
  • InputsDante digital audio network interface and line-level analog input
  • Suspension/Mountingintegrated wall brackets; allows horizontal yaw up to 90° in either direction
  • Dimensions (HxWxD)38.74" x 4.16" x 8.12"
  • Weight32 pounds (14.5 kg)
