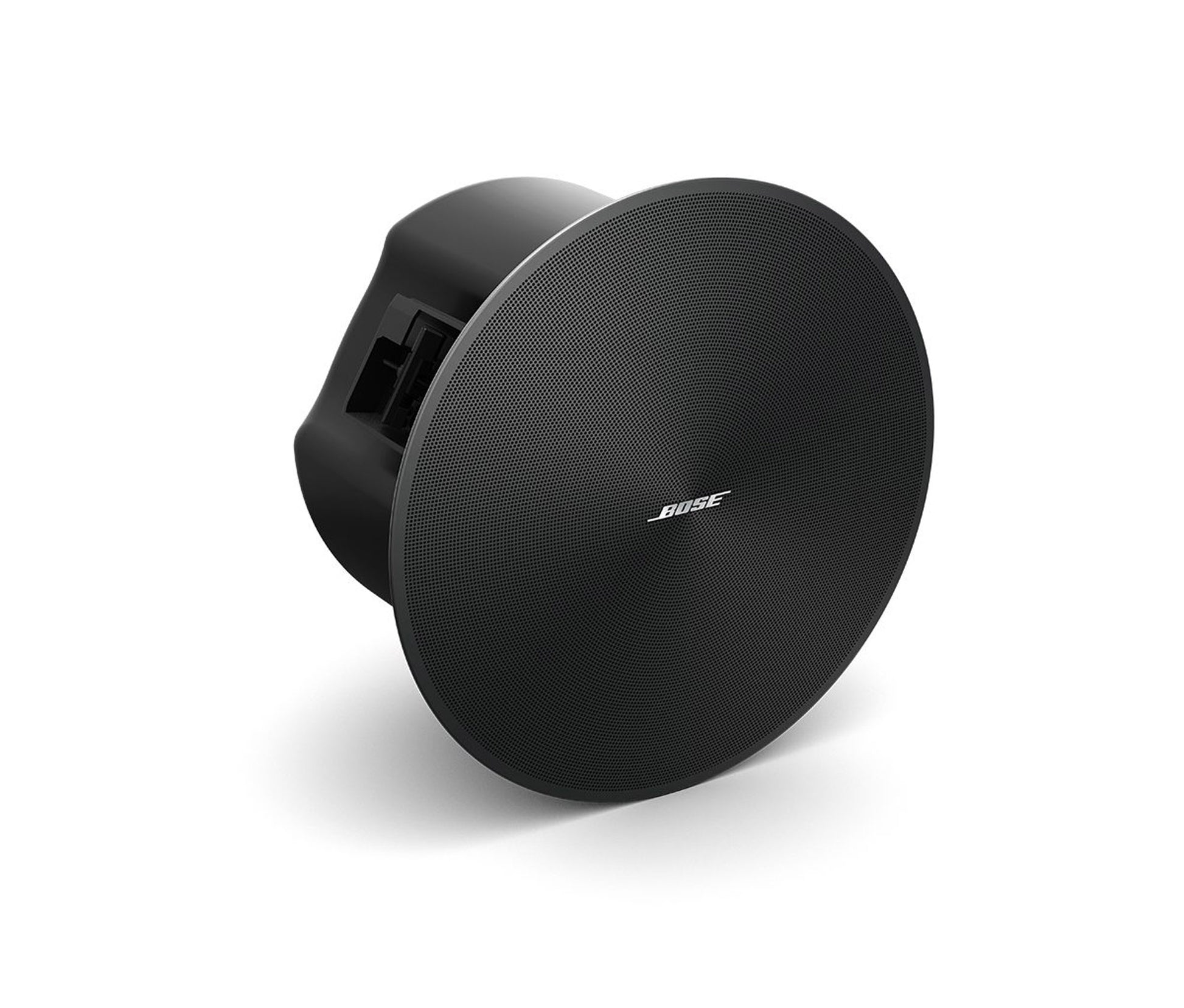

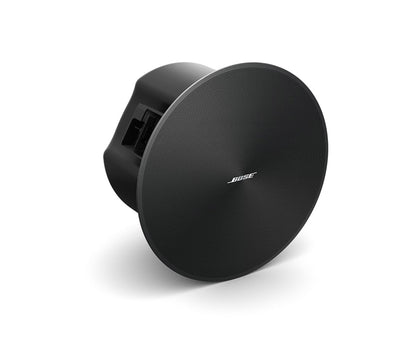

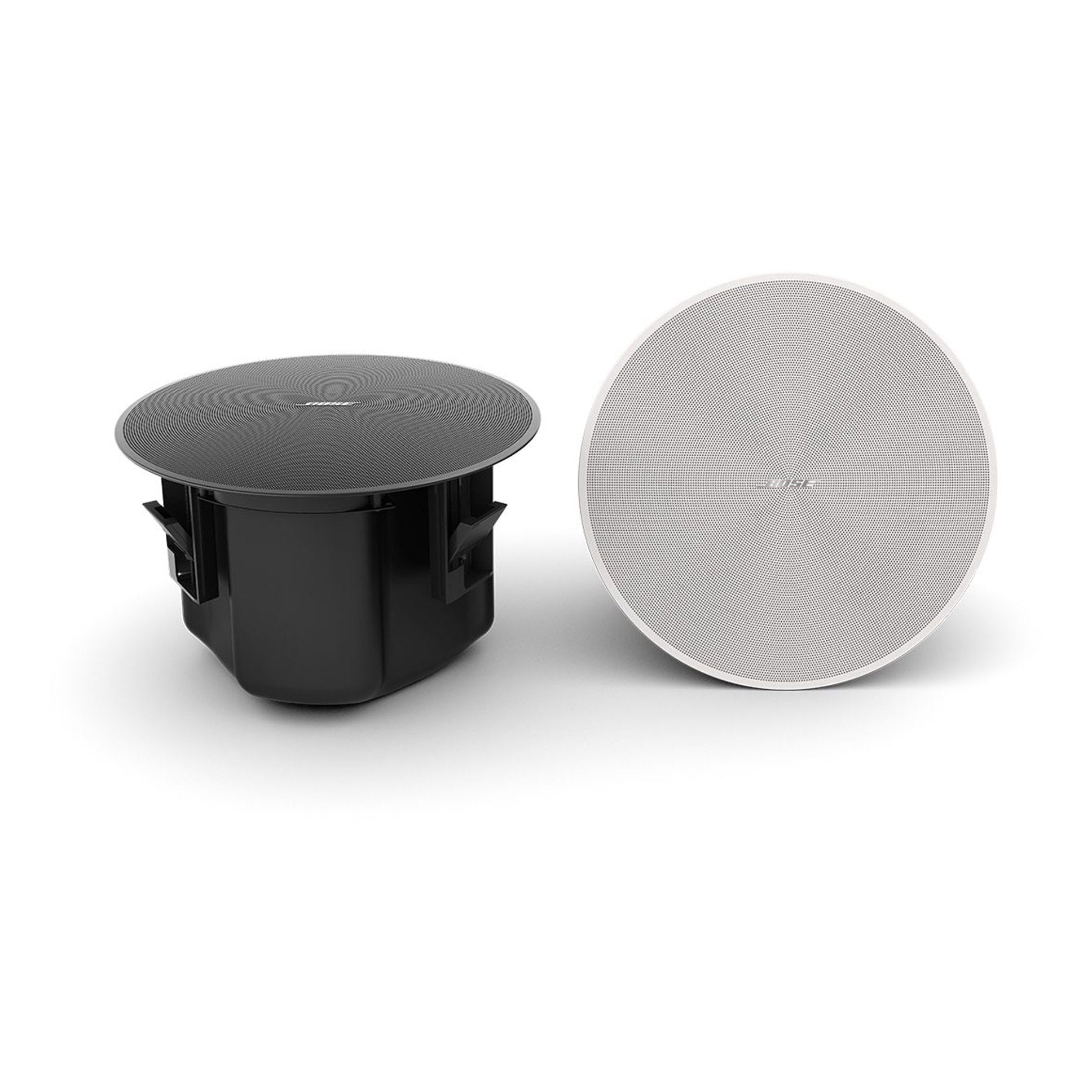

Bose DM6C DesignMax Loudspeakers | Color: Black

Bose DM6C DesignMax Loudspeakers | Color: Black

SoundPro Item: 147744 | Part Number: 829679-0120

$669.00
$769.00 $669.00
Your Price Sold out
MSRP: $769.00 | MAP: $669.00

Usually ships in 5-7 business days

  • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Log in or register for YOUR best price

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6C loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The DM6C features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz - 20 kHz. The in-ceiling DM6C is installed easily via QuickHold mounting arms.

View full details

Specifications

Weight
Net Weight
14.3 lb (6.5 kg), loudspeaker with grille (single) / 1.8 lb (0.8 kg), tile bridge (single)
Shipping Weight
39.1 lb (17.7 kg), pair
Audio
Crossover
1.7 kHz, passive 2-way crossover
Construction
Enclosure Material
Engineered-plastics front baffle with integrated steel-formed backcan
Grille
Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
Environmental
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
General
Environmental
Indoor only
Ceiling Cutout
11.5 in (292 mm)
Logo
Rotatable, removable
Suspension/Mounting
(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
Product Dimensions (HxWxD)
14.0 in x 9.4 in (356 mm x 239 mm), loudspeaker diameter x depth / 11.3 in x 8.8 in (287 mm x 223 mm), backcan diameter x depth
Frequency Range (-10 dB)
59 Hz - 20,000 Hz
Coverage, Horizontal
120° conical
Calculated Maximum SPL @ 1 M
109 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, Long-term Continuous
125 W
Power Handling, Peak
500 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
88 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical
120° conical
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 x 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted
Low-Frequency
1 x 6.5 in (165 mm) woofer
