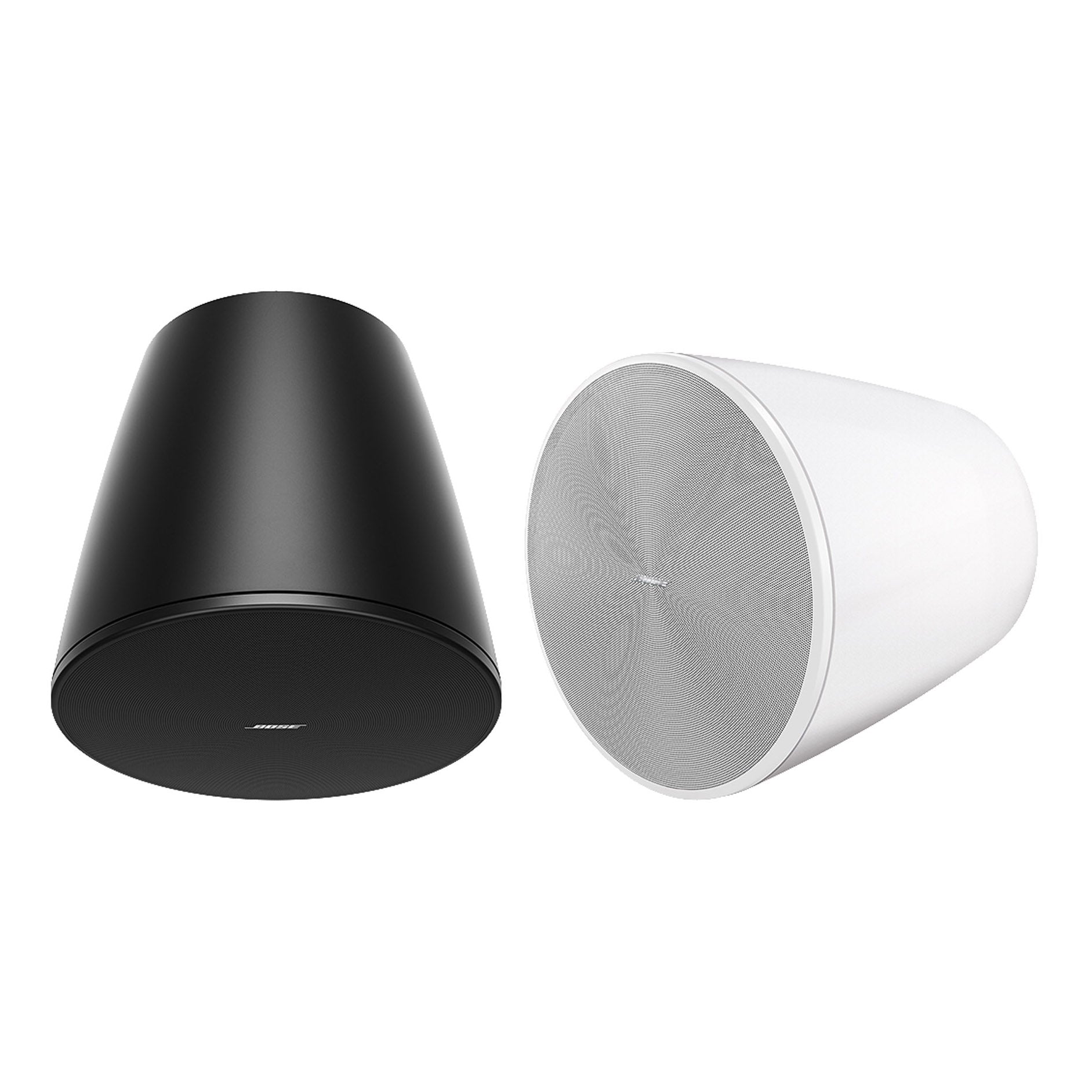

Bose DM10P-SUB DesignMax Subwoofer | Color: White

Bose DM10P-SUB DesignMax Subwoofer | Color: White

SoundPro Item: 147731

$599.00
$649.00 $599.00
Your Price Sold out
MSRP: $649.00 | MAP: $599.00

Usually ships in 5-7 business days

  • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
  • Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend with any room design with elegant form factors, minimum-bezel grills available in black or white, and removable logos
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

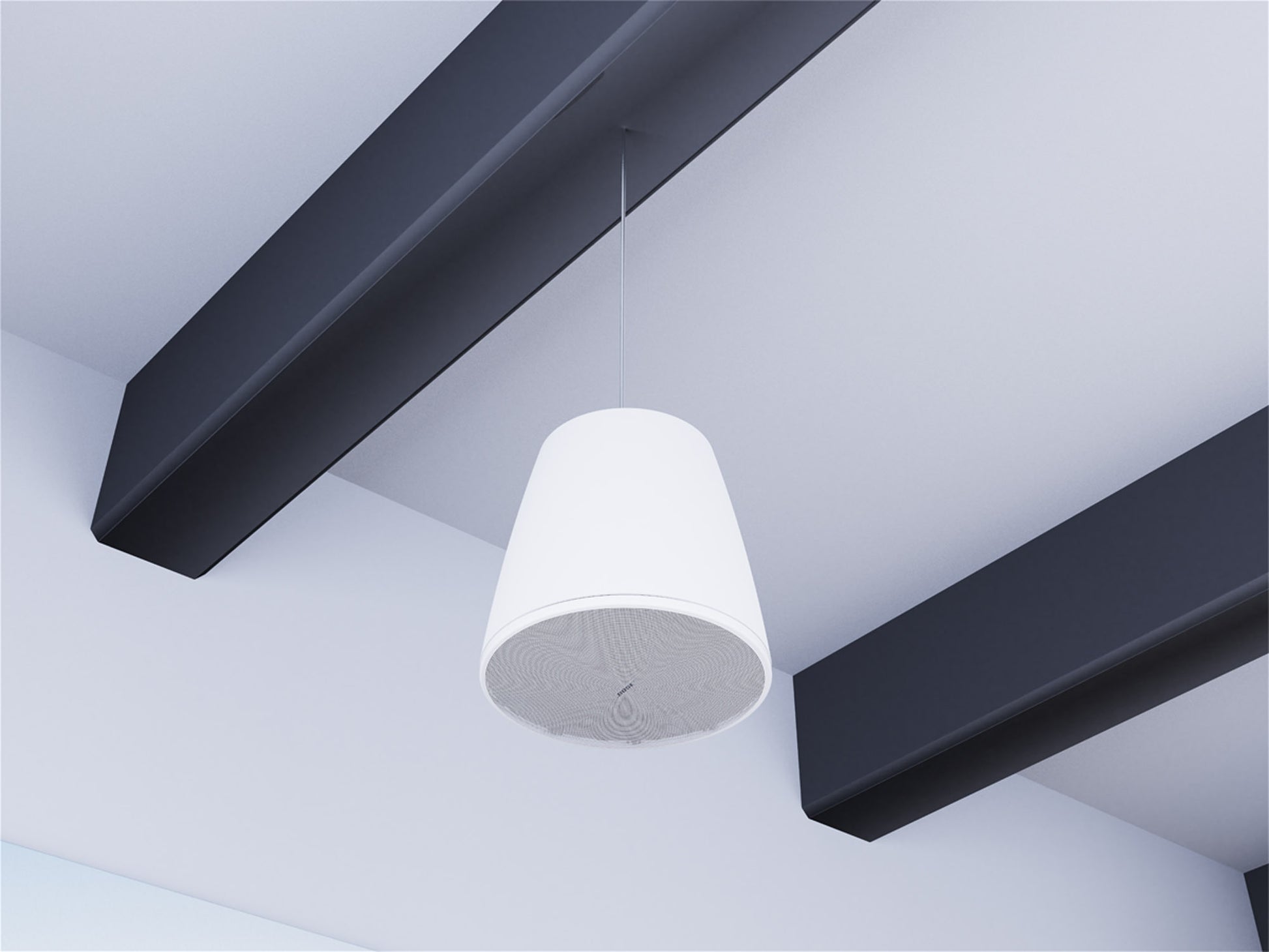

  • Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
Log in or register for YOUR best price

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40-125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

View full details
  • Enclosure MaterialEngineered plastics
  • EnvironmentalIndoor only
  • GrillPerforated steel, powder-coated finish
  • LogoRotatable, removable
  • Suspension/Mounting1 suspension attachment point, 1 safety cable attachment point
  • Operating Temperature Range0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (HxWxD)15.7 in x 15.1 in (400 mm x 383 mm), loudspeaker diameter x depth
  • Net Weight19.7 lb (8.9 kg)
  • Shipping Weight27.9 lb (12.7 kg)
  • Frequency Range (-10 dB)40 Hz - 125 Hz
  • Coverage, HorizontalOmnidirectional below 200 Hz
  • Calculated Maximum SPL @ 1 m110 dB
  • Nominal Impedance8 Ω (transformer bypass)
  • Power Handling, long-term continuous250 W
  • Power Handling, Peak1000 W
  • Recommended Signal ProcessingNot required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m)85 dB
  • Transformer Taps, 100V40, 80, 150 W, bypass
  • Transformer Taps, 70V20 W, 40 W, 80 W, 150 W, bypass
  • Coverage, VerticalOmnidirectional below 200 Hz
  • Crossover80 Hz - 200 Hz via active crossover in DSP
  • Driver ProtectionRecommended high-pass protection 45 Hz with recommended 24 dB/octave filter
  • Low-Frequency1 x 10 in (254 mm) woofer
