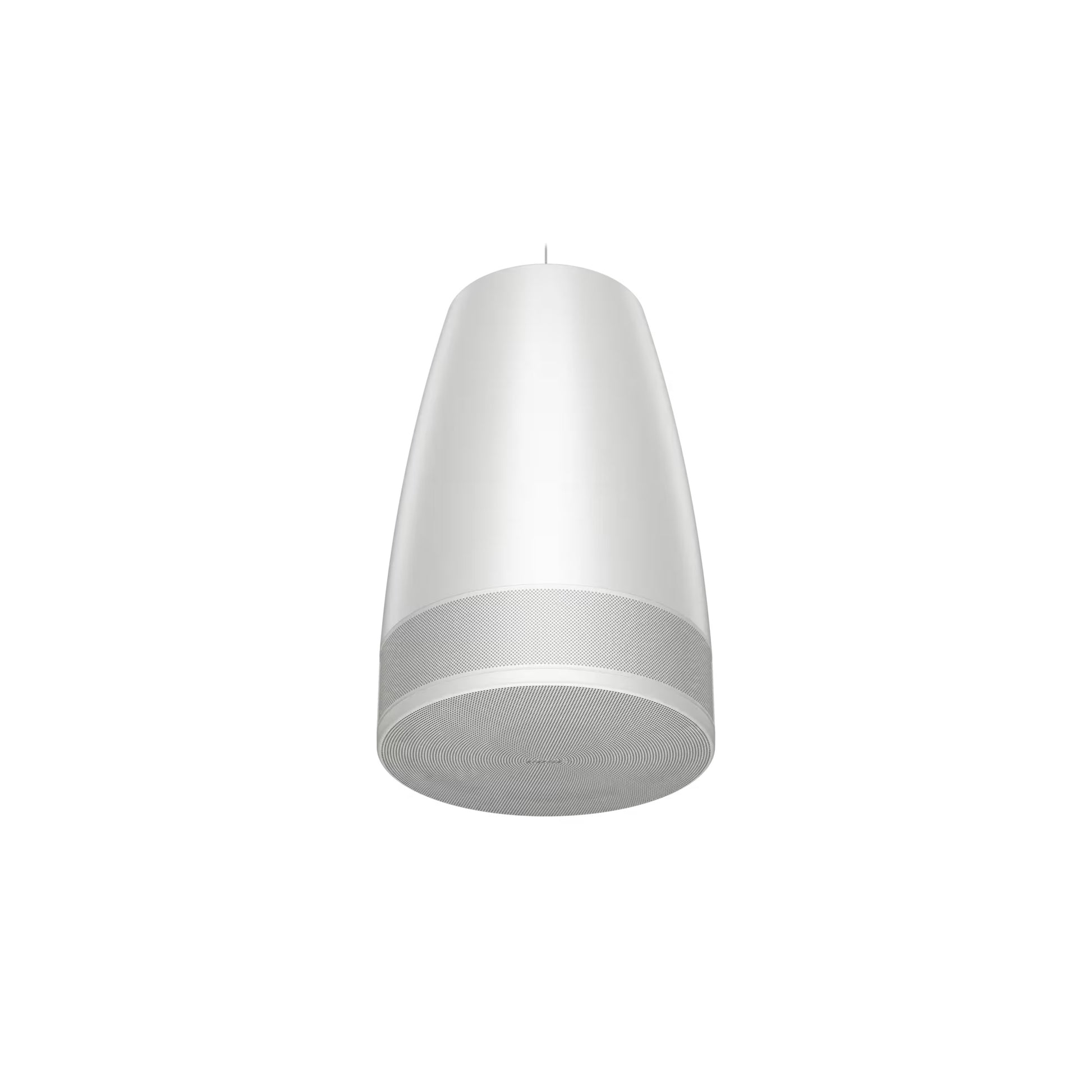

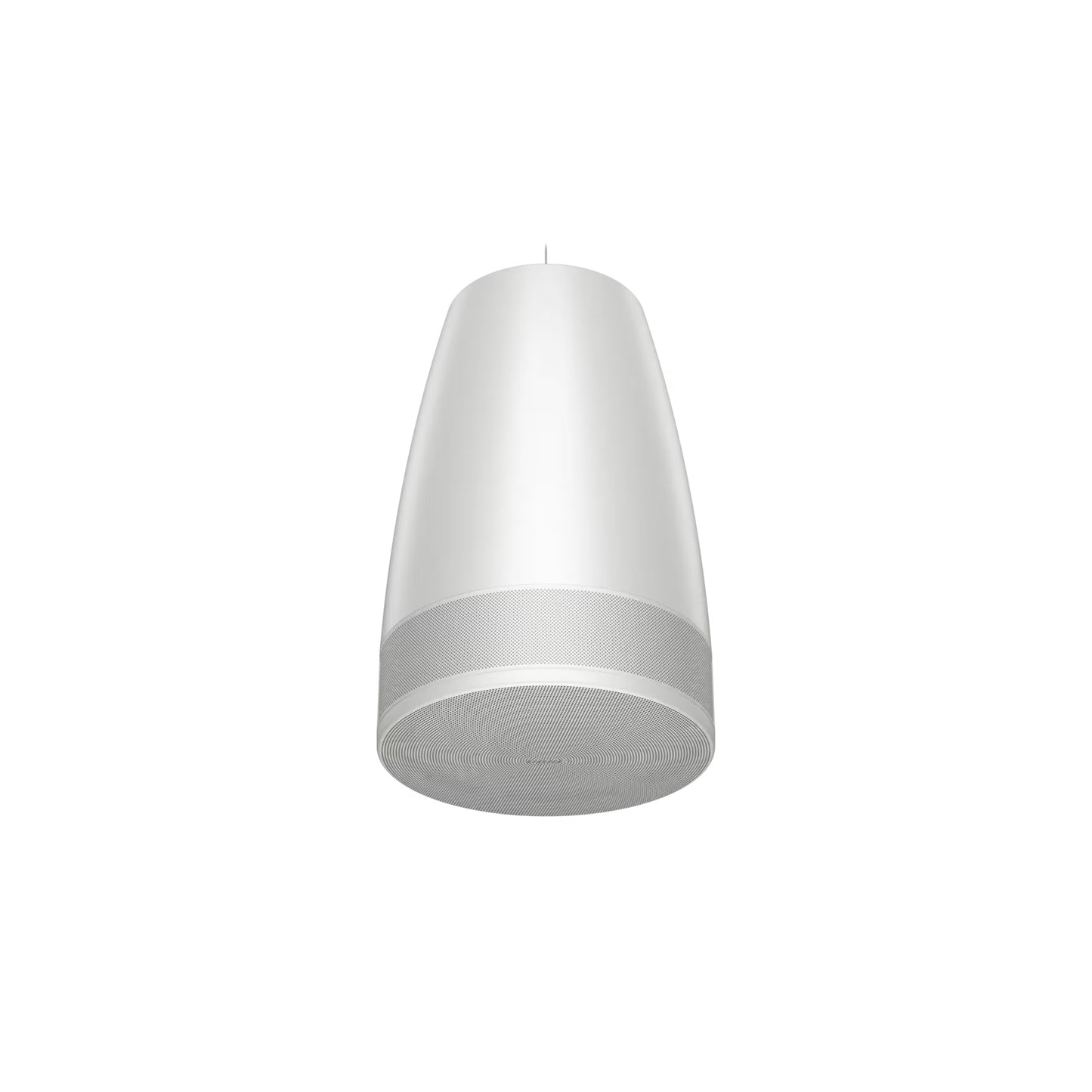

Bose DesignMax Luna DML88P 70V/100V Pendant Loudspeaker | White

Bose DesignMax Luna DML88P 70V/100V Pendant Loudspeaker | White

SoundPro Item: 201197 | Part Number: 892117-0200

$649.00
$729.00 $649.00
Your Price Sold out
MSRP: $729.00 | MAP: $649.00

Usually ships in 5-7 business days

  • Ring Array Configuration With Eight 2" Drivers Delivers Uniform 140° Coverage Without Dead Zones
  • Integrated 8" Woofer Extends Response To 40 Hz And Eliminates Subwoofer Requirements
  • Single Or Dual Cable Suspension Enables Balanced Hangs In Challenging Ceiling Conditions
  • Euroblock Connector With Loop-Through Streamlines Daisy-Chain Wiring Topology
  • UL 1480A And NFPA Compliance Meets Commercial Installation Code Requirements
  • Factory Optimized Presets Accelerate System Tuning With Bose Professional Amplifiers
  • Paintable Grille And Rotatable Logo Integrate Into Design-Conscious Commercial Interiors
Log in or register for YOUR best price

The DesignMax Luna pendant loudspeaker redefines full-range performance in open-ceiling installations for retail, hospitality, fitness, and education environments. Its proprietary Ring Array configuration delivers 140° conical coverage with consistent sonic precision throughout the listening space, eliminating hot spots and reducing the total number of loudspeakers required per zone. With 111 dB peak SPL and frequency extension to 40 Hz, Luna eliminates the cost and complexity of subwoofer systems while maintaining clarity in acoustically challenging spaces.

Flexible suspension options allow integrators to choose single-cable or two-point mounting based on structural requirements, ensuring fast installs and perfectly balanced hangs in any ceiling condition. The 6-pin Euroblock connector features loop-through capability for efficient daisy-chaining, while concealed wiring and rotatable logos maintain the streamlined aesthetic required in design-conscious commercial spaces. Factory-optimized presets are available when paired with Bose Professional amplifiers and processors, accelerating system tuning and commissioning.

UL 1480A and NFPA 70/90A certifications ensure code compliance in commercial installations, while the paintable grille finish enables seamless integration into any interior design palette. Optional threaded rod and conduit adapters provide mounting versatility across diverse architectural scenarios.

Downloads

View full details

Specifications

Audio
Frequency Response (-3 dB)
50 Hz – 15,000 Hz
Frequency Range (-10 dB)
40 Hz – 20,000 Hz
Nominal Coverage (1 – 4 kHz)
140° conical
Power Handling, Long-term Continuous (AES)
140 W
Power Handling, Long-term Continuous (Bose Extended-Lifecycle)
100 W
Power Handling, Peak (AES)
560 W
Power Handling, Peak (Bose Extended-Lifecycle)
400 W
Sensitivity (SPL / 1 W @ 1 m)
85 dB
Calculated Maximum SPL @ 1 m, Continuous (AES)
107 dB
Calculated Maximum SPL @ 1 m, Continuous (Bose Extended-Lifecycle)
105 dB
Calculated Maximum SPL @ 1 m, Peak (AES)
113 dB
Calculated Maximum SPL @ 1 m, Peak (Bose Extended-Lifecycle)
111 dB
Crossover
600 Hz, passive 2-way crossover
Recommended High-pass Protection
40 Hz high-pass filter
Transducers
Low Frequency
1 × 8.0" (203 mm) woofer
High Frequency

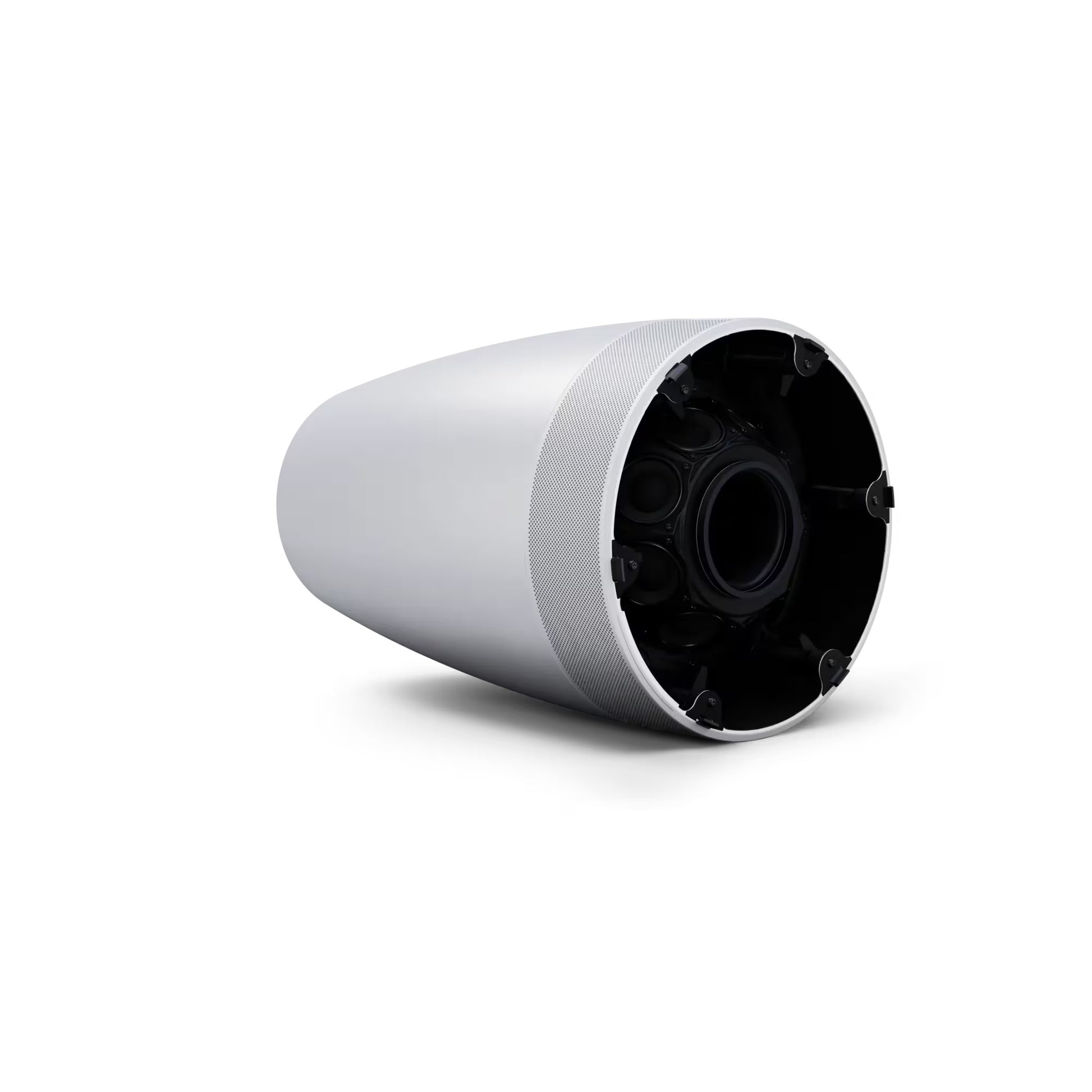

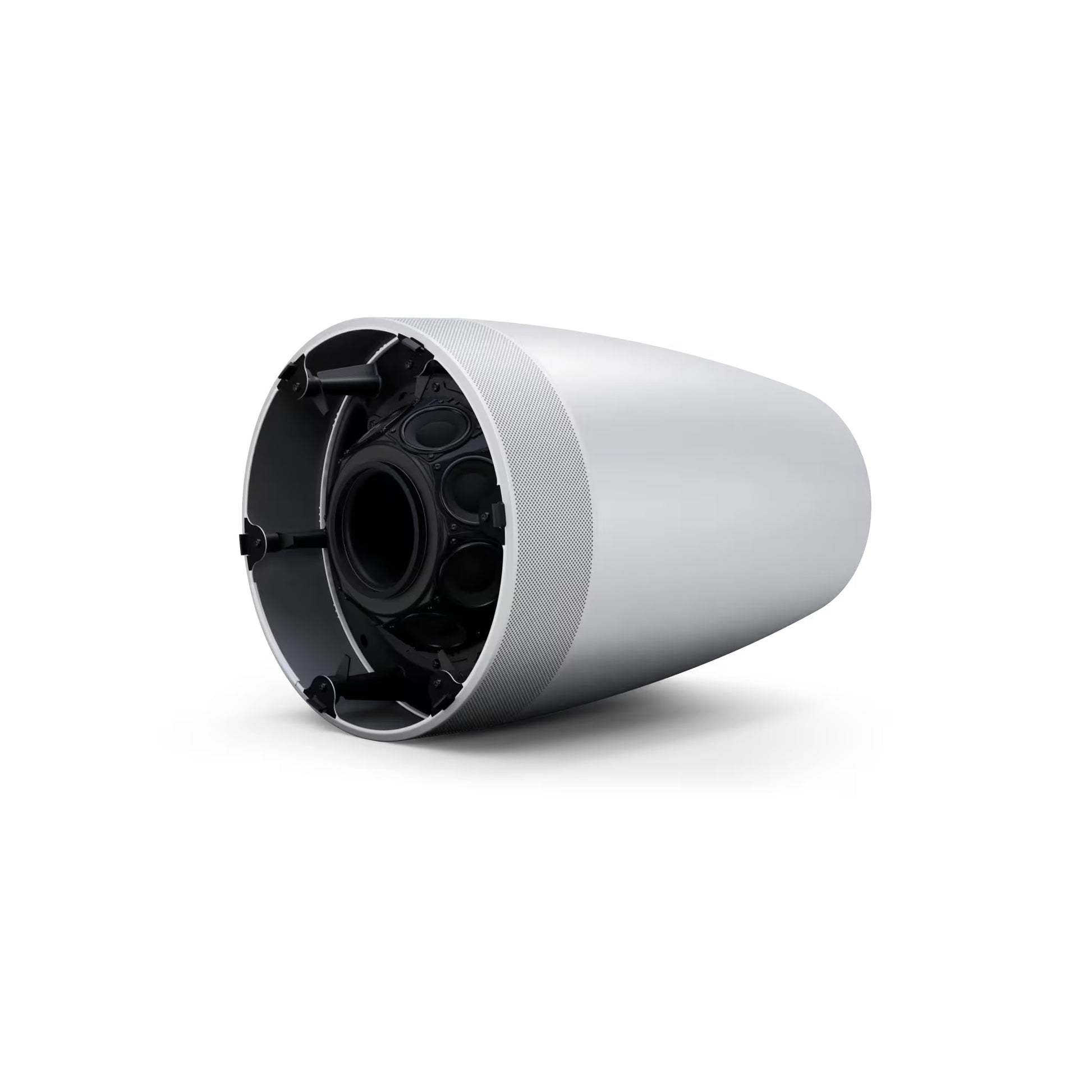

8 × 2.0" (51 mm) drivers in circular array
Nominal Impedance
8 Ω (transformer bypass)
Power
Transformer Taps 70V
12 W, 25 W, 50 W, 100 W, bypass
Transformer Taps 100V
25 W, 50 W, 100 W, bypass
Construction
Enclosure Material
Engineered plastics

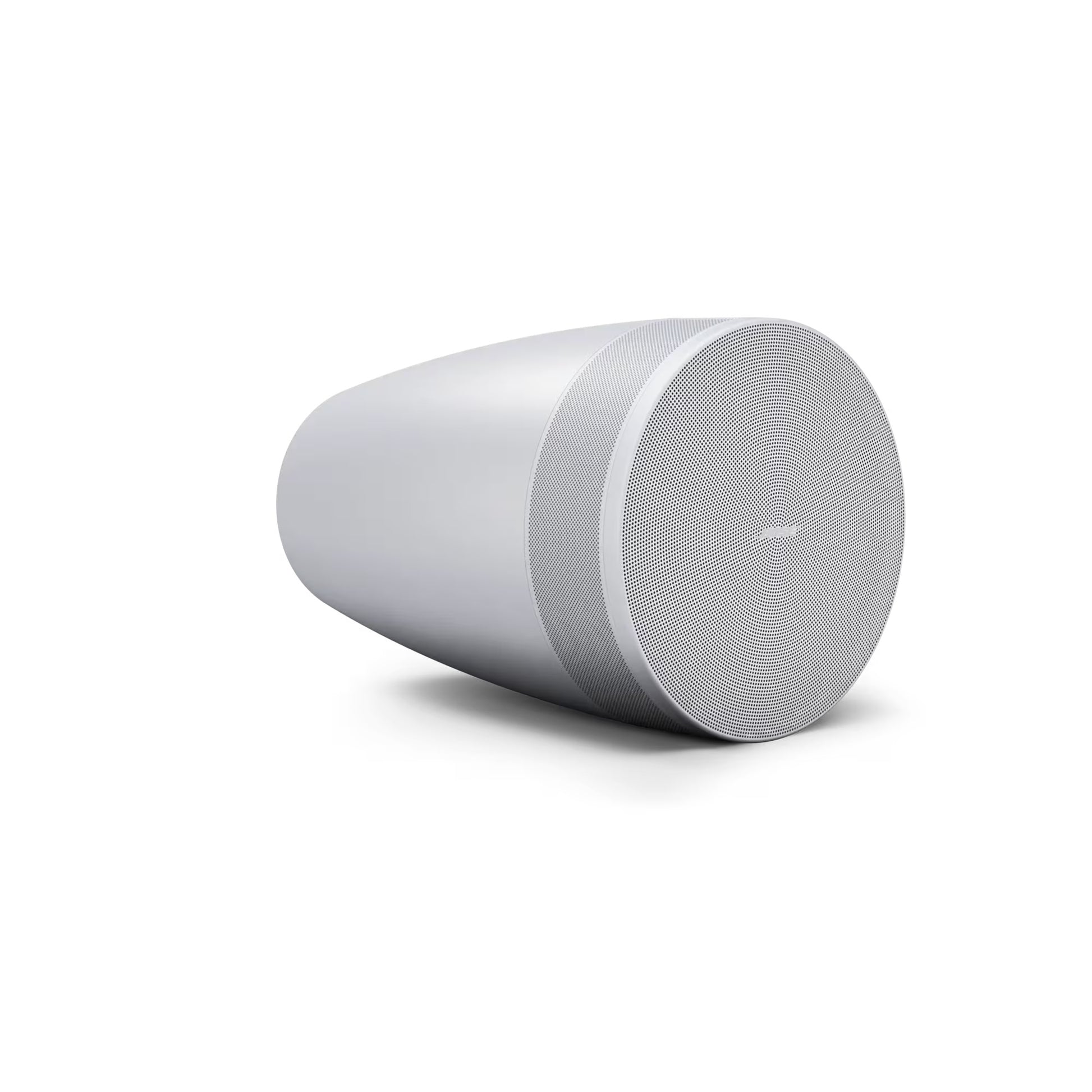

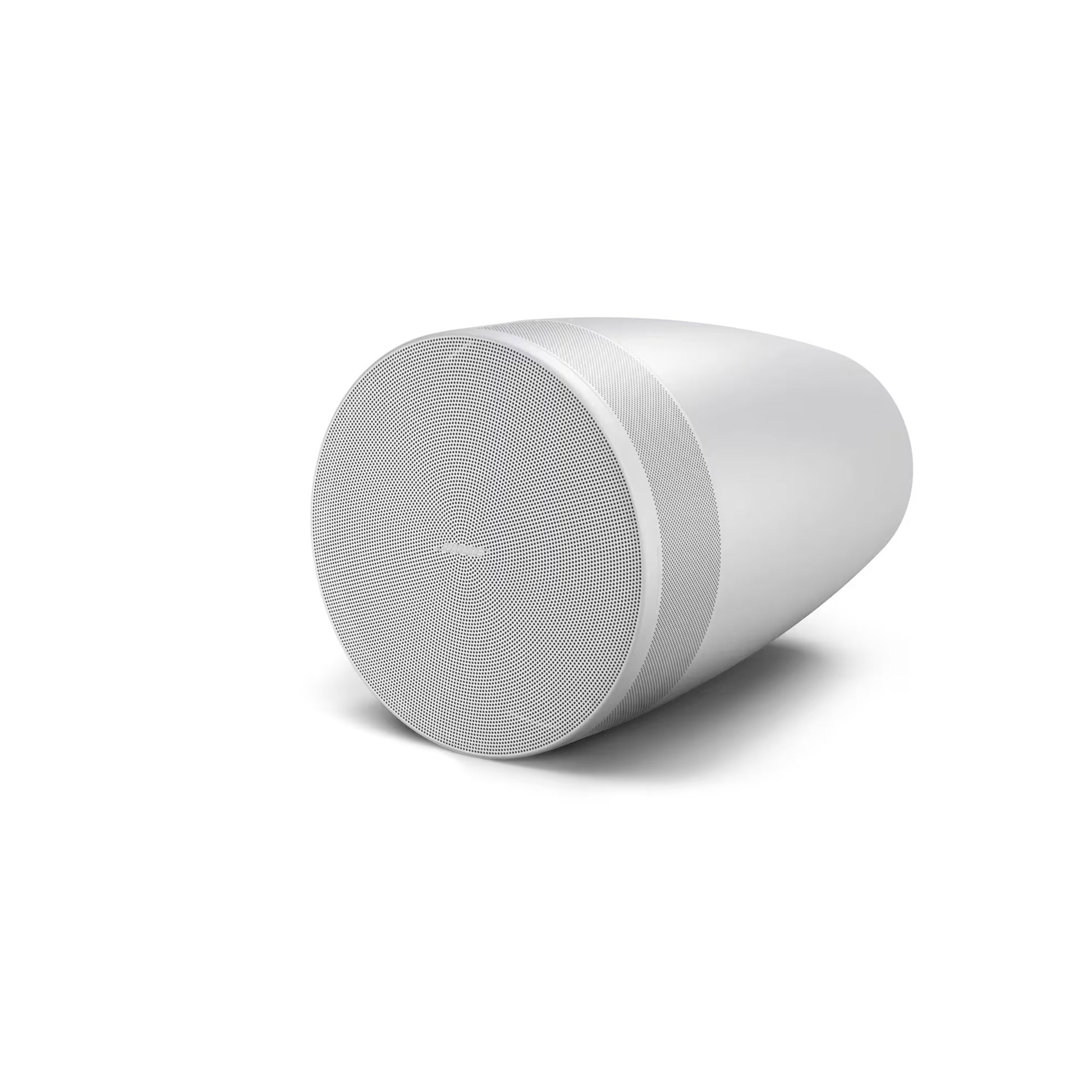

Grille
Perforated steel, powder-coated finish, paintable
Logo
Rotatable, removable
Color
Black (RAL 9005), white (RAL 9003), paintable
Connectivity

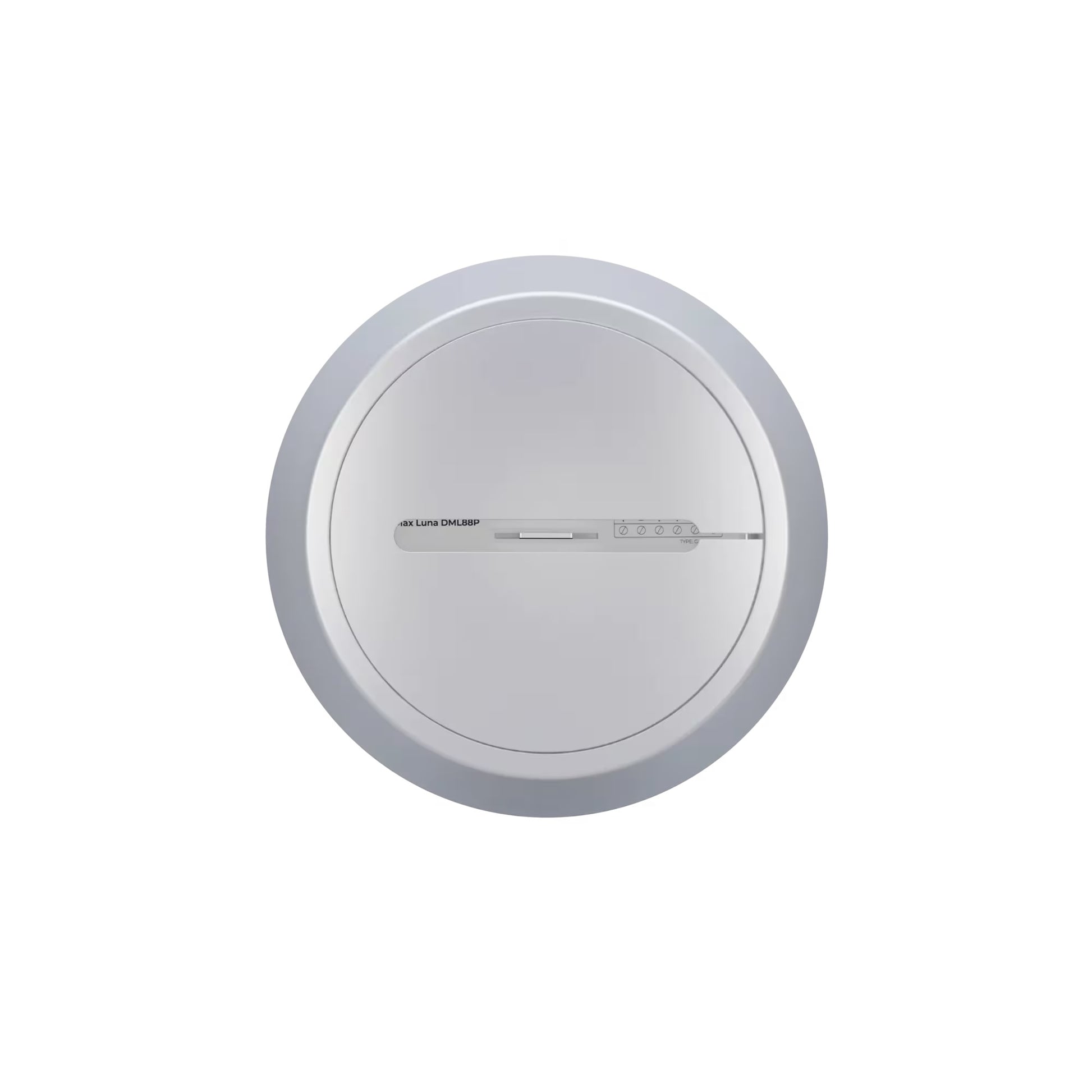

Connectors

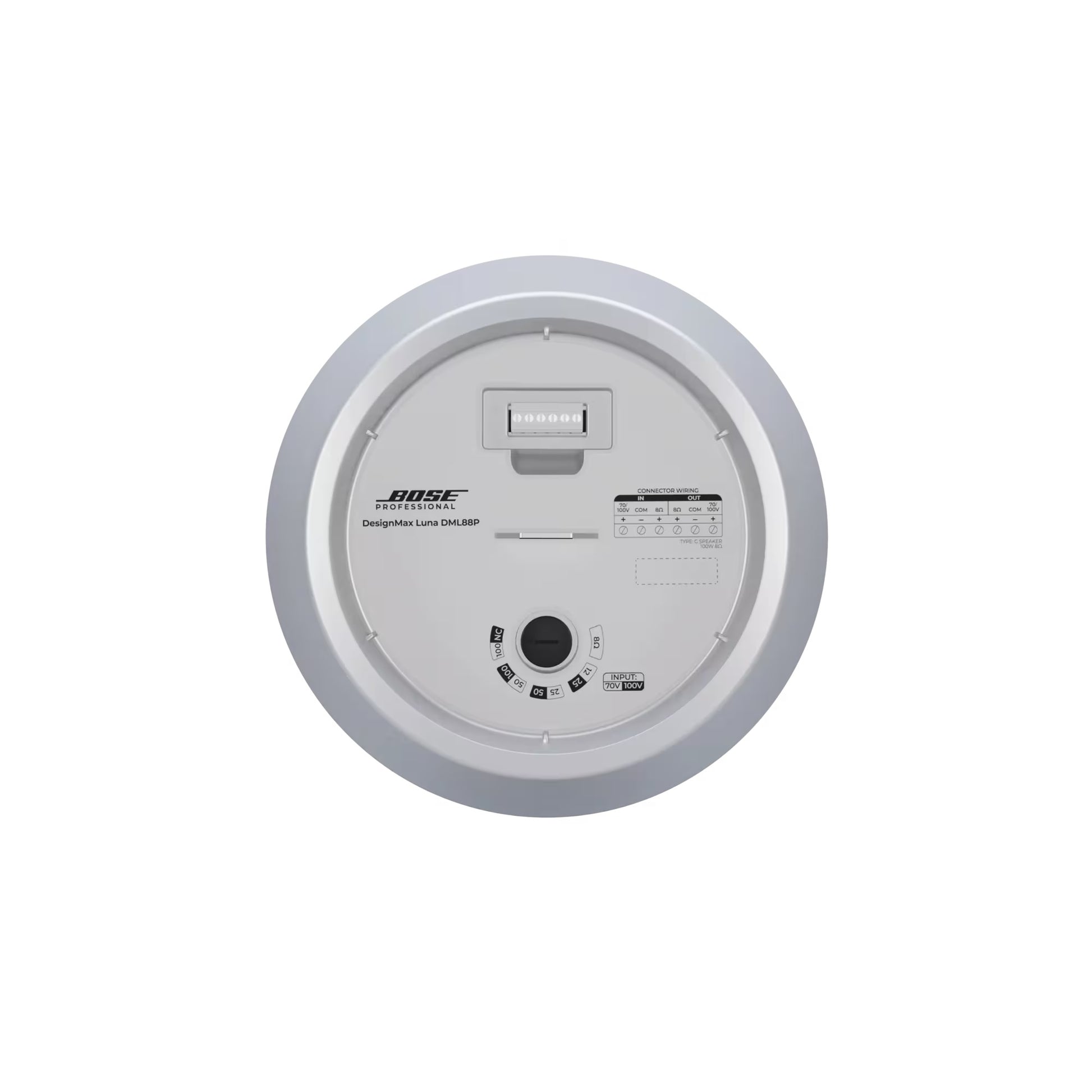

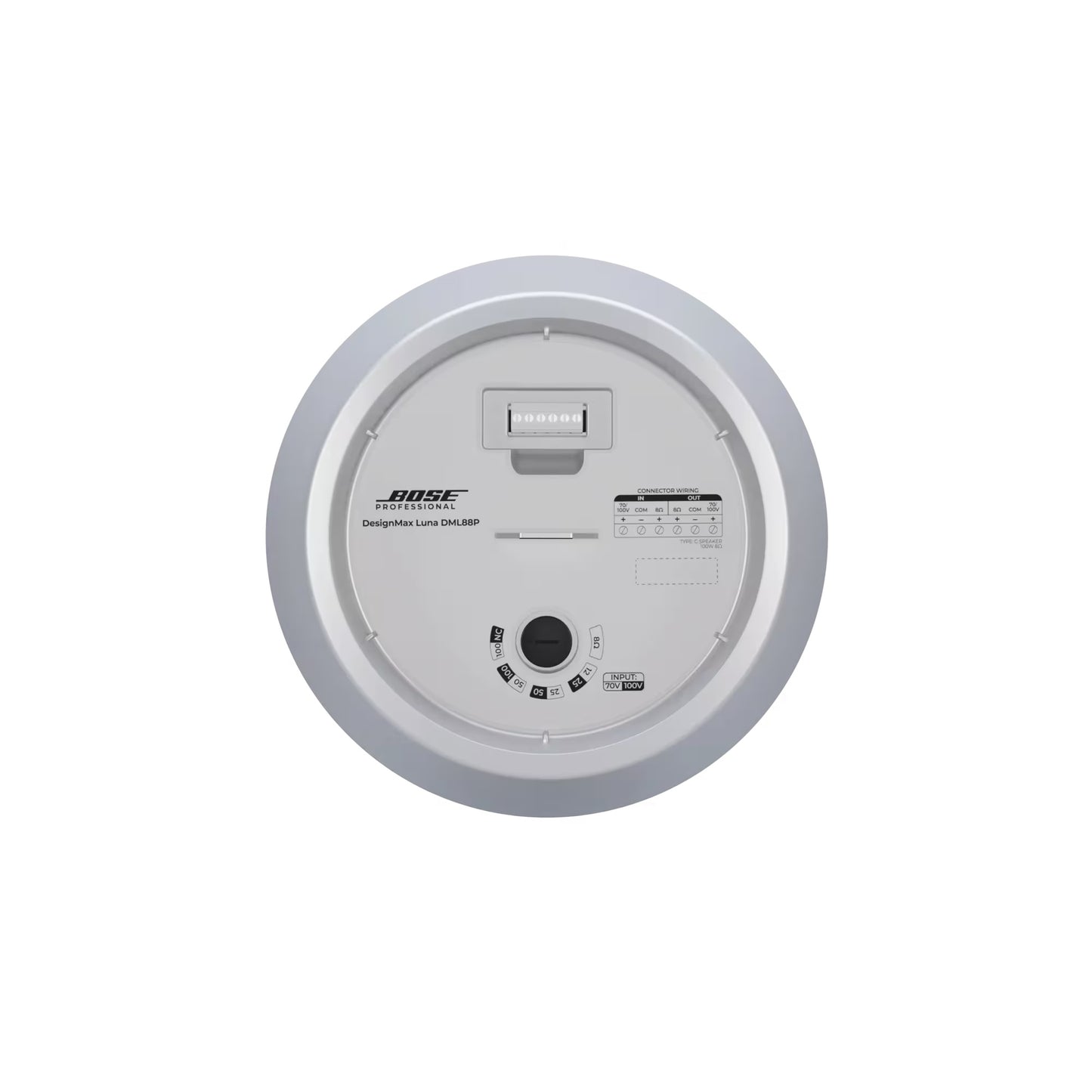

6-pin Euroblock connector with loop-through, mounted on top. Accepts 18 AWG – 14 AWG (0.8 mm2 – 2.1 mm2) wire.
Certifications
Certifications
UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
Environmental
Indoors only
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Dimensions

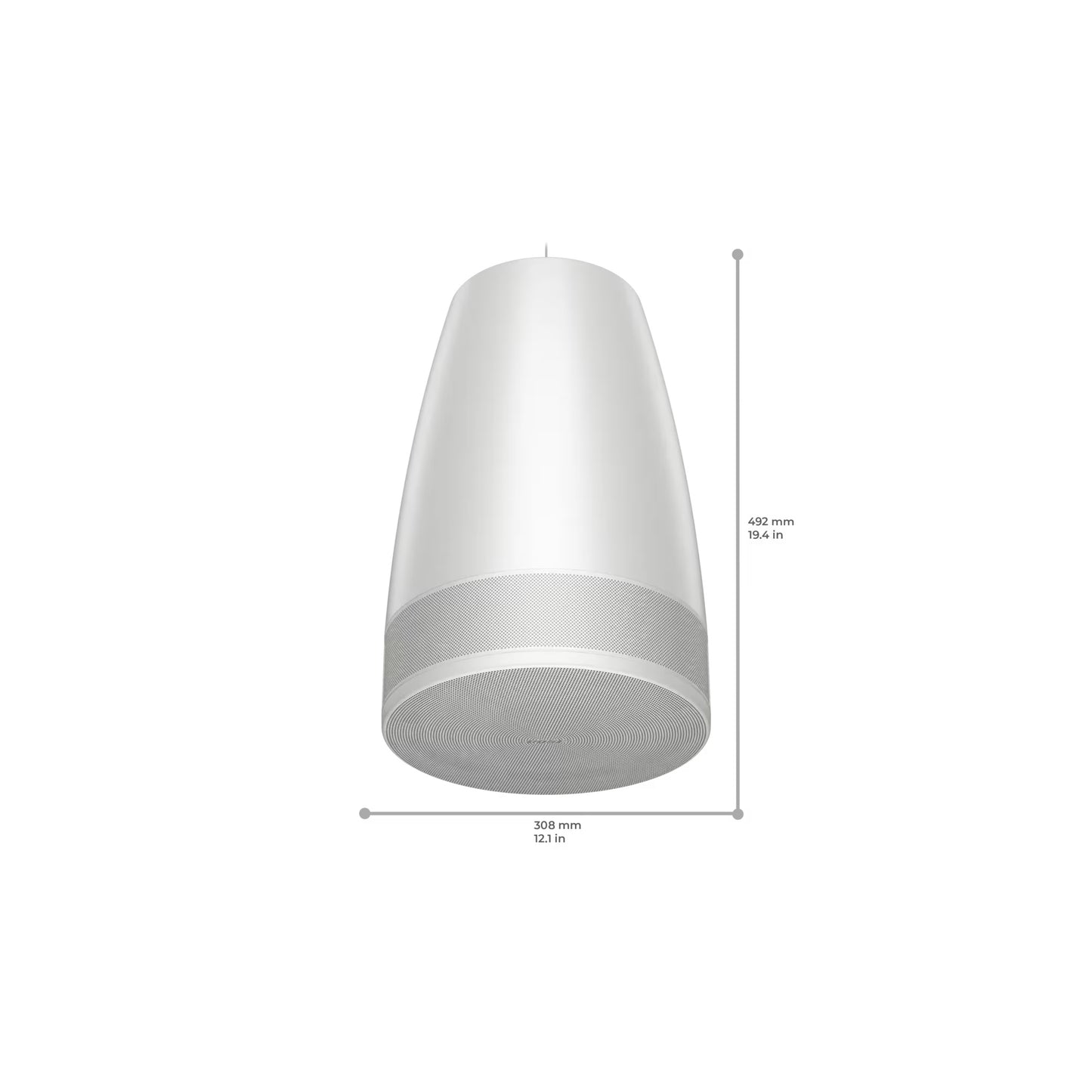

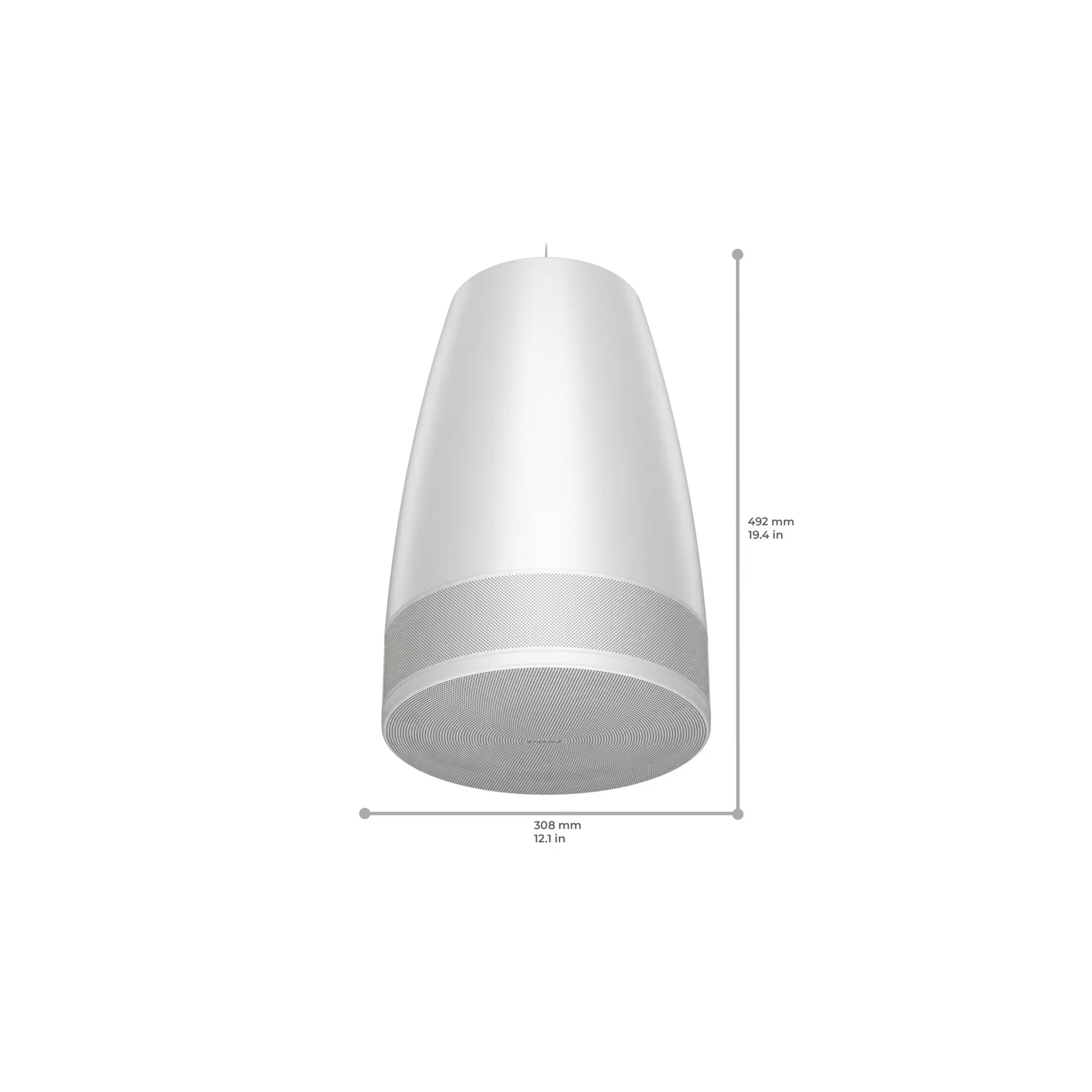

Product Dimensions (enclosure diameter × depth)
308 mm × 492 mm (12.1" × 19.4")
Cable Dimensions (diameter × length)
3 mm × 4.6 m (0.13" × 15.0')
Weight
Net Weight, Single Loudspeaker
10.0 kg (22.0 lbs)
Shipping Weight
12.8 kg (28.3 lbs)
Included Items
Package Contents
DesignMax Luna DML88P, connection panel cover, adjustable suspension cable system, 4 cable ties, installation guide
Optional Accessories
Threaded rod adapter, conduit adapter

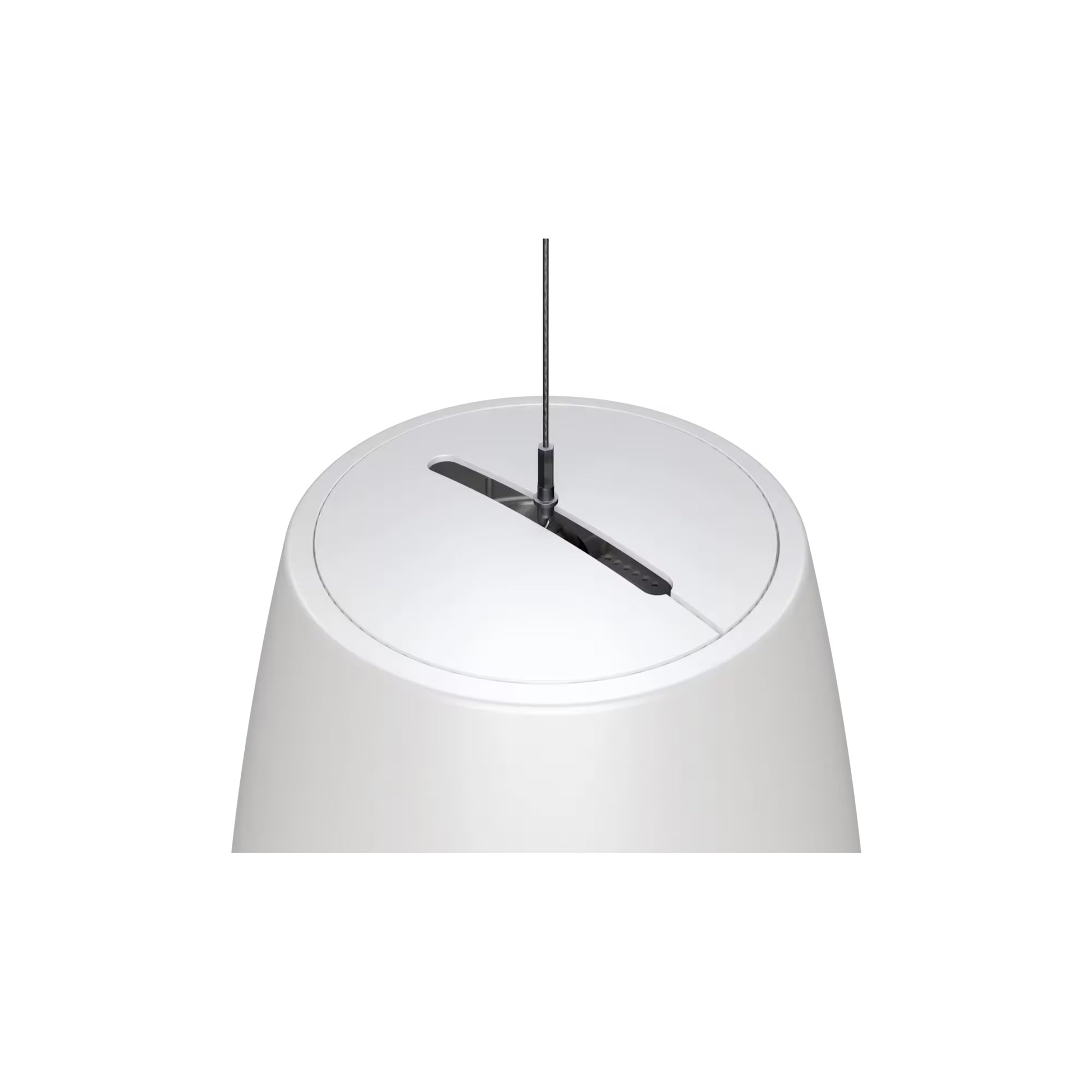

Suspension
Suspension / Mounting

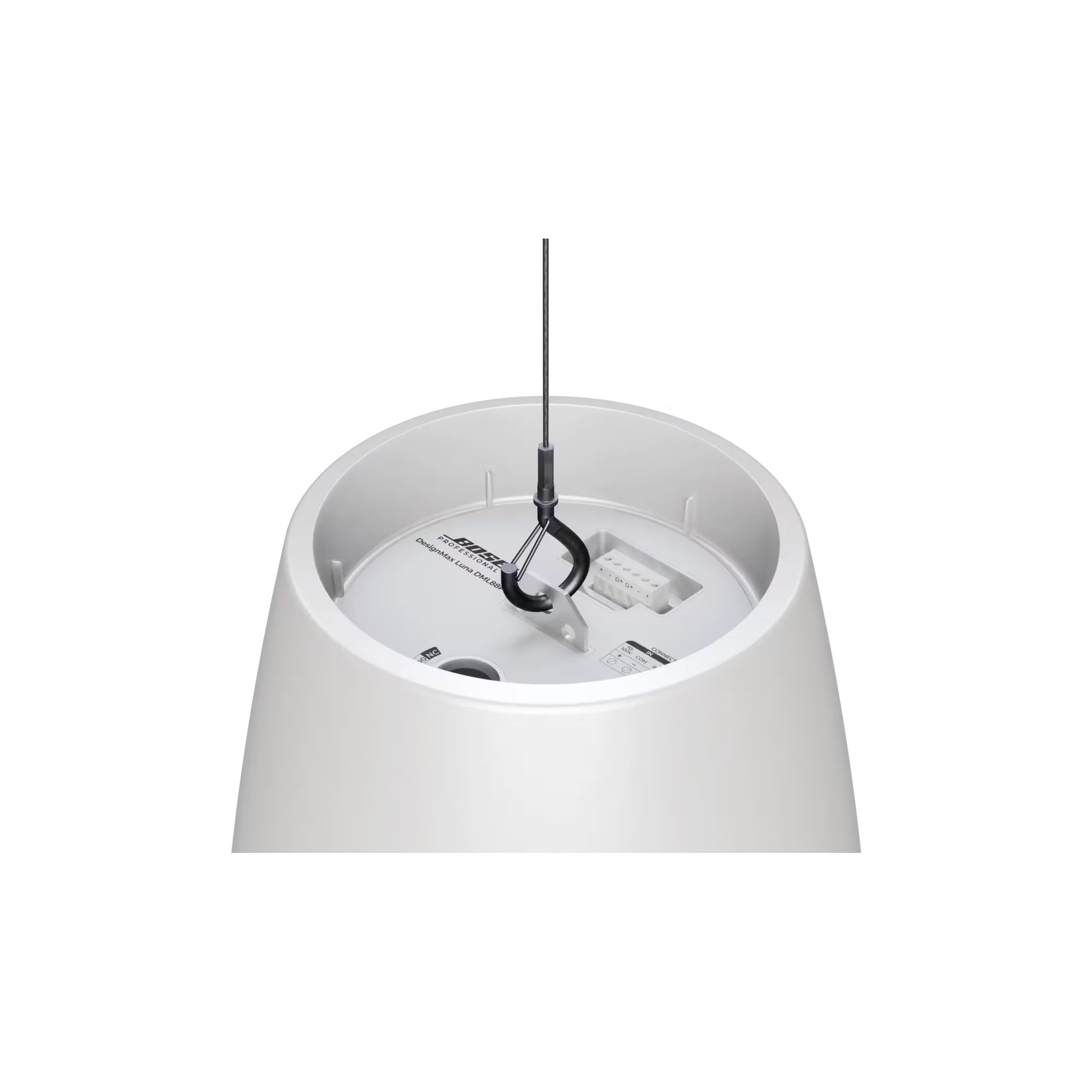

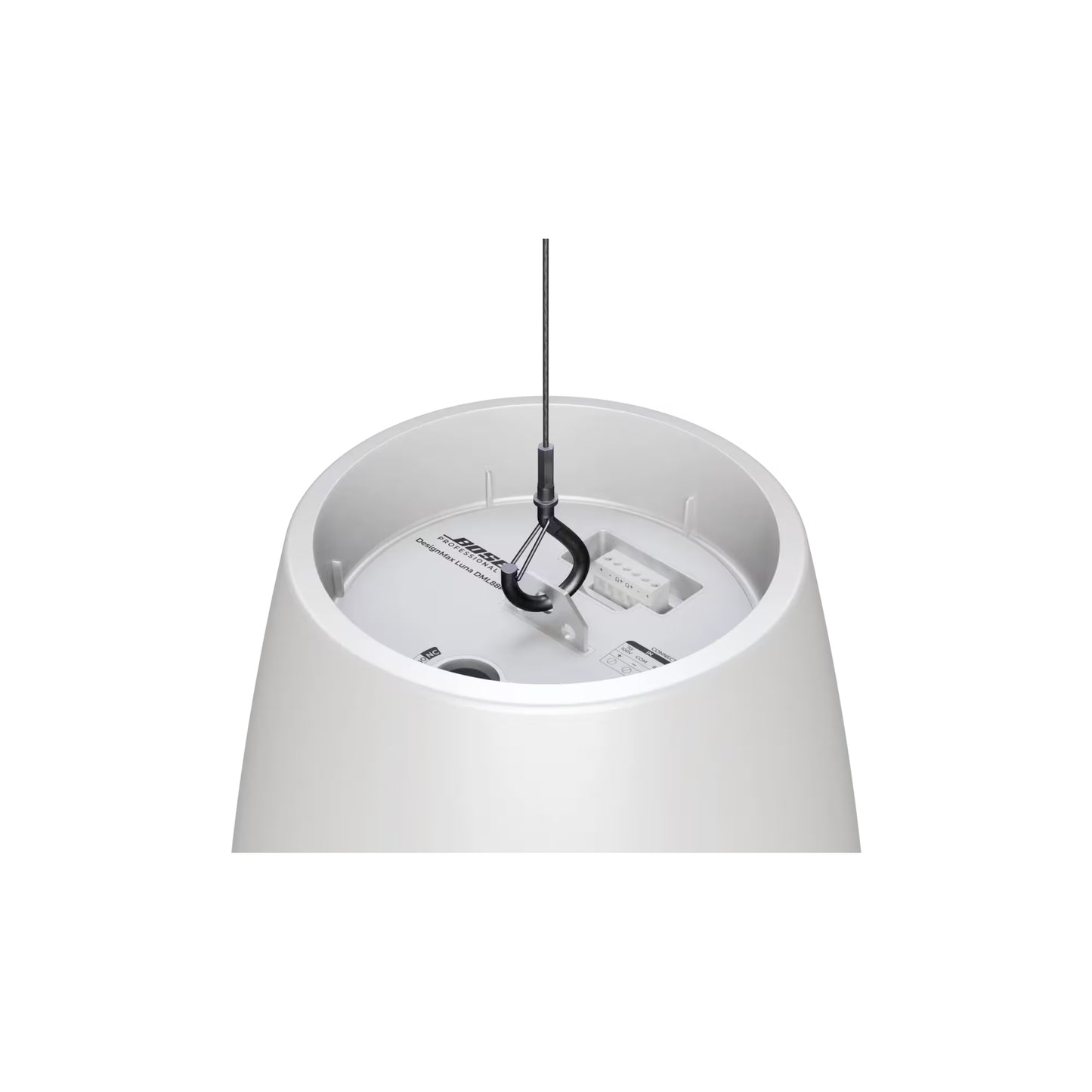

3-hole suspension cable attachment point. Attach to (A) 1 main suspension cable & 1 secondary suspension cable with slack for safety or (B) 2 suspension cables supporting load equally with pendant located halfway between 2 suspension beams
