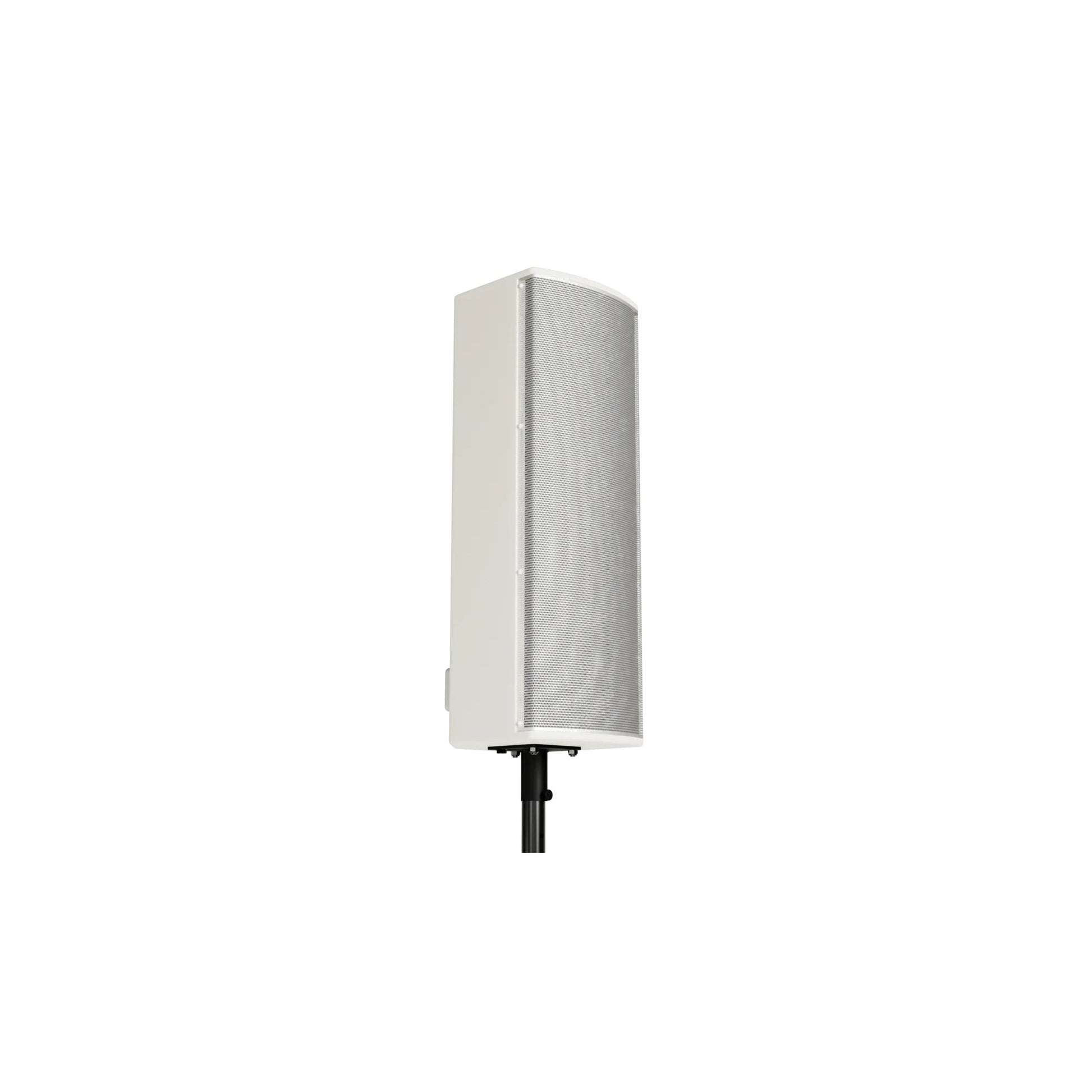

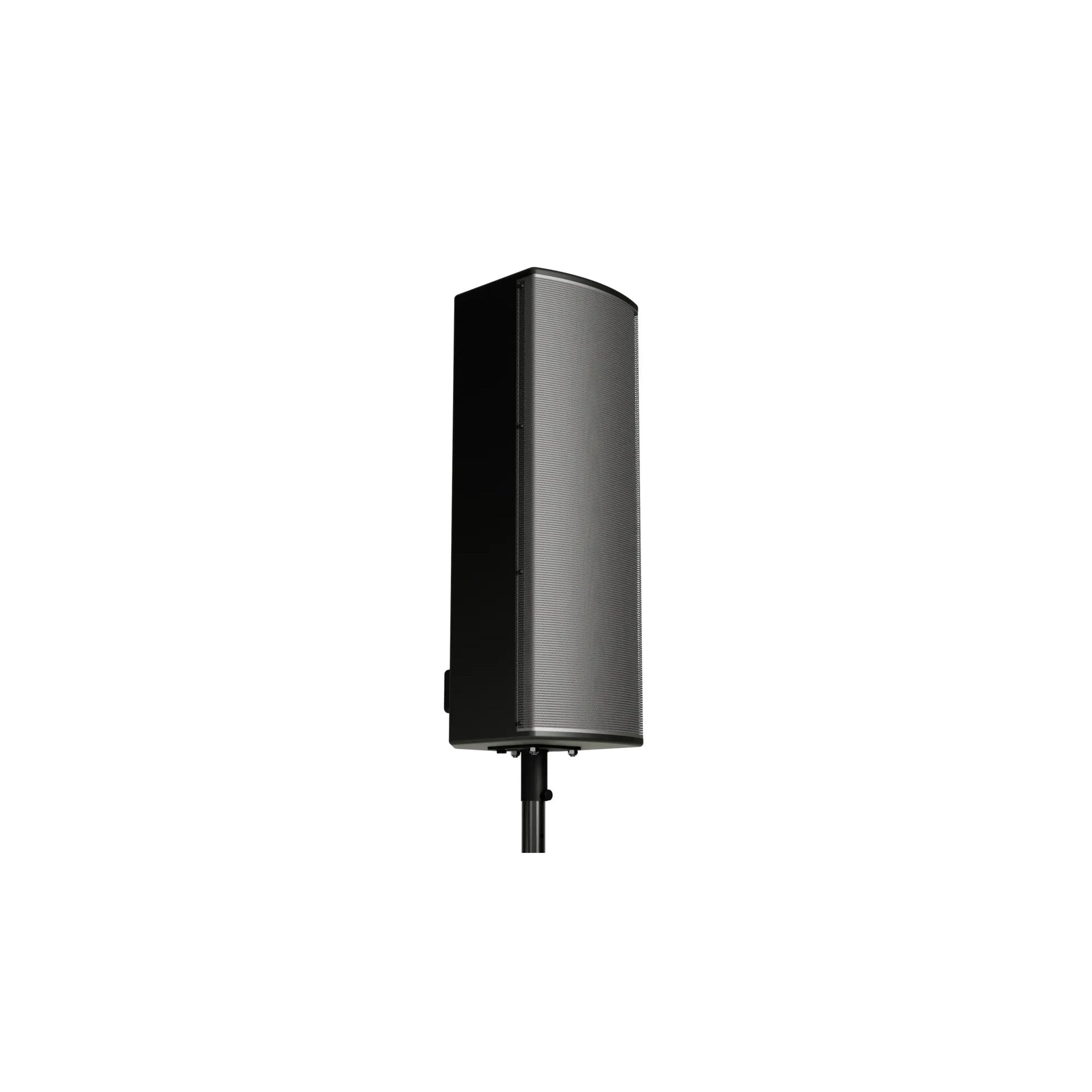

Bose AMU208-120 ArenaMatch Utility 60° x 120° Loudspeaker

Bose AMU208-120 ArenaMatch Utility 60° x 120° Loudspeaker

SoundPro Item: 147725 | Part Number: 893797-0100

$1,299.00
$1,500.00 $1,299.00
Your Price Sold out
MSRP: $1,500.00 | MAP: $1,299.00

Usually ships in 5-7 business days

  • EN 54-24 Voice Alarm Certification Ensures Compliance For Life Safety Installations
  • IP55 Ingress Protection With Three-Layer Grille For Direct Outdoor Exposure
  • Integrated 70/100V Transformer With Switchable Taps Eliminates External Matching Hardware

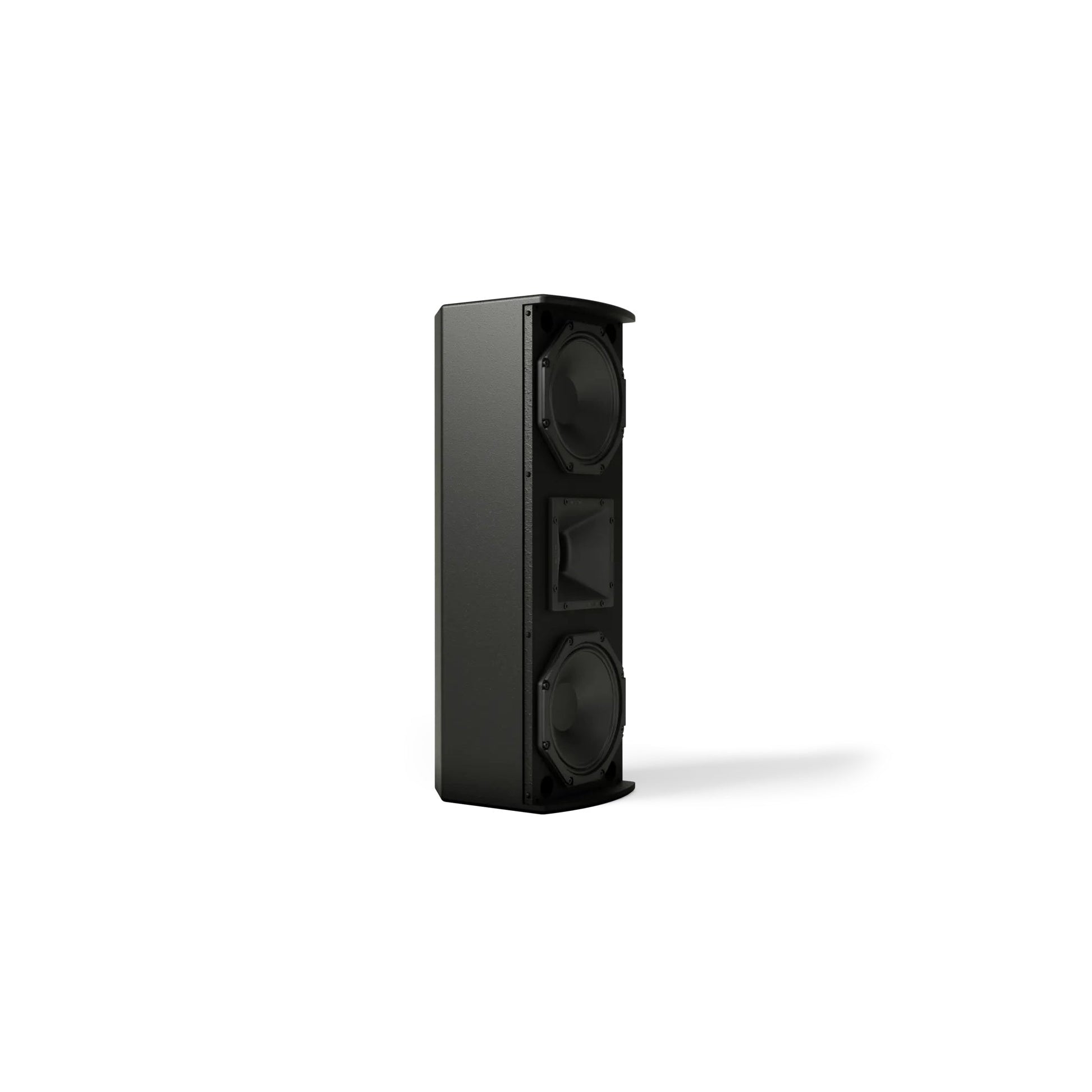

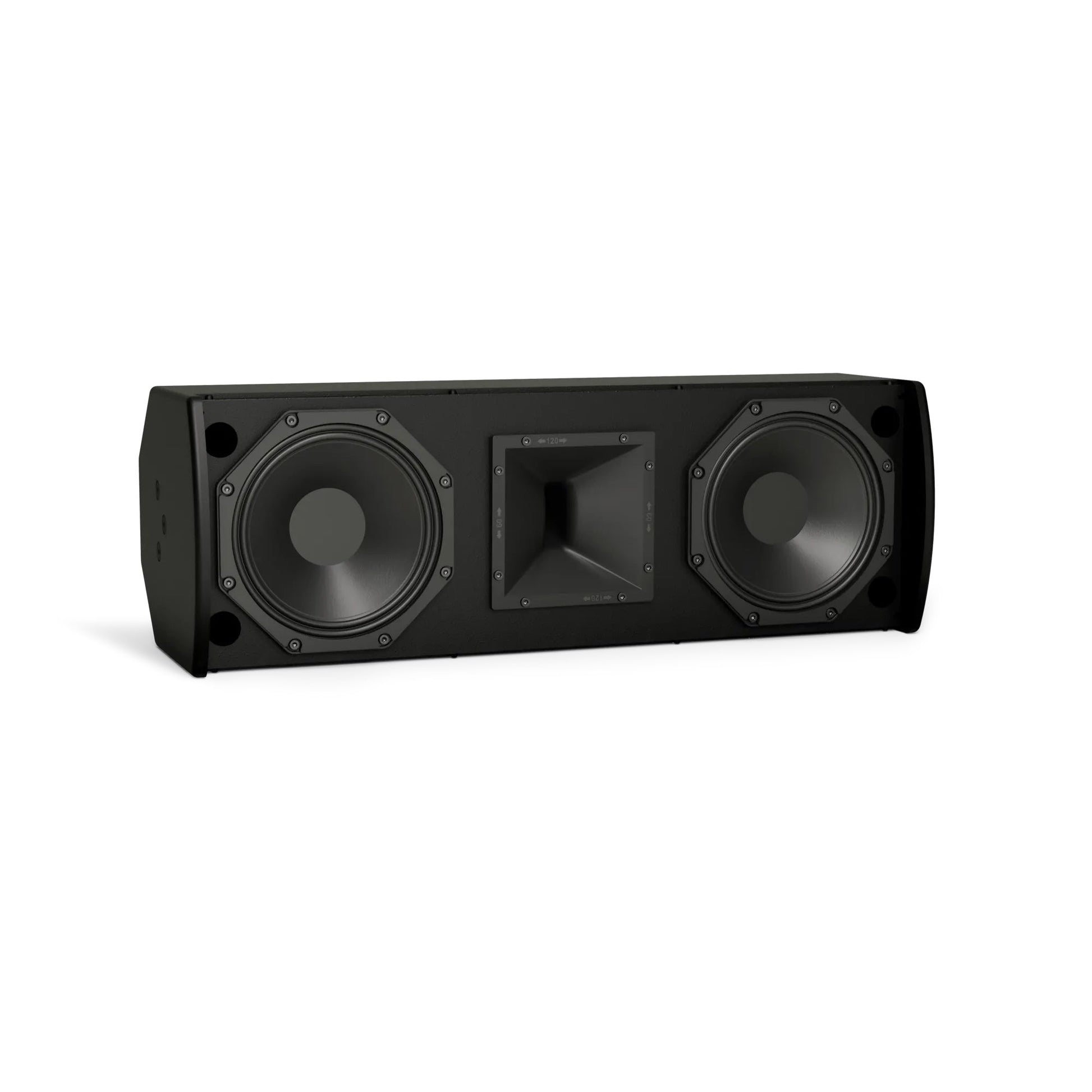

  • Dual High-Excursion Woofers With Extended Compression Driver Deliver Controlled Coverage
  • Exterior-Grade Plywood Cabinet With Polyurethane Coating Resists Environmental Degradation
  • Factory Presets With Bose Professional Electronics Simplify System Configuration
  • M8 Threaded Inserts Accept Included U-Bracket Or Third-Party Rigging Hardware
Log in or register for YOUR best price

The ArenaMatch Utility series brings EN 54-24 voice alarm certification to installed sound applications demanding weather protection and consistent coverage. Engineered for integrators working in hospitality, fitness centers, auditoriums, outdoor dining, and transit concourses, this IP55-rated solution combines dual high-excursion woofers with an extended high-frequency compression driver in a compact exterior-grade plywood cabinet. The 60° x 90° asymmetric pattern addresses vertical throw requirements without overspreading adjacent zones.

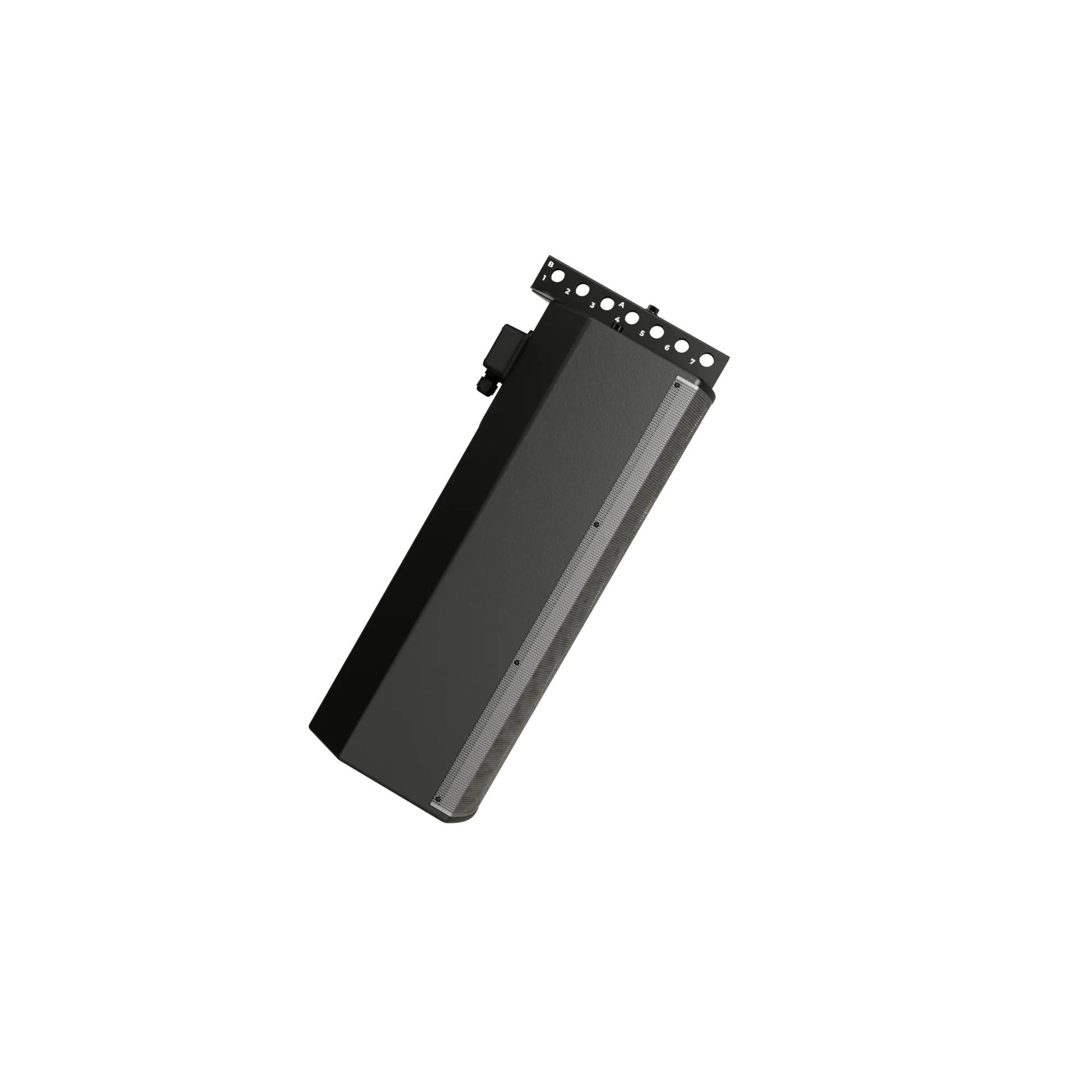

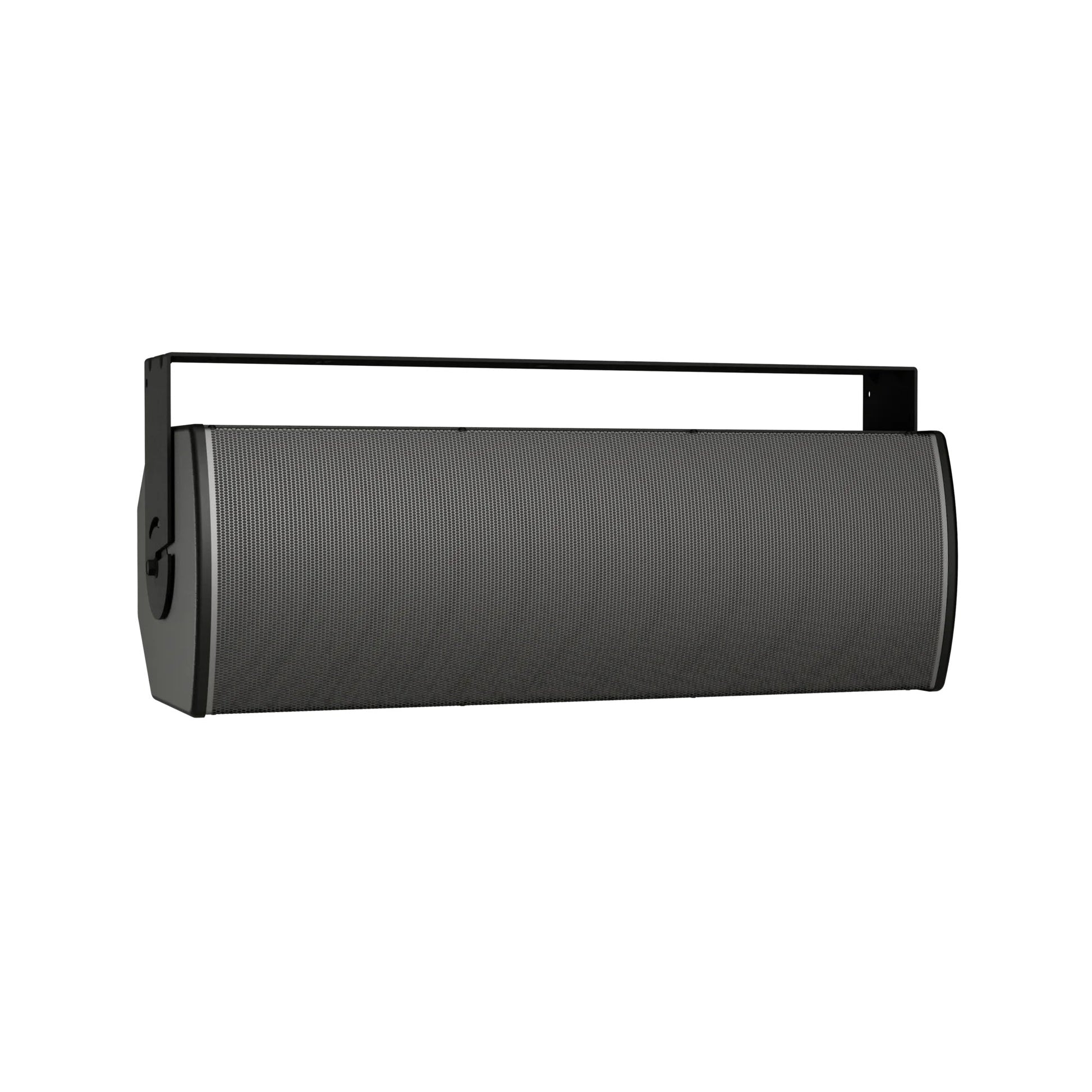

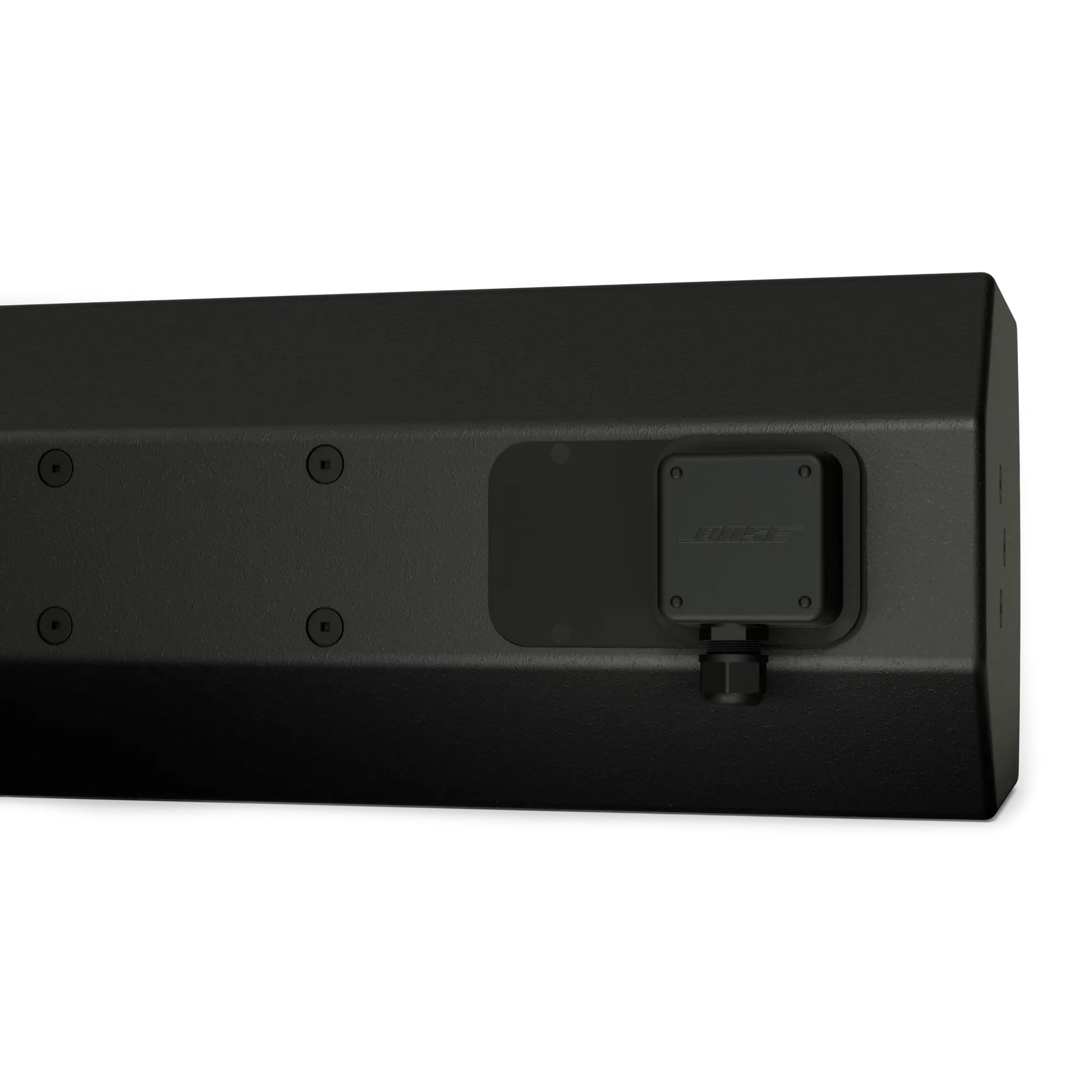

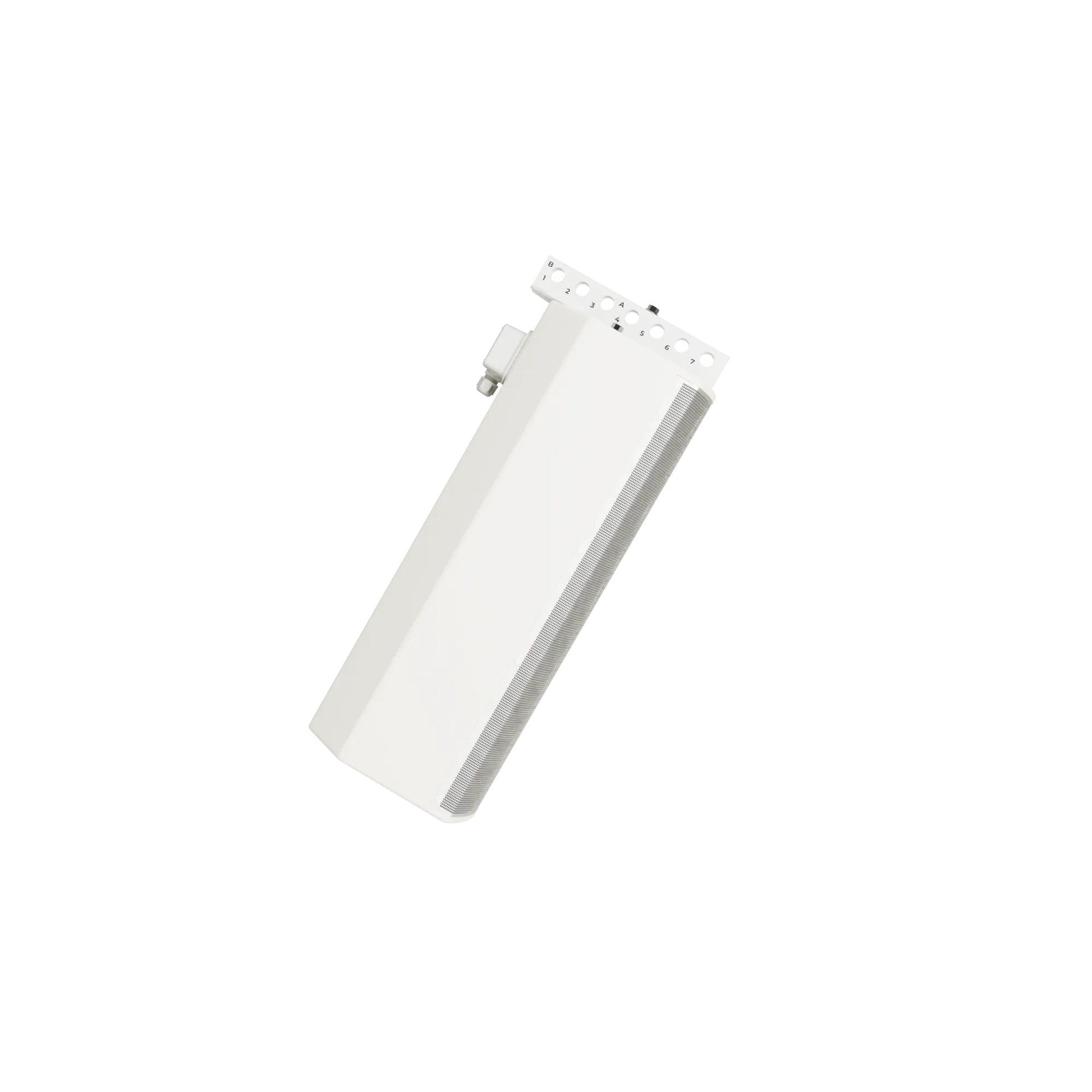

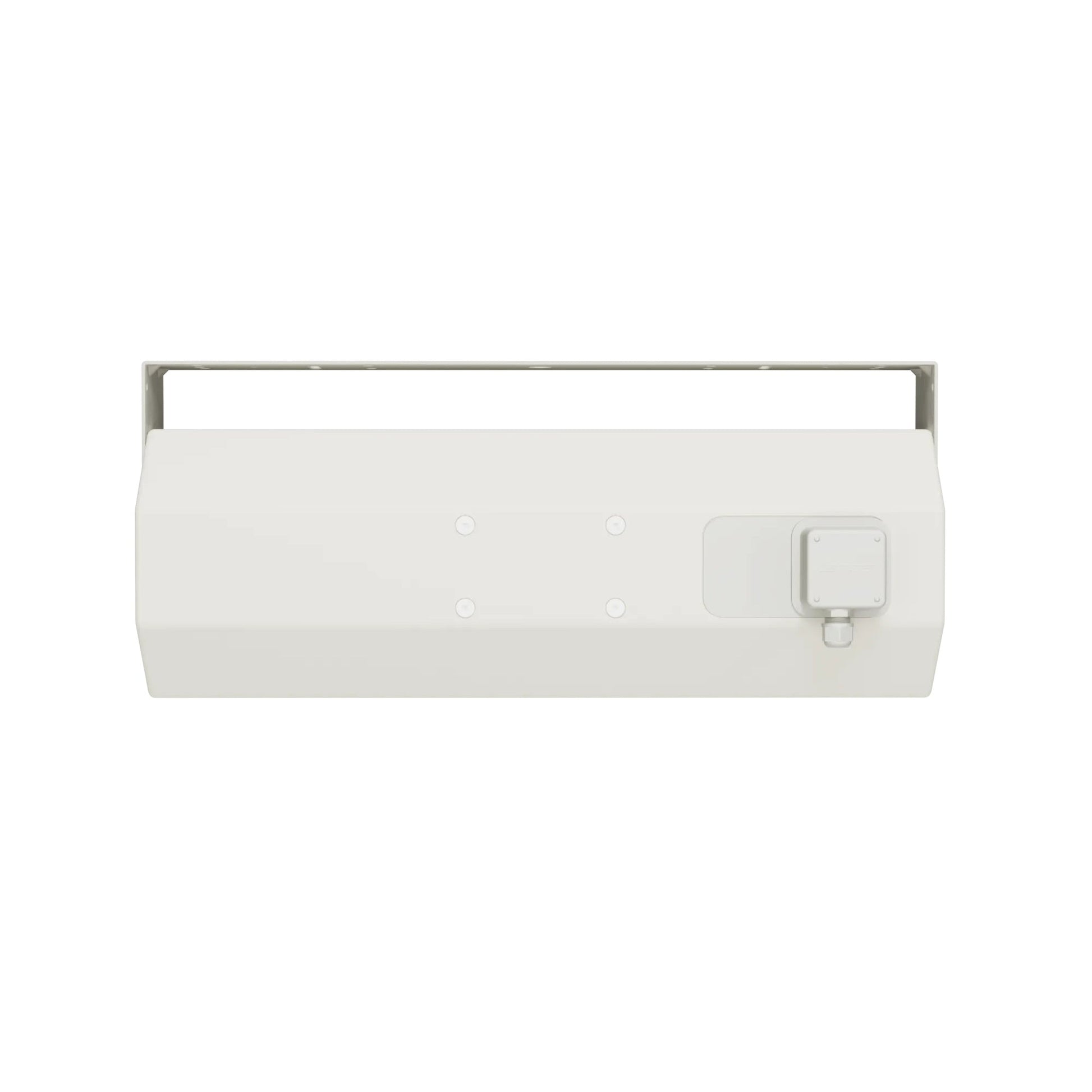

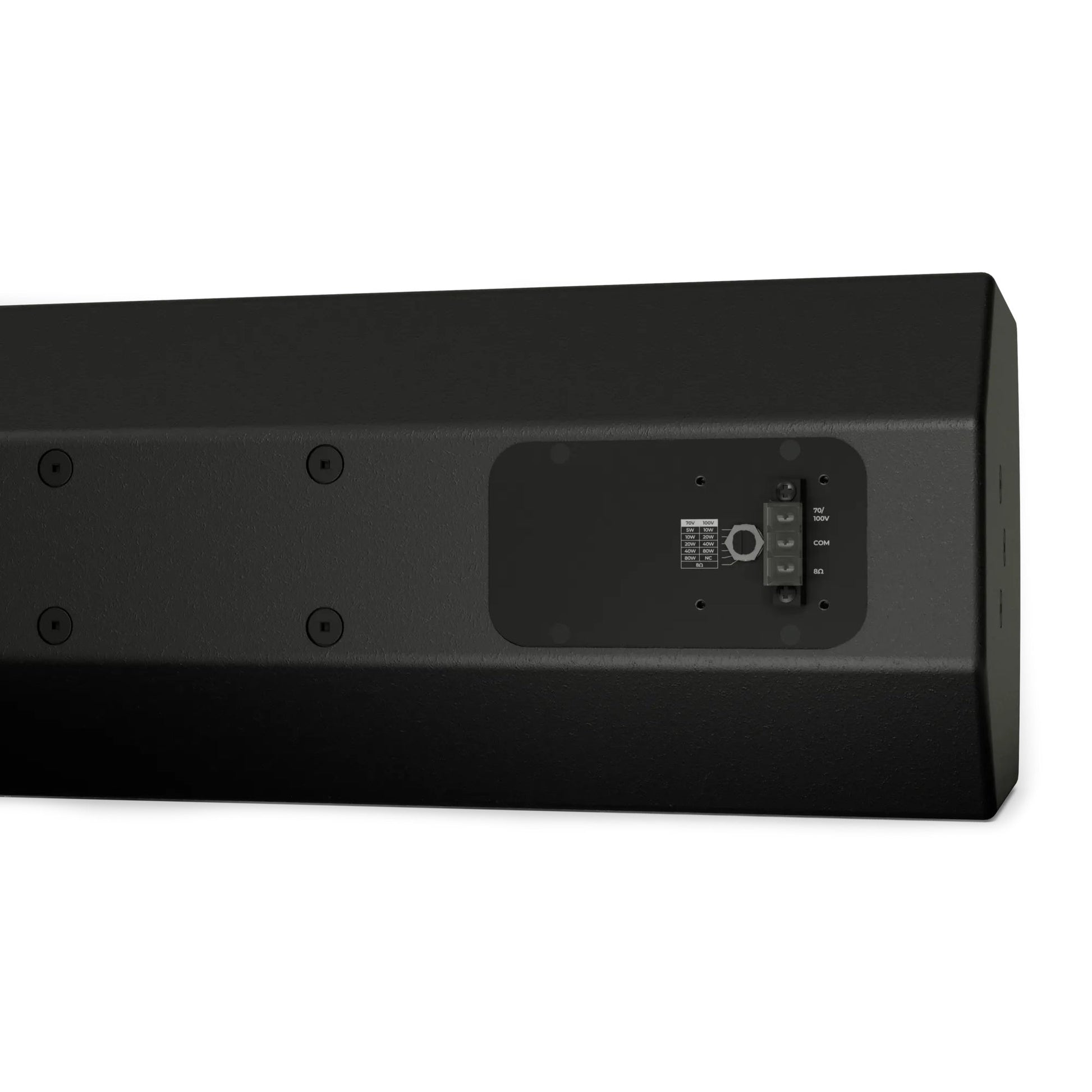

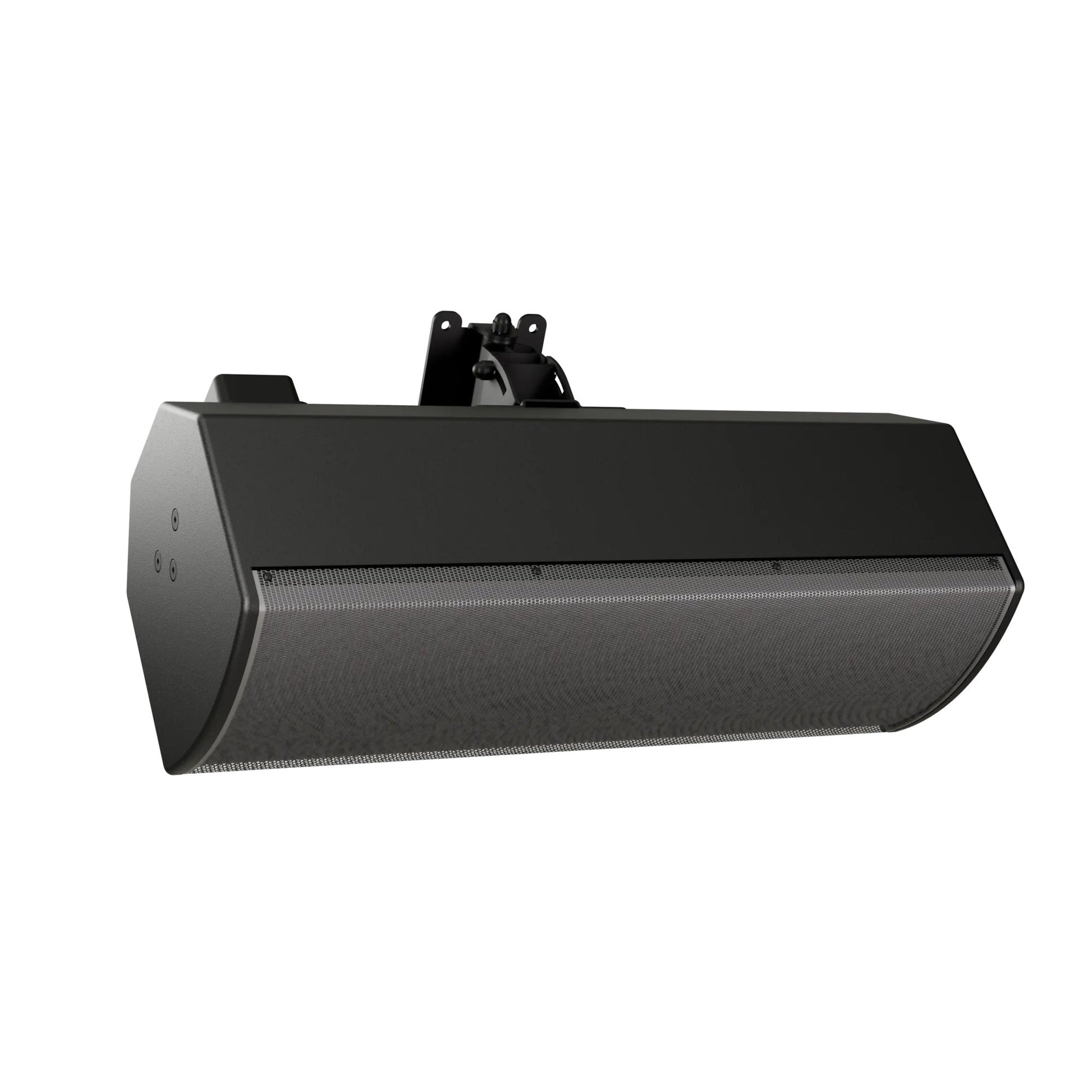

The weather-sealed internal transformer provides five 70V taps and four 100V taps with 8-ohm bypass, eliminating external matching transformers. The three-layer stainless steel grille system, industrial polyurethane coating, and molded input cover extend operational life in direct-exposure outdoor environments. Rear M8 threaded inserts accept the included U-bracket or third-party rigging hardware for surface-mount, suspension, or pan-and-tilt applications.

Passive crossovers with separate bandpass filters per transducer deliver factory-optimized performance when paired with Bose Professional amplifiers and processors. The stocked model ships with mounting hardware, input cover, and installation guide, eliminating custom order lead times for time-sensitive installations.

View full details

Specifications

Certifications
EN 54-24 Certified
Yes
Safety Agency Ratings
EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
Ingress Protection
IP55 per EN60529; IP33C per EN 54-24
Dimensions
Product Dimensions (H x W x D)
9.3" x 27.0" x 11.0" (235 mm x 686 mm x 279 mm)
Weight
Net Weight
37.5 lbs (17.0 kg) loudspeaker / 43.0 lbs (19.5 kg) loudspeaker with U-bracket
Audio
Frequency Range (-10 dB)
70 Hz – 18,000 Hz
Coverage, Horizontal
60°
Coverage, Vertical
120°
Calculated Maximum SPL @ 1 m
119 dB (free field), 121 dB (wall/ceiling)
Nominal Impedance
8 Ω
Power Handling, Long-Term Continuous
300 W
Power Handling, Peak
1200 W
Sensitivity (SPL/1 W at 1 m)
94 dB (free field), 96 dB (wall/ceiling)
Transformer Taps, 100V
10, 20, 40, 80 W
Transformer Taps, 70V
5 W, 10 W, 20 W, 40 W, 80 W
Crossover
200 Hz & 1.2 kHz, passive, separate bandpass filters per transducer
High-Frequency
1 x Bose Professional EMB2S extended-high frequency neodymium compression driver, 2" (51 mm) voice coil
Low-Frequency

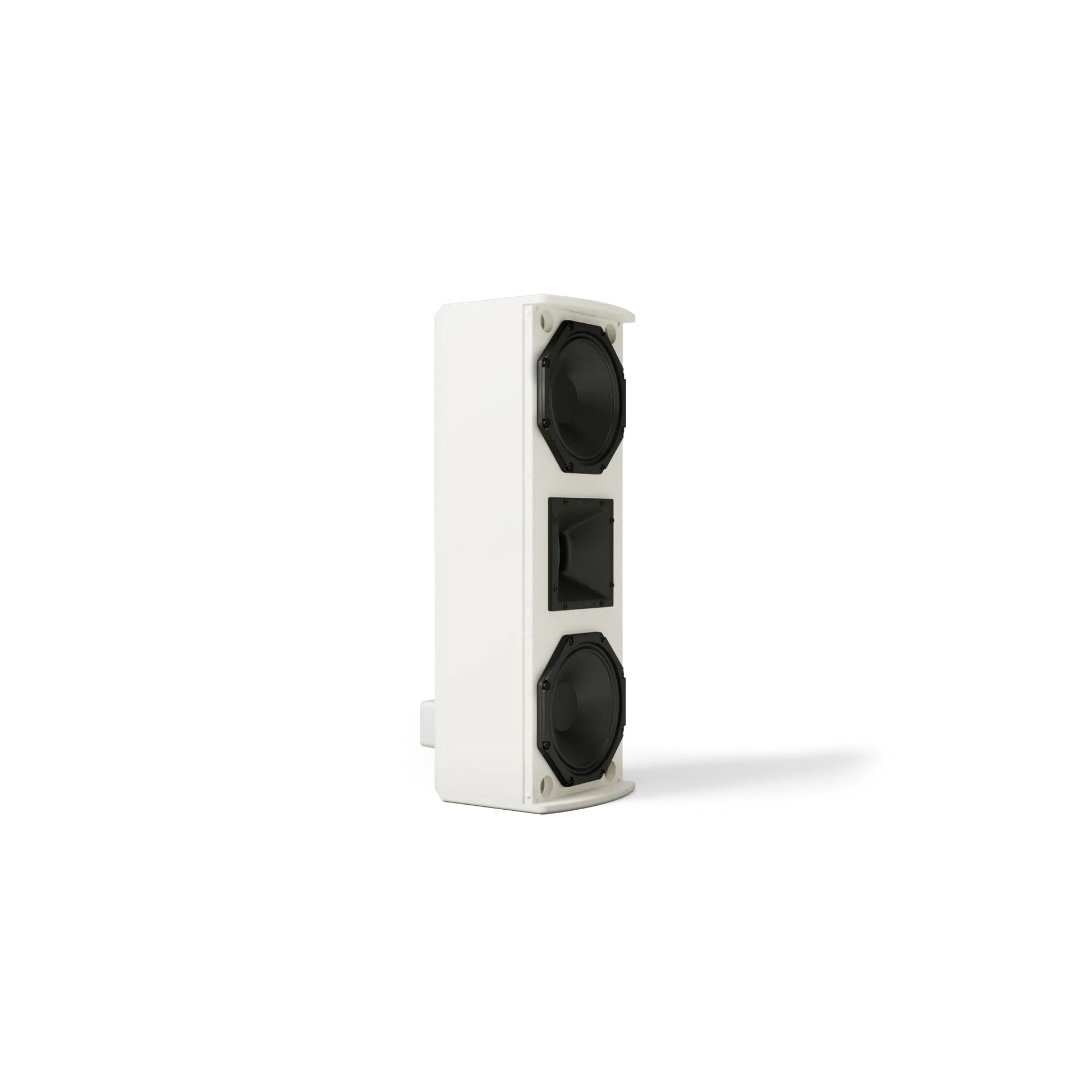

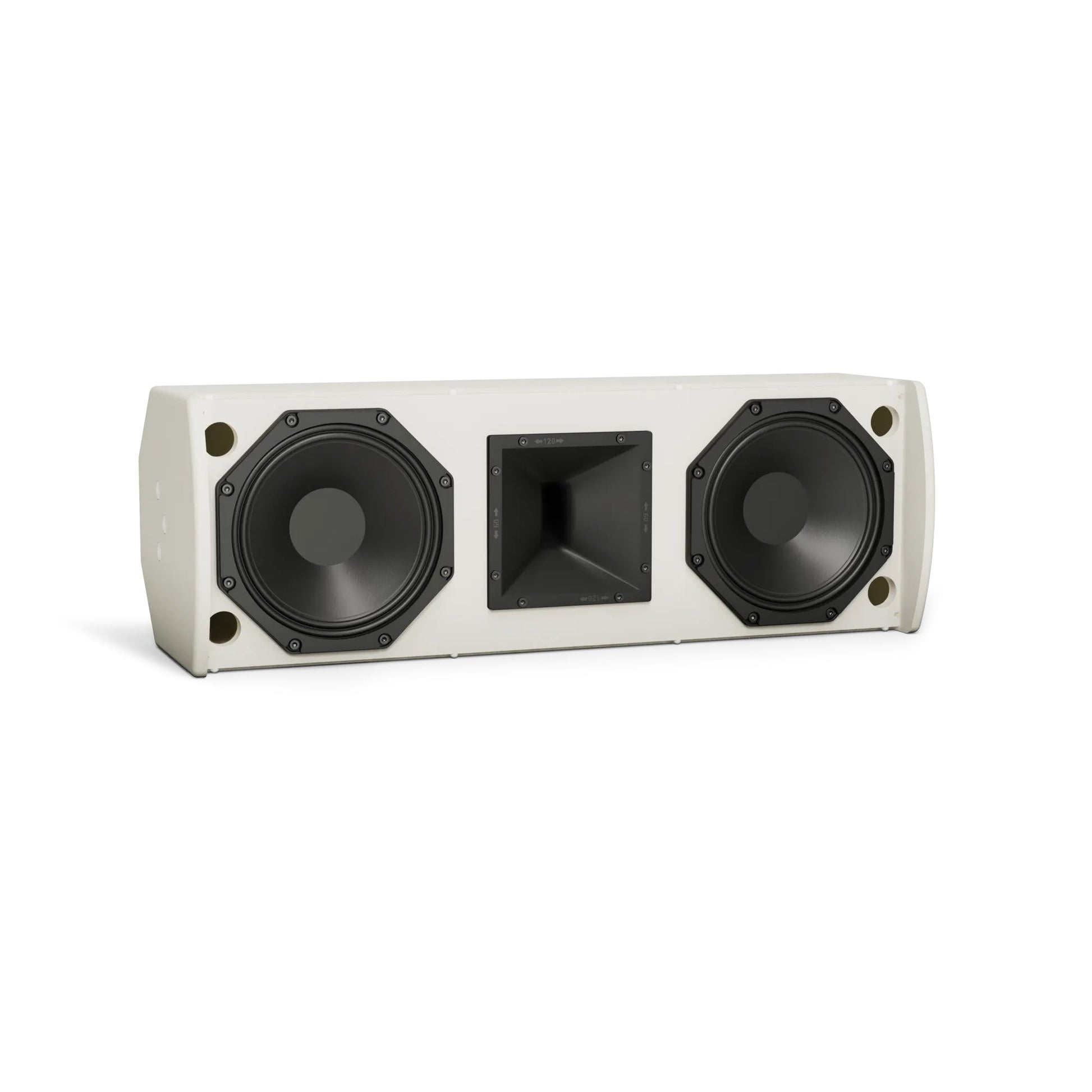

2 x Bose Professional LF8 high-excursion 8" (203 mm) woofer, 2" (51 mm) voice coil
Construction
Enclosure Material
Exterior-grade plywood
Grille

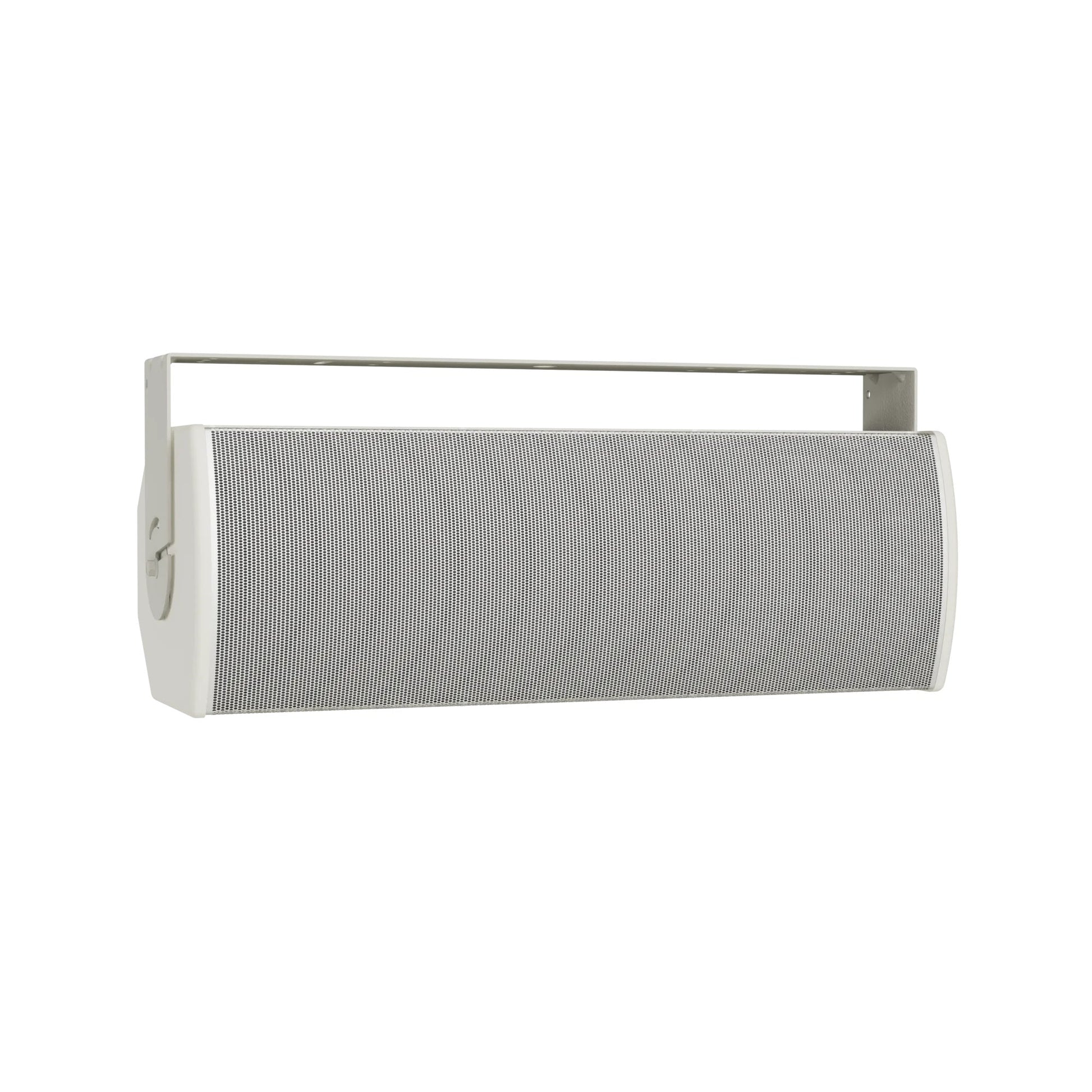

3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
Suspension/Mounting

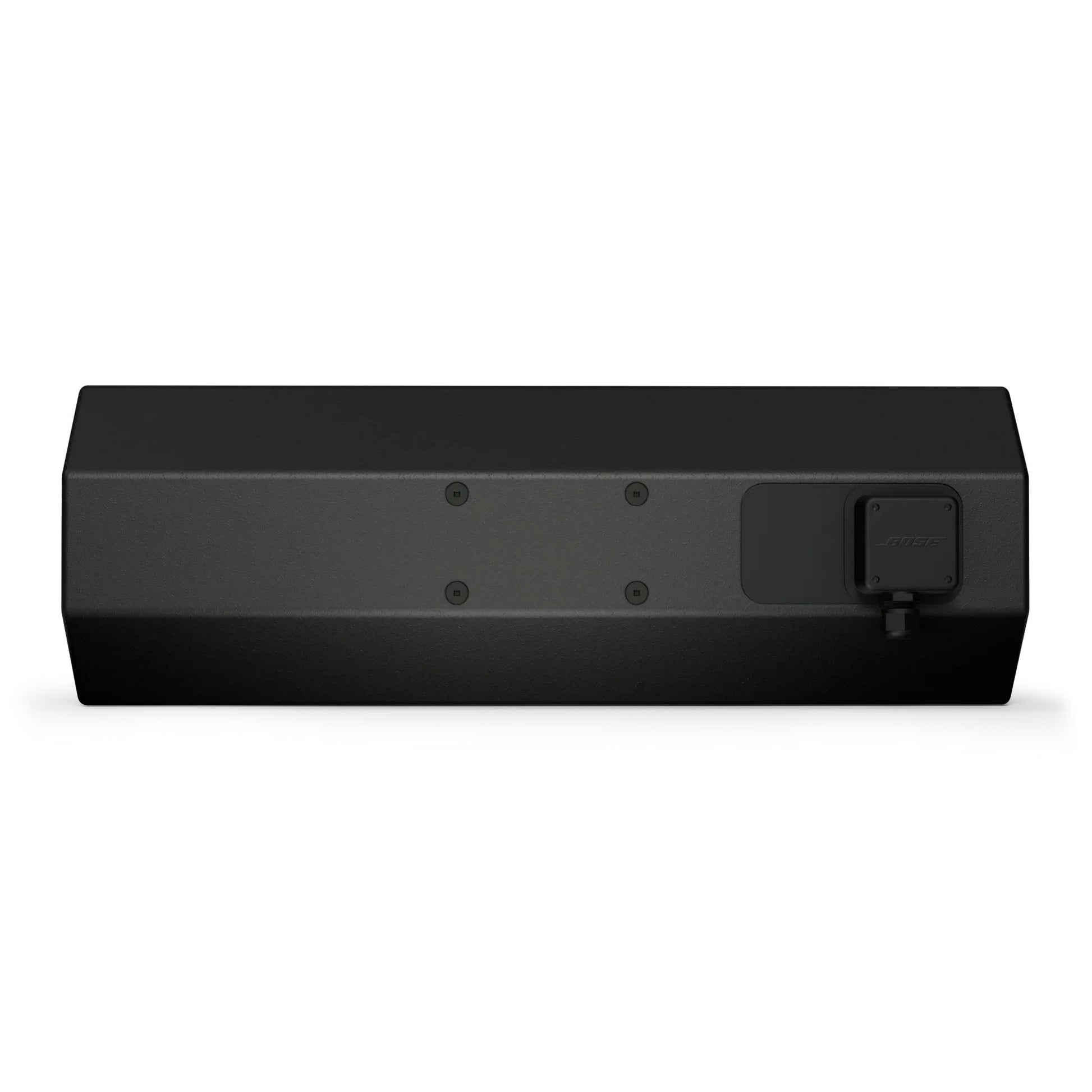

2 x M8 threaded inserts for U-bracket, 4 x M8 threaded inserts on rear (127 x 70 mm, 4-bolt pattern)
Environmental
Environmental
Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
Shipping
Shipping Weight
51.0 lbs (23.1 kg)
