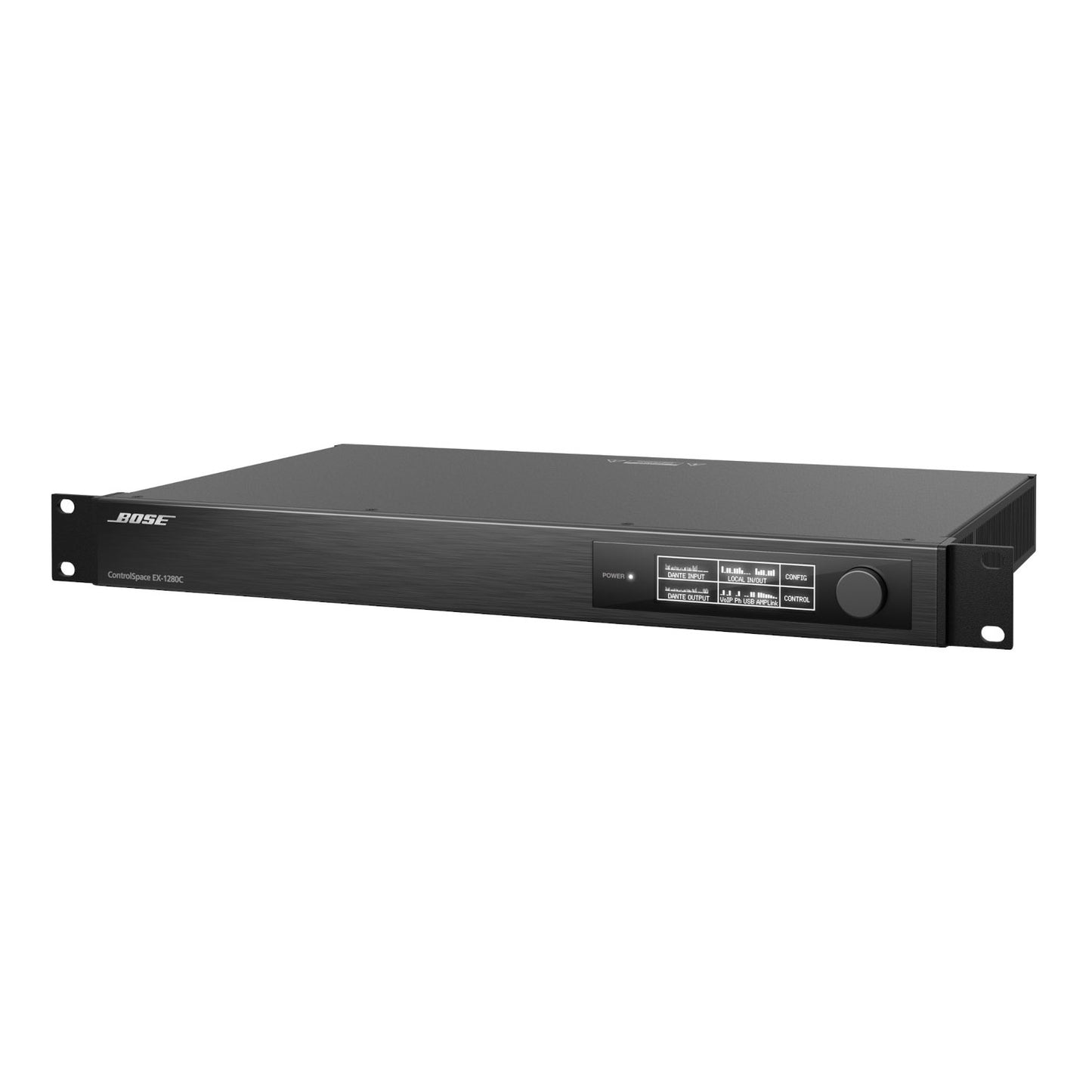

Bose ControlSpace EX-1280C Conferencing Processor

Bose ControlSpace EX-1280C Conferencing Processor

SoundPro Item: 107099 | Part Number: 772234-1110

$3,499.00
$3,999.00 $3,499.00
Your Price Sold out
MSRP: $3,999.00 | MAP: $3,499.00

Usually ships in 5-7 business days

  • Supports simultaneous VoIP, PSTN and USB soft codecs
  • 12 acoustic echo cancellers (AEC) route to both analog and Dante® inputs
  • Multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors
  • Adaptable noise cancellation on each AEC channel
  • 2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement
  • PSTN connection (RJ-11) for worldwide POTS/analog telephone systems
  • USB connection facilitates easy integration with PC soft codecs
  • Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products
  • Bose AmpLink port provides 8-channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers
  • Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity
  • GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs
Log in or register for YOUR best price

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 x 64 Dante® connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

Applications

  • Performance venues
  • Stadiums and arenas
  • Places of worship
  • Resorts and Hospitality Venues
  • Multipurpose spaces
View full details
  • Signal processor32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
  • Dynamic Range> 115 dB A-weighted 20 Hz – 20 kHz, analogy input to analog output
  • Input Channels12 balanced, mic/line level
  • Output Channels8 balanced, line level
  • Dimensions (HxWxD)1.7" x 19" x 11.1"
  • Weight7.1 pounds (3.2 kg)
