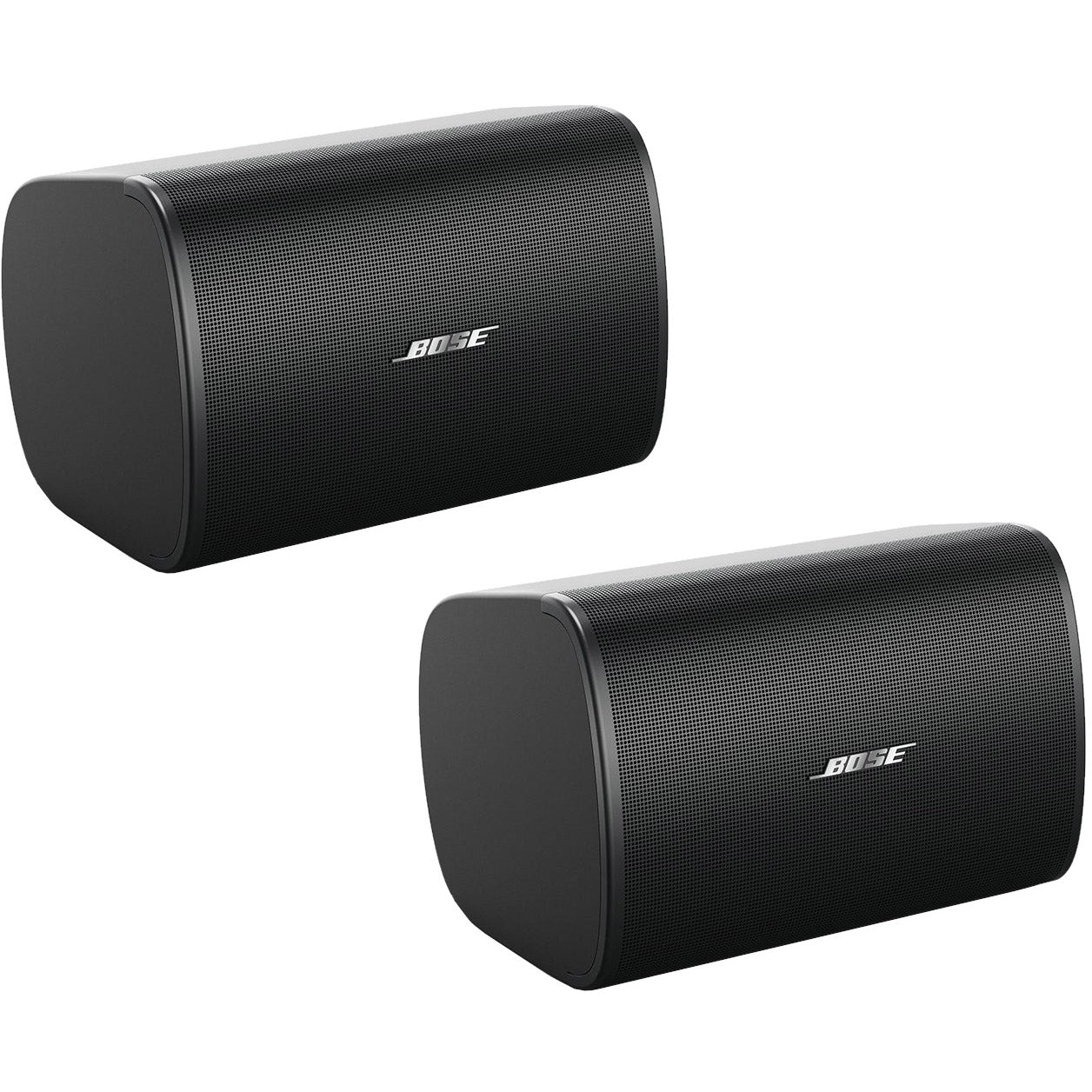

Bose DesignMax DM5SE Surface Mount Speakers (Pair) | Color: Black
Bose DesignMax DM5SE Surface Mount Speakers (Pair) | Color: Black
SoundPro Item: 106850 | Part Number: DM5SE BLK
Usually ships in 5-7 business days
- Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use
The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz.
With coaxial two-way drivers, the 60-watt DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Applications include:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues

- Frequency Response (+/-3 dB)73 - 17,000 Hz
- Nominal coverage (H x V)135° conical
- Power Handling, peak240 W
- Maximum SPL @ 1m107 dB
- Frequency Range (-10 dB)65 - 20,000 Hz
- Power Handling, long-term continuous60 W
- Sensitivity (SPL/1W @ 1 m)89 dB
- Nominal Impedance8 Ω (transformer bypass)
