Bose DM3P DesignMax Loudspeakers | Color: Black

Bose DM3P DesignMax Loudspeakers | Color: Black

SoundPro Item: 147734 | Part Number: 841165-0120

Regular price $671.00
Regular price $745.00 Sale price $671.00
Your Price Sold out
MSRP: $745.00 | MAP: $671.00

Usually ships in 5-7 business days

  • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
  • Choose from three DM3 models - the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
  • Deliver clear highs and surprising low end for their size with a coaxial two-way design - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

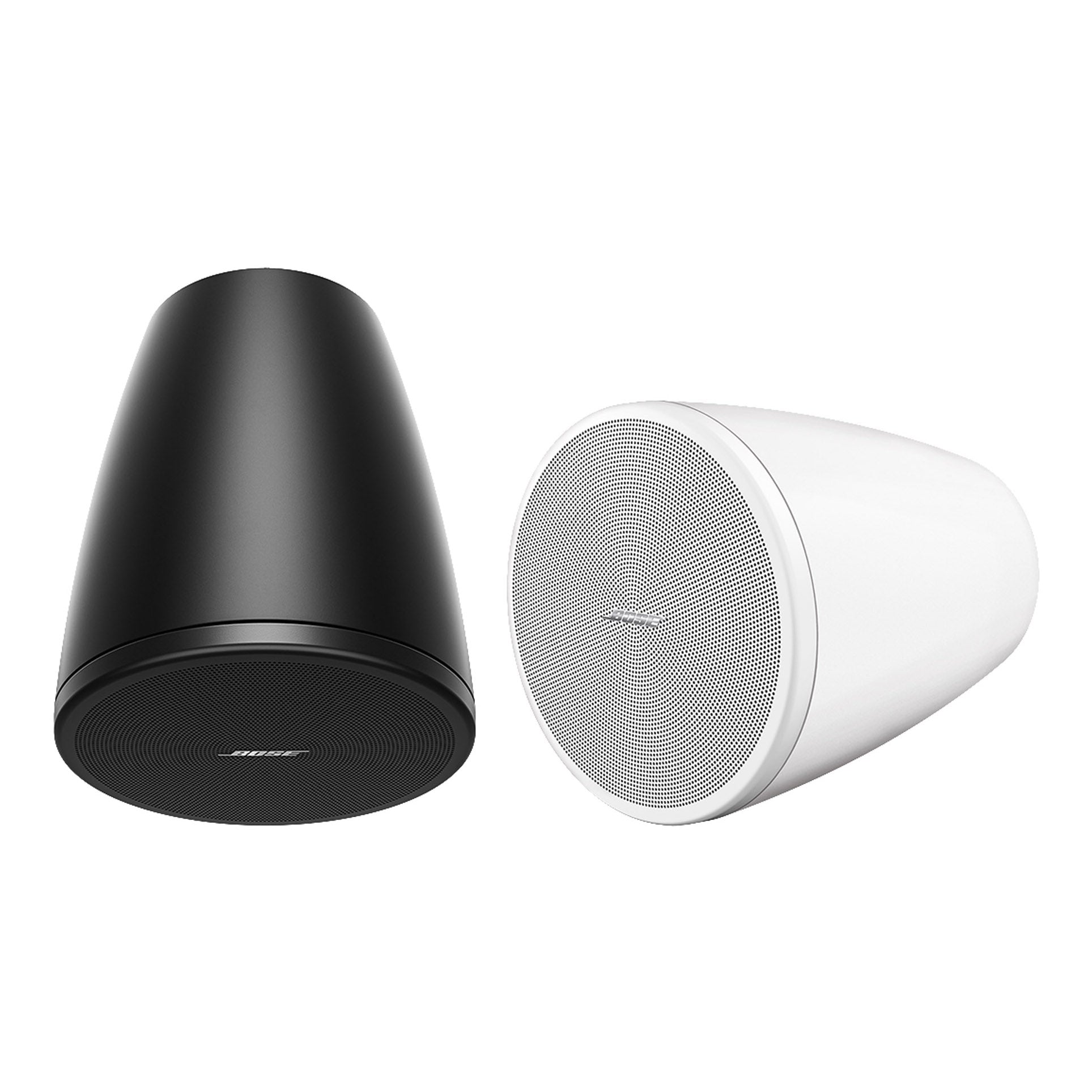

  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

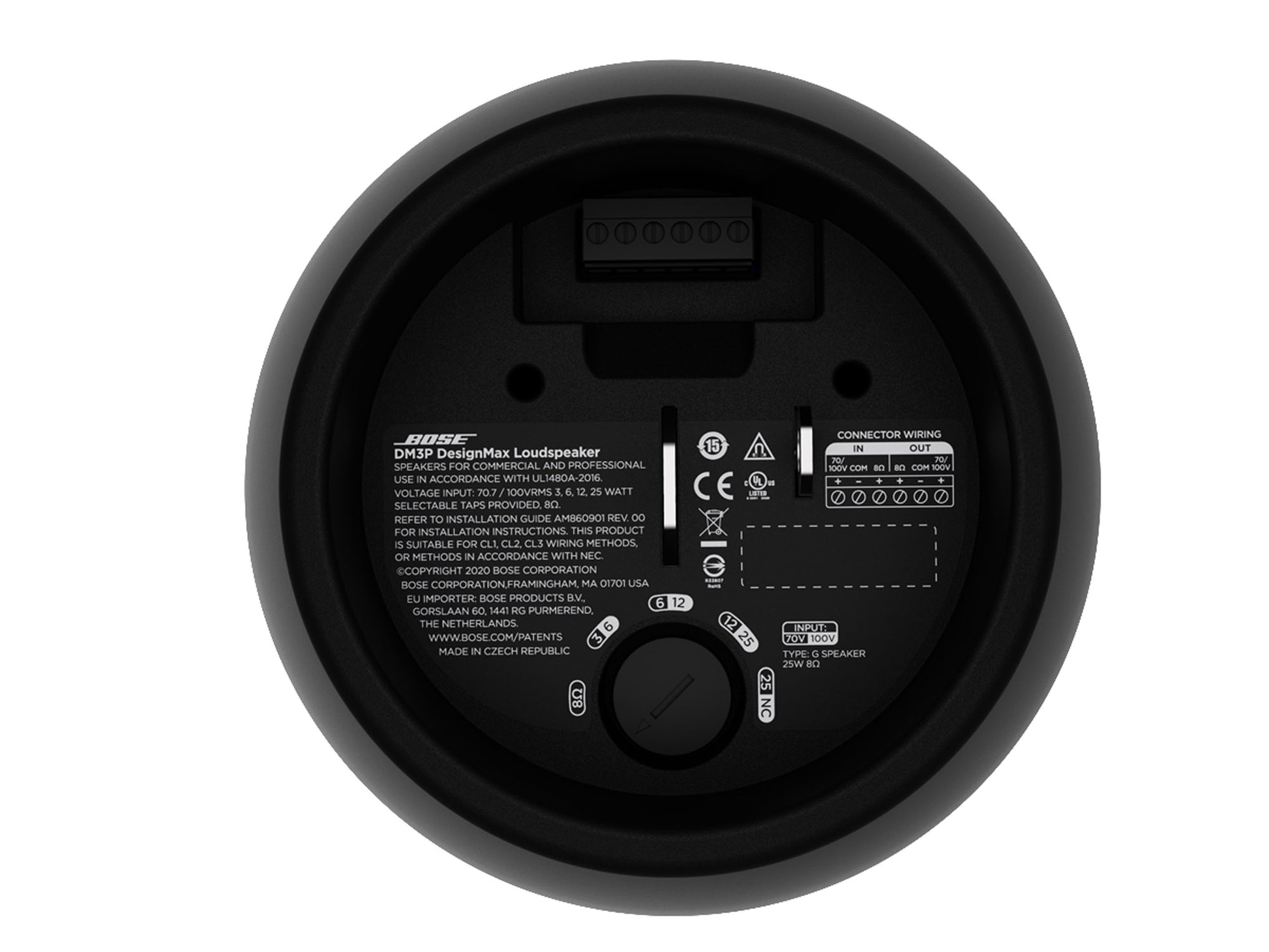

  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

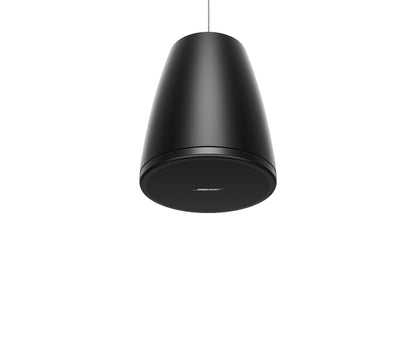

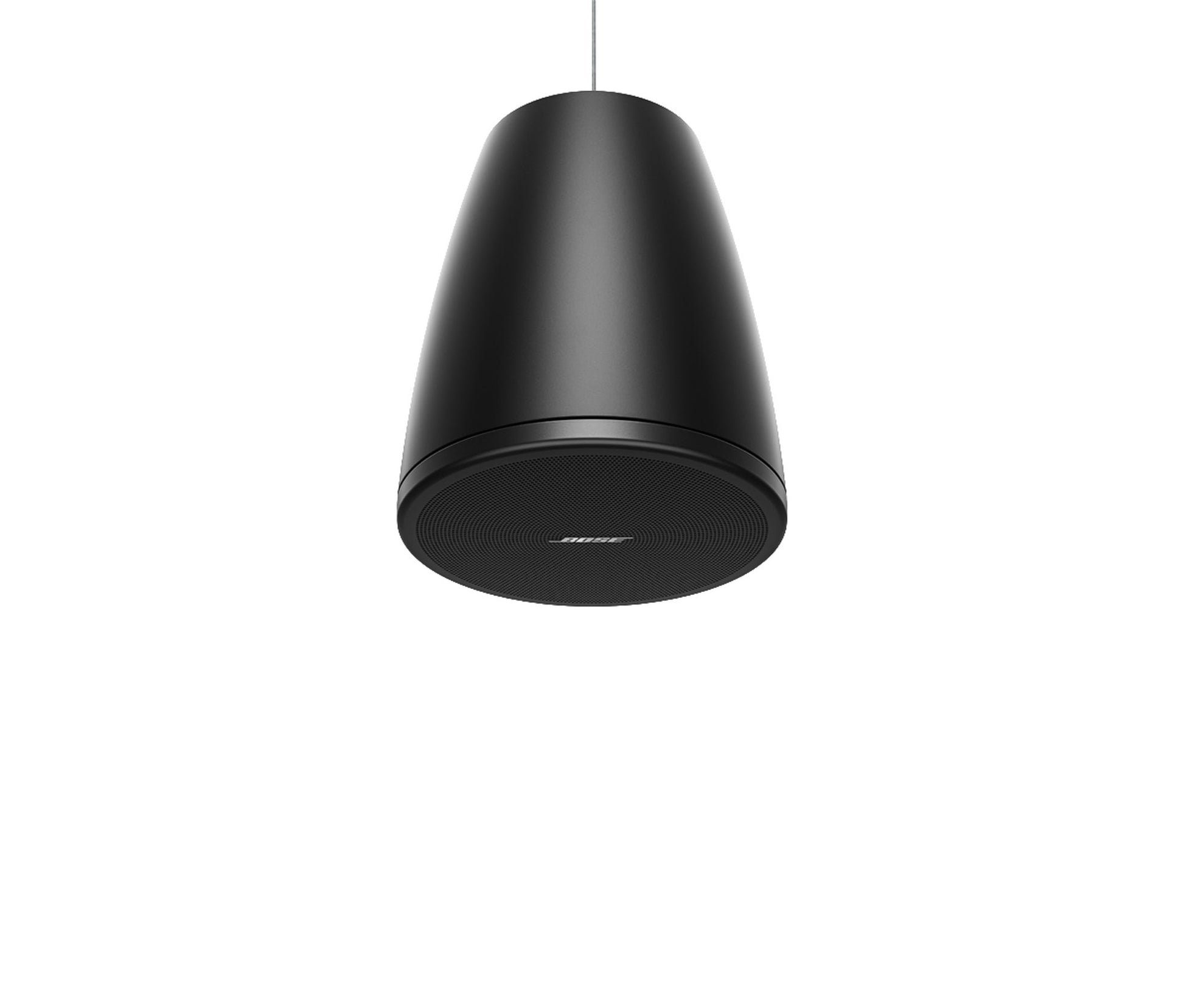

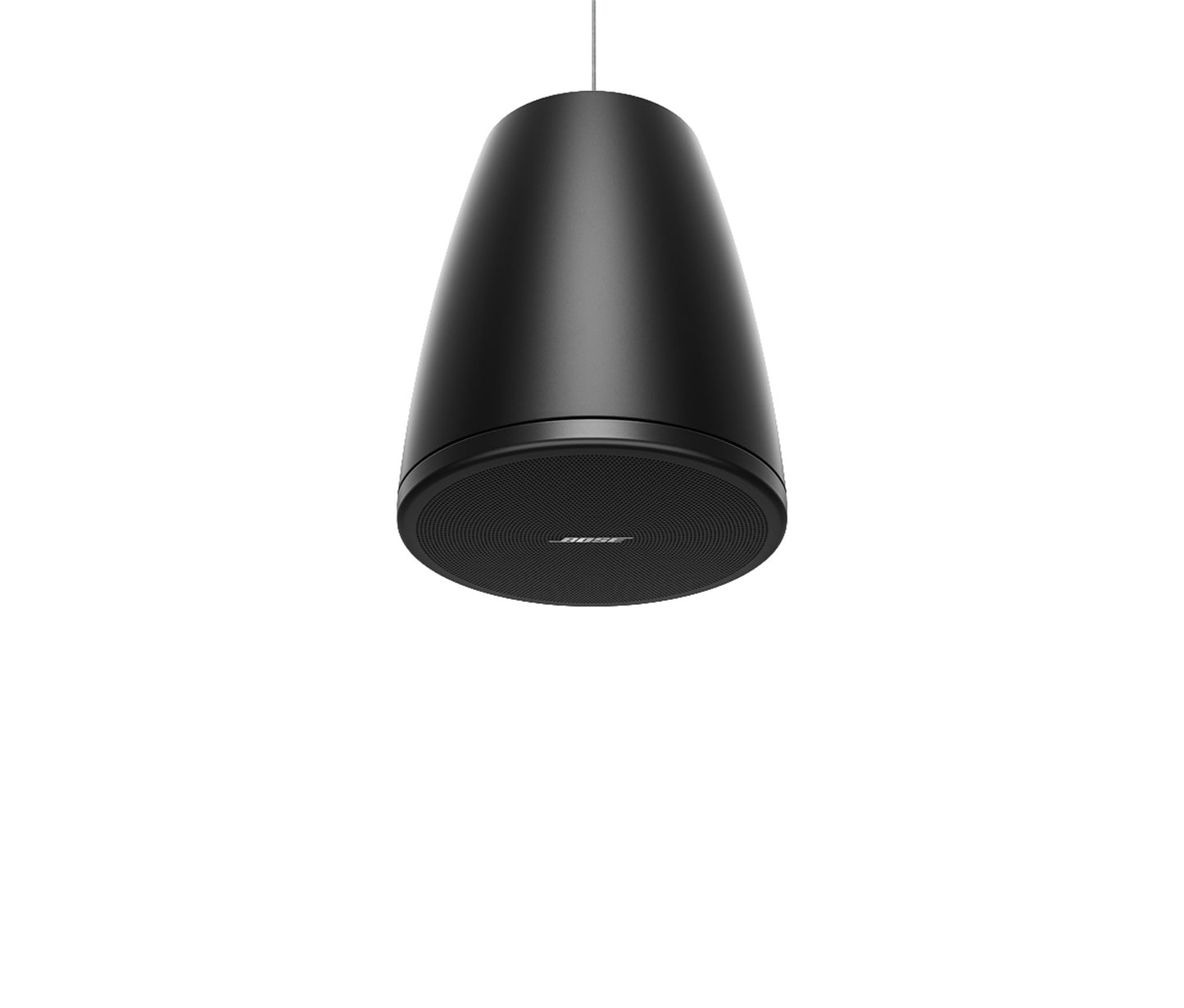

With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz - 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

View full details

Specifications

Weight
Net Weight
5.5 lb (2.5 kg), single
Shipping Weight
15.4 lb (7.0 kg), pair
Audio
Crossover
1.7 kHz, passive 2-way crossover
Construction
Enclosure Material
Engineered plastics
Grille
Perforated steel, powder-coated finish
Environmental
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
General
Environmental
Indoor only
Logo
Rotatable, removable
Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Product Dimensions (HxWxD)
8.2 in x 9.8 in (207 mm x 248 mm), loudspeaker diameter x depth / 15.0 ft x 0.1 in (4.6 m x 2 mm), suspension cable length x diameter
Frequency Range (-10 dB)
75 Hz - 20,000 Hz
Coverage, Horizontal
130° conical
Calculated Maximum SPL @ 1 M
99 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, Long-term Continuous
25 W
Power Handling, Peak
100 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
84 dB
Transformer Taps, 100V
6, 12, 25 W, bypass
Transformer Taps, 70V
3 W, 6 W, 12 W, 25 W, bypass
Coverage, Vertical
130° conical
Driver Protection
Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter
High-Frequency
1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
Low-Frequency
1 x 3.25 in (83 mm) woofer
