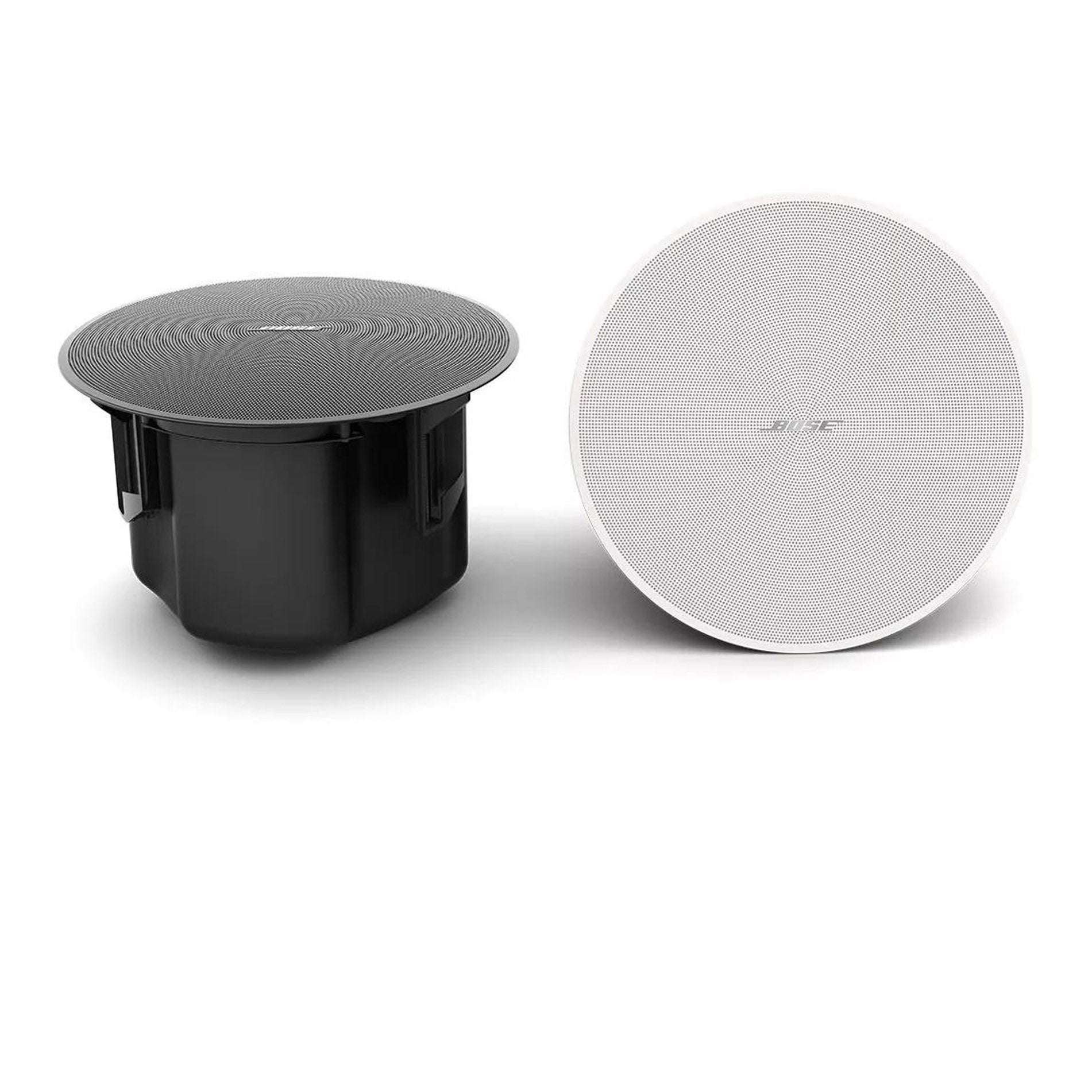

Bose DM5C DesignMax Loudspeakers | Color: White

Bose DM5C DesignMax Loudspeakers | Color: White

SoundPro Item: 147739 | Part Number: 829683-0220

$821.00
$912.00 $821.00
Your Price Sold out
MSRP: $912.00 | MAP: $821.00

Usually ships in 5-7 business days

  • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Log in or register for YOUR best price

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The DM5C features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz - 20 kHz. The in-ceiling DM5C is installed easily via QuickHold mounting arms.

View full details

Specifications

Weight
Net Weight
9.6 lb (4.5 kg), loudspeaker with grille (single) / 1.9 lb (0.9 kg), tile bridge (single)
Shipping Weight
29.0 lb (13.2 kg), pair
Audio
Crossover
1.8 kHz, passive 2-way crossover
Construction
Enclosure Material
Engineered-plastics front baffle with integrated steel-formed back can
Grille
Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
Environmental
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
General
Environmental
Indoor only
Ceiling Cutout
9.8 in (250 mm)
Logo
Rotatable, removable
Suspension/Mounting
(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
Product Dimensions (HxWxD)
11.9 in x 8.1 in (303 mm x 205 mm), loudspeaker diameter x depth / 9.6 in x 7.6 in (243 mm x 192 mm), backcan diameter x depth
Frequency Range (-10 dB)
65 Hz - 20,000 Hz
Coverage, Horizontal
130° conical
Calculated Maximum SPL @ 1 M
105 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, Long-term Continuous
60 W
Power Handling, Peak
240 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
87 dB
Transformer Taps, 100V
6, 12, 25, 50 W, bypass
Transformer Taps, 70V
3 W, 6 W, 12 W, 25 W, 50 W, bypass
Coverage, Vertical
130° conical
Driver Protection
Recommended high-pass protection 65 Hz with recommended 24 dB/octave filter
High-Frequency
1 x 1 in (25 mm) neodymium dome tweeter, coaxially mounted
Low-Frequency
1 x 5.25 in (133 mm) woofer
