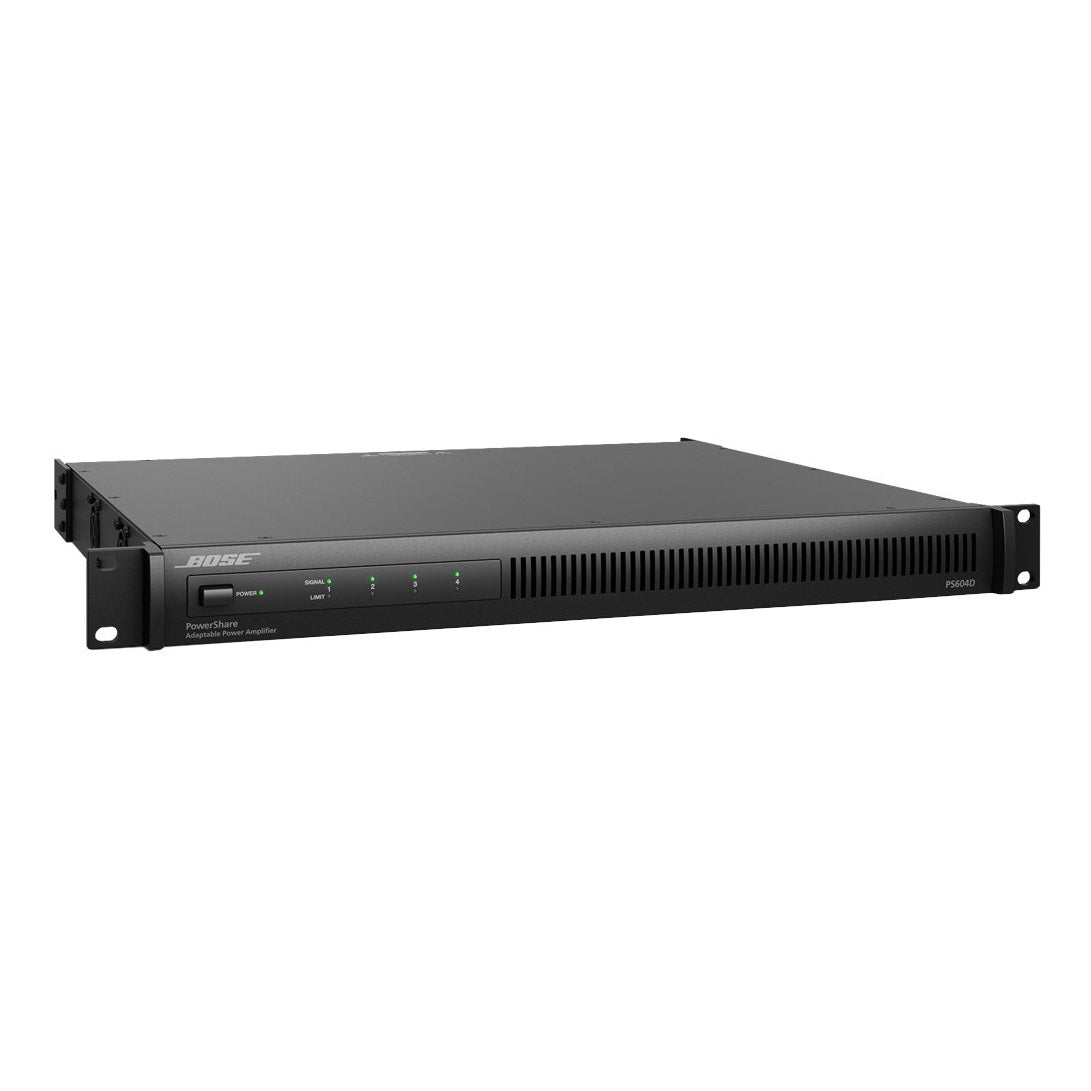

Bose PowerShare PS604D Adaptable Power Amplifier
Bose PowerShare PS604D Adaptable Power Amplifier
SoundPro Item: 107075 | Part Number: 813403-1310
Usually ships in 5-7 business days
- Distribute the total 600 watts asymmetrically across all outputs using patented PowerShare technology
- Configure any channel for low-impedance (4-8 O) or high-impedance (70/100V) applications without bridging or using jumpers
- Integrated Dante Audio Networking
- Dual Feedback Loop system allows for continuous monitoring and control of both the current and voltage delivered to each output load
- Configure and adjust various parameters using ControlSpace Designer software
- Save power with Auto-standby mode
Put the power where you need it with the Bose PowerShare PS604D Adaptable Power Amplifier. PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven PowerMatch line — now with added flexibility. Using innovative PowerShare technology, the amp shares power across all output channels and delivers 600 watts for installed applications. This means you can distribute the total 600 watts asymmetrically across all outputs or use any individual output to deliver full power. And with support for both low- and high-impedance loads up to 100V, it’s easy to adapt PowerShare amplifiers to a wide range of applications. ControlSpace Designer software allows for Ethernet-based configuration and quick setup of external control options. With onboard Dante® audio networking, you have the flexibility to place PowerShare amplifiers away from source locations and closer to loudspeakers. This unique set of features and technologies makes PowerShare one of the most versatile, high-performance amplifiers available today.
Applications
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
- Power Rating
- Amplifier Power: 4 x 150 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)
- Max Power per Channel: 600 W @ 4-8 Ω, 70/100V
- Gain: 32 - 38 dB (mode dependent)
- Audio Performance
- Frequency Response: 4-8 Ω: 20 Hz – 20 kHz (+/- 0.5 dB @ 1 W); 70/100V: Same as 4-8 Ω with 50 Hz high-pass filter
- Crosstalk: > 85 dB @ 1 kHz, > 65 dB @ 20 kHz
- Signal to Noise Ratio: 100 dB (at rated power, A-weighted)
- Audio Inputs
- Analog
- Input Channels: 4 balanced
- Connectors: 12-pin Euroblock
- Input Impedance: 20 kΩ
- Max Input Level: 20 dBu (at 12 dBu sensitivity setting)
- Sensitivity: 4 dBu (low) 12 dBu (high)
- Dante
- Input Channels: 4 digital
- Connectors: RJ-45 (primary)
- Audio Outputs (Analog)
- Outputs: 4
- Connectors: 8-pin inverted Euroblock
- Integrated DSP
- A/D and D/A Converters: 24-bit / 48kHz
- Processing Functions:
- Matrix mixer
- Loudspeaker EQ
- Real-time 9-band PEQ
- Vpeak/Vrms limiters
- Delay
- Band pass
- Mute/output polarity inversion
- Audio Latency: < 1 ms (Analog input to analog loudspeaker output)
- Mains Voltage100 VAC – 240 VAC (±10%, 50/60 Hz)
- AC Power Consumption (120 and 230 VAC)14 W (Standby), 700 W (Max)
- Mains ConnectorStandard IEC (C14)
- Max Inrush Current14.14 A (230 VAC / 50 Hz), 8.04 A (120 VAC / 60 Hz)
- Dimensions (HxWxD)1.7" x 19" x 16.3"
- Weight14.1 pounds (6.4 kg)
