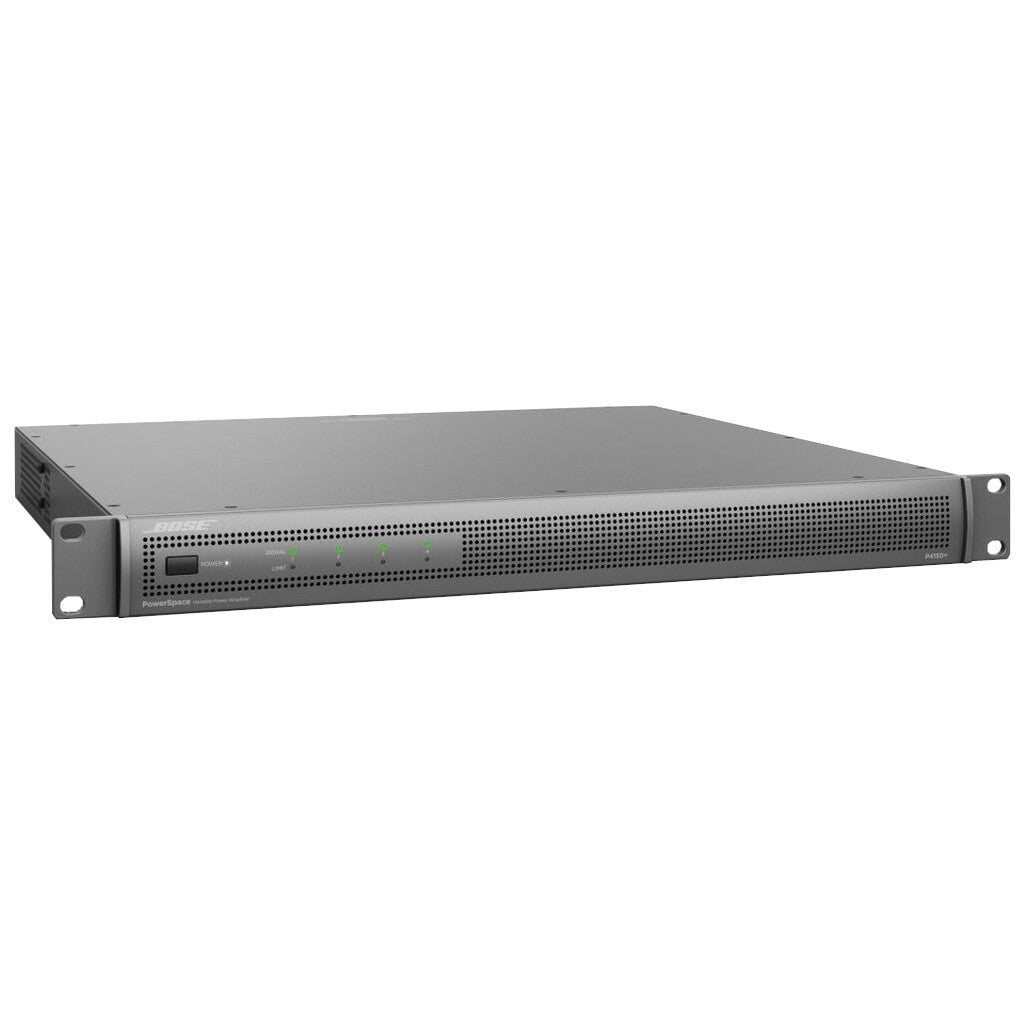

Bose PowerSpace P4150+ Power Amplifier
Bose PowerSpace P4150+ Power Amplifier
SoundPro Item: 107068 | Part Number: 810965-1110
Usually ships in 5-7 business days
- 150 watts per channel and works seamlessly with Bose loudspeakers and controls to create complete commercial sound systems
- Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose loudspeaker EQs, plus input and area EQs
- PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
- Opti-voice paging provides a smooth transition between music and announcements
- Integrated features to simplify commercial installations: Dedicated input for 600-ohm telephone or mic paging, independent 600-ohm music-on-hold and line-level aux outputs, and a NO/NC mute connection
- Load-independent outputs deliver full channel power to either low-impedance loads (4-8 O) or high-impedance (70/100V) loads without bridging
- I-Share outputs deliver 2x power level by combining the current of two channels
- Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
- Intuitive end-user operation — optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection
The Bose PowerSpace P4150+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces — such as ControlCenter analog zone controllers — make operation easy for end users. For premium commercial applications, Bose PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.
Applications include:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
- Power Rating
- Amplifier Power: 4x 150 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)
- I-Share Mode Power: 2x 300 W (2-4 Ω, 70/100V) (Each channel pair can be I-Shared)
- Gain (Low-Z mode): 29 dB
- Gain (70V mode): 35 dB
- Gain (100V mode): 38 dB
- Audio Performance
- Frequency Response: 4-8 Ω: 20 Hz – 20 kHz (+/- 1 dB @ 1 W); 70/100V: Same as 4-8 Ω with 50 Hz high-pass filter
- Channel Separation (Crosstalk): > 80 dB @ 1 kHz, > 65 dB @ 20 kHz
- Dynamic Range: ≥ 100 dBA (at rated power)
- Integrated DSP
- A/D and D/A Converters: 24-bit / 48 kHz
- Processing Functions: Matrix mixer, loudspeaker EQ, Vpeak/Vrms limiters, real-time PEQ, ControlCenter configuration, mute/output polarity inversion
- Audio Latency: < 1 ms (any analog input to loudspeaker output)
- Audio Inputs (Analog)
- Input Channels: 4 balanced, 2 unbalanced
- Connectors: 3x 3-pin Euroblock, 1x 4-pin Euroblock (supports PTT/VOX dynamic mic or 600 Ω telephone paging), 2 stereo RCA (internally mono-summed)
- Input Impedance: 10 kΩ
- Maximum Input Level: 22 dBu (at 14 dBu sensitivity setting)
- Sensitivity: -10 dBV / 4 dBu / 14 dBu
- Audio Outputs
- Speaker
- Outputs: 4
- Connectors: 8-terminal block
- Auxiliary
- Outputs: 2
- Connectors: 3-pin Euroblock (600 Ω music-on-hold, line level)
- Indicators and Controls
- Power LED
- Solid white: Power is on.
- Blinking white: Unit is in auto standby mode.
- Solid red: Power supply fault.
- Blinking Red: Thermal fault.
- Input Signal LED
- Green: Signal present.
- Amber: Input is near clipping.
- Red: Input is clipping.
- Output Limit LED
- Amber: Amplifier limiting an output.
- Blinking red: Amplifier muted.
- Solid red: Amplifier or thermal fault.
- Controls, Front Panel: Power On/Off
- Controls, Rear Panel: RJ-45 remote input for CC-1, CC-2 and CC-3 ControlCenter zone controllers, mute, output attenuators.
- Electrical
- Mains Voltage: 100 VAC – 240 VAC (±10%, 50/60 Hz)
- AC Power Consumption
- 120 VAC: 25 W (Auto standby), 325 W (Max)
- 230 VAC: 25 W (Auto standby), 325 W (Max)
- Mains Connector: Standard IEC (C14)
- Protections: Vpeak/Vrms limiters, high temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage
- Physical
- Operational Temperature Range: 0 °C to 40 °C
- Storage Temperature Range: -40 °C to 70 °C
- Dimensions (H × W × D): 44 × 483 × 420 mm (1.7 × 19.0 × 16.5 in)
- Net Weight: 6.6 kg (14.6 lb)
- Shipping Weight: 8.6 kg (19.0 lb)
- Cooling System: Microprocessor-controlled variable-speed fans, front-to-back air flow
