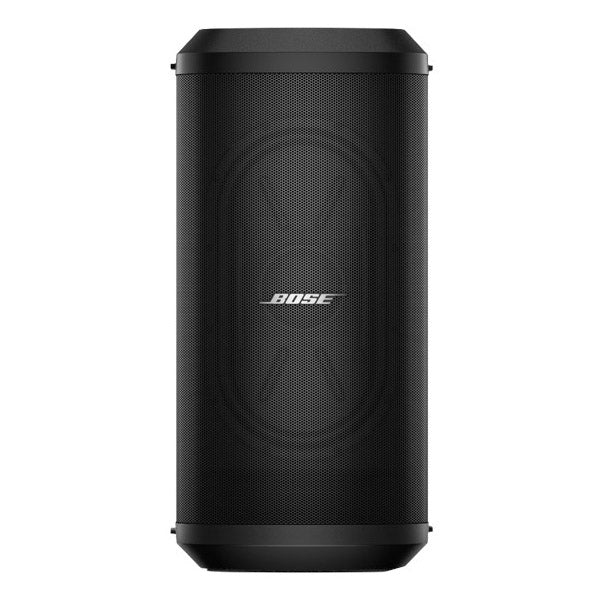

• Bose Sub1 Powered Bass Module

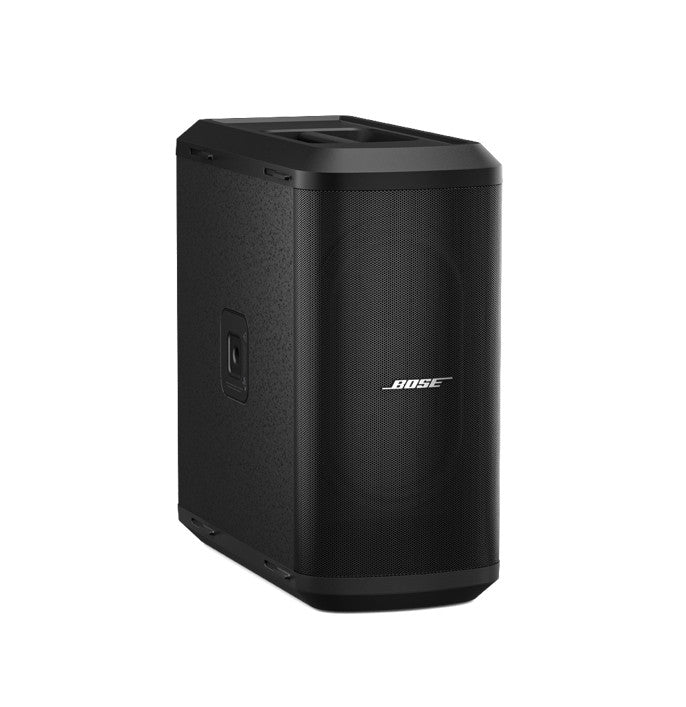

  • Bose Sub1 Powered Bass Module side

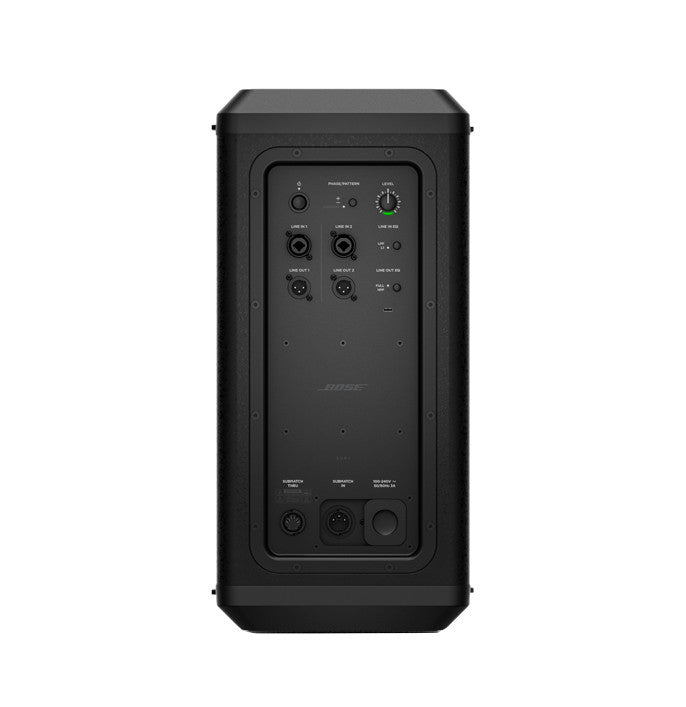

  • Bose Sub1 Powered Bass Module back
1 3

Bose Sub1 Powered Bass Module

Bose Sub1 Powered Bass Module

SoundPro Item: 111104 | Part Number: 840918-1100

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Add powerful bass to your portable PA system
  • Go from vehicle to venue easily with a slim design
  • 7” × 13” high-excursion RaceTrack driver
  • Stack multiple Sub1 subwoofers
  • Cardioid Mode
  • Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity
  • Pair with other powered loudspeakers
Log in or register for YOUR best price

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7” × 13” high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
21" x 10.2" x 20.8"
Electrical
Input Electrical Type
IEC, SubMatch
Initial Turn on Inrush Current
14.9A at 120V; 29.3A at 230V
AC Power
Inrush current after AC mains interruption of 5 s: 5.8A at 120V; 32A at 230V
Audio
Max SPL @ 1m
118.6 dB (continuous), 124.6 dB (peak)
Crossover
200 Hz
Channels
2
Channel 1 & 2 Output Audio Type
XLR connector, line-level, full-frequency bandwidth
SubMatch Input Audio Type
Bose proprietary multi-pin cable
SubMatch Thruput Audio Type
Bose proprietary multi-pin cable
Connectivity
AC Power Input
100-240 VAC (±20%, 50/60 Hz)
Construction
Enclosure Material
high-impact polypropylene, birch plywood
Grille Material
powder-coated perforated steel
Shipping
Weight
34.1 pounds (15.5 kg)
General
Frequency Response (-3 dB)
40 Hz to 180 Hz
Frequency Range (-10 dB)
32 Hz to 250 Hz
Low Frequency
1 x RaceTrack low-frequency driver 7" x 13"
Low Frequency Voice Coil
2"
Driver Protection
dynamic limiting
Type
Class D
Low Frequency Amplifier Channel
480W
Cooling
convection cooling
Onboard Mixer
Channel 1 and 2 Inputs
