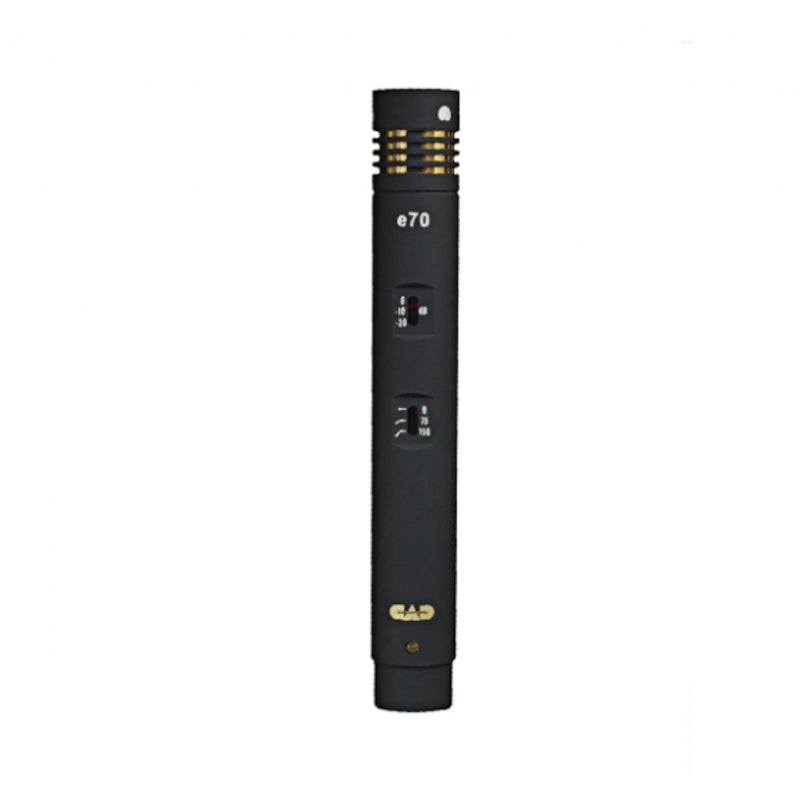

CAD E70 Modular Dual-Capsule Condenser Microphone

CAD E70 Modular Dual-Capsule Condenser Microphone

SoundPro Item: 53134 | Part Number: E70

Regular price $169.99
Regular price $239.00 Sale price $169.99
Your Price Sold out
MSRP: $239.00 | MAP: $169.99

Usually ships in 5-7 business days

  • Small rugged metal housing
  • Transparent accurate acoustic capture
  • Low mass 1/2" gold sputtered diaphragm
  • Transformerless design
  • 3 position hi-pass filter
  • 3 position pad
  • Interchangeable capsules
  • Ideal for high frequency sources rich in transients (cymbal, hi-hat, strings, acoustic guitar, woodwinds, piano)

Packaged in a small, rugged metal housing, the equitek e70 condenser microphone provides transparent, accurate acoustic capture. The low mass 1/2” gold sputtered diaphragm makes the e70 the preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano. The transformerless design reduces low frequency distortion at high sound pressure levels. The 3 position hi-pass filter and 3 position pad provide the versatility required in demanding live sound and studio applications. The interchangeable capsules provide both cardioid and omnidirectional pickup patterns for greater flexibility. The e70’s accuracy, high SPL capability and size make it a valuable tool in the professional audio environment.

View full details
  • Transducer TypeCondenser
  • Polar PatternsCardioid, Omnidirectional (interchangable capsules)
  • Frequency Response20 Hz - 20 kHz
  • Impedance85 ohms
  • Sensitivity
    • Cardioid Capsule: -40dBV (10mV) @ 1 Pa
    • Omnidirectional Capsule: -36dBV (16mV) @1 Pa
  • Self Noise
    • Cardioid Capsule: 23dB, A-weighted
    • Omnidirectional Capsule: 19dB, A-weighted
  • Max. SPL
    • Cardioid Capsule: 155dB, 20dB pad engaged
    • Omnidirectional Capsule: 154dB, 20dB pad engaged
  • Power Requirementsphantom P48, 2mA
  • Connector3-pin XLR type
  • Polarityinward pressure on the diaphragm produces positive voltage on pin 2
  • Dimensions0.88" x 6.13"
