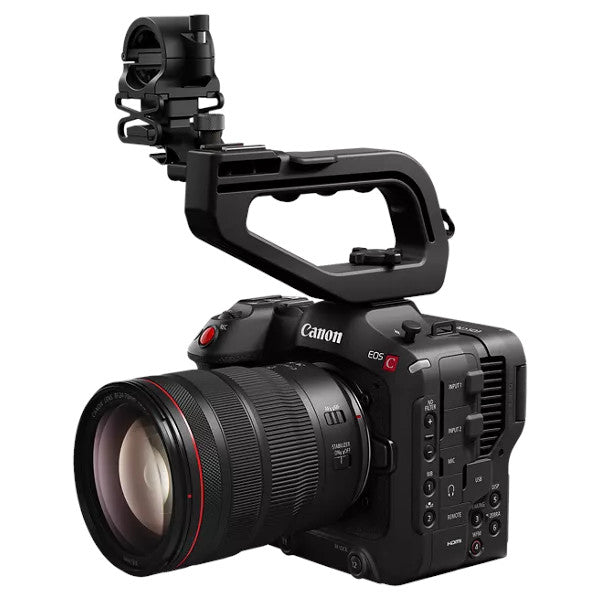

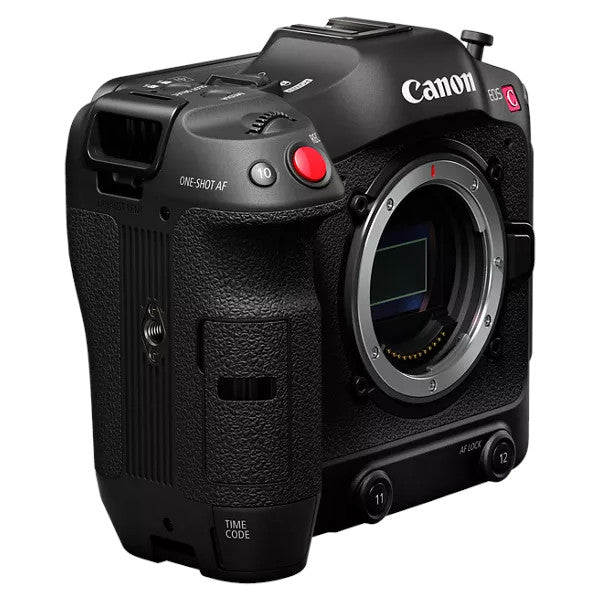

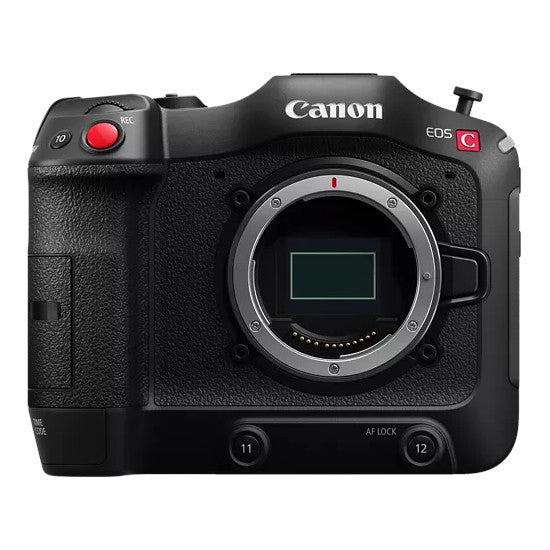

Canon EOS C70 Cinema Camera with 24-105 Lens
Canon EOS C70 Cinema Camera with 24-105 Lens
SoundPro Item: 138267 | Part Number: 4507C015
Regular price
$6,049.00
Regular price
$7,290.00
Sale price
$6,049.00
Unit price
per
MSRP: $7,290.00
| MAP: $6,049.00
Usually ships in 5-7 business days
- Canon Super 35mm Dual Gain Output (DGO) Sensor, 16+ stops of Total Dynamic Range
- DIG!C DV7 Image Processor
- Canon Log 2 and 3, PQ, and HLG Recording
- RF Mount

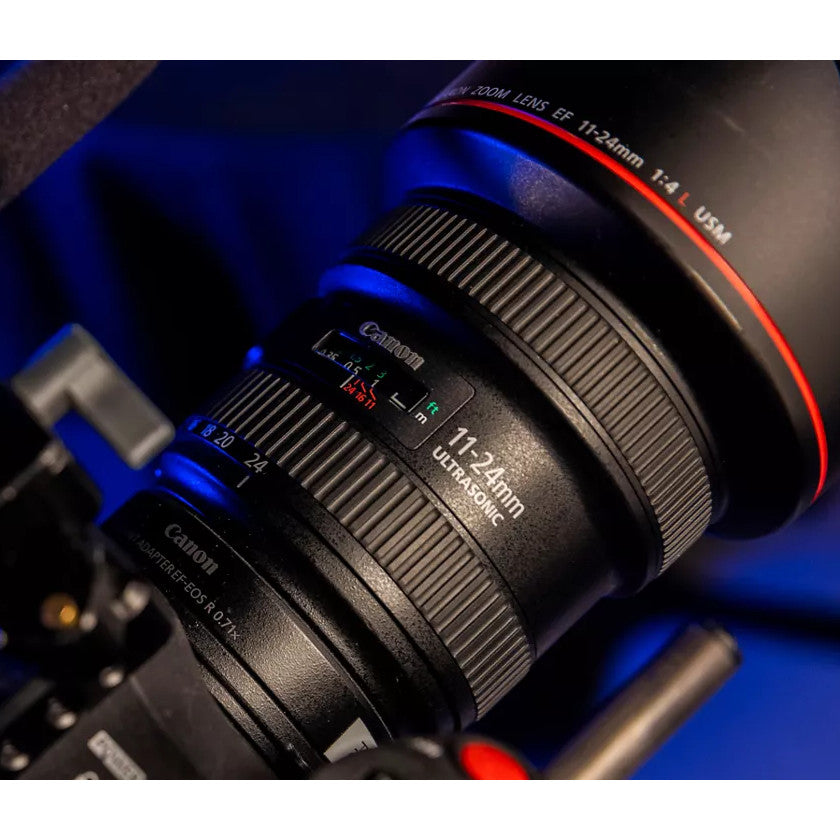

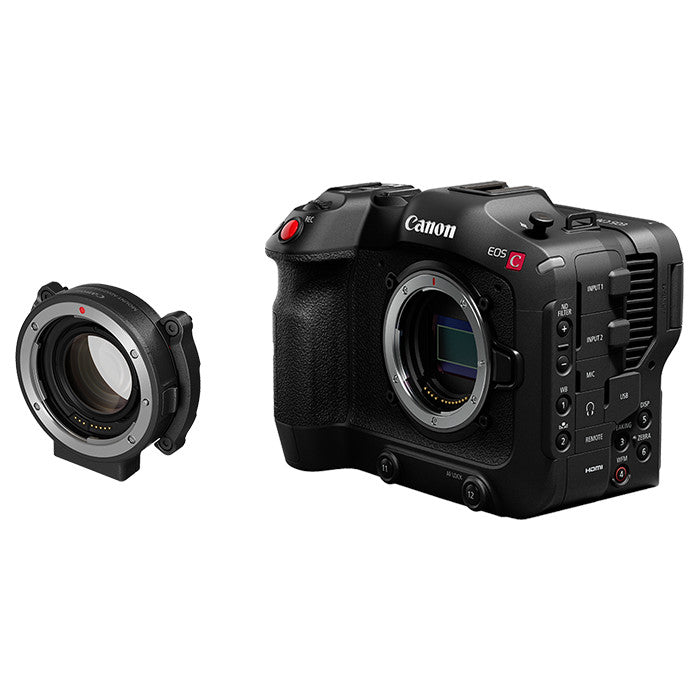

- EF Lens Compatibility with Mount Adapter EF-EOS R 0.71x
- Direct Touch Control
- Approved for use in Netflix productions
- Firmware Available Summer 2023 Adds New Features:
- Improvement to Clear Scan shutter mode
- Improved Face Detection AF
- Waveform Monitor/Vector Scope magnification
- Adds support for Flex Zoom CN-E14-35MM T1.7 L S
The Canon EOS C70 offers exceptional cinema capabilities in a compact package. Enjoy stunning images with a 4K Super 35mm DGO Sensor and all the built-in features you could ask for, including ND Filters, mini XLRs, direct touch rotatable LCD screen, Dual Pixel CMOS Autofocus, and excellent battery life. Making the EOS C70 even more powerful is compatibility with Canon's expanding line of high-performance RF Lenses.
Specifications
Dimensions
Sensor Size Super 35mm4K
26.2 x 13.8 (29.6 mm diagonal)UHD: 4K: 24.6 x 13.8 (28.2 mm diagonal)
Dimensions
(WxHxD, excluding cable and grip belt) Body Only: Approx. 130.2 x 160 x 115.9 mm
Electrical
Battery
BP-A Series (BP-A30, BP-A60)
Battery Pack BP-A30
Approx. 225 g (7.9 oz.)
Battery Charger CG-A20
Approx. 145 g (5.10 oz.)
Audio
Auto Gain Control (AGC)
Not Available
Shockless Gain
Not Available
Audio Recording System XF-AVC
Linear PCM (24bit, 48kHz) 4-channel recordingMP4 (1) : MPEG-2 AAC LC (16-bit, 48 kHz, 2-channel)MP4 (2) : Linear PCM (16-bit, 48 kHz, 4-channel)
Audio
External Audio Inputs 2 – Mini-XLR inputs (Auto and Manual level settings)External microphone terminal: (3.5 mm diameter)
Phantom Power
Available; +48V
Dynamic Range Canon Log 2
1600% / 16+ stops (ISO 800)Canon Log 3: 1600% / 14 stops (ISO 800)
Optics
Zoom/Focus Preset
Not Available
Shockless Zoom
Not Available
Focus Control
Dual Pixel CMOS AF with EOSxITR
Focus
Focus Modes Manual focus, Continuous AF, One-Shot AF, AF-Boosted MF, Face Detection AFOnly lenses that support AF functions can be used in AF modes. Face Detection and Tracking AF in Slow & Fast recording modes (24-120p). New with Firmware update 1.0.5.1.
Exposure / Focus Aids
Peaking (2 types), Zebra Pattern, Magnify, Black and White Mode, Focus Guide
Connectivity
XLR Mic Trimming
Available; -12dB, -6 dB, 0dB or +12 dB
Input/Output
HDMI Yes (Type A)[4096x2160/3840x2160]/1920x1080/1280x720, Audio Input Terminal 2 – Balanced 3-pin XLR (Mic Level, Mic Level with phantom power and Line Level)3.5mm Microphone terminal, Remote Terminals Remote A (Standard – LANC Compatible or RC-V100)Remote Control through WiFi/LAN Adapter
Headphone Jack
Available; 3.5mm stereo mini-jack
USB
Available
Construction
Lens Mount
Default Mount: RF Mount
Color Gamuts*
Cinema Gamut, BT.709, BT.2020
False Color
Available
Color Bars
Color bars compliant with SMPTE, EBU, or ARIB standards can be selected depending on system frequency selected
Controls
Playback Clip Display
3x4 Index Display.Clip Playback: Forward Search (x5, x15, x60), Reverse Search (x5, x15, x60), Forward frame Advance,Reverse Frame Advance, Record Review, Skip to next clip, skip to previous clipClip information Display: Clip Metadata display, custom picture settingsPlayback Functions: Clip DeletePhoto Playback: index, single playback, delete, protect
Custom Display
Yes; LCD panel and EVF information display can be customized
Display Adjustments
Brightness, Contrast, Color, Sharpness, and Luminance
General
Effective Pixels 4096x2160
when 4096 x 2160 or 2048 x 1080 is selected as the resolution (Approx. 8.85 megapixels)3840 x 2160: when 3840 x 2160 or 1920 x 1080 is selected as the resolution (Approx. 8.29 megapixels)
Total Pixels
4206 x 2280; Approx. 9.6 megapixels
Sensor Type
CMOS
Sensor Modes
Super 35mm, Super 16mm(cropped)
Pixel Pitch
6.4 µm
Scanning System
Progressive
Number of Sensors
1
Filter
RGB Primary Color Filter (Bayer Array)
Imaging Processor
DiG!C DV 7
Digital Teleconverter
Not Available
ND Filter
Mechanical ND filter system with option of clear, 2, 4, and 6 stops; 8 and 10 stops in extended mode
Peripheral Illumination Correction
Available
Chromatic Aberration Correction
Available
Distortion Correction
Available (RF Lenses only)
Diffraction Correction
Available
Exposure and Metering
Exposure Modes (1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting(2) Push auto iris control, auto iris control(3) Auto ISO mode, Gain Normal Setting -6dB to 54dBFine Setting -2dB to 54dB in 0.5 dB increments, Iris Settings (EF) Can be set to 1/2 stop, 1/3 stop or Fine.(1) Push auto iris control(2) Auto iris control (Compatible lens required)
Metering Modes
Standard, Spotlight and Backlight
ISO
100 to 102,400
Exposure Compensation/AE Shift
–2.0 to +2.0 in 0.25 point intervals
Shutter Modes 3 Modes
OFF; Speed; Angle; Slow Shutter; Clear ScanSpeed Mode is selected in 1/3 or 1/4 stop increments
Shutter Speed Range 59.94Hz/24.00Hz
1/12 to 1/200050.00Hz: 1/15 to 1/2000
Shutter Angle Settings
59.94Hz/50.00Hz/24.00Hz: 360, 240, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25
Hz59.94 Hz Mode
59.94i/59.94P/29.97P/23.98P50.00
Hz Mode
50.00i/50.00P/25.00P24.00
Gamma Curves*
Canon 709, BT.709, Wide DR, Canon Log 2, Canon Log 3, PQ, HLG
N/A4
*Enabled for recording (including proxy) and output from each terminal
Internal Recording
RAW
Recording/ Cinema RAW Light
RAW HQ (high quality), RAW ST (standard quality), and RAW LT (light recording).
Video Compression Formats XF-AVC
MPEG-4 AVC/H.264 (10bit, 8bit (proxy))MP4(HEVC): H.265/HEVC (10bit)MP4(H.264) : MPEG-4 AVC/H.264 (8-bit)
File Format XF-AVC
MXF (OP-1a)MPEG4: MP4HEVC: MP4
File System SDHC Card
(up to 32
GB)
FAT32SDXC card (more than 32
Maximum Clip Number
999 (per media)
Recording Format
Linear PCM; 4-Channel; 24-Bit; 48 kHz
Built-in Microphone
Stereo/Monaural
Recording Chanel Selection
Up to 4 channel audio recording is supported.
Limiter
Available
Recording Level Adjustment Range
- Infinity to +18dB
Headphone Adjustment
16 Settings; Volume is muted at lowest setting
Built-in Speaker
Available; Volume Adjustable
1KHz Tone
Available (off, -12, -18, or -20 dB)
Features and Performance
Special Recording Functions Relay Recording*; Double-Slot Recording*** Not available during Slow Motion recording** Not available in combination with slow and fast motion recording or relay recording, Waveform Monitor Available (HDR Compatible); (a) Line display(b) Line + spot: Line display over a red waveform in a red frame.(c) Line select display(d) RGB (parade)(e) YPrPb (parade)Output gain can be selected as either 1x or 2x. With gain set to 2x, the vertical axis (Y-position) offset value can be chosen.When gamma is set to PQ, a PQ index (nits index) can be displayed. When gamma is set to HLG, an HLG index (0.0–1.0 relative index) can be displayed., On Screen Markers Available marker options include center, horizontal, grid, aspect, safety zone, and user marker.With user markers, user can set their preferred size and position.Markers can be displayed in yellow, blue, green, red, black, gray, or white.
Photo Recording Mode
Available; Images captured to SD Card
Vectorscope
Available
Frame Record
Not Available
Pre-Record
Yes, 3 seconds cache (Audio and Video)
Time Code
Drop Frame (DF) and Non-Drop Frame (NDF)
Time Code Modes
Regeneration, Record Run, Free Run and External Source
Auto White Balance (AWB)
Available
White Balance Kelvin Setting
2,000K to 15,000K in 100K increment-20CC to +20CC in 1 CC increments
White Balance Presets
Daylight (5,600K); Tungsten (3,200K), Custom A, Custom B
Auto Black Balance
Available
Custom Picture Settings
20 Custom pictures can be adjusted using the following settings and saved for later recall: Gamma, Black, Black Gamma, Low Key Saturation, Knee, Sharpness, Noise Reduction, Skin Detail, Selective Noise Reduction, Color Matrix, White Balance, Color Correction, Setup LevelCustom Pictures can be saved to an SD card for later use or transferring between cameras
Assign Buttons
13 total assignable buttons on body
Hz
f/10 (2048x1080/59.94P) or f/14 (1920x1080/29.97P)50.00

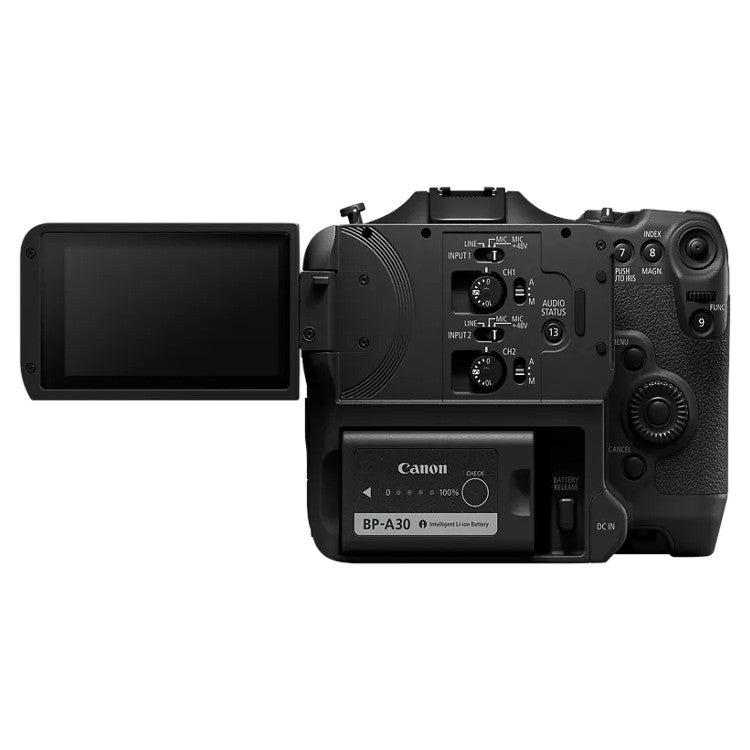

LCD Monitor
Type 3.5-inch (8.8 cm diagonal) color wide-screen LCDApprox. 2,760,000 dots (1280 x RGB x 720)
Aspect Ratio
16:9
Field of View Coverage
100%
Time Code In/Out
Yes; BNC Connector (Input and Output)
CCU
Remote Controller RC-V100 (Optional)
Supply
14.4V DC (Battery Pack)
Power Terminal
14.4 V DC (battery pack), 24.0 V DC (DC IN)
Compact Power Adapter
CA-CP200L (for Camera and Battery charger CG-A20)
RF Camera Body
Approx. 1.17 Kg (2.6 lbs)
Compact Power Adapter CA-CP200L
Approx. 290 g (10.2 oz.) *Not including AC cable
Mic Holder Unit
Approx. 56 g ( 2.0 oz.)
Body Cap
Approx. 17 g (0.60 oz.)
Performance Requirements
0ºC to 40ºC, 85% (relative humidity)
Operating Requirements
-5ºC to 45ºC, 60% (relative humidity)
Language Support
English, Japanese, Chinese, German, Spanish, French, Italian, Korean, Russian
Time and Date
Automatic Calendar range January 1st, 2020 through December 31, 2050
World Clock
World Clock support – UTC time setting: Setting range from +14:00 to -12:00
