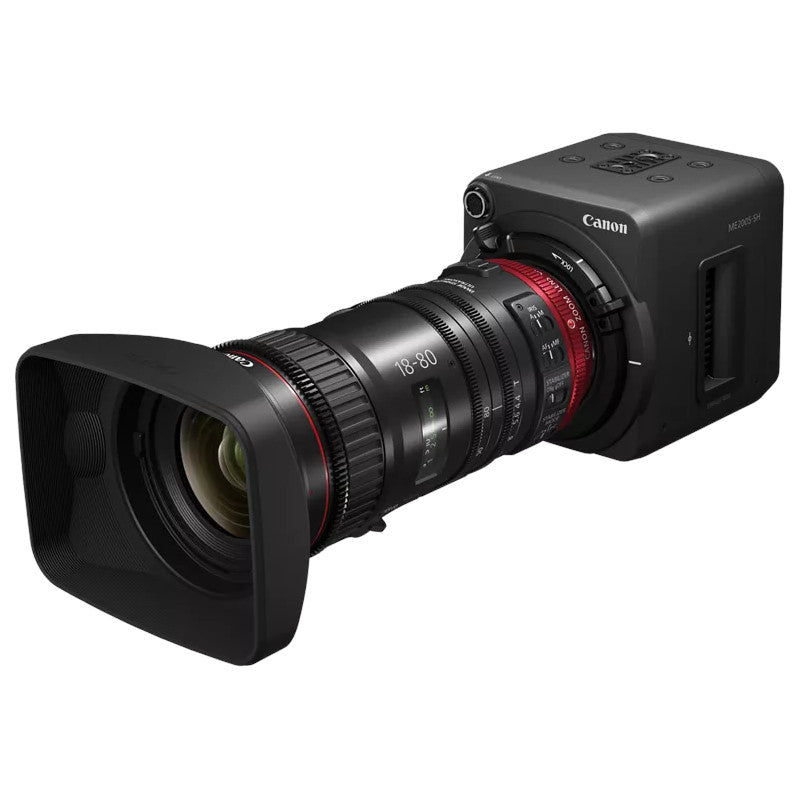

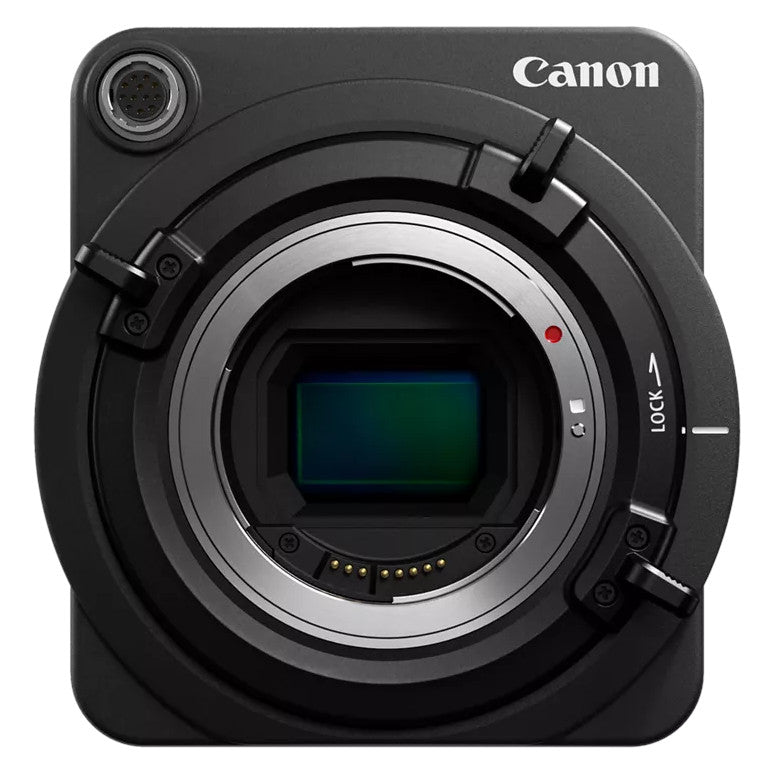

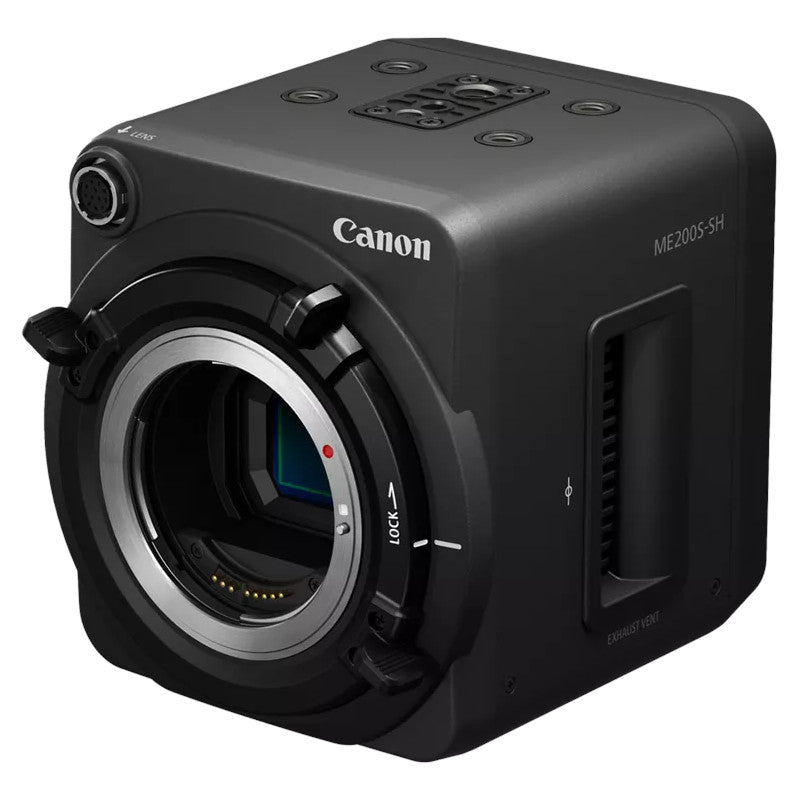

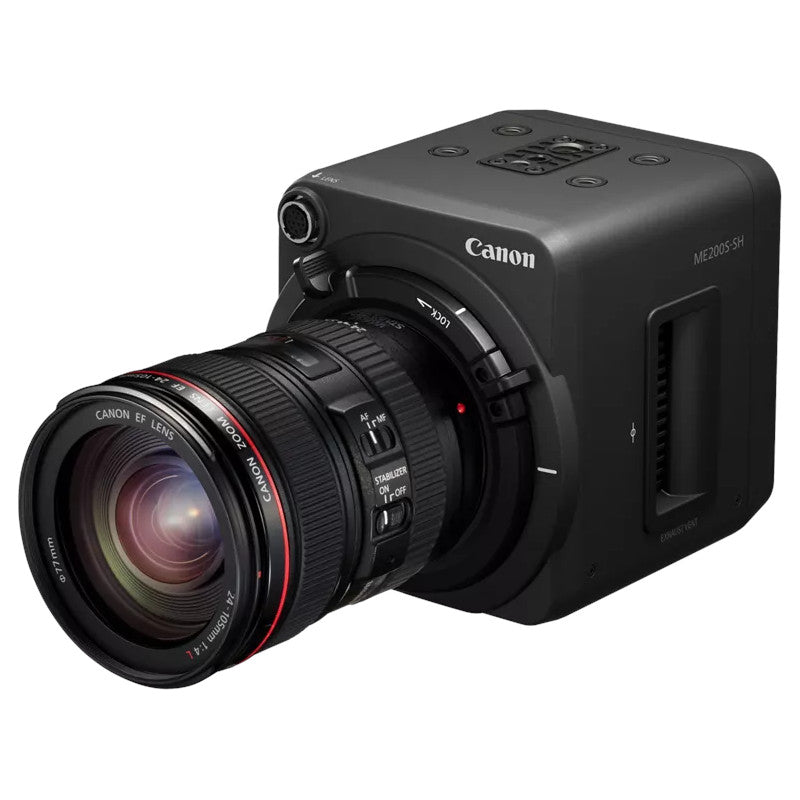

Canon ME200S-SH Multi-Purpose Camera
Canon ME200S-SH Multi-Purpose Camera
SoundPro Item: 138392 | Part Number: 1505C001
Usually ships in 5-7 business days
- Canon Super 35mm CMOS Sensor
- Dual Pixel CMOS AF (Auto-Focus)
- Outstanding Low Light Performance
- Professional Connectivity and Remote Control Compatibility
- Full HD Video up to 60fps
- Compact, Rugged Box-Style Design
- Compatible with Select EF-mount
- Lenses Lens Function Compatibility
- Additional Functions
The ME200S-SH Multi-Purpose camera delivers the high quality video and versatility needed for a wide range of professional video production applications. The camera's modular design allows you to connect only the components you need, depending on how you want to use the camera- making it easy to incorporate into a variety of camera systems. An HDMI terminal allows for connection to compatible third party external displays, and 3G/HD-SDI terminals allow for connection to compatible third party external displays and recording devices. The camera is compact (4.0" W x 4.6" H x 4.4" D) and lightweight (2.2 lbs), helping to broaden the range of applications.
Featuring the same Super 35mm CMOS sensor used in our Cinema EOS cameras, the ME200S-SH camera delivers an outstanding balance of image quality and sensitivity. Capable of 204,000 ISO, the camera performs extremely well in low-light conditions. The camera's Dual Pixel CMOS AF (Auto-Focus) technology works to maintain focus of moving subjects, and it's rugged construction make it able to withstand use in harsh environments. In addition, the camera can be controlled using Canon's optional RC-V100 remote control, further expanding the potential uses of the camera.
Offering high quality video and flexible expandability, the affordable ME200S-SH Multi-Purpose camera can be ideal for television, nature and wildlife, documentary production, security and law enforcement.
- Image Sensor
- Sensor: Super 35mm CMOS
- Total Pixels: Approx. 9.84 (4206 x 2340)
- Effective Pixels: Approx. 8.29M (3840 x 2160)
- Resolution: 1920 x 1080, 1280x720
- Min. Sub. Illum.
- 59.94 Hz mode: 0.021 lux - When the f/1.2 lens is mounted, 56 dB gain, 29.97P, 1/30 sec. shutter speed
- 50.00 Hz mode: 0.018 lux - When the f/1.2 lens is mounted, 56 dB gain, 25.00P, 1/25 sec. shutter speed
- Color Filter Array: RGB Bayer
- Lens System
- Canon EF Mount: Cinema Lock type
- Cinema Lock type: Select EF, EF-S and Cinema (EF-mount) Lenses

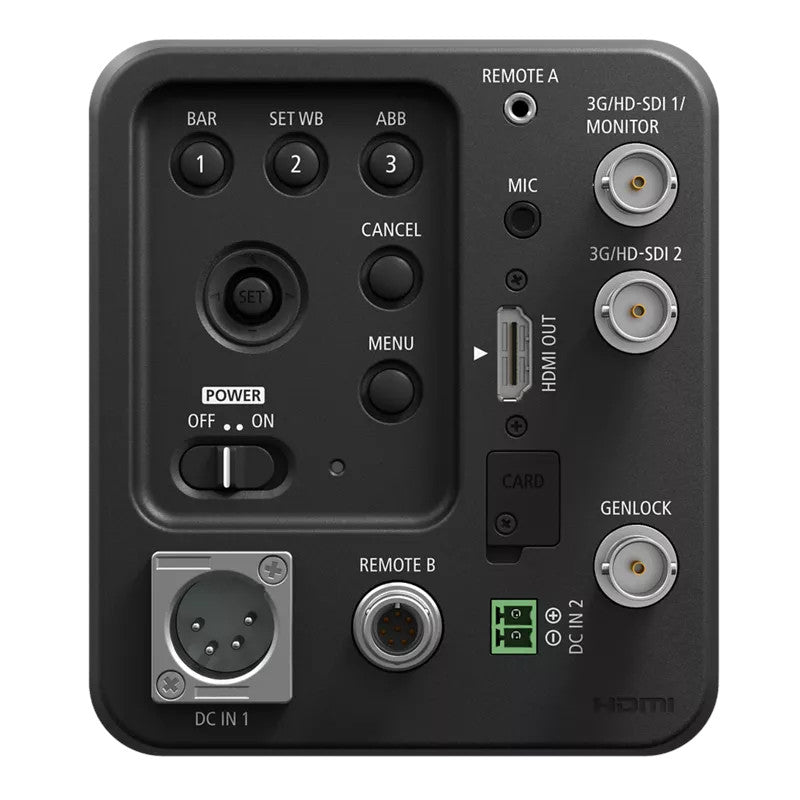

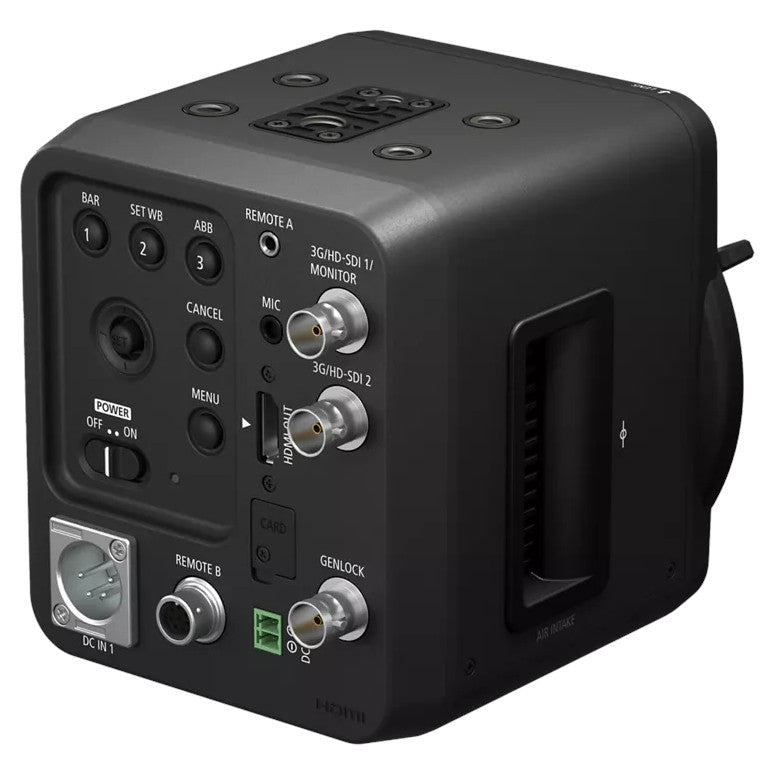

- Input Terminals
- GEN LOCK: Black burst or Tri-level reference
- Microphone: φ3.5mm stereo mini jack (plug-in power mic supported)
- Remote Control
- Remote A: φ2.5mm stereo mini jack (Canon protocol)
- Remote B: Circular 8-pin for RS-422 (Canon protocol)
- Output Terminals
- 3G/HD-SDI
- Terminal 1 (On screen display optional)
- Terminal 2 (Clean out only)
- Bit Depth: YCbCr422 10bits (effective bits: 8)
- N/A1
- Frame Rates:
- 1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
- 1280 x 720: 59.94P/50P/29.97P/25P/23.98P
- *Cannot set frame rate and output size separately by SDI and HDMI.
- Frame Rates:
- HDMI: Terminal 1 (On screen display optional) Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format) RGB444 and YCbCr444 are generated by YCbCr422.
- N/A3
- Frame Rates:
- 1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
- 1280 x 720: 59.94P/50P/29.97P/25P/23.98P
- Frame Rates:
- N/A4
- *Cannot set frame rate and output size separately by SDI and HDMI.
- **640x480: 59.94P & 768x576: 50P will be output when connected with a monitor that support 480P and 576P inputs. Cannot be set from the menu and the on screen display will not show.
- 3G/HD-SDI
- Exposure Modes
- Auto Exposure (AE)
- Iris, Gain, Shutter and ND filter operating together (Cannot set auto/manual separately)
- AE shift/AE response selectable
- AGC limit can be set from 30dB to 54dB (3dB intervals) / Off (56dB)
- Manual: Iris: 1/2 stops (push auto iris can be set to an assign button) Gain: 0dB to 56dB @ 3dB intervals (approx. ISO 204,800 equivalent at 56dB) Shutter: 1/3 to 1/2000 (1/4 stops); 1/3 only at 23.98p
- Auto Exposure (AE)
- Image Control
- Focus Control
- Continuos Auto-Focus (Dual Pixel CMOS AF)
- One-Shot AF (can be set to an assign button)
- W/B: AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B
- Optical FiltersND filters:
- 1/8 & 1/64 Built-in (auto or motorized manual)
- IR cut filter: On/Off (motorized manual)
- Digital Teleconverter: 2x, 4x, 8x
- Custom Picture Setting: EOS Standard, Wide DR, Canon Log, Custom 1-6
- Other Functions: Auto black balance, color bar, test tone (interlocking with color bar), assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter
- Focus Control
- Power Input
- Terminals: XLR 4-pin or terminal block 2-pin jack
- Input: DC +11V ~ +17V
- Consumption: Power Consumption Approx. 11W (body only)
- Operating TemperatureApprox. 0 - 40°C (32-104°F)
- Dimensions4.0x4.6x4.4” (102x116x113mm)
- WeightApprox. 2.2 lbs. (1,000g)
