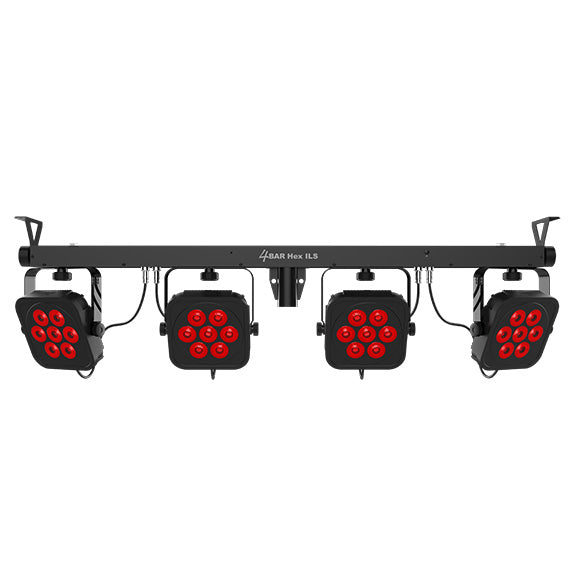

• Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System

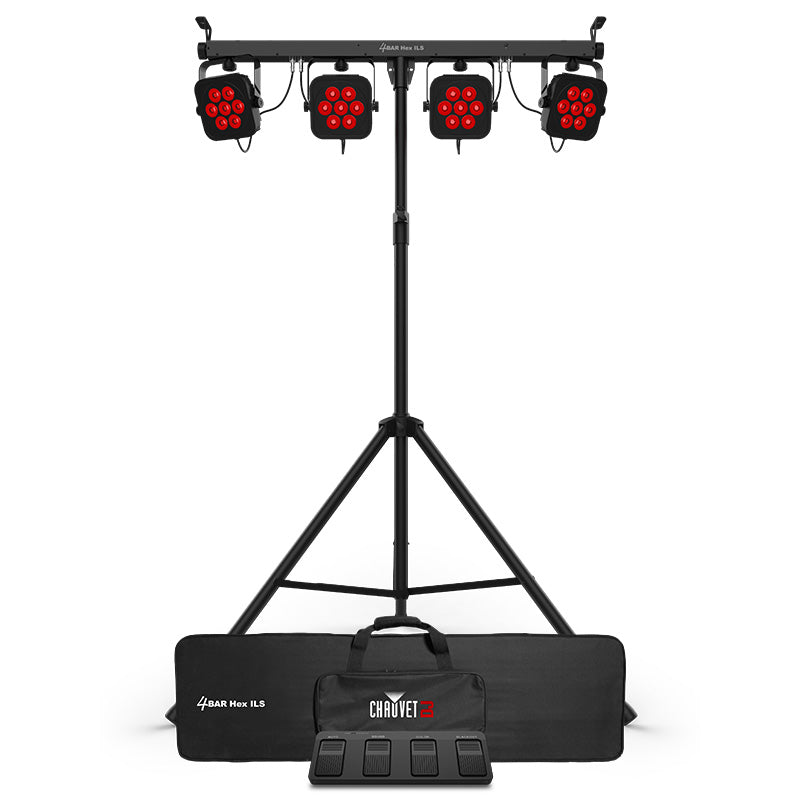

  • Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System components

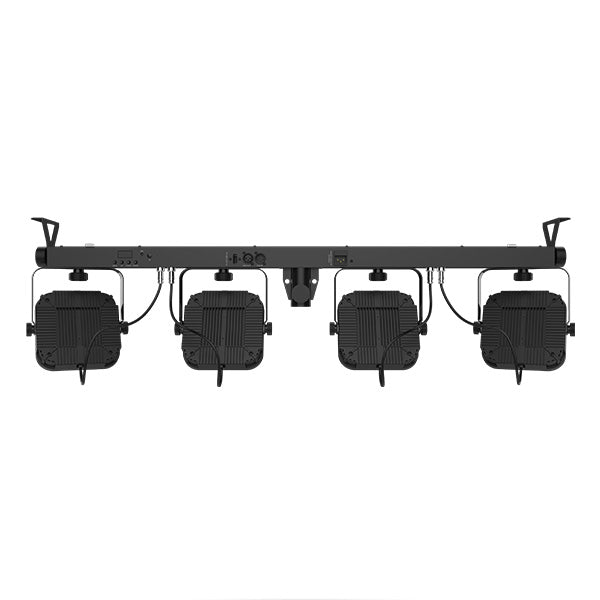

  • Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System back

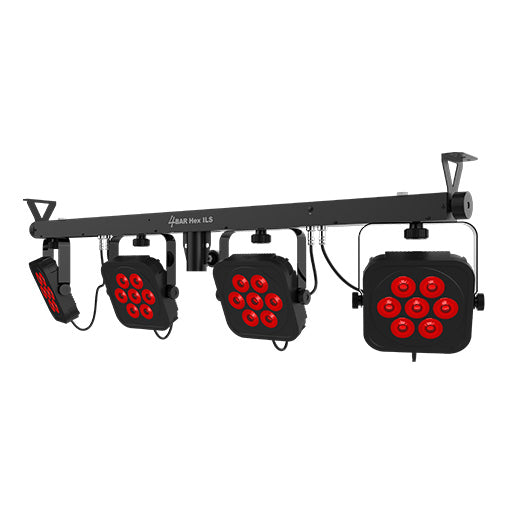

  • Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System right

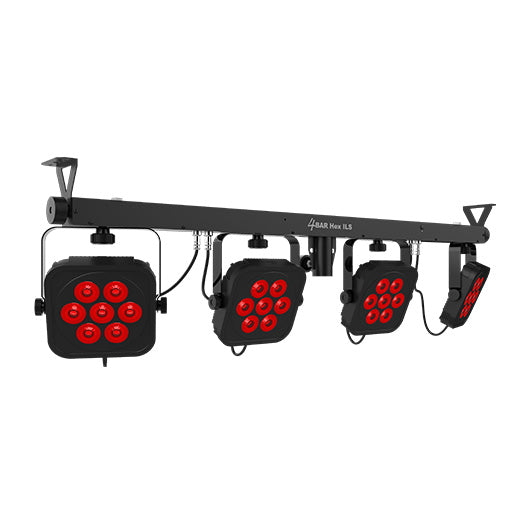

  • Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System left
1 5

Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System

Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System

SoundPro Item: 143480 | Part Number: 4BARHEXILS

$839.99
$1,120.00 $839.99
Your Price Sold out
MSRP: $1,120.00 | MAP: $839.99

In stock and ready to ship

  • Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
  • Update the unit\u2019s software from the built-in USB port
  • Out of the box wireless control with included footswitch or optional IRC-6 controller
  • Easily set up and tear down in minutes with the included tripod stand and carrying bags
  • Achieve total room or stage coverage with 4 individually adjustable heads
  • Increase mounting options by safely mounting to truss using built-in bolts
Log in or register for YOUR best price

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.

View full details
  • DMX Channels6, 8, or 27
  • DMX Connectors3-pin XLR
  • Max Unobstructed Distance(foot switch): 100 ft (30.5 m)
  • Light Source42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy
  • Strobe Rate0 to 20 Hz
  • Beam Angle16°
  • Field Angle25°
  • Illuminance1570 lux @ 2 m (per pod)
  • Input Voltage100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current
    • 97 W, 1.3 A @ 120 V, 60 Hz
    • 94 W, 0.7 A @ 230 V, 50 Hz
  • Weight12.2 lb (5.5 kg)
  • Size45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
  • ApprovalsCE, RoHS, UKCA
  • Footswitch battery 9 V
  • Operating Frequency (D-Fi) 2.412 to 2.484 GHz
  • Operating Frequency (foot switch) 433 MHz
  • Stand Height 7 ft 4 in (2.2 m)
  • Fits Tripod Sizes 1.5 in (36.80 mm)
  • Bracket Mounting Hole M10 (1.5 mm pitch)
  • Weight (Controller) 1.2 lb (0.6 kg)
  • Size (Controller) 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
  • Optional Controllers IRC-6, ILS Command
