Specifications
DMX
Channels
4, 6, or 14
Connectors
3-pin XLR
Audio
Light Source
12 LEDs (quad-color RGBA) 6W, 50,000 hours life expectancy
Illuminance
4,185 lux @ 2 m
Illuminance With Diffuser
1,005 lux @ 2 m
Lumens
1,255
Beam Angle
12°
Field Angle
23°
Strobe Rate
0 to 20 Hz
Electrical
Input Voltage
24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
Power And Current
22 W, 0.3 A @ 120 V, 60 Hz
Power And Current
22 W, 0.2 A @ 230 V, 50 Hz
Performance
Maximum Run Time
up to 7 hours
Maximum Run Time Single Color
up to 9.5 hours
Recharge Time
4 hours
Connectivity
Max Unobstructed Distance
600 ft (183 m)
Operating Frequency
2.412 to 2.484 GHz
Environmental
Startup Temperature
-4 °F to 113 °F (-20 °C to 45 °C)
Operating Temperature
-22 °F to 113 °F (-30 °C to 45 °C)
Certifications
Approvals
CE, RoHS, FCC
Weight
Weight
5.4 lbs (2.4 kg)
Dimensions
Size
8.7" x 7.8" x 4.8" (222 x 197 x 123 mm)
Included Items
What's Included

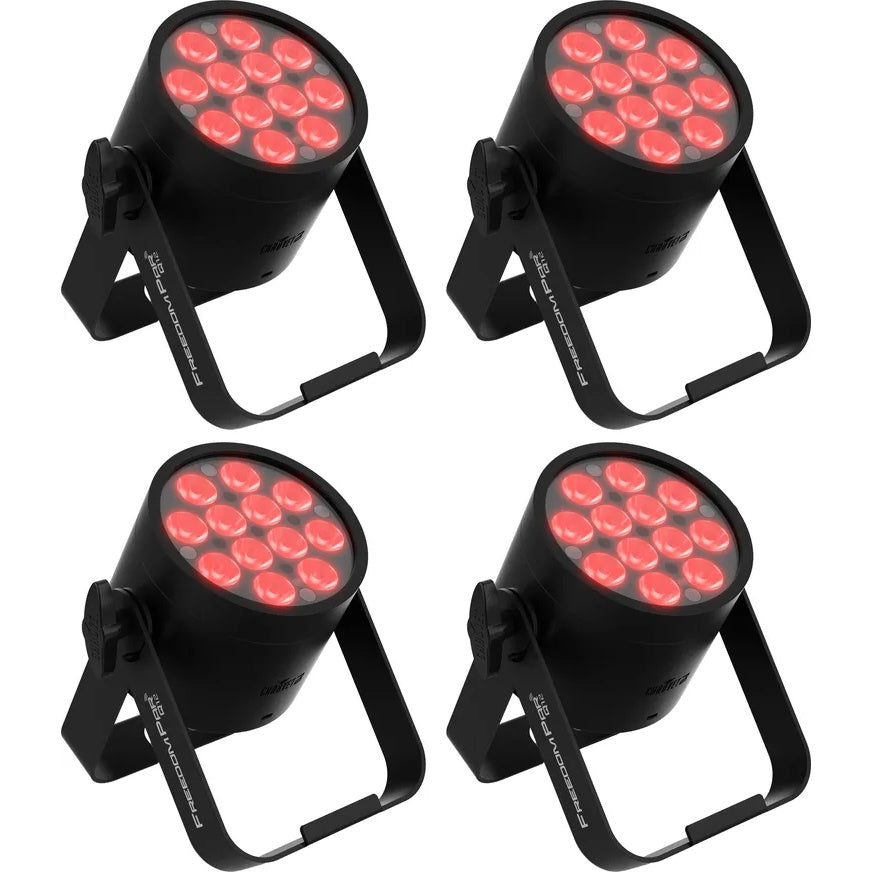

Freedom Par Q12, External power supply, Magnetic diffuser, Quick Reference Guide
