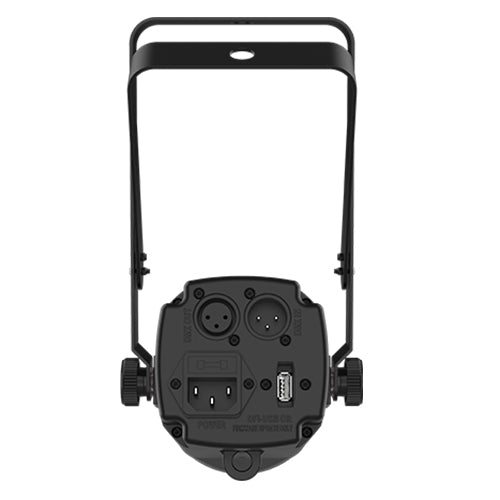

  • Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot back

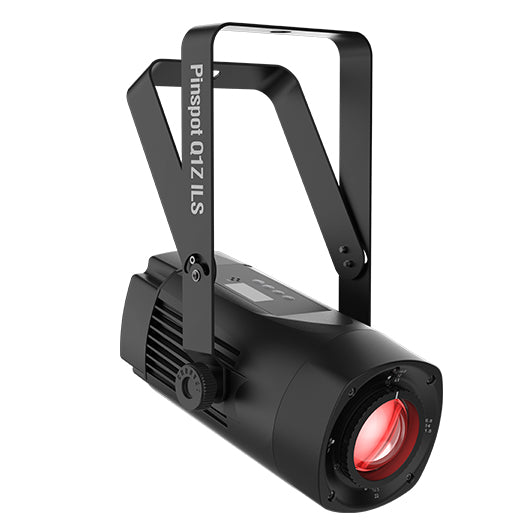

  • Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot side
  • Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot narrow

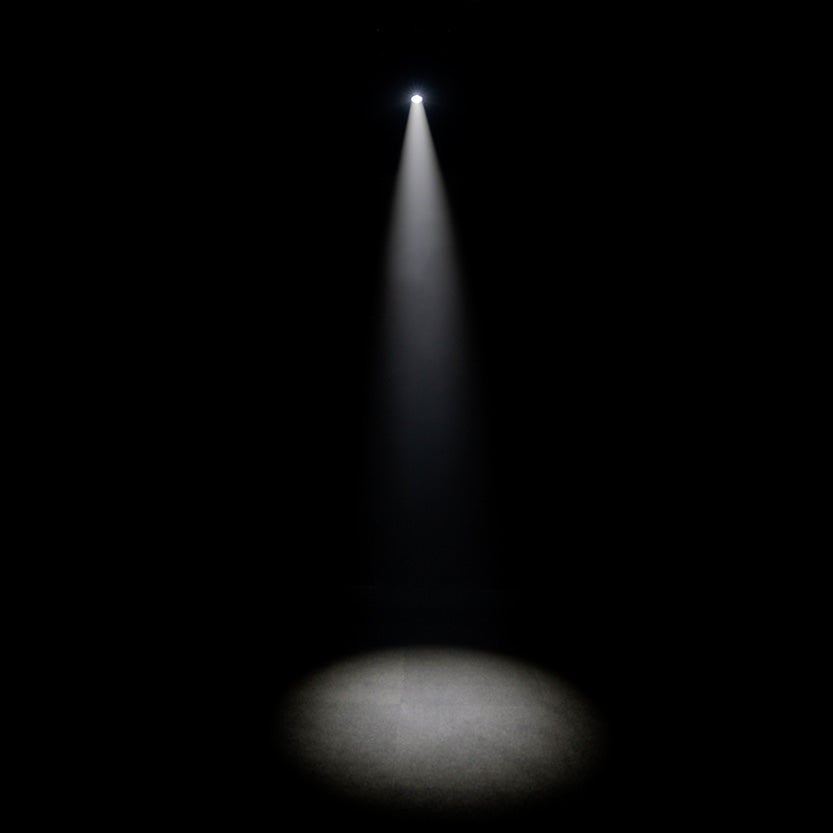

  • Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot wide

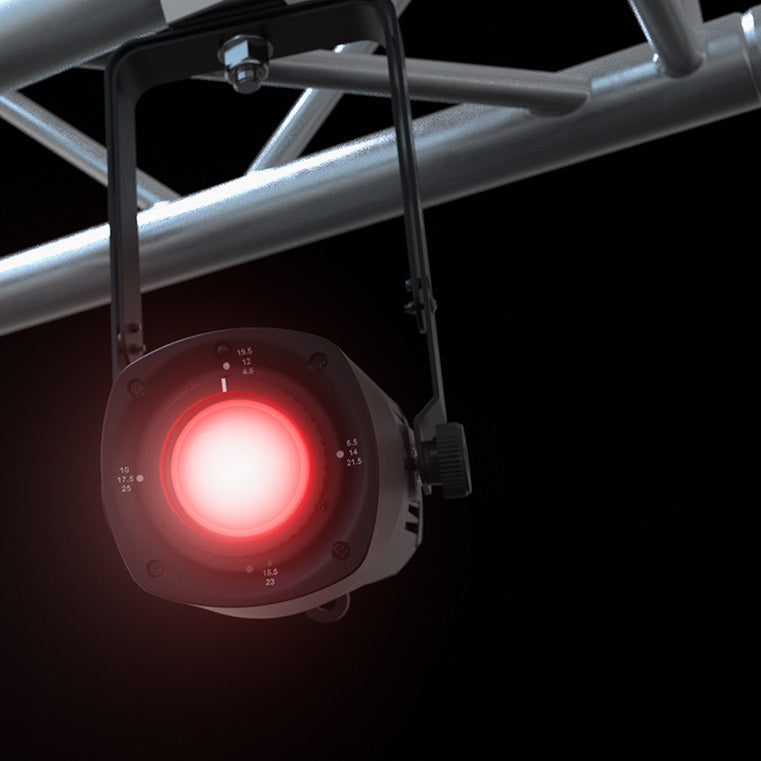

  • Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot lifestyle 1

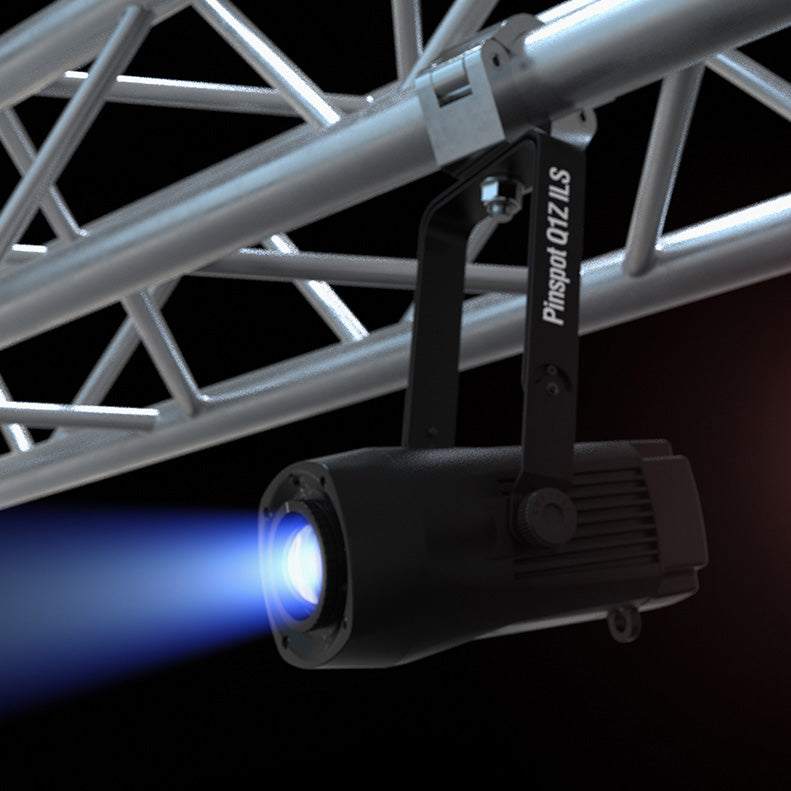

  • Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot lifestyle 2
1 8

Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot

Chauvet DJ Pinspot Q1Z ILS 20W RGBW LED Pinspot

SoundPro Item: 143485 | Part Number: PINSPOTQ1ZILS

$209.99
$280.00 $209.99
Your Price Sold out
MSRP: $280.00 | MAP: $209.99

In stock and ready to ship

  • Compact pinspot fitted with a 20W quad-color RGBW LED
  • Manual zoom for short or long throw applications
  • D-Fi USB compatibility for wireless master/slave or DMX control
  • Easy navigation and access to all functions directly from the OLED display
  • Convenient, wireless non-DMX control using the IRC-6 remote
  • Fits best in the CHS-40 VIP Gear Bag
Log in or register for YOUR best price

PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Its manual zoom brings versatility to both short and long throw applications. Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

View full details
  • DMX Channels4, 6, or 7
  • DMX Connectors3-pin XLR
  • Light Source1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy
  • Strobe Rate0 to 33 Hz
  • Zoom Angle5° to 25°
  • Lumens617
  • Weight3 lbs (1.36 kg)
  • Size12.1x3.5x8.5" (308x89x217mm)
  • ApprovalsCE, UKCA, ROHS
  • Power and Current9W, .3 A @ 120V, 60 Hz
  • Power and Current20W, .2 A @ 230V, 50 Hz
  • Optional ControllersIRC6, ILSCOMMAND
  • Input Voltage100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Bracket Mounting HoleM12
  • Illuminance: (narrow)4,081 lux @ 2m
  • Illuminance: (Wide)623 lux @ 2m
