• Chauvet Pro EPIX Drive 2000 IP Processor
1 1

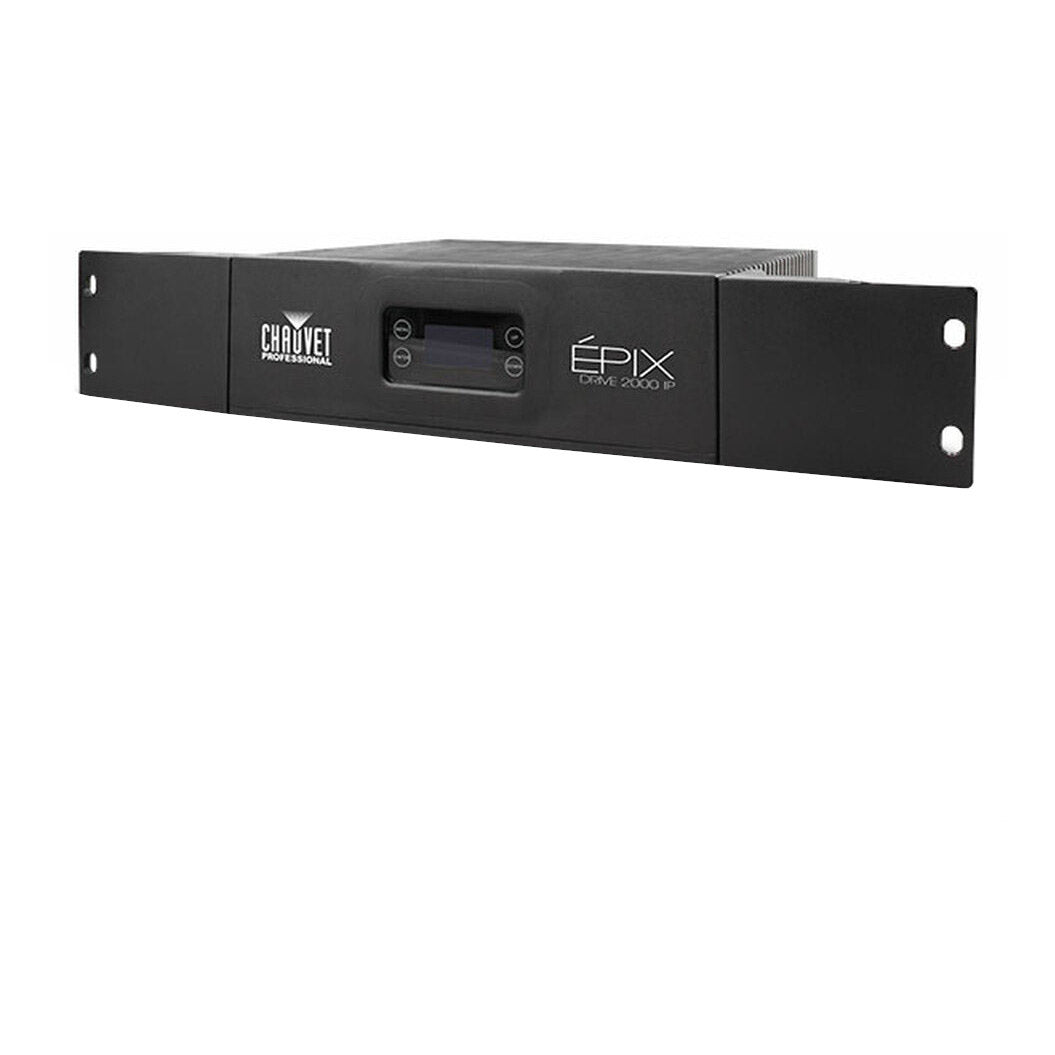

Chauvet Pro EPIX Drive 2000 IP Processor

Chauvet Pro EPIX Drive 2000 IP Processor

SoundPro Item: 50181 | Part Number: EPIXDRIVE2000IP

$1,414.50
$1,591.00 $1,414.50
Your Price Sold out
MSRP: $1,591.00 | MAP: $1,414.50

Usually ships in 5-7 business days

  • Can drive any combination of Epix Tour products, up to 2000 LEDs
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN)

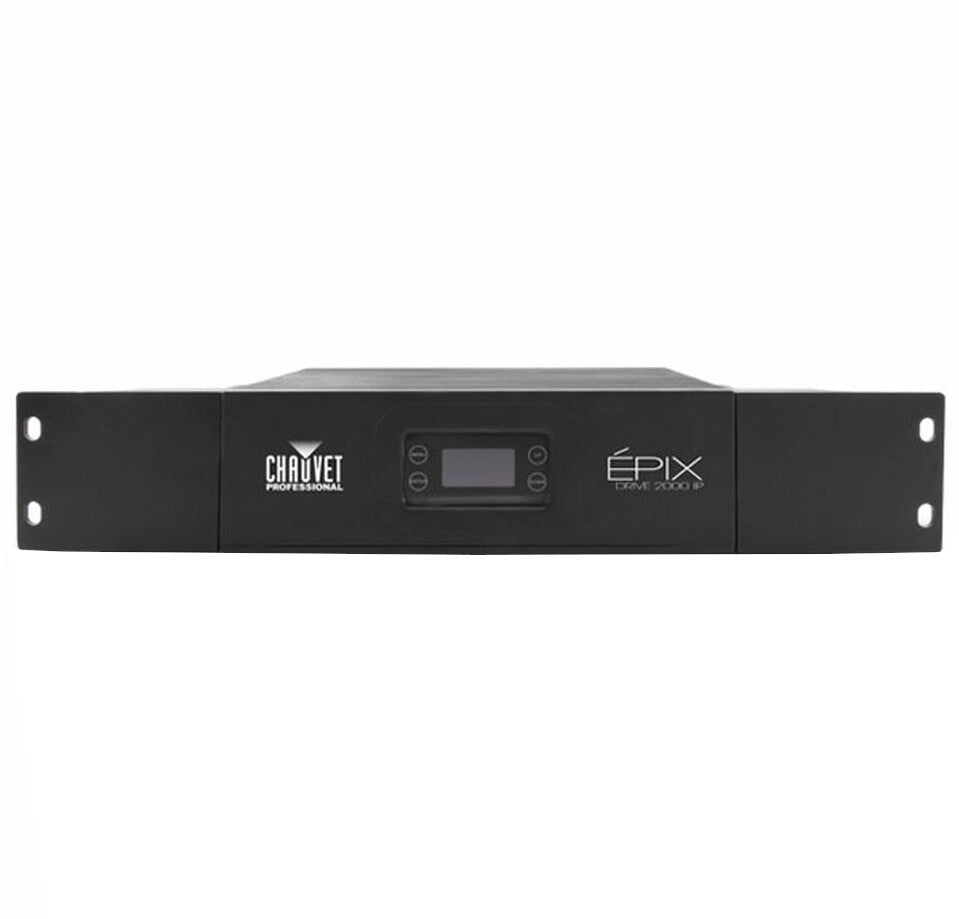

  • Quickly and easily configure the Epix Drive 2000IP with built-in OLED display and touchscreen menu
  • Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (Bar/Strip/Strip IP)
  • Supports up to 20 Epix Strip IP, 36 Epix Strip Tours or 12 Epix Bar Tours
  • Easily daisy chain fixtures directly from the 2 outputs of the Drive 2000IP
  • You can position the Drive 2000IP up to 150 ft away from your last fixture (using unshielded cable)
  • Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
Log in or register for YOUR best price

EPIX Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the EPIX IP and Tour system. With a maximum capacity of 2000 LEDs, EPIX Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the EPIX fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.

View full details
  • Electrical
    • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
    • Power and current
      • 530 W, 4.68 A @ 120 V, 60 Hz
      • 560 W, 2.69 A @ 208 V, 60 Hz
      • 558 W, 2.5 A @ 230 V, 50 Hz
      • (Resting) 16 W, 0.136 A @ 120 V, 60 Hz
      • (Resting) 31 W, 0.147 A @ 208 V, 60 Hz
      • (Resting) 31 W, 0.138 A @ 230 V, 50 Hz
    • Output voltage: 48VDC
    • Max load: 10 EPIX Strip IP or 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)

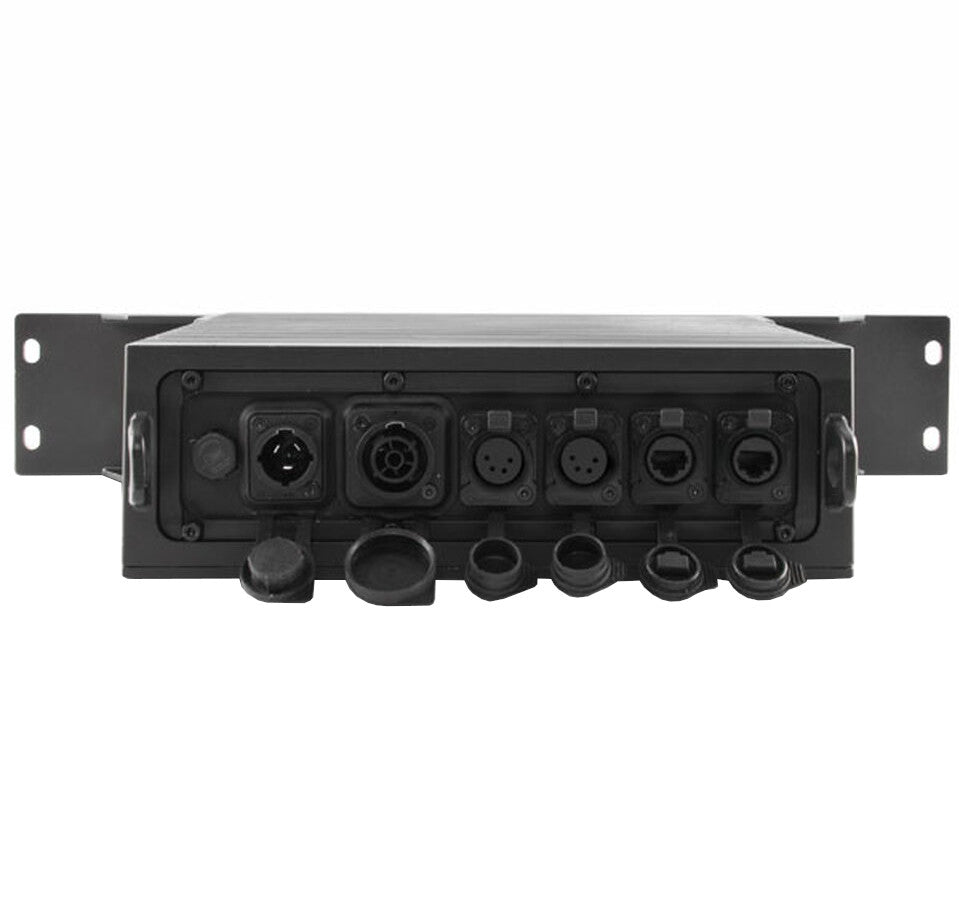

  • Connections
    • Power connection: Edison (local) plug to Seetronic Powerkon IP65
    • Power input: Seetronic Powerkon IP65
    • Power output: Seetronic Powerkon IP65
    • Device outputs (4-pin XLR): 2
    • Physical linking
      • Port A: 10 inline EPIX Strip IP Tour, 18 inline EPIX Strip Tour or 6 inline EPIX Bar Tour
      • Port B: 10 inline EPIX Strip IP Tour, 18 inline EPIX Strip Tour or 6 inline EPIX Bar Tour
    • Data connectors: Seetronic Etherkon IP65
    • Power cable length: 5 ft (1.5 m)
    • Minimum required device linking cable size: 4 conductor (2x14AWG, 2x16 AWG)
    • Max cable lengths
      • Between EPIX Drive 2000 and last EPIX Tour or IP fixture (shielded cables): 210 ft (64 m)
      • Between EPIX Drive 2000 and first EPIX Tour or IP fixture (shielded cables): 65 ft (20 m)
      • Between EPIX Tour or IP fixtures (shielded cables): 60 ft (18 m)
      • Between EPIX Drive 2000 and last EPIX Tour or IP fixture: 300 ft (91 m)
      • Between EPIX Drive 2000 and first EPIX Tour or IP fixture: 150 ft (30 m)
  • Control
    • Control protocol: Art-Net, Kling-Net, sACN
    • Control universes: 10 Art-Net/sACN Universes per port (20 total per device)
    • Control channels: (Art-net, sACN): 7, 8, 15, 30, 75, or 150
  • Physical
    • Housing material: aluminum
    • IP rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
    • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
    • Rackmount: 2U
    • Dimensions: 10.55" x 3.3" x 10.35"
    • Weight: 12 pounds (5.4 kg)
