Chauvet Pro EPIX Strip Tour Pixel-Mapping LED Strip

Chauvet Pro EPIX Strip Tour Pixel-Mapping LED Strip

SoundPro Item: 32902 | Part Number: EPIXSTRIPTOUR

$350.50
$390.50 $350.50
Your Price Sold out
MSRP: $390.50 | MAP: $350.50

Usually ships in 5-7 business days

  • Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
  • Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
  • Increase viewing angle by using the optional dome accessory
  • EPIX Drive 900 required for operation
Log in or register for YOUR best price

Requires EPIX Drive 900 (sold separately).

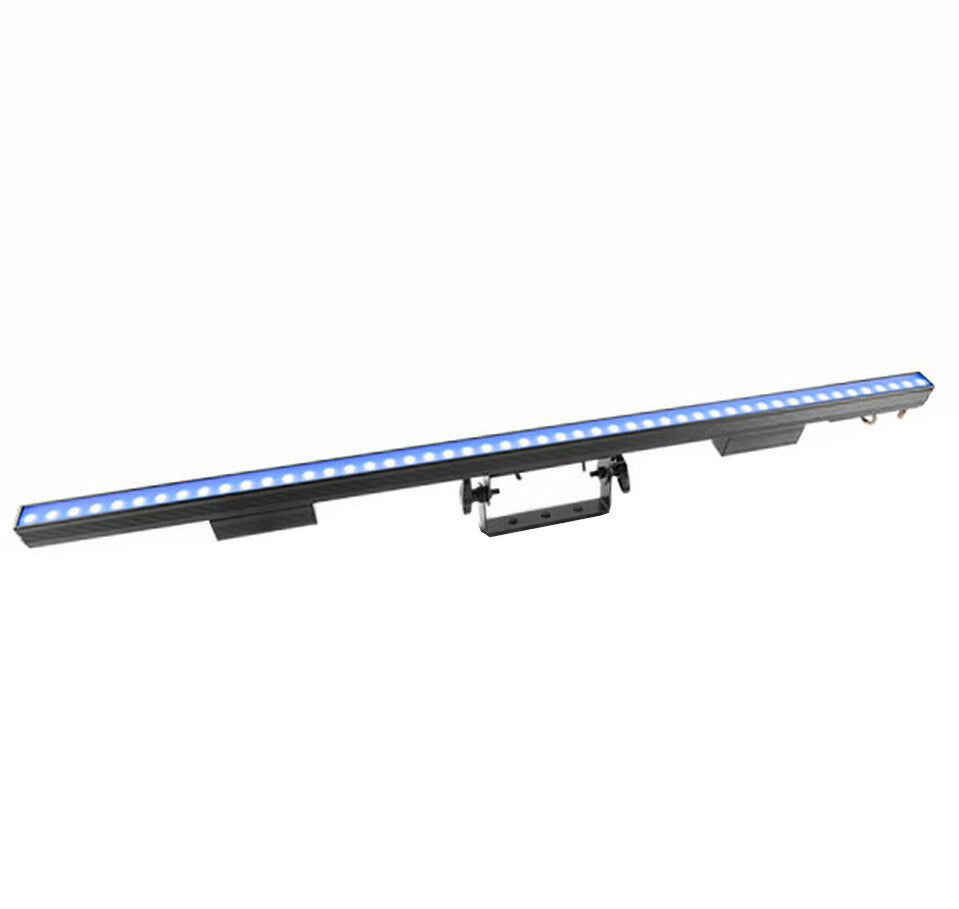

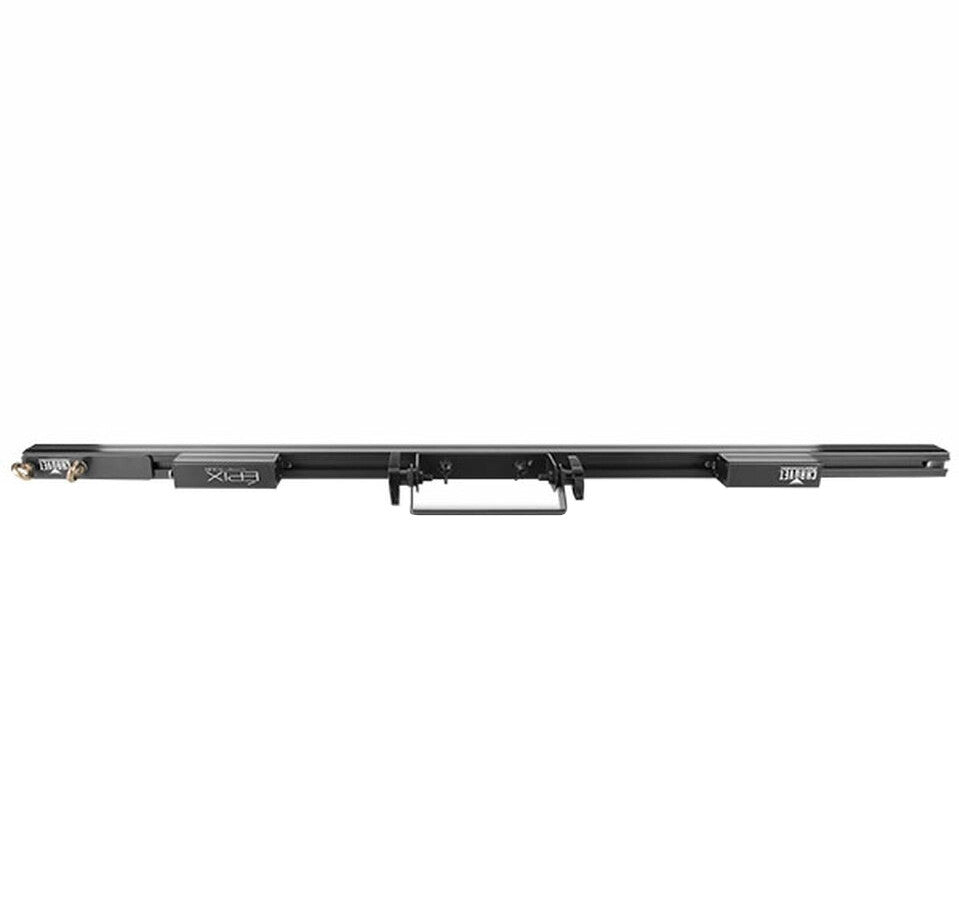

EPIX Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125° viewing angle. Power and control it through the Epix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).

View full details
  • Optical
    • Light source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
    • Viewing angle: 125°
    • Illuminance (white frost filter installed): 1,094 NITS
    • Illuminance (black stealth filter installed): 267 NITS
    • Pixels: 50x1
    • Pixel pitch: 20 mm
    • Refresh rate: 4,700 Hz
  • Control
    • Control protocol: Art-Net, Kling-Net, sACN
    • Control channels: 150
  • Electrical
    • Power and current
      • 17 W, 0.14 A @ 120 V, 60 Hz
      • 17 W, 0.08 A @ 208 V, 60 Hz
      • 17 W, 0.07 A @ 230 V, 50 Hz
  • Connections
    • Data connectors: 4-pin XLR
    • Physical linking: 18 inline EPIX Bar Tour
    • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
    • Max cable lengths
      • Between EPIX Drive 900 and last EPIX Tour fixture (shielded cables): 210 ft (64 m)
      • Between EPIX Drive 900 and first EPIX Tour fixture (shielded cables): 65 ft (20 m)
      • Between EPIX Tour fixtures (shielded cables): 60 ft (18 m)
      • Between EPIX Drive 900 and last EPIX Tour fixture (unshielded cables): 300 ft (91m)
      • Between EPIX Drive 900 and first EPIX Tour fixture (unshielded cables): 150 ft (45 m)
      • Between EPIX Tour fixtures (unshielded cables): 100 ft (30 m)
  • Cable
    • 4PXLREXT16IN
    • 4PXLREXT5FT
    • 4PXLREXT50FT
  • Physical
    • Housing material: aluminum
    • IP rating: IP20, dry location
    • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
    • Dimensions: 39.37" x 4.72" x 2.36"
    • Weight: 3.44 pounds (1.56 kg)
