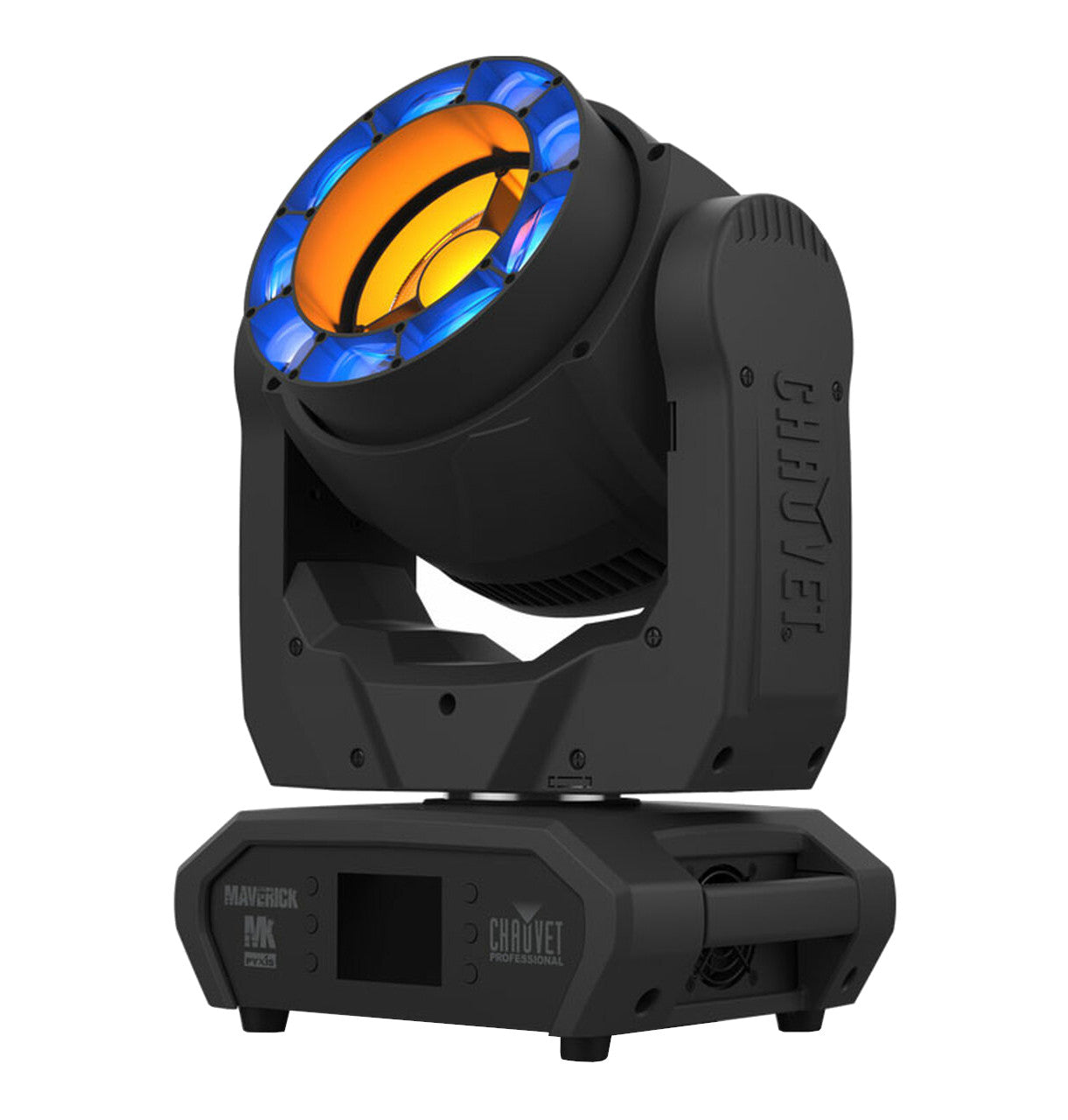

• Chauvet Pro Maverick MK Pyxis Moving Head

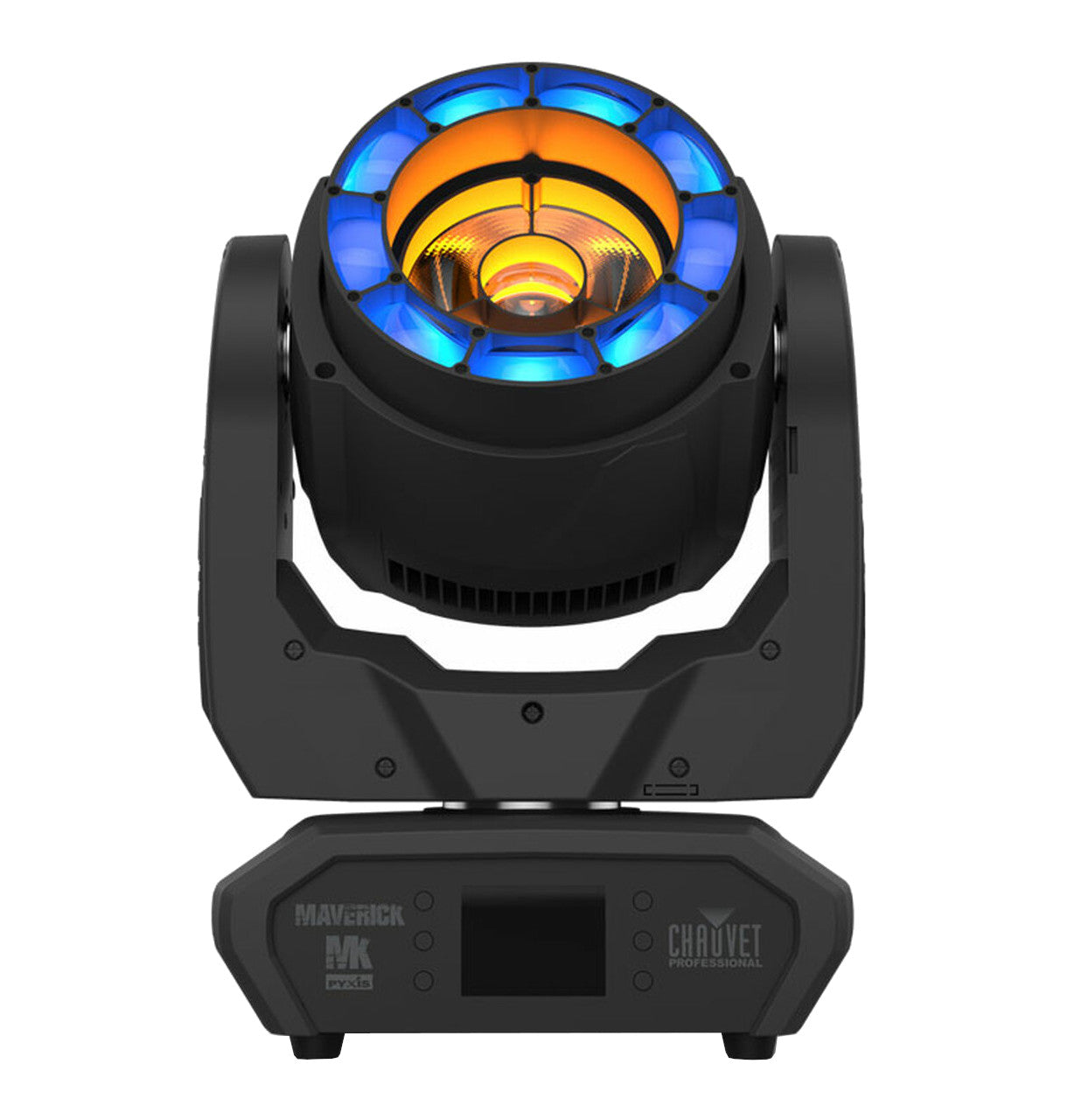

  • Chauvet Pro Maverick MK Pyxis Moving Head front

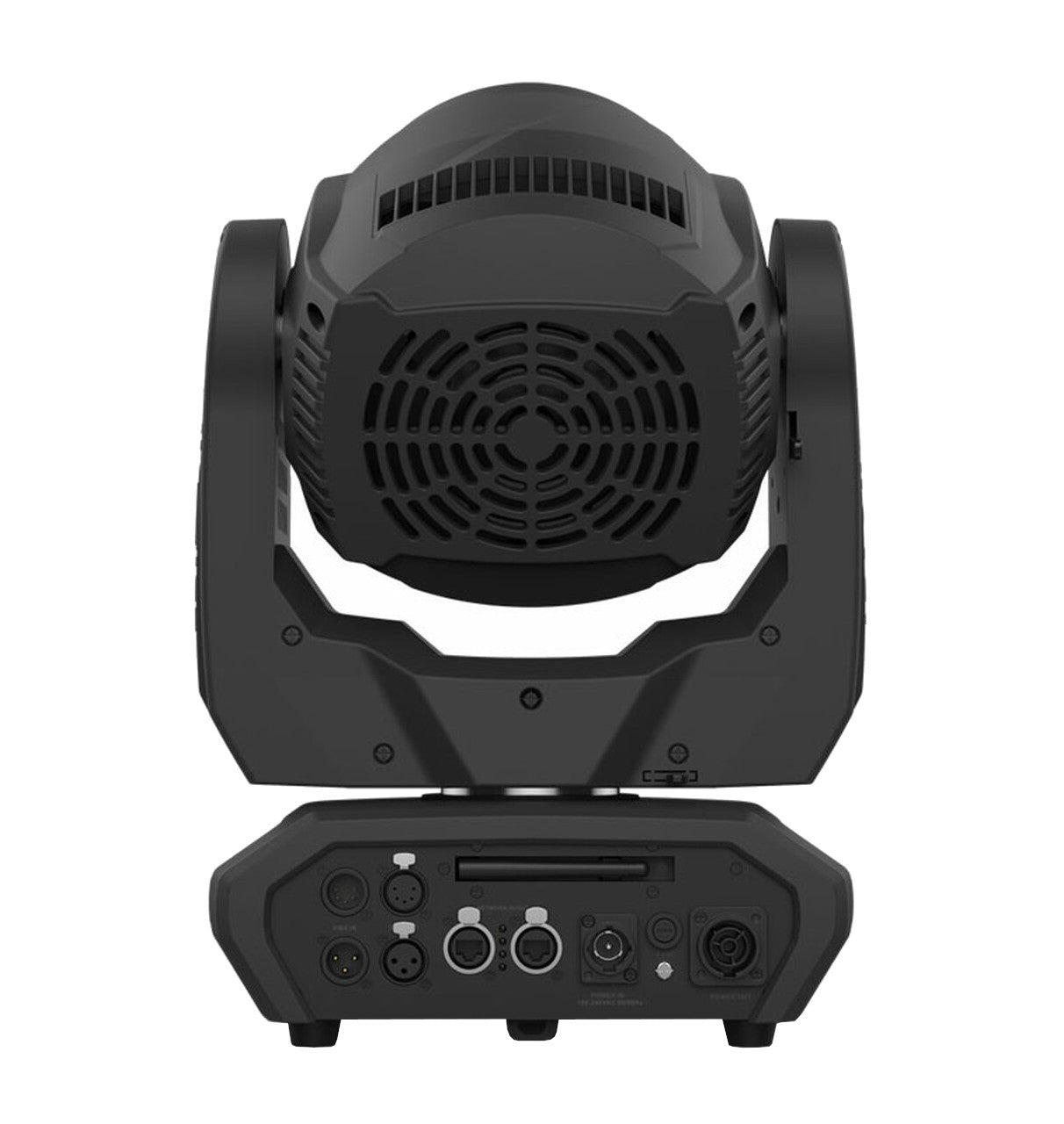

  • Chauvet Pro Maverick MK Pyxis Moving Head back
1 3

Chauvet Pro Maverick MK Pyxis Moving Head

Chauvet Pro Maverick MK Pyxis Moving Head

SoundPro Item: 18559 | Part Number: MAVERICKPYXIS

$2,000.00
$2,255.00 $2,000.00
Your Price Sold out
MSRP: $2,255.00 | MAP: $2,000.00

In stock and ready to ship

  • A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement
  • A (9) 15 W RGBW LED outer ring of LEDs with a 7° - 45° zoom angle and pixel control for wash and narrow effects
  • A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects
  • Virtual Color wheel with instantaneous access to 21 colors
  • Built in color effects for quick design possibilities
  • Built in virtual gobo wheel with background colors for impressive atmospheric effects
  • Quiet operation for a wide range of installation situations
  • DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
  • RDM enabled for remote addressing and trouble shooting
  • Converts TCP/IP to DMX for shorter data cable runs
  • 7° - 45° zoom angle for variable beam sizes
  • True 1 compatible power input
  • Battery backup touchscreen display with auto rotate depending on fixture orientation
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
Log in or register for YOUR best price

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 7° to 45° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

View full details
  • Light source
    • Outer ring: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
    • Center pixel: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
  • Color temperature2,800 to 10,000 K
  • Beam angle
    • Center pixel and outer ring: 2.8°
    • Center pixel: 2.7°
    • Outer ring: 4.9° to 32°
  • Field angle
    • Center pixel and outer ring: 6.7°
    • Center pixel: 4.5°
    • Outer ring: 7.9° to 47.8°
  • Cutoff angle8.3° to 58.4°
  • Zoom range4.9° to 58.4°
  • Lumens
    • Source: 1,700 (center pixel), 4,300 (outer ring)
    • Output: 1,100 (center pixel), 2,400 (outer ring)
  • Illuminance
    • Center pixel/outer ring: 11,267 lux @ 5m
    • Center pixel: 19,306 lux @ 5m
    • Outer ring: (7.9°) 4,724 lux @ 5 m, (47.8°) 437 lux @ 5 m
  • Dynamic effects
    • Pan and tilt: 540°/270°
    • Pan and tilt ranges: infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt
    • Dimmer: electronic
    • Shutter/strobe: electronic
    • Zoom: motorized
    • Strobe rate: 0 to 20 Hz
    • Color temperature presets: yes
    • Move-in black: yes
    • Dim modes: 2
    • Dim curves: 4
  • Control
    • Control protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
    • DMX channels
      • Single mode: 26,66,113,131
      • Dual mode, function: 13, 26, 33
      • Dual mode, pixel: 30, 40, 80
    • Art-Net channels
      • Single mode: 26, 66, 113, 131
      • Dual mode, function: 13, 26, 33
      • Dual mode, pixel: 30, 40, 80
  • Electrical
    • Input voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
    • Power linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
    • Power and current
      • 325 W, 2.726 A @ 120 V, 60 Hz
      • 322 W, 1.546 A @ 208 V, 60 Hz
      • 321 W, 1.395 A @ 230 V, 50 Hz
  • Connections
    • Power connection: Edison plug to Seetronic Powerkon IP65
    • Power input/output: Seetronic Powerkon IP65
    • Data connectors: 3 and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
    • Power cable length: 5 ft (1.5 m)
  • Physical
    • Housing: high-impact flame-retardant polymer
    • IP rating: IP20, dry location
    • Dimensions: 12.2" x 8.85" x 18"
    • Weight: 31.96 pounds (14.5 kg)
