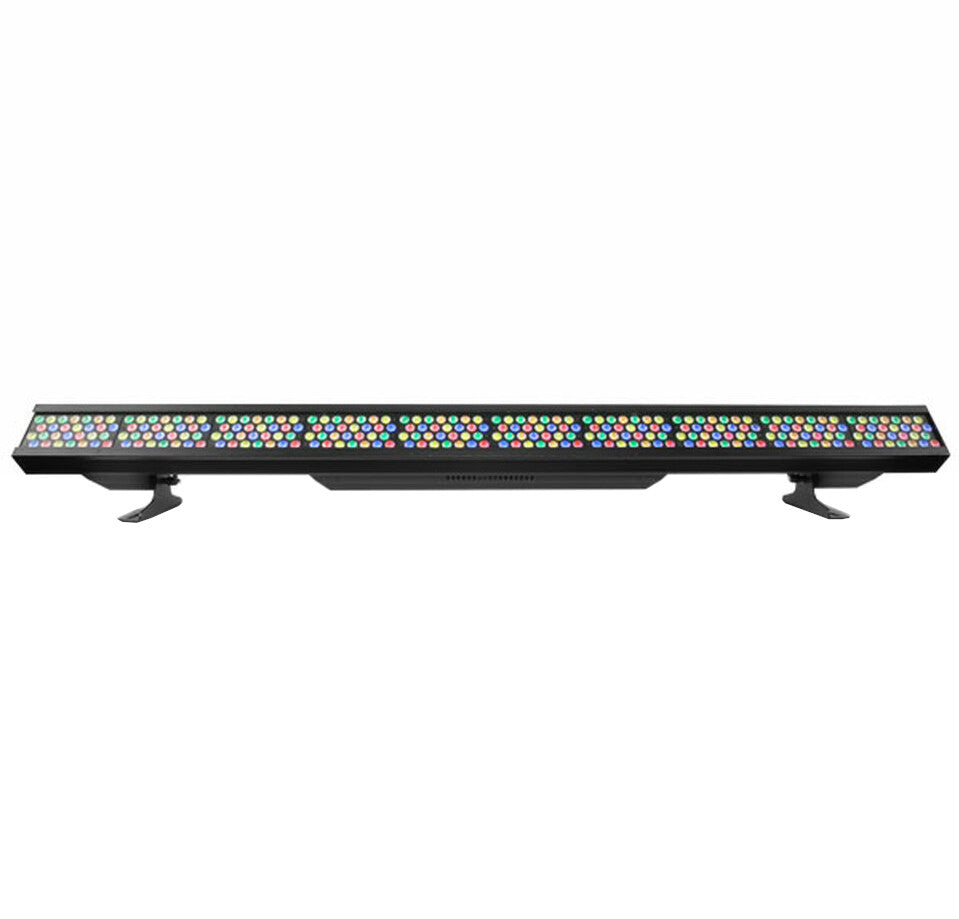

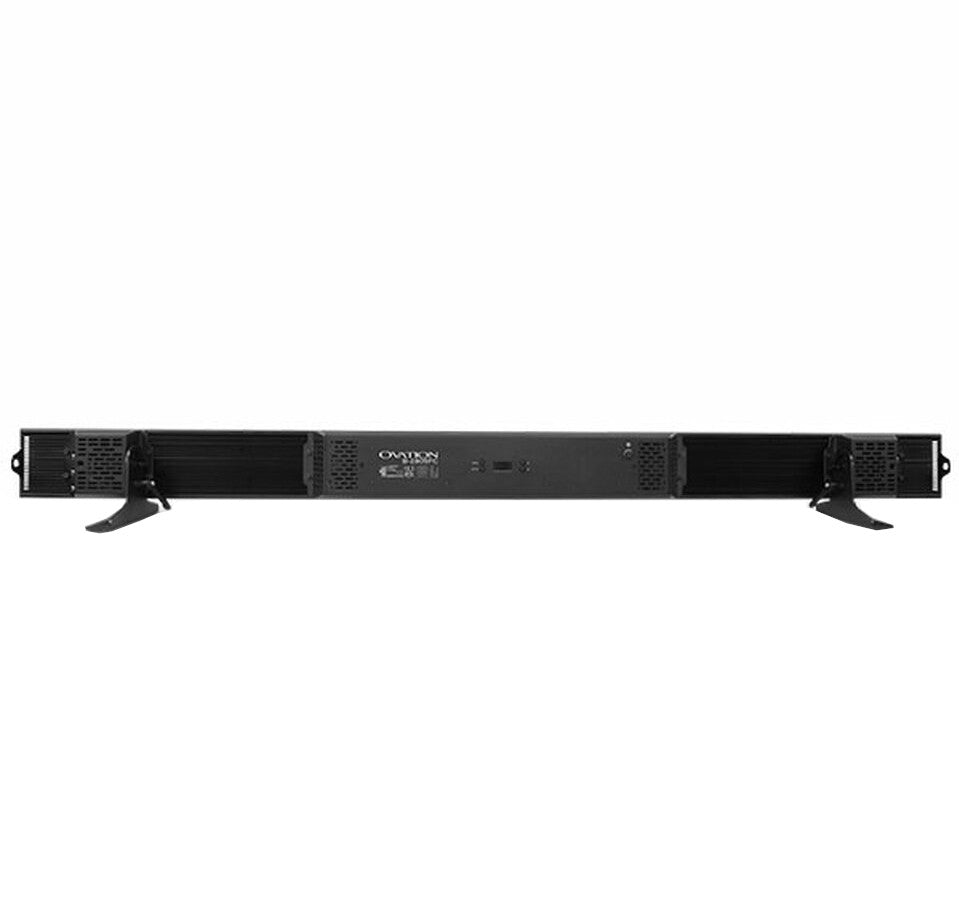

    Chauvet Pro Ovation B-2805FC RGBAL LED Batten Bar

    Chauvet Pro Ovation B-2805FC RGBAL LED Batten Bar

    SoundPro Item: 76520 | Part Number: OVATIONB2805FC

    $3,506.50
    $3,954.50 $3,506.50
    Your Price Sold out
    MSRP: $3,954.50 | MAP: $3,506.50

    Usually ships in 5-7 business days

    • Full color LED (RGBAL) batten fixture for theatre, film and production
    • Theatre-ready with 16-bit dimming of master dimmer and individual colors
    • Multiple control personalities for complex programming schemes up to 10 sections of control
    • Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
    • Virtual Color wheel with color matched to popular gel colors
    • Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
    • Neutrik&reg powerCON® and Amphenol etherCON® compatible connections for power and data linking
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
    Log in or register for YOUR best price

    Ovation B-2805FC is the first batten- style fixture to take advantage of the extended color capabilities of the RGBAL color mixing system. Control is easier than ever thanks to the incorporation of RDM, Art-Net™ and sACN in addition to standard DMX control. For maximum flexibility, up to 10 sections can be controlled individually while its easily accessible Virtual Color Wheel and color temperature presets make programming a breeze. An included holographic filter locks into place for enhanced wall/cyc grazing ability.

    View full details
    • Optical
      • Light source: 280 LEDs (60 red, 60 green, 60 blue, 40 amber, 60 lime) 3 W, (650 mA), 50,000 hours life expectancy
      • Color temperature: 2,800 to 10,000 K
      • CRI (at 3200K): 80
      • Installed optics: 20°
      • Beam angles
        • Horizontal: 25°
        • Vertical: 20°
        • Horiztonal with filter: 52°
        • Vertical with filter: 20°
      • Field angles
        • Horizontal: 42°
        • Vertical: 40°
        • Horizontal with filter: 83°
        • Vertical with filter: 40°
      • Lumens: 32,673
      • Illuminance: 5,586 lux @ 5 m
      • Illuminance with filter: 2,320 lux @ 5 m
      • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
    • Dynamic effects
      • Dimmer: electronic
      • Shutter/strobe: electronic
      • Strobe rate: 0 to 30 Hz
      • Standalone color mixing: yes
      • Color temperature presets: yes
      • Dim modes: 4
      • Built-in automated programs: yes
    • Control
      • Protocols: Art-Net™, DMX, RDM, sACN
      • DMX channels
        • 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
        • 5 Cell: 15, 20, 25, 33, 38, 43, 50, 70
        • 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
      • Art-Net channels
        • 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17
        • 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
        • 5 Cell: 15, 20, 25, 33, 38, 43, 50, 70
        • 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
      • Modes/personalities: 32 personalities
    • Electrical
      • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Power linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V; 5 units @240 V
      • Power and current
        • 591 W, 4.92 A @ 120 V, 60 Hz
        • 565 W, 2.85 A @ 208 V, 60 Hz
        • 564 W, 2.57 A @ 230 V, 50 Hz
    • Connections
      • Power connection: Edison (local) plug to Neutrik powerCON
      • Power input: Neutrik powerCON
      • Power output: Neutrik powerCON
      • Data connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
      • Power cable length: 5 ft (1.5 m)
    • Physical
      • Housing material: aluminum die-cast
      • IP rating: IP20, dry location
      • Accessory holder/gel frame size: 68.9" x 3.66"
      • Dimensions: 69" x 8.26" x 8.13"
      • Weight: 45.4 pounds (20.5 kg)
