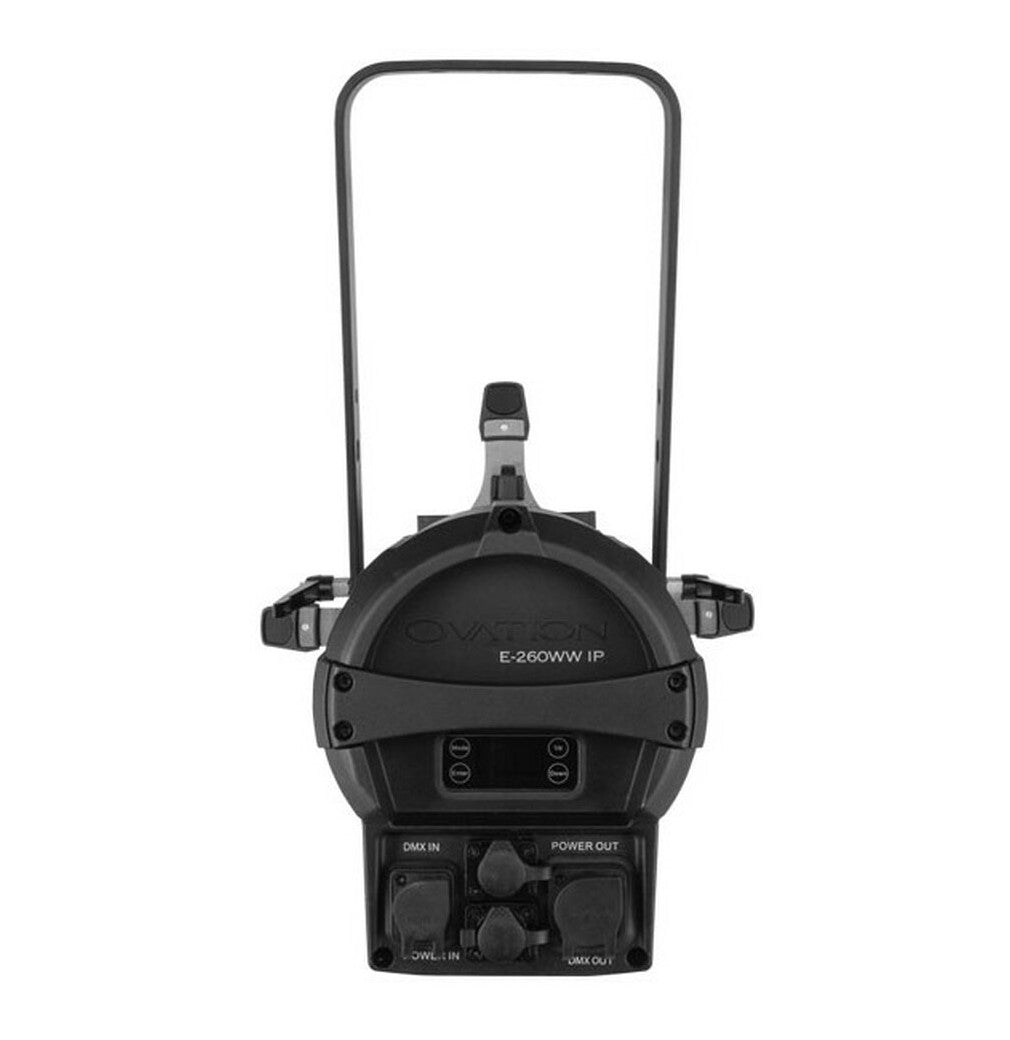

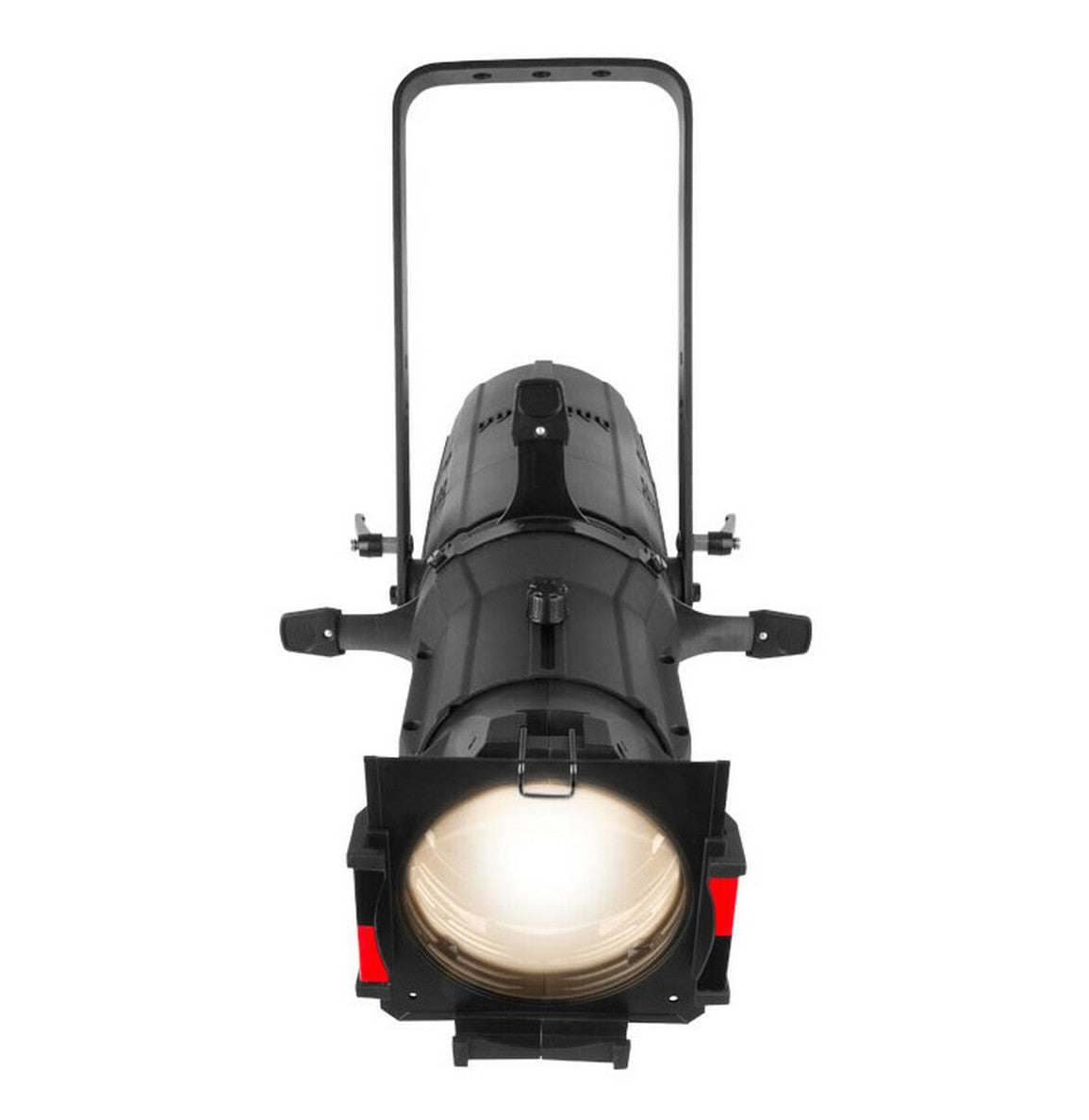

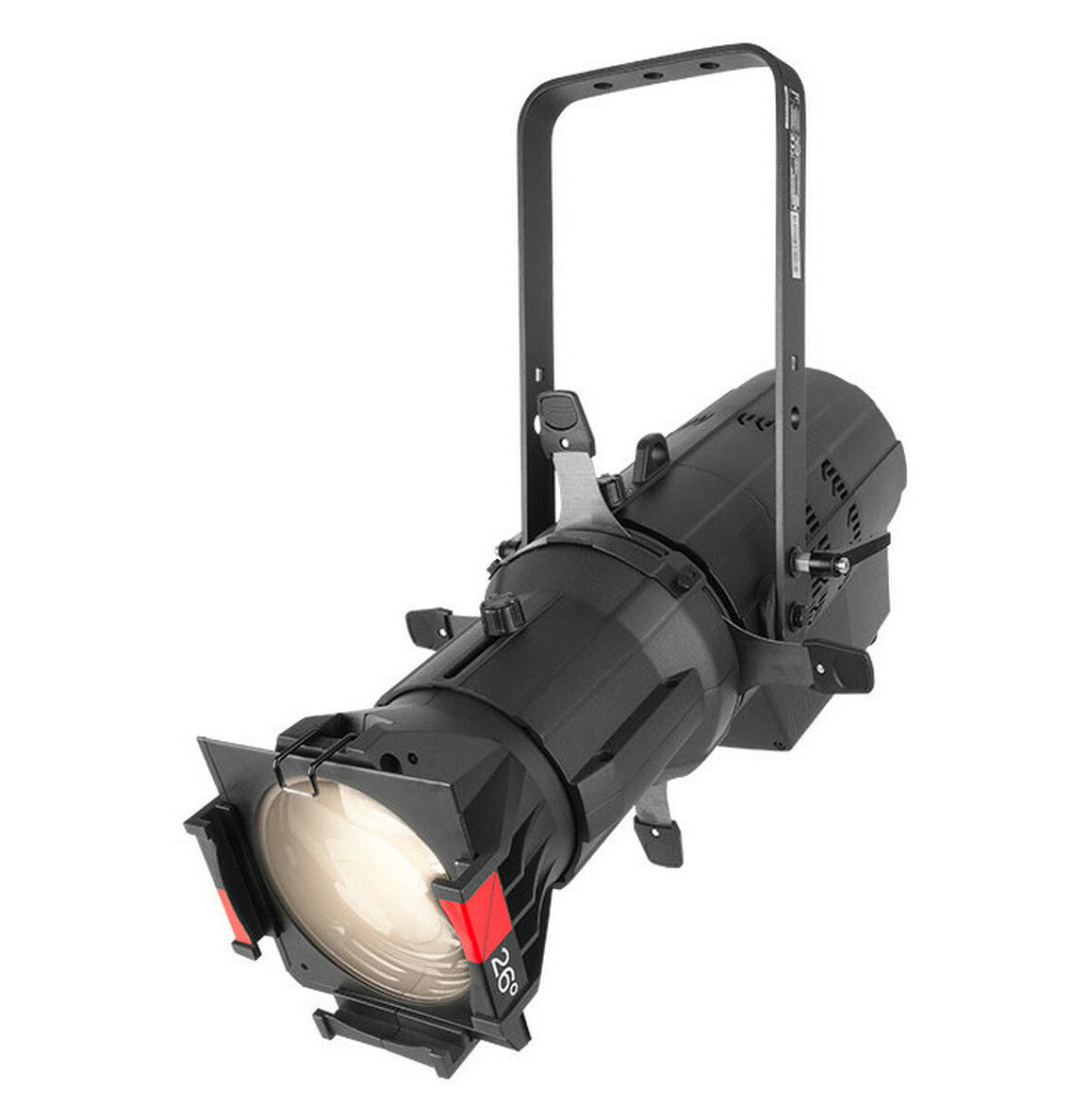

Chauvet Pro Ovation E-260WW IP 230W Warm White Ellipsoidal
Chauvet Pro Ovation E-260WW IP 230W Warm White Ellipsoidal
SoundPro Item: 90843 | Part Number: OVATIONE260WWIP
In stock and ready to ship
- Warm white ERS-style fixture with output exceeding a tungsten 750 W source
- Fully IP65 rated for seasonal use indoors or out
- Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
- Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
- Flat, even field of light for superior gobo projection
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Requires 19°, 26°, 36° or 50° lens tube (sold separately)
Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.
- Light source1 LED 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
- Color temperature (at full)3149K
- CRI96
- Beam angles
- 5° lens: 6°
- 10° lens: 8°
- 14° lens: 11°
- 19° lens: 13°
- 26° lens: 16°
- 36° lens: 20°
- 50° lens: 28°
- 15°-30° lens (narrow): 12°
- 15°-30° lens (wide): 14°
- 25°-50° lens (narrow): 21°
- 25°-50° lens (wide): 22°
- Field angles
- 5° lens: 7°
- 10° lens: 10°
- 14° lens: 14°
- 19° lens: 18°
- 26° lens: 25°
- 36° lens: 34°
- 50° lens: 50°
- 15°-30° lens (narrow): 15°
- 15°-30° lens (wide): 29°
- 25°-50° lens (narrow): 26°
- 25°-50° lens (wide): 46°
- Lumens
- 19° lens: 7,587
- 26° lens: 10,284
- 36° lens: 10,121
- 50° lens: 9,655
- Illuminance
- 5° lens: 41,400 lux @ 5 m
- 10° lens: 23,300 lux @ 5 m
- 14° lens: 13,439 lux @ 5 m
- 19° lens: 9,256 lux @ 5 m
- 26° lens: 6,910 lux @ 5 m
- 36° lens: 4,053 lux @ 5 m
- 50° lens: 1,703 lux @ 5 m
- 15°-30° lens (narrow): 16,827 lux @ 5 m
- 15°-30° lens (wide): 10,626 lux @ 5 m
- 25°-50° lens (narrow): 7,210 lux @ 5 m
- 25°-50° lens (wide): 3,295 lux @ 5 m
- Selectable PWM 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
- Dynamic effects
- Dimmer: electronic
- Shutter/strobe: electronic
- Zoom: manual
- Strobe rate: 0 to 27 Hz
- Dim modes: 4
- Built-in automated programs: yes
- Connections
- Power connection: Edison (local) plug to Neutrik powerCON
- Power input: Neutrik powerCON
- Power output: Neutrik powerCON
- Data connectors: 3 and 5-pin XLR
- Power cable length: 5 ft (1.5 m)
- Control
- Control protocol: DMX, RDM
- DMX channels: 1, 2, 3 or 6
- Modes/personalities: 4 personalities (1, 2, 3, 6)
- Electrical
- Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
- Power and current
- 236 W, 1.944 A @ 120 V, 60 Hz
- 244 W, 1.167 A @ 208 V, 60 Hz
- 243 W, 1.053 A @ 230 V, 50 Hz
- Physical
- IP rating: IP20, dry location
- Dimensions (fixture only): 19.49" x 11.22" x 19.17"
- Weight (fixture only): 15.4 pounds (7 kg)
