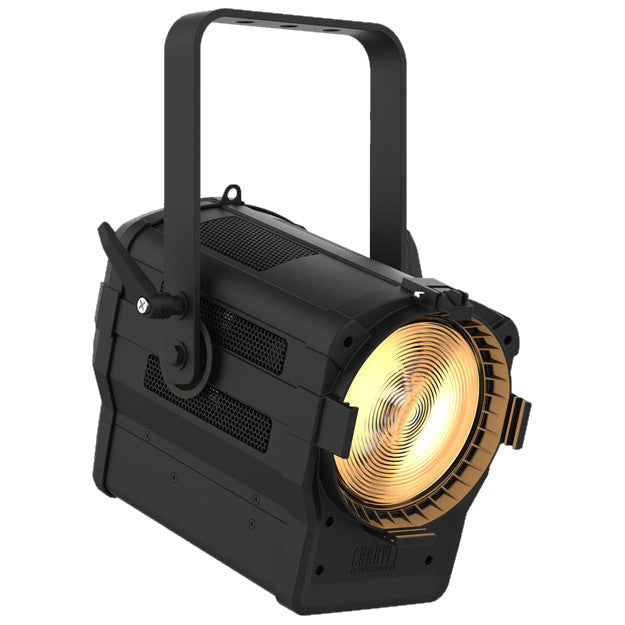

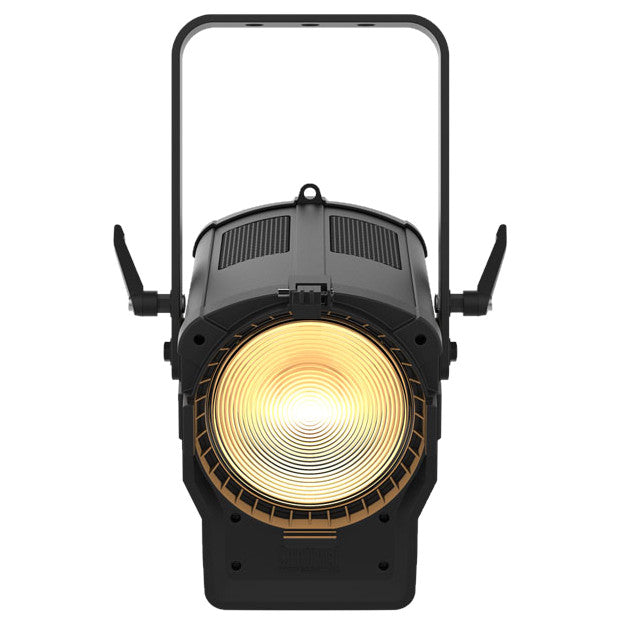

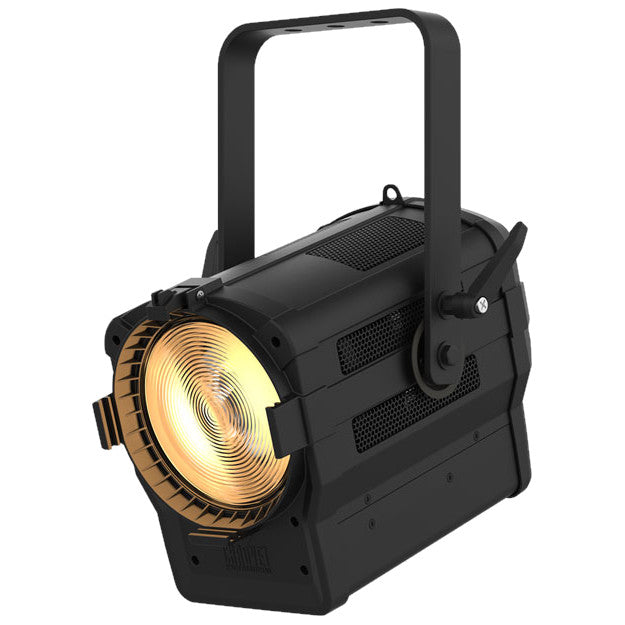

Chauvet Pro Ovation F-145WW Warm White LED Fresnel

Chauvet Pro Ovation F-145WW Warm White LED Fresnel

SoundPro Item: 35134 | Part Number: OVATIONF145WW

$1,198.50
$1,352.00 $1,198.50
Your Price Sold out
MSRP: $1,352.00 | MAP: $1,198.50

Usually ships in 5-7 business days

  • Warm white Fresnel with output comparable to a 6”, 650 W Fresnel
  • Soft and even field of light
  • 16-bit dimming resolution for smooth fades
  • Virtually silent operation for use in any situation
  • Motorized zoom range between 16° to 65°, manually or via DMX
Log in or register for YOUR best price

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

View full details
  • Optical
    • Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
    • Color Temperature (at full): 3096 K
    • CRI: 97
    • Beam Angle: 16° to 48°
    • Field Angle: 25° to 65°
    • Zoom Range: 16° to 65°
    • Lumens (25°): 2,787
    • Lumens (65°): 4,266
    • Illuminance (25°): 1,290 lux @ 5 m
    • Illuminance (65°): 252 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
  • Dynamic Effects
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Motorized
    • Strobe Rate: 0 to 30 Hz
    • Dim Modes: 4
    • Construction/Physical
      • Dimensions: 11.69x11.22x15.03" (297x285x382 mm)
      • Weight: 11 lbs (5 kg)
      • Exterior Color: Black
      • Housing Material: Aluminum alloy, Aluminum die-cast
      • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

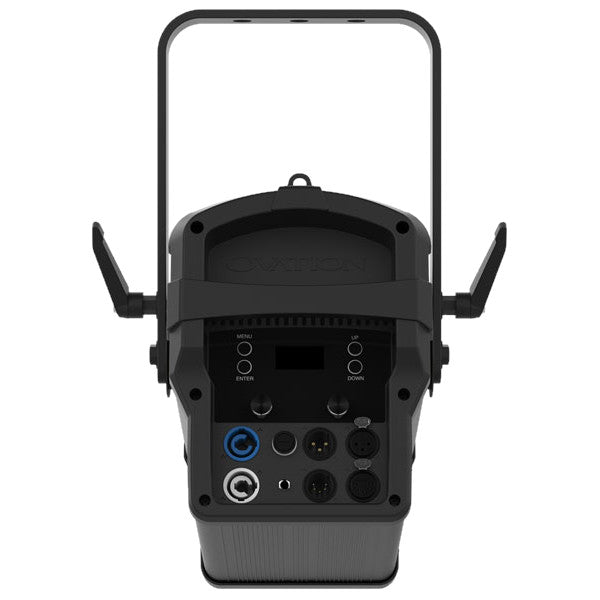

    • Connections
      • Power Connection: Edison (Local) plug to Neutrik powerCON
      • Power Input: Neutrik powerCON
      • Power Output: Neutrik powerCON
      • Data Connectors: 3- and 5-pin XLR
      • Cable Length (power): 5 ft (1.5 m)
    • Control
      • Protocol(s): DMX, RDM
      • DMX Channels: 1, 2, 2 or 5
      • Modes/Personalities: 4 personalities (1, 2, 2, 5)
    • Electrical
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Power Linking: 19 units @ 120V; 34 units @ 208V; 38 units @ 230V
      • Power and Current: 84W, 0.70 A @ 120V, 60 Hz
      • Power and Current: 81W, 0.40 A @ 208V, 60 Hz
      • Power and Current: 81W, 0.36 A @ 230V, 50 Hz
    • Certifications/Qualifications
      • CE, MET, FCCIP Rating: IP20, dry location
      • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
