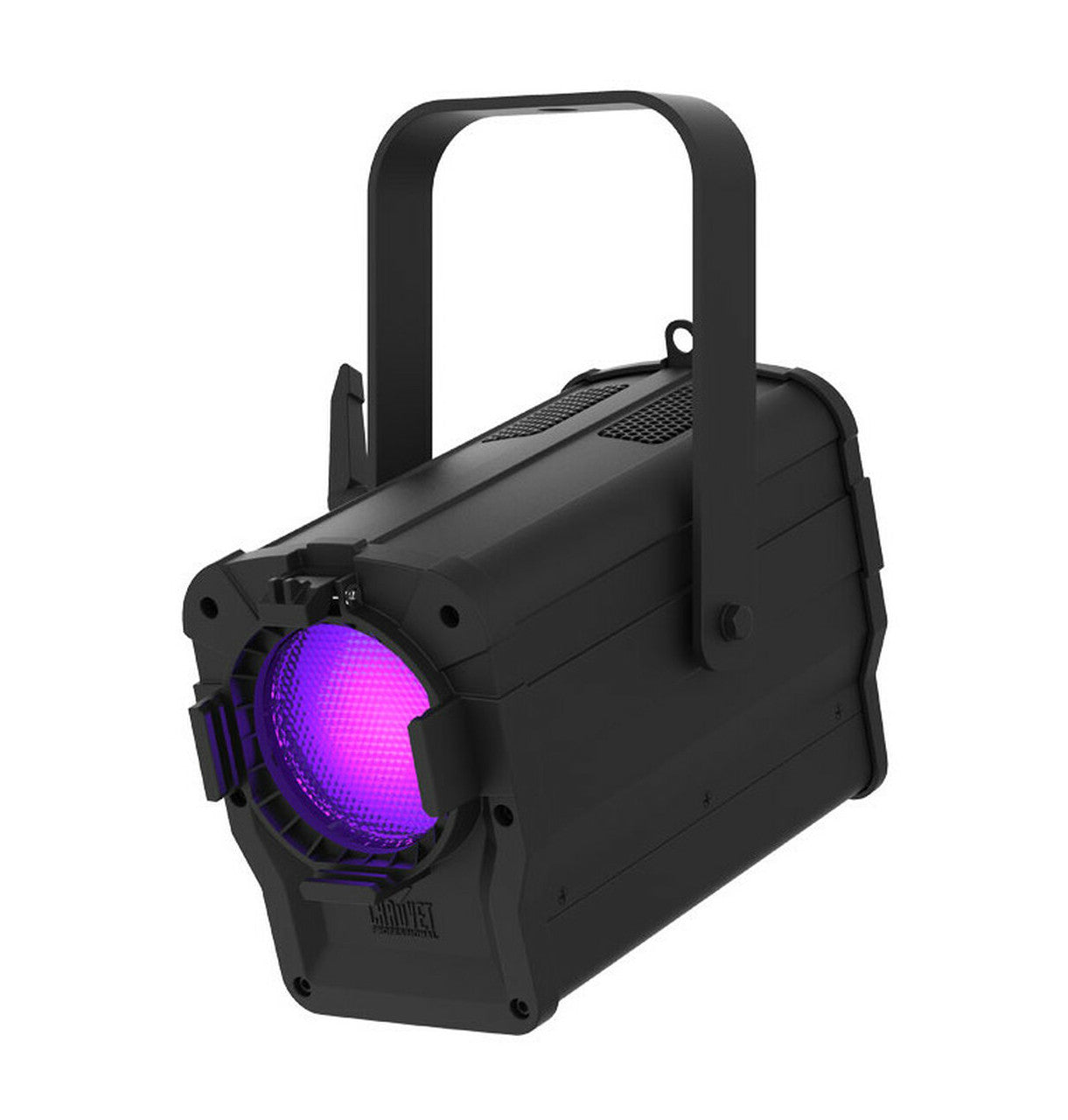

• Chauvet Pro Ovation F-55FC RGBAL LED Fresnel Fixture

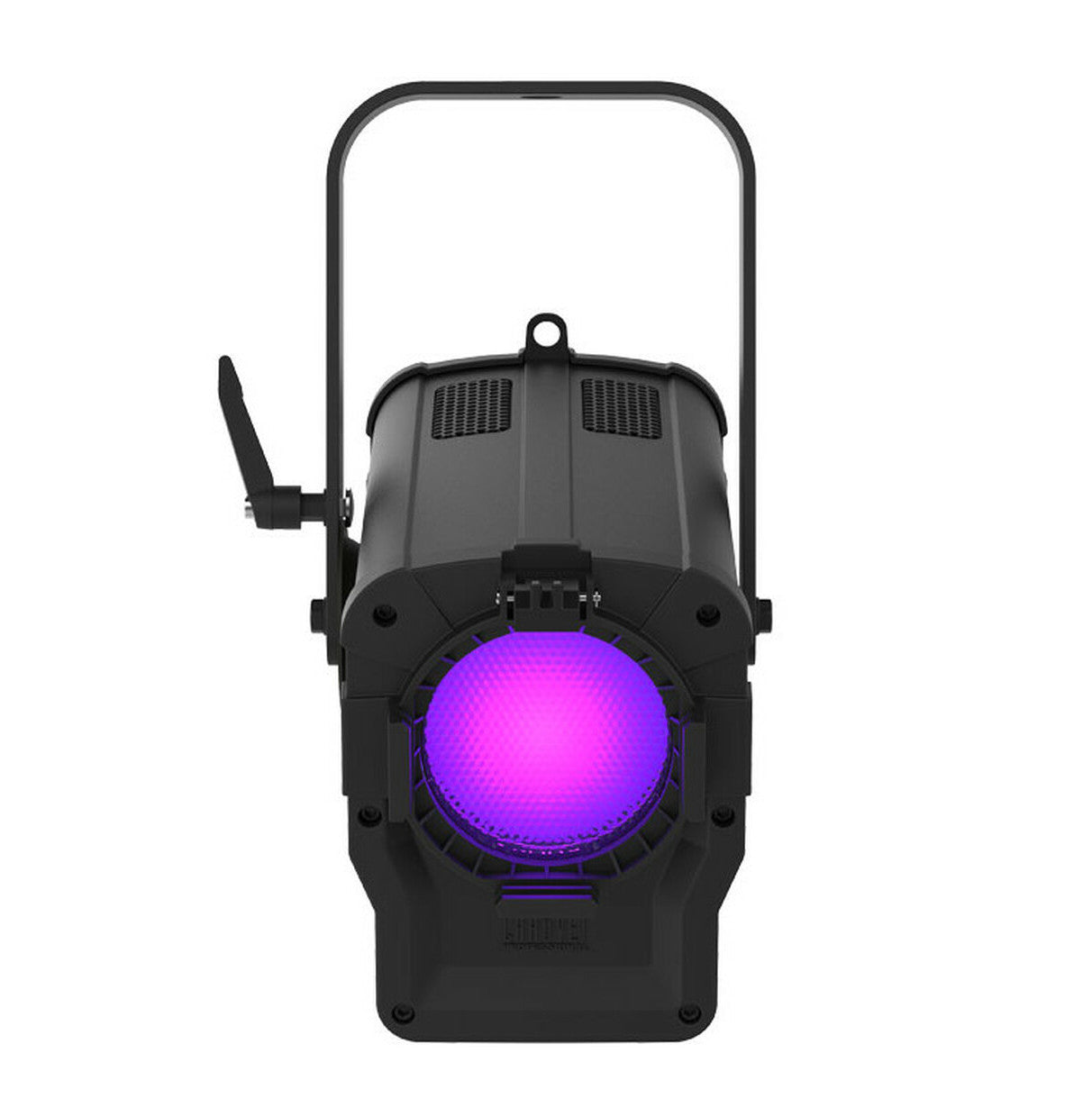

  • Chauvet Pro Ovation F-55FC RGBAL LED Fresnel Fixture front

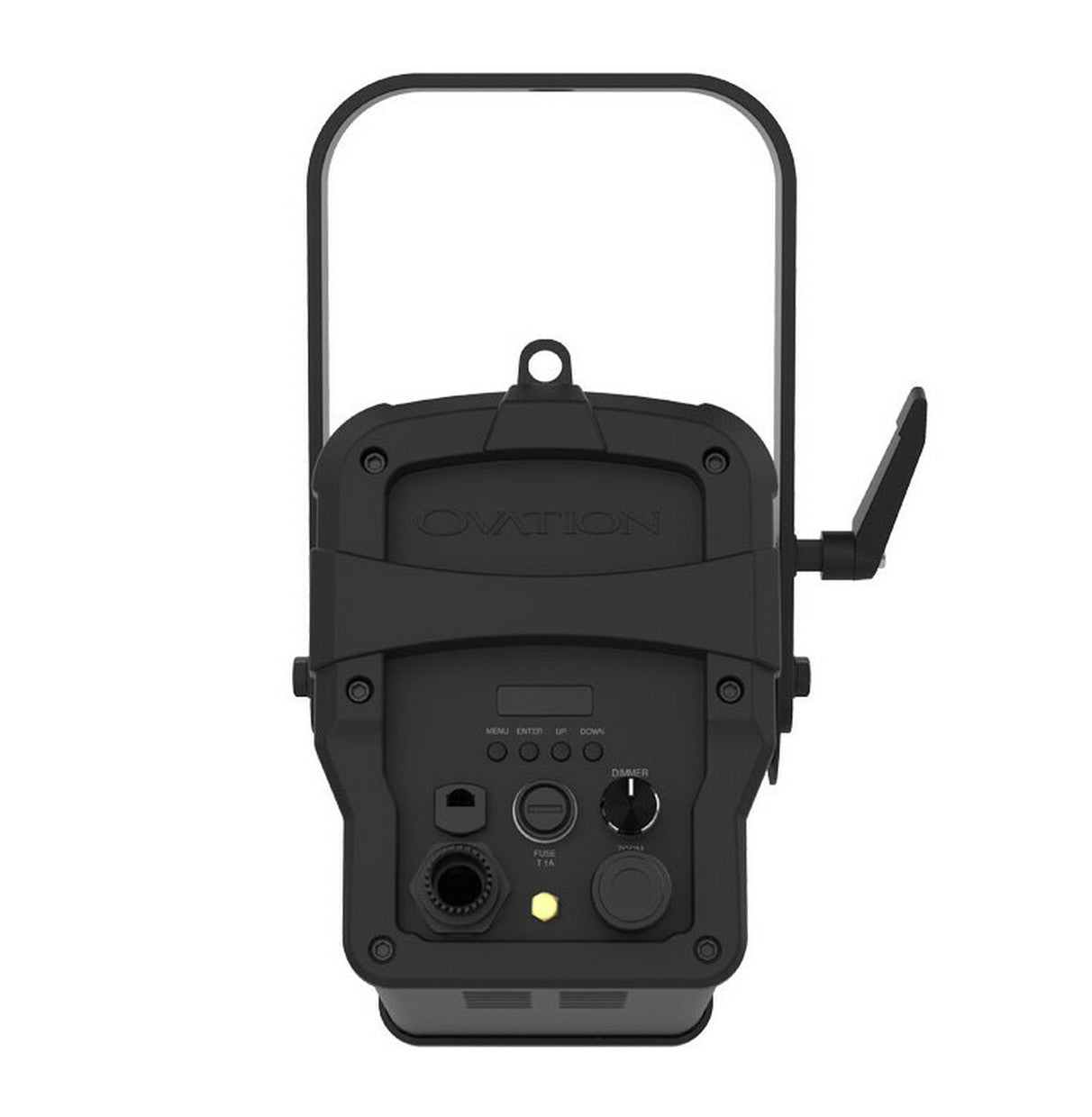

  • Chauvet Pro Ovation F-55FC RGBAL LED Fresnel Fixture back
1 3

Chauvet Pro Ovation F-55FC RGBAL LED Fresnel

Chauvet Pro Ovation F-55FC RGBAL LED Fresnel

SoundPro Item: 18566 | Part Number: OVATIONF55FC

$550.00
$620.00 $550.00
Your Price Sold out
MSRP: $620.00 | MAP: $550.00

Usually ships in 5-7 business days

  • Compact, full color fresnel for tight spaces and on-location lighting
  • 16-bit dimming resolution for smooth fades
  • Soft and even field of light
  • Virtually silent operation for use in any situation
  • Manually controlled variable zoom angle between 32° to 87°
Log in or register for YOUR best price

Ovation F-55FC is a full color RGBAL LED (3-inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. Our handy Virtual Color Wheel and Color Temperature presets are shared from our other full color Ovation fixtures. A manual zoom with a 32° – 87° field angle allows you to add a beautifully soft field of light where needed.

View full details
  • Optical
    • Light source: 15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4 W, (700 mA), 3779 K, 50,000 hours life expectancy
    • Color temperature (at full): 3779K
    • CRI (at 3200K): 91
    • Beam angle: 18° to 67°
    • Field angle: 32° to 87°
    • Zoom range: 18° to 87°
    • Lumens: 114 (30°), 462 (69°)
    • Illuminance: 36 lux @ 5 m (32°), 18 lux @ 5 m (73°)
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
  • Dynamic effects
    • Dimmer: electronic
    • Shutter/strobe: electronic
    • Zoom: manual
    • Strobe rate: 0 to 30 Hz
    • Standalone color mixing: yes
    • Color temperature presets: yes
    • Dim modes: 4
    • Built-in automated programs: yes
  • Control
    • Control protocol: DMX, RDM
    • DMX channels: 3, 5, 7, 10, 12, 13 or 15
    • Modes/personalities: 8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)
  • Electrical
    • Input voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
    • Power and current
      • 44 W, 0.357 A @ 120 V, 60 Hz
      • 28 W, 0.130 A @ 208 V, 60 Hz
      • 29 W, 0.121 A @ 230 V, 50 Hz
  • Connections
    • Power connection: Edison plug to hard-wired
    • Power input: hard-wired
    • Data connectors: 5-pin XLR
    • Signal cable length: 1.79 ft (0.54 m)
    • Power cable length: 5 ft (1.5 m)
  • Physical
    • Housing material: aluminum alloy, aluminum die-cast, high-impact flame-retardant polymer, steel
    • IP rating: IP20, dry location
    • Accessory holder/gel frame size: 3.25"
    • Dimensions: 9.64" x 4.64" x 6.53"
    • Weight: 5.4 pounds (2.4 kg)
