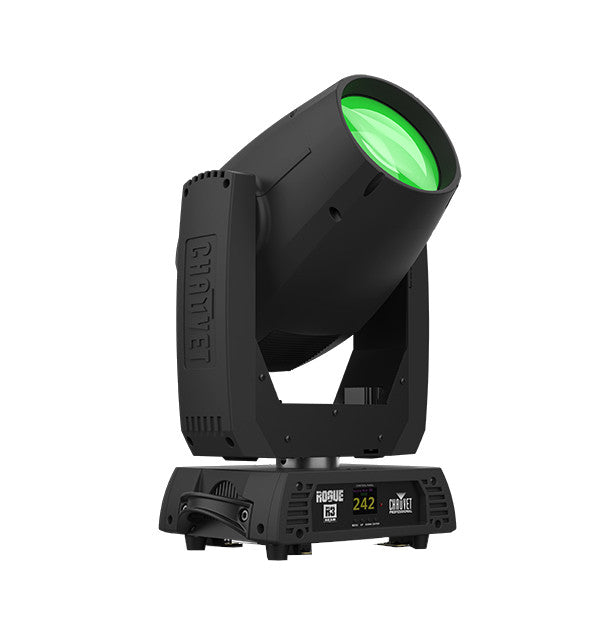

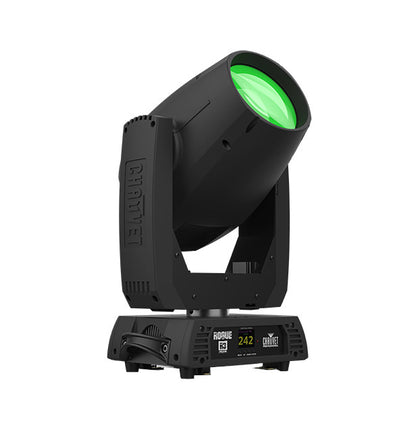

• Chauvet Pro Rogue R3 Beam Moving Head

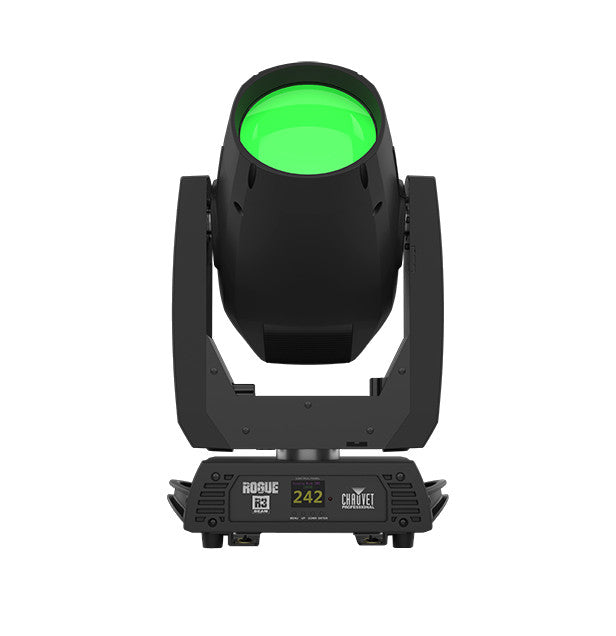

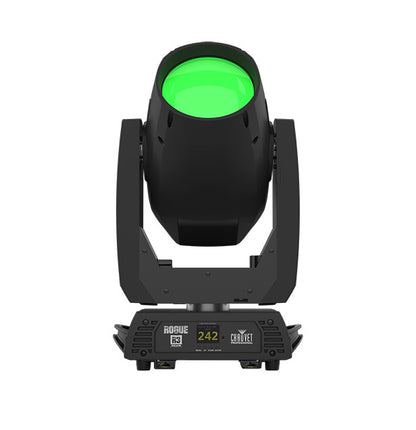

  • Chauvet Pro Rogue R3 Beam Moving Head front

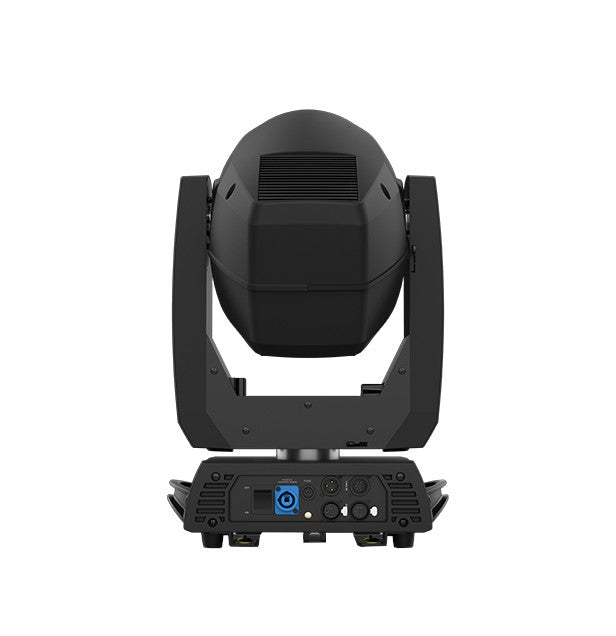

  • Chauvet Pro Rogue R3 Beam Moving Head back
1 3

Chauvet Pro Rogue R3 Beam Moving Head

Chauvet Pro Rogue R3 Beam Moving Head

SoundPro Item: 118520 | Part Number: ROGUER3BEAM

$2,218.50
$2,500.50 $2,218.50
Your Price Sold out
MSRP: $2,500.50 | MAP: $2,218.50

In stock and ready to ship

  • Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300W Ushio NSL lamp rated at 8,000 hours life
  • Fast and precise movement of pan and tilt functions
  • Individually controllable and layerable 8- and 24-facet prisms
  • Frost for even light distribution
  • Tight 0.8° beam for extremely focused areal effects
  • RDM enabled for remote addressing and troubleshooting
  • 17 static gobos for massive visual impact
Log in or register for YOUR best price

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

View full details
  • Optical
    • Light Source: 300W NSL Ushio lamp, 8000K color temp, 8000 hours life expectancy
    • Color Temperature (at full): 7657K
    • CR: 80.8
    • Front Lens Diameter: 153mm
    • Beam Angle: 0.8°
    • Field Angle: 1.6°
    • Cutoff Angle: 2°
    • Lumen Output: 30,878
    • Total Illuminance: 208,006 lux @ 15m
  • Dynamic Effects
    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
    • Colors: 14 + white, split colors, continuous scroll at variable speeds
    • Gobos: 17 + open (17 metal), continuous scroll at variable speeds
    • Dimmer: motorized
    • Shutter/Strobe: motorized
    • Focus: motorized
    • Frost: motorized
    • Prism: 8 facets, motorized, rotating
    • Prism: 24 facets, motorized, rotating
    • Strobe Rate: 0 to 15 Hz
    • Move in Black: yes
  • Control
    • Control Protocol: DMX, RDM
    • DMX Channels: 16 or 19
    • Modes/Personalities: 2 personalities (16, 19)
  • Electrical
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current
      • 422 W, 4.20 A @ 100 V, 60 Hz
      • 418 W, 3.55 A @ 120 V, 60 Hz
      • 411 W, 1.98 A @ 208 V, 60 Hz
      • 411 W, 1.78 A @ 230 V, 50 Hz
      • 406 W, 1.68 A @ 240 V, 50 Hz
  • Power ConnectionEdison (Local) plug to Neutrik
  • Power InputNeutrik powerCON
  • Power OutputNeutrik powerCON
  • Data Connectors3 and 5 pin XLR
  • Power Cable Length5 ft
  • Housing Materialhigh-impact flame-retardant polymer
  • Dimensions12.79" x 8.66" x 21.65"
  • Weight34.4 pounds
