Chauvet Pro Strike Array 4 IP65 Warm White LED Blinder
Chauvet Pro Strike Array 4 IP65 Warm White LED Blinder
SoundPro Item: 118524 | Part Number: STRIKEARRAY4
Usually ships in 5-7 business days
- Intense 4 pod blinder/strobe rated IP65 for all-weather use
- Emulated “red shift” to mimic incandescent fixtures perfectly
- Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output
- Innovative interlocking system to connect multiple Strike Array 4s and Strike Array 2s together
- Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options
- 16-bit dimming control for smooth, perfect fades
- Strobe functionality for high-impact effects on the fly
- Easy to use OLED display
- Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility

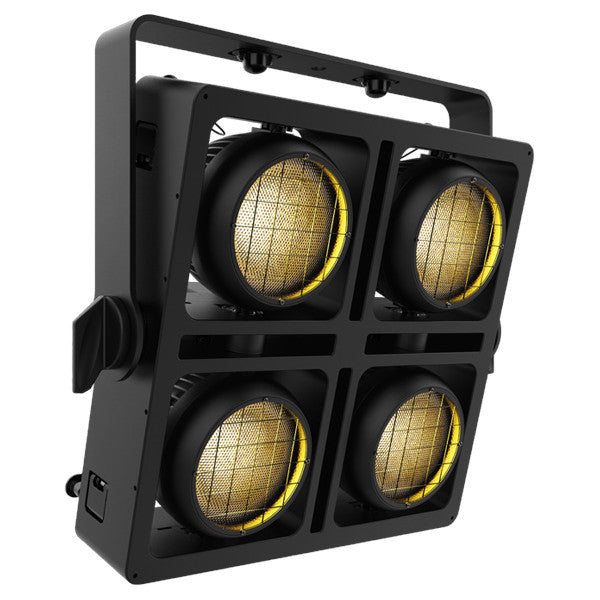

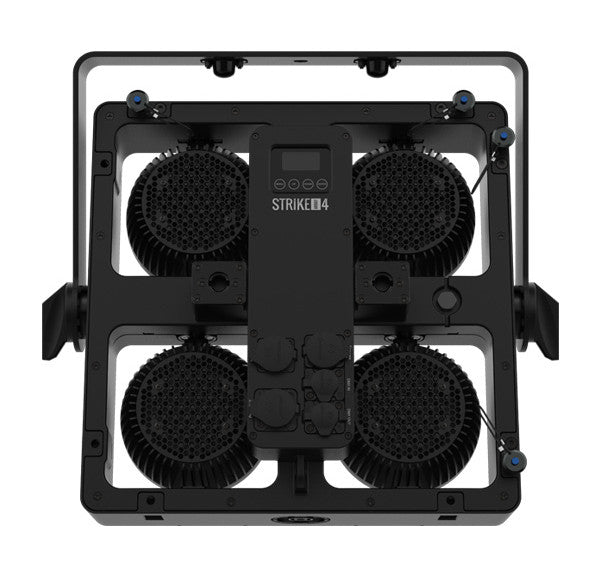

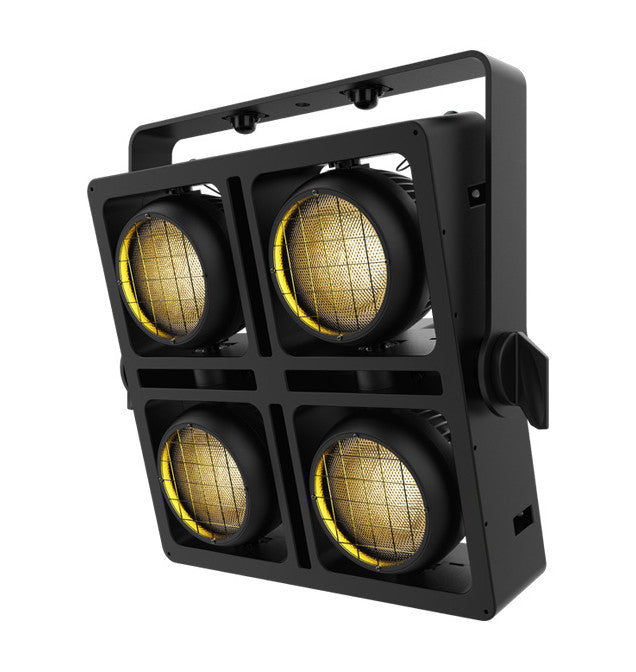

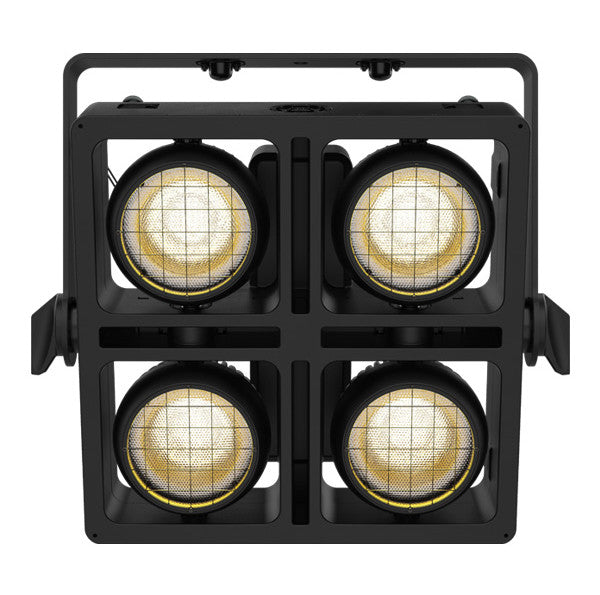

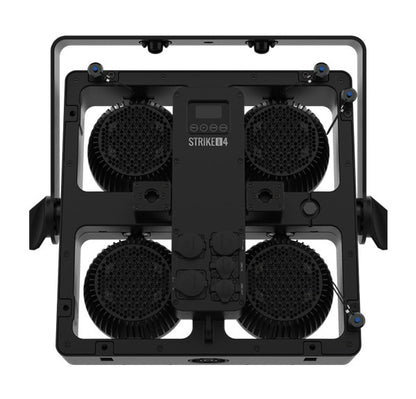

STRIKE Array 4 is an electrifying outdoor-ready audience blinder with four high-power warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 4 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder – giving you a streamlined truss mounting process.
- Optical
- Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
- Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy
- Color Temperature (at full): 2770 K
- CRI: 93.2
- TLCI: 91
- Beam Angle: 61.5°
- Field Angle: 100.5°
- Illuminance (total): 684 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
- Dynamic Effects
- Dimmer: electronic
- Strobe Rate: 0 to 25 Hz
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 V
- Power and Current
- 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush]
- 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush]
- 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush]
- 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush]
- 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush]
- (resting): 8 W, .087 A @ 100 V, 60 Hz
- (resting): 9 W, .083 A @ 120 V, 60 Hz
- (resting): 17 W, .083 A @ 208 V, 60 Hz
- (resting): 18 W, .082 A @ 230 V, 50 Hz
- (resting): 21 W, .084 A @ 240 V, 50 Hz
- Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)
- Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 3, 4, 5, 6, or 10
- Physical Specifications
- Housing Material: aluminum die-cast
- Dimensions: 18.5" x 16.7" x 6.3"
- Weight: 28.7 pounds
