Specifications
Certifications
IP Rating
IP20
Compliance
UL, RoHS
Dimensions
Length
5m (16.404 ft)
Width
12mm (0.47 in)
Height
2mm (0.08 in)
Cutting Increment
100mm (3.94 in)
LED Spacing
16.7mm (0.657 in)

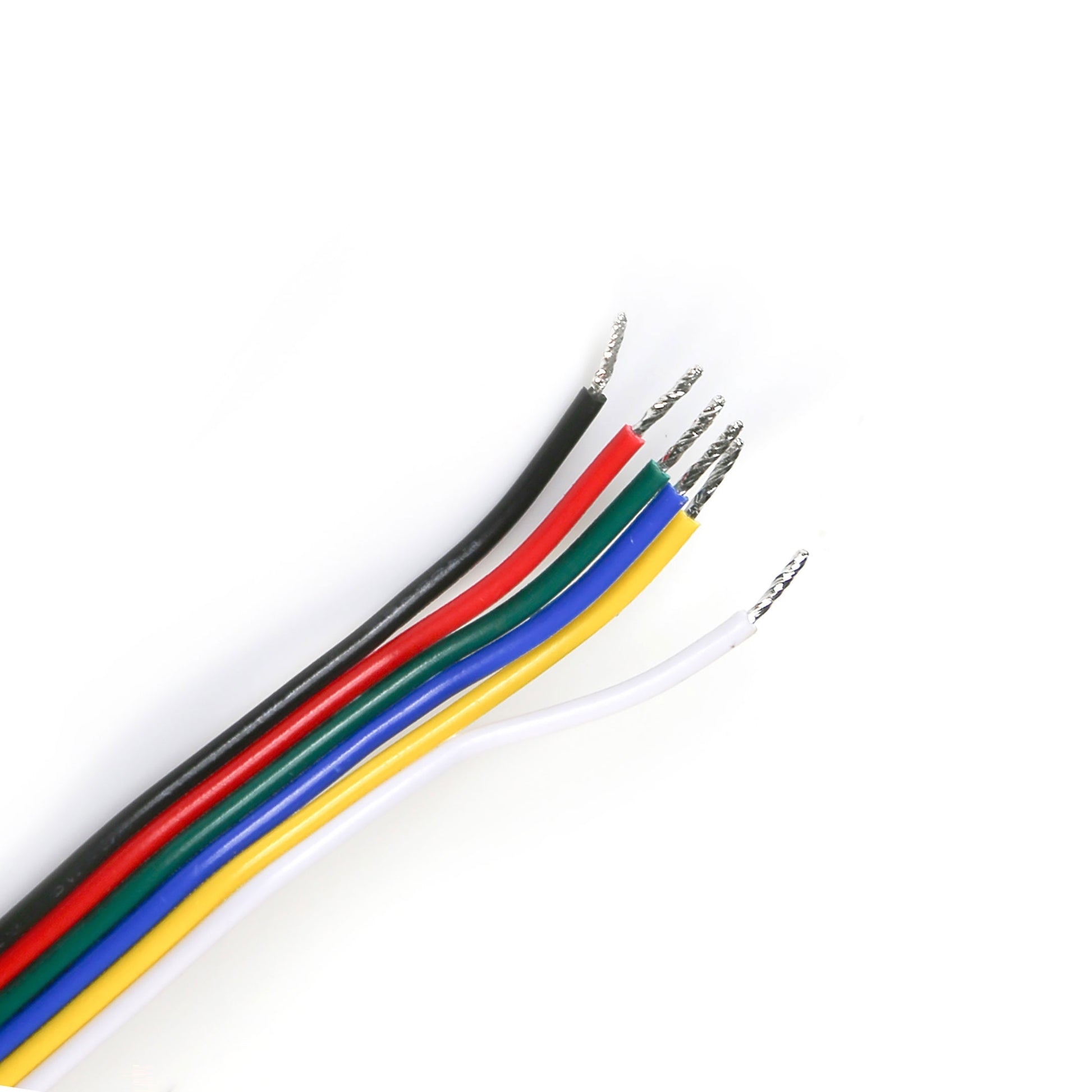

Lead Detail
200mm (7.874 in) long flat cable on both ends, stripped 10mm and tinned
Output
Colors
Red, Green, Blue, Amber, 6500K White (Warm White)
Beam Angle
120°
Brightness (lm/m per channel)
85 / 260 / 50 / 70 / 220 lm/m
Electrical
Operating Voltage
24VDC
Current
3.855A per 5m
Power Consumption
18.5 w/m (5.6 w/ft)
LED Density
60 LEDs/m
LED Chip Size
5050
Construction
Backing Color
White / Black
Environmental
Use Environment
Indoor
Ambient Temperature
-20°C to 40°C
Performance
Dimmable
Fully Dimmable
Average Life
50,000 hours
Warranty
Five years limited
Identifiers
SKU
207144
