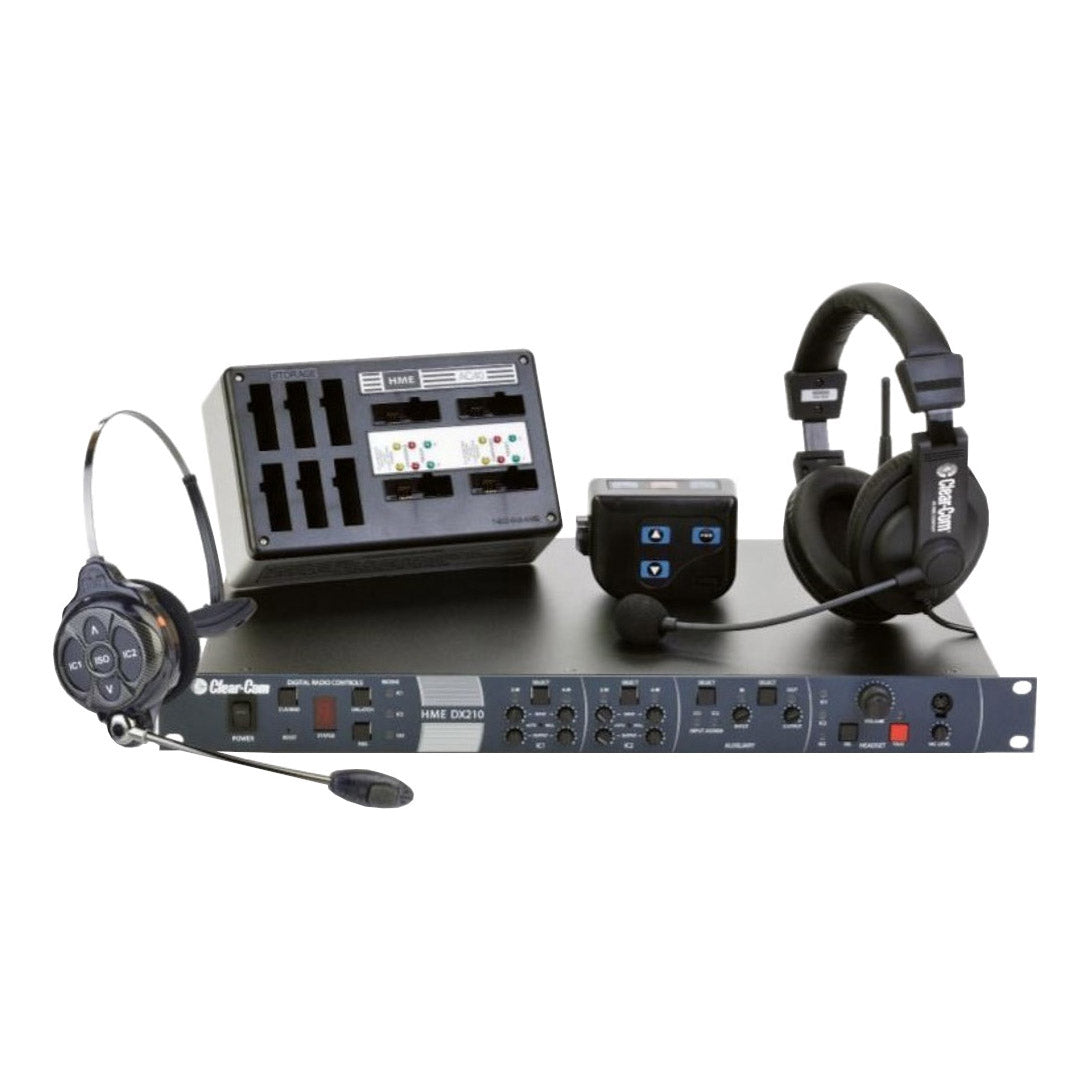

Clear-Com DX210 Digital Wireless Intercom System
Clear-Com DX210 Digital Wireless Intercom System
SoundPro Item: 31331 | Part Number: CZ11515
Usually ships in 5-7 business days
- The DX210's wired intercom interface is now compatible with Clear-Com's or RTS' 2-wire systems, and provides two separate 2-wire and 4-wire interconnections
- In single channel mode, the powerful 1RU base station supports up to 16 full-duplex and 44 half-duplex beltpacks and/or wireless headsets by linking four base stations
- The DX210 is paired with the rugged BP210 beltpack and All-in-One WH220 Wireless Headset, which have two intercom buttons (IC1/IC2) with ISO
The HME DX210 (CZ11515) offers the perfect blend of wireless intercom performance, system compatibility with wired intercom systems, and ease of use. Operating in the 2.4GHz band, the DX210 delivers exceptional sound clarity and enables interference-free communication for highly demanding productions.
- BS210 Base Station Specifications
- TX & RX Antenna: ½-Wave, Dual Diversity Dipole
- 4-Wire I/O: RJ-45, 600Ω Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)
- 2-Wire I/O: XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
- Auxiliary Input: XLR-3F/¼” Phone Combo Jack, 600Ω Balanced, Level Adjustable
- Auxiliary Output: XLR-3M, 600Ω Balanced, Level Adjustable
- Headset I/O: N/A
- Headset Connector: 4-Pin Mini-DIN
- Headset Output: 250mW into 32Ω
- Size: 19x1.72x13.5" (1-RU), 48.26x4.37x34.29cm
- Weight: 9 lbs (4.1kg)
- Power Requirements: 100-240V AC, 50-60Hz or 12-14V DC
- WH220 Wireless Headset Specifications
- Audio
- Channels: 2 audio channels
- Frequency Range: 2400MHz – 2483.5MHz
- Frequency Response: 200Hz –3.5kHz
- Antenna: Internal, horizontal/vertical diversity
- Headset Connector: 4-pin, mini-DIN
- Microphone: Electret
- Headset Output: 160mW into 32 Ohms
- Communication Security: 64-bit encryption
- System Distortion: <2%
- Controls: Power, Volume-Up, Volume-Down, IC1, IC2, ISO
- Indicators: Dual-color LED (red/green)
- Battery Requirements: 3.6V lithium-ion
- Battery Life: Up to 12 hours
- Antenna: Internal
- Transmitter
- Type: Frequency Hopping, Spread Spectrum (FHSS)
- Transmit Power: 100mW burst
- Modes: Momentary or Latch
- Type: Gaussian filtered FSK, TDMA
- Frequency Stability: 13 ppm
- Harmonics/Spurious: Exceeds FCC and ETSI specifications
- Receiver
- Type: Frequency Hopping, Spread Spectrum (FHSS)
- RF Sensitivity: <-90dBm w 10-3 BER
- Frequency Stability: 13ppm
- Distortion: <2%
- Environmental: 32° to +122°F (0° to +50°C)
- Weight: 5.7oz (0.16kg) including battery
- Audio
- BP210 Bodypack Specifications
- Battery Requirements: One Lithium-Ion Rechargeable
- Battery Life: Latched (Hands-Free): Up to 14 Hours
- PTT: Up to 20 Hours
- Dimensions: 3.4x2.6x1.5" (8.64x6.6x3.81cm)
- Weight: 7.4 oz (0.21 kg) with Battery & Pouch
- Headset Connector: Mini-DIN
- Mic Input: Electret
- Headset Output: 160 mW @ into 32Ω
