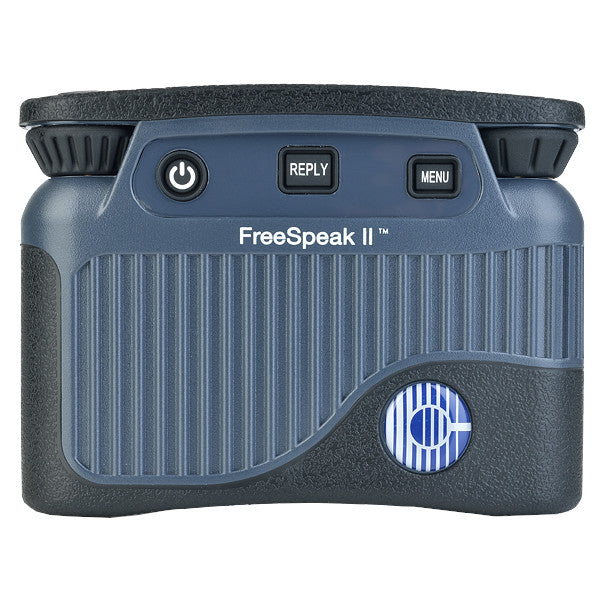

Clear-Com FSII-BP19 FreeSpeak II 1.9GHz Wireless Beltpack | Connector: X4
Clear-Com FSII-BP19 FreeSpeak II 1.9GHz Wireless Beltpack | Connector: X4
SoundPro Item: 65507 | Part Number: FSII-BP19-X4
In stock and ready to ship
- Operates in the 1.88-1.93GHz DECT frequency band (frequency allocation varies by country)
- Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
- 7kHz audio wide band
- Encoder Volume Swap between A&C and B&D
- "Listen Again" message replay
- Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
- Over-the-air beltpack registration
- 18+ hour battery life or USB port for continuous operation
- IP-53 rating for wet and dusty conditions
- Built-in flashlight
The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
- Audio
- Audio Bandwidth: 200Hz-7.5KHz
- No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
- Enter/Answer-Back Button: 1
- Frequency Spectrum
- USA, Canada, Mexico: 1920-1930 MHz
- Transceiver Range Output Power: 100mW
- EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900 MHz
- Transceiver Range Output Power: 250mW
- Japan: 1893-1906 MHz
- Transceiver Range Output Power: 250mW
- Argentina: 1910 MHz-1930 MHz
- Transceiver Range Output Power: 250mW
- Brazil: 1910 MHz-1930 MHz
- Transceiver Range Output Power: 250mW
- Chile: 1910 MHz-1930 MHz
- Transceiver Range Output Power: 70mW
- Taiwan: 1880-1895 MHz
- Transceiver Range Output Power: 250mW
- Connectors
- Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
- Headset Voltage: Maximum of ~+8dBu as set by firmware
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Microphone Voltage: Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor).
- Dynamic Mic: -55dBu
- Headset Limiter: Selectable from beltpack menu
- Power
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output Power: (EU/Russia) 10dBm average, (US) 18-20dBm
- Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
- Battery: Li-Ion or 3 AA alkaline cells
- Battery Charging: Drop-in charger (AC60) or local USB
- Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
- Environmental
- IP53 water and dust resistance
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
- Dimensions (HxWxD)3.75x5x1.5" (97x130x45mm), tapered design at largest points
- Weight9oz (0.4kg) including batteries
