• Clear-Com FSII-TCVR-IP-19 FreeSpeak II 1.9GHz Transceiver
1 1

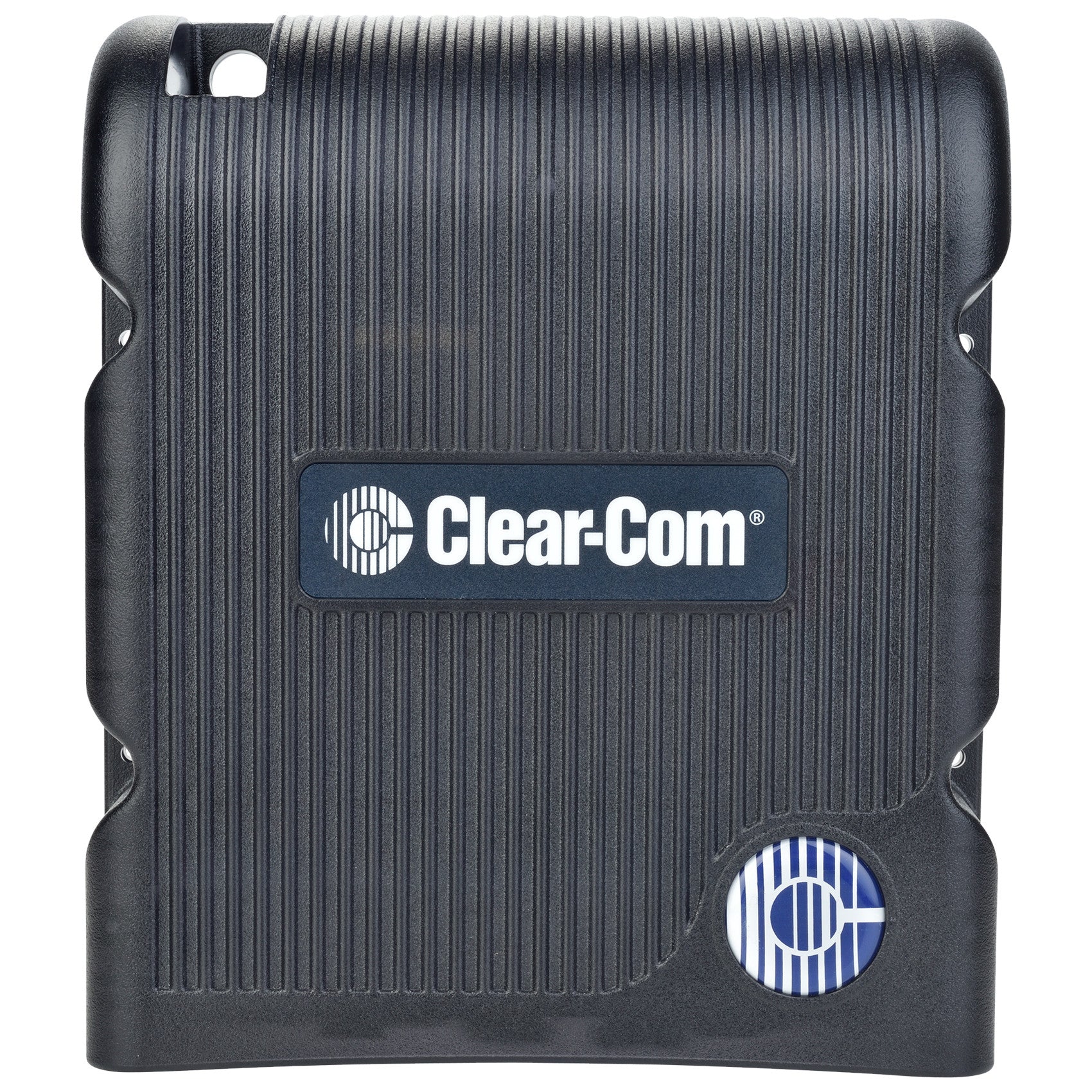

Clear-Com FSII-TCVR-IP-19 FreeSpeak II 1.9GHz Transceiver

Clear-Com FSII-TCVR-IP-19 FreeSpeak II 1.9GHz Transceiver

SoundPro Item: 36133 | Part Number: FSII-TCVR-IP-19-US

$3,635.00
$3,635.00 $3,635.00
Your Price Sold out
MSRP: $3,635.00 | MAP: $3,635.00

Usually ships in 5-7 business days

  • Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX card
  • Requires E-IPA-HX card and an Eclipse HX frame (not available for FSII-BASE-II)
  • For use with FreeSpeak II 1.9 GHz only
  • Operates over IP on an AES67 compatible network
  • Supports 10 FSII 1.9GHz beltpacks per transceiver
  • Up to 64 transceivers supported on Eclipse HX matrix system

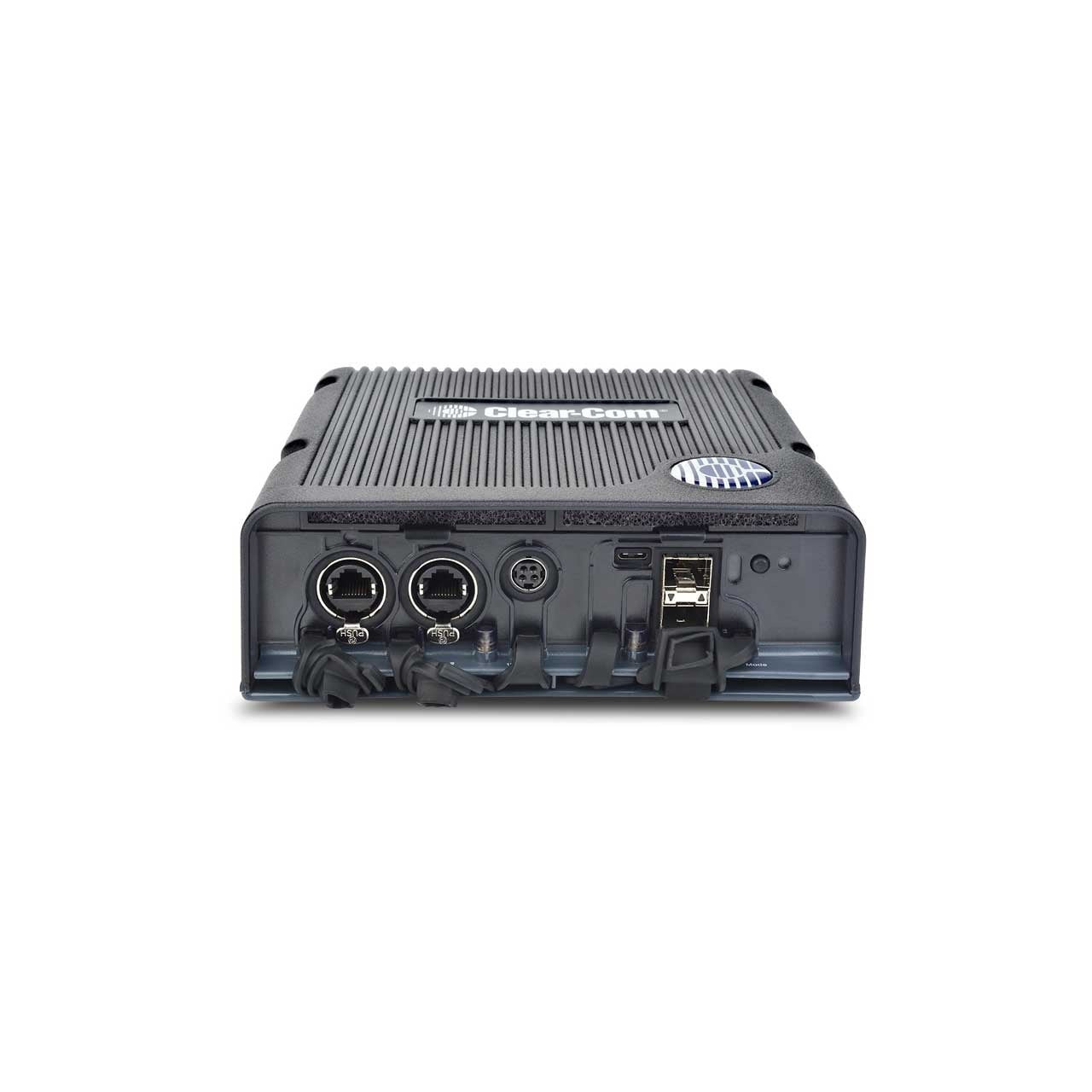

  • Ethercon RJ45 network connections (2)
  • High speed fiber SFP cages (2)
  • Power-over-Ethernet (PoE) up to 300 ft (91 m)
  • Green LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric and imperial threads)
  • IP53 rating for wet and dry conditions
Log in or register for YOUR best price

The FSII-TVCR-IP-19 is an active transceiver antenna for the FSII-BP19 beltpacks. The transceiver connects to the Eclipse® HX matrix system via the E-IPA interface card. Each transceiver can support up to 10 FSII-BP19 beltpacks. When supported with the E-IPA card, up to 50 1.9 GHz beltpacks (in North America or 64 beltpacks in EU countries) and up to 64 transceivers can be supported on one Eclipse HX matrix system.

View full details
  • Frequency Spectrum
    • 1920-1930 MHz (10 Channels)
    • Transceiver Range Output Power: 100mW
    • Modulation: GFSK, TDMA frame 10ms Full and Long slot
  • Power
    • Output: 18-20dBm
    • AC Input: 100VAC-240V AC, 60/50Hz, -1.4A max
    • Max Power Consumption at 120V: 20W
    • PoE Class 3: 15.4W at PoE port, 12.95W at device
    • USB Power Source: 5V, 3A; max power consumption = 12.5W
  • Environmental
    • Operating: 32º-125ºF (0º-50ºC)
    • Storage: 32º-150ºF (0º-70ºC)
    • Humidity: Between 20% and 90%, Non-Condensing
  • Mounting

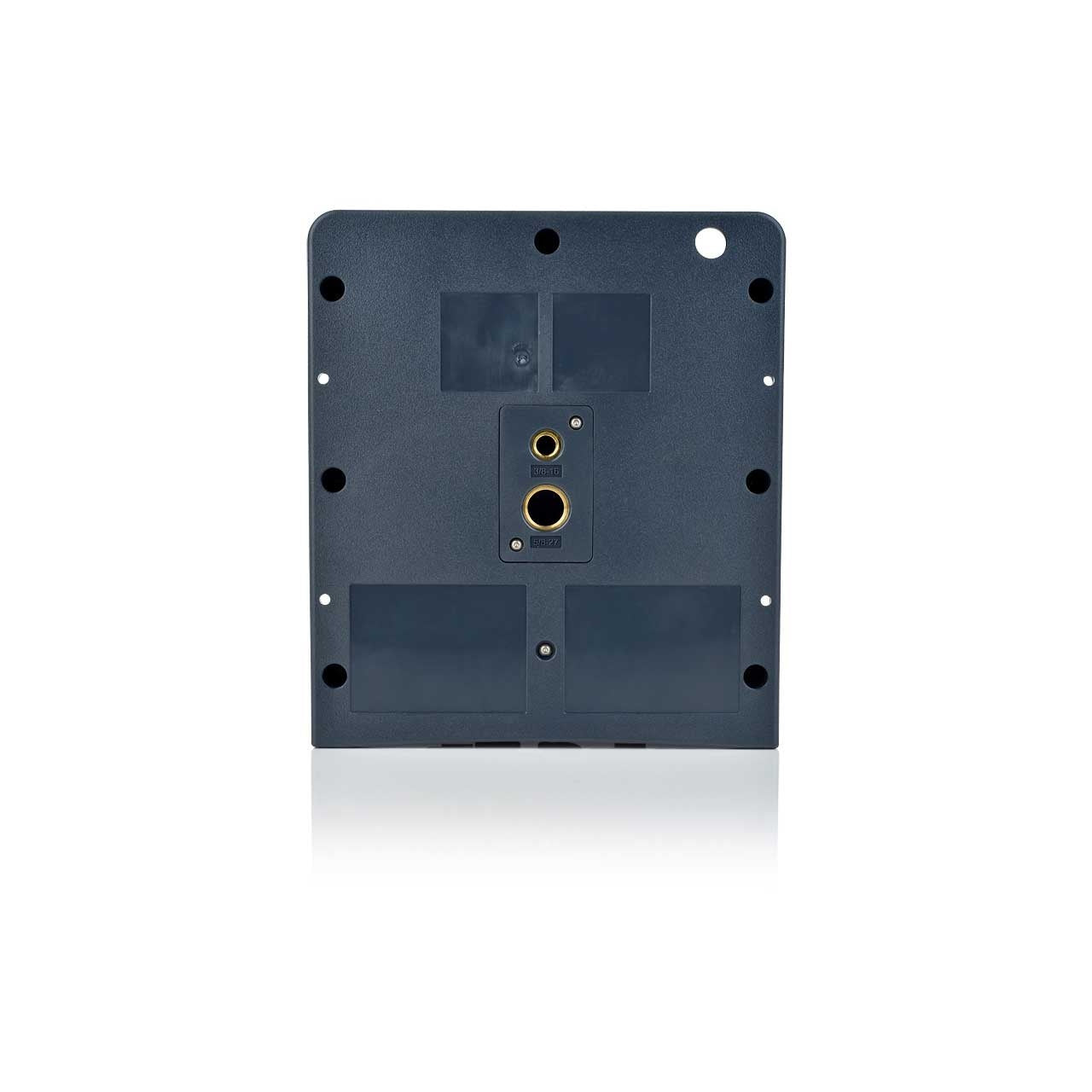

    • Rear Mic Stand Mounts: Mic stand threaded sockets 5/8” & 3/8”
    • Safety Harness Attachment
    • Ball Joint Mic Adapter
  • Dimensions (HxWxD)8.5x7.5x2.5” (217x192x64mm)
  • Weight36.3oz (1028g)
