Clear-Com HXII-BP-X4 2-Channel Full-Duplex Digital Partyline Beltpack

Clear-Com HXII-BP-X4 2-Channel Full-Duplex Digital Partyline Beltpack

SoundPro Item: 206646 | Part Number: HXII-BP-X4

$1,245.00
$1,245.00 $1,245.00
Your Price Sold out
MSRP: $1,245.00 | MAP: $1,245.00

Usually ships in 5-7 business days

  • Full-Duplex 2-Channel Digital Partyline With Independent Talk And Listen
  • Binaural Listening Support For Comfortable Extended Wear
  • Power And Audio Over Single PoE Or XLR Connection
  • Access Any 2 Of Up To 24 Available System Channels
  • IP-53 Environmental Rating For Dust And Water Ingress Protection
  • Lightweight Polycarbonate Housing Reduces Fatigue During Active Production
  • USB Flasher Integration For Visual Call Indication On Set
Log in or register for YOUR best price

The Clear-Com HXII-BP-X4 is a 2-channel digital partyline beltpack engineered for professional live production, broadcast, and touring environments where crew coordination demands reliability and flexibility. Unlike traditional analog intercoms, the HelixNet architecture delivers full-duplex communication over standard infrastructure—power and audio travel on a single PoE or XLR cable, eliminating the need for active splitter boxes or dedicated infrastructure.

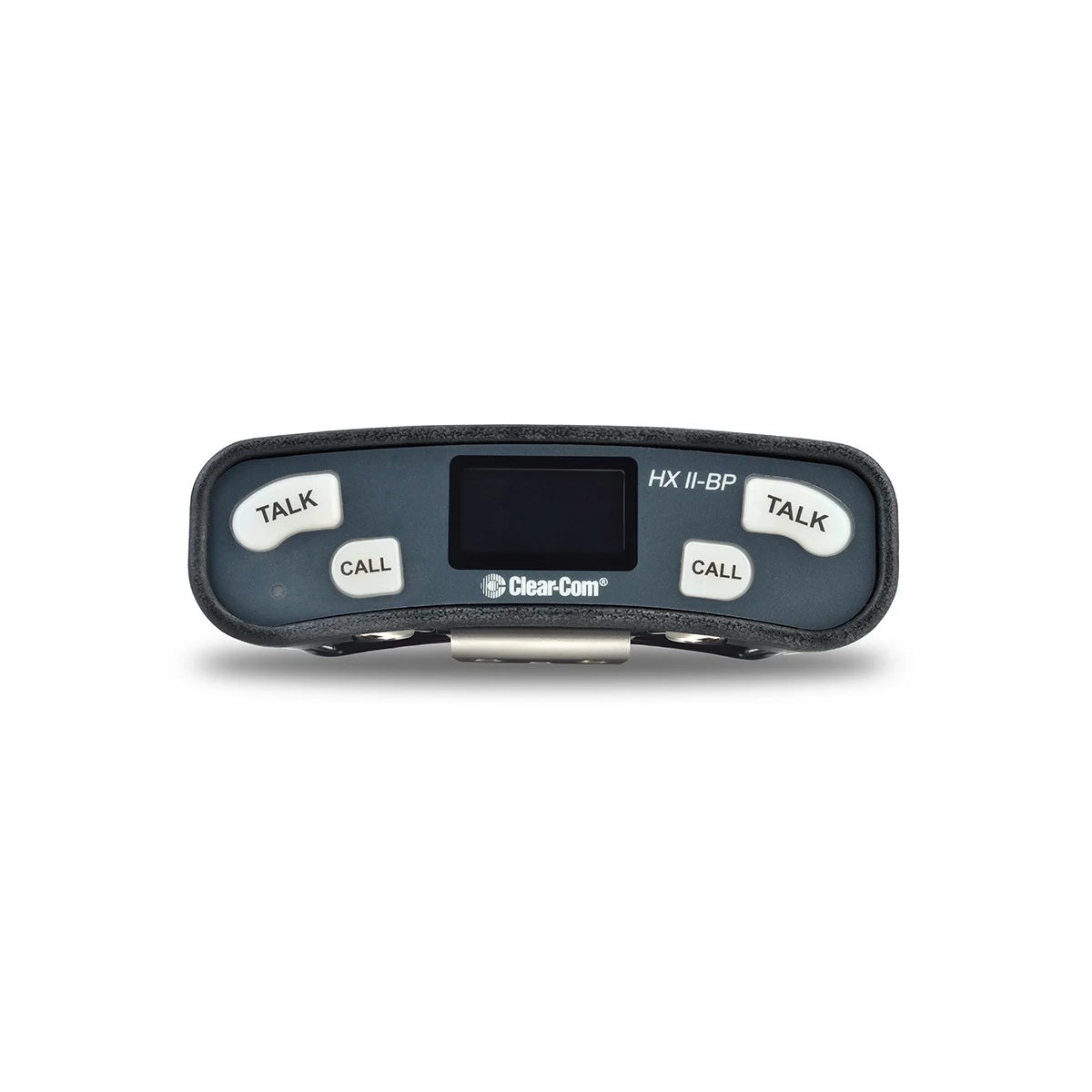

Designed for rapid deployment and field reconfiguration, the beltpack grants each operator independent access to any 2 of the system's 24 available channels. The rugged polycarbonate housing, IP-53 environmental rating, and lightweight construction (0.35 kg) make it suitable for high-movement roles in theater, live events, outside broadcasts, and production trucks. The OLED menu display and recessed level controls allow crew to adjust channel assignments and audio balance on the fly without stopping operations.

The beltpack supports binaural listening (HXII-BP-X5 models with software v4.0+), USB flasher integration for visual call indication, and flexible role-based configuration so multiple operators can share identical setups or maintain unique personal preferences across the same system.

Downloads

View full details

Specifications

Channels
Intercom Channels
2 (Selectable)
Program Audio
Assignable from Main Station

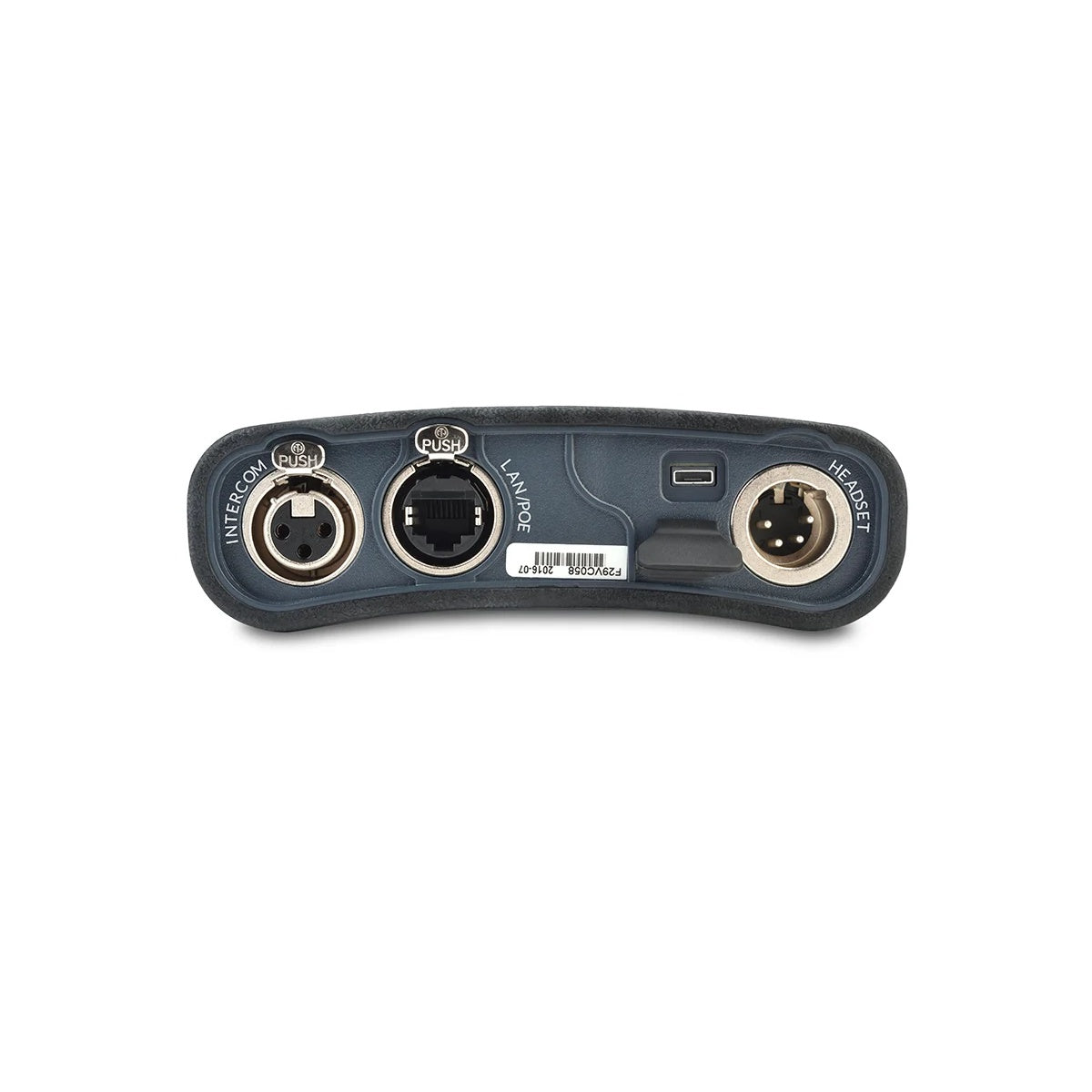

Connectivity
Intercom Line Connector
3-pin XLR–F
LAN/PoE Connector
RJ-45 etherCON
Headset Connector
4-pin XLR or 5-pin XLR-F
USB Port
Micro AB
Microphone Pre-Amplifier
Headset Mic Impedance
200 ohms (Dynamic)
Headset Mic Voltage
1.7V (Electret selectable)
Mic Limiter
+23dB
Mic Gain
60dB (Dynamic), 45dB (Electret)
Frequency Response
300Hz – 10 kHz ±3dB
Distortion
<0.2% THD @ 1kHz
Noise
<-55dBu (Dynamic) <-65dBu (Electret)
Headphone Amplifier
Load Impedance
>32 ohms
Output Level
+12dBu Before Clipping
Sidetone
−12dBu (Selectable)
Frequency Response
40Hz – 10kHz ±3dB
Distortion
<0.2% THD @ 1kHz
Noise
−65dBu
Headphone Limiter
0dBu (Selectable)
Power
DC Voltage Range
30–60 Volts
Power Method
4W Power-over-Ethernet (PoE) or XLR Cable
Dimensions
Height
5.30"
Width
3.90"
Depth
1.70"
Weight
Product Weight
12.20 oz
Environmental
Operating Temperature Range
32°F to 104°F (0°C to 40°C)
Relative Humidity
0–90%
IP Rating
IP-53
Certifications
Environmental Rating
IP-53 (Dust and Water Ingress Protection)
