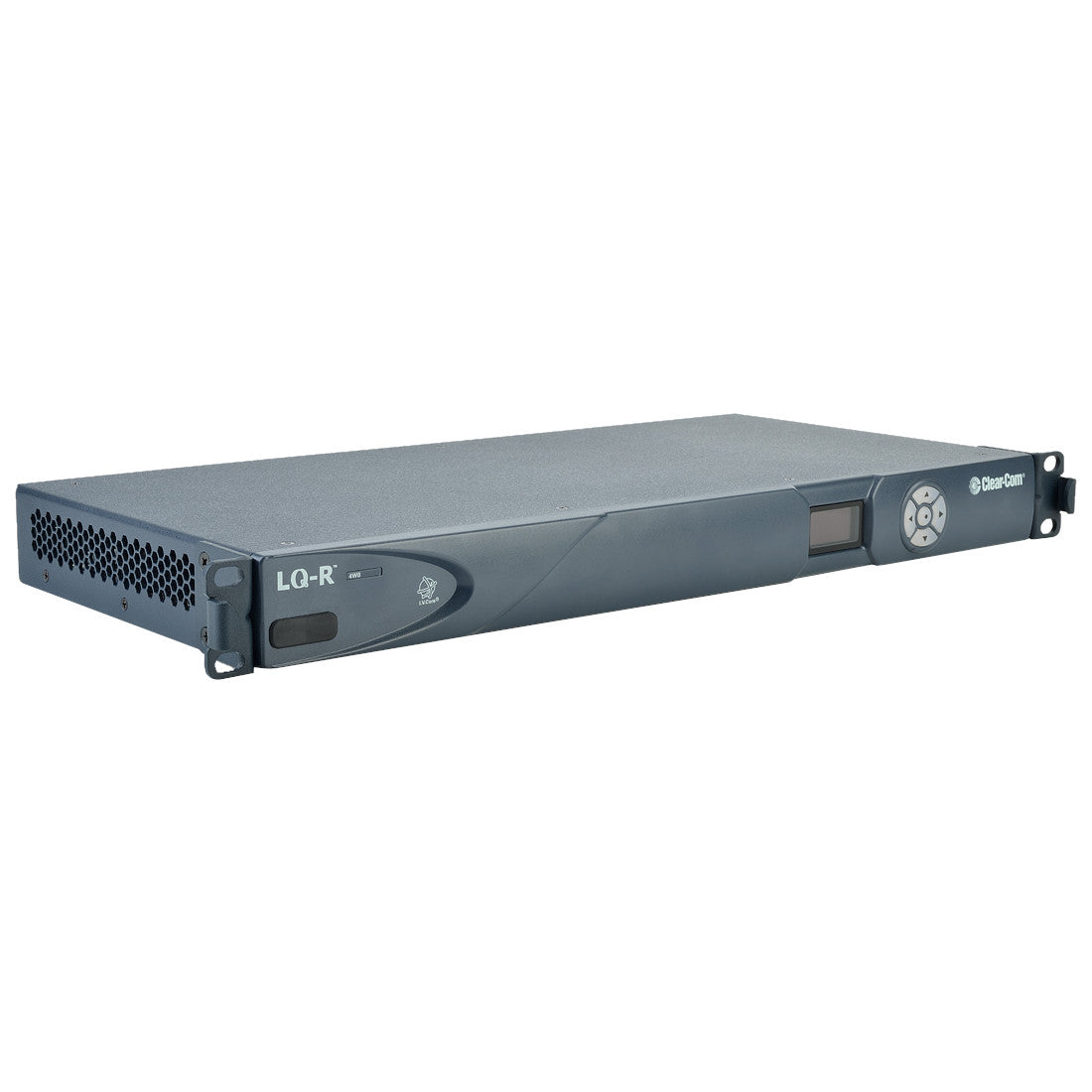

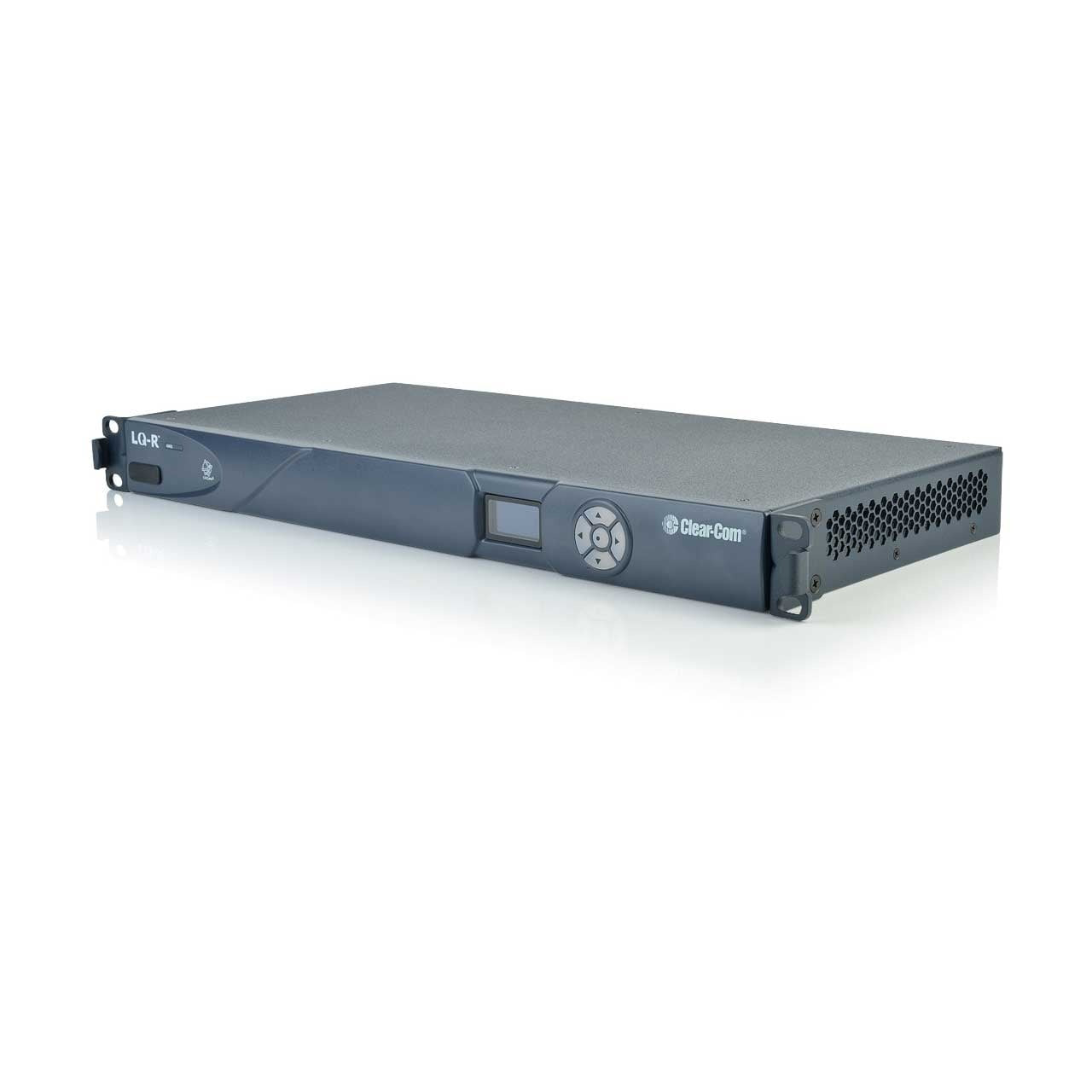

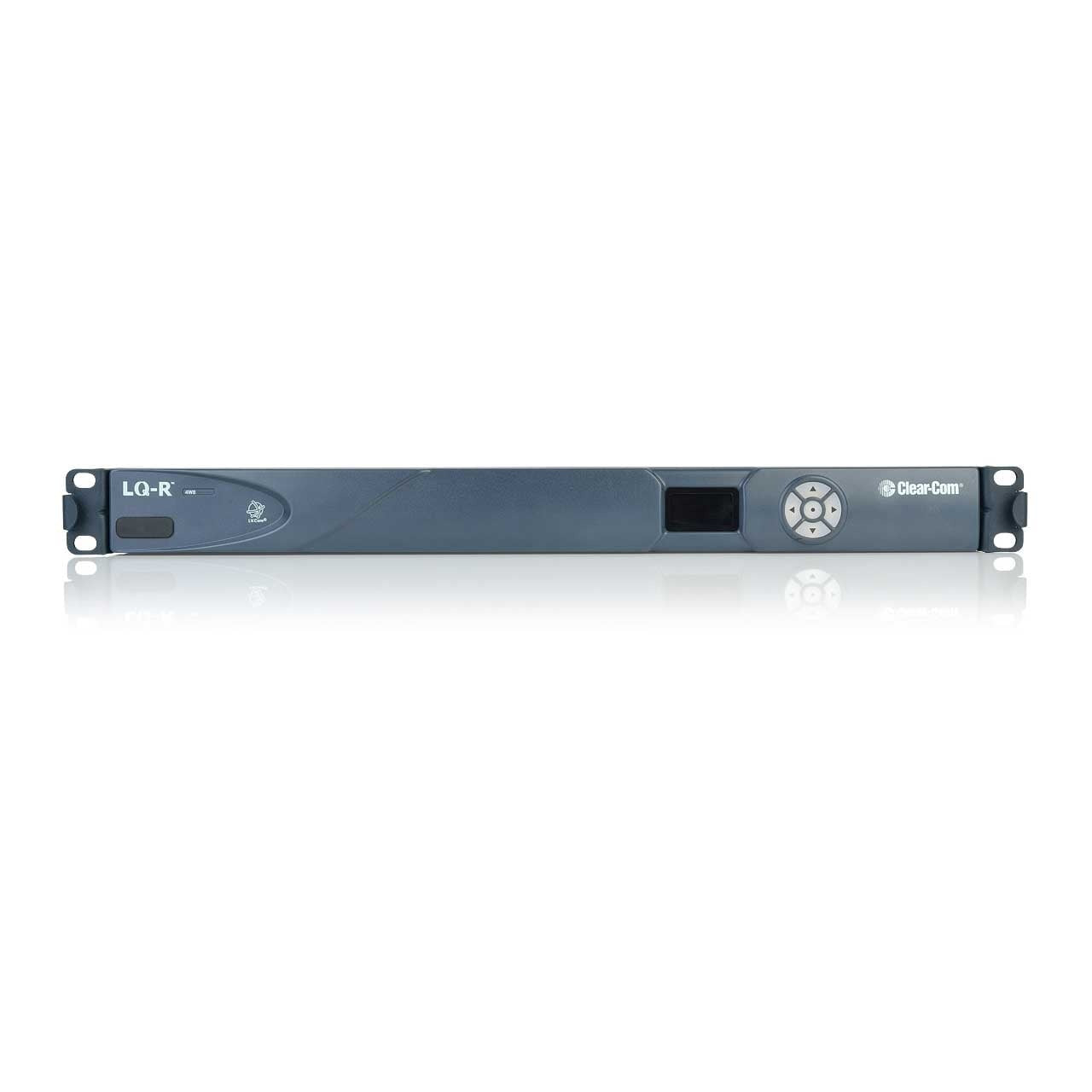

Clear-Com LQ-R4W8 IP Interface

Clear-Com LQ-R4W8 IP Interface

SoundPro Item: 39284 | Part Number: LQ-R4W8

$6,280.00
$6,280.00 $6,280.00
Your Price Sold out
MSRP: $6,280.00 | MAP: $6,280.00

Usually ships in 5-7 business days

  • 8-Port 1RU Panel for 4-wire Interfacing
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • 2-wire powering, termination and auto-nulling
  • 4-wire ports support data and audio for Clear-Com Eclipse HX and Drake 4000 panels
  • Connect up to 6 LQ devices together over LAN, WAN, Internet
  • Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per LQ device
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • Adjustable bandwidth on a per port basis

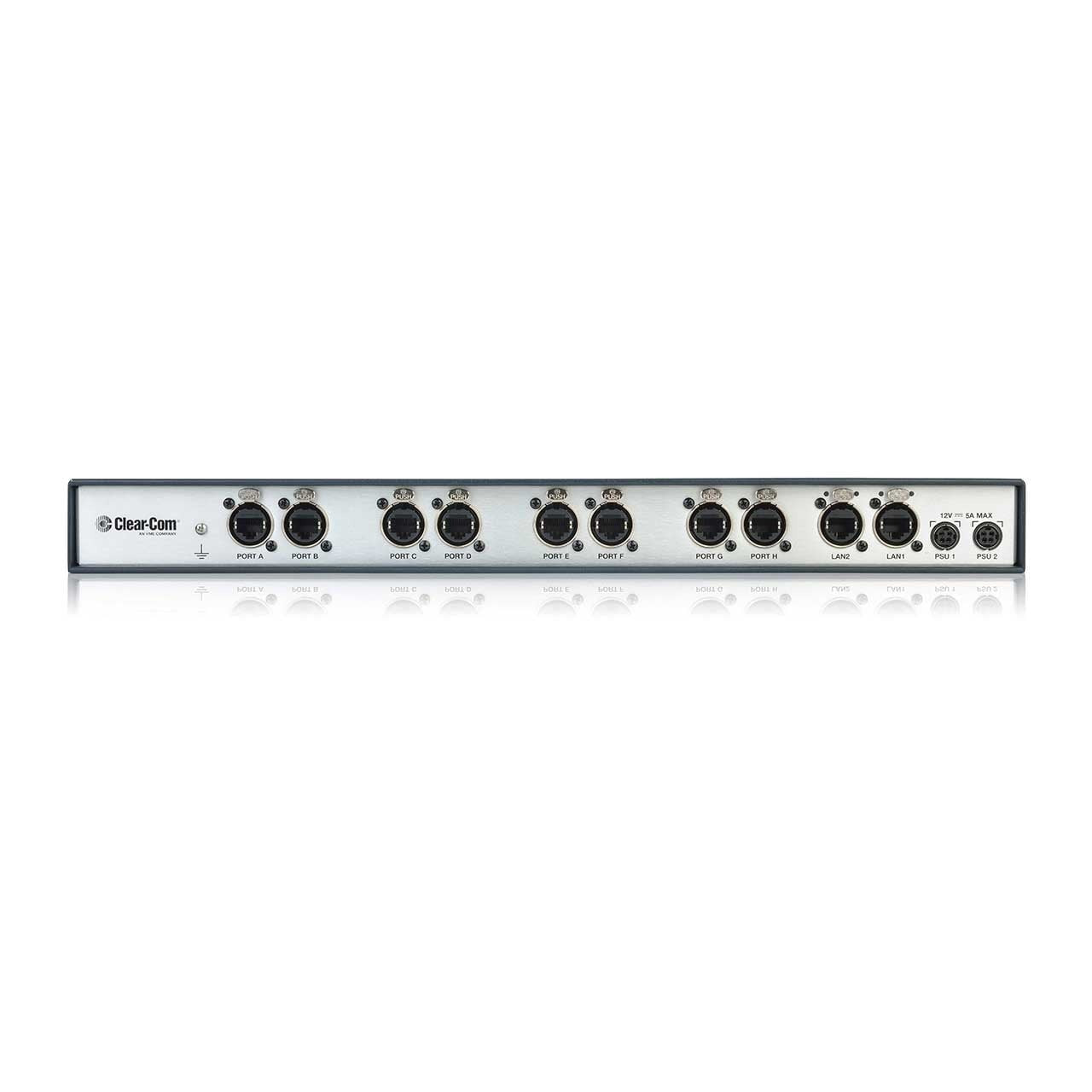

  • Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire Audio I/O: EtherCON/RJ45 (female)
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing
Log in or register for YOUR best price

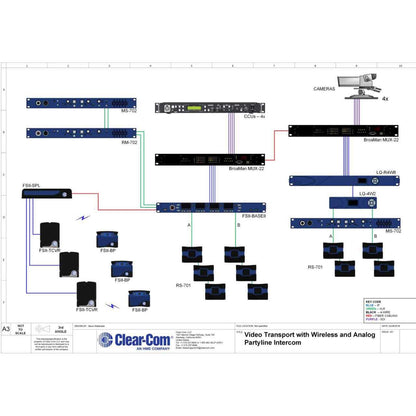

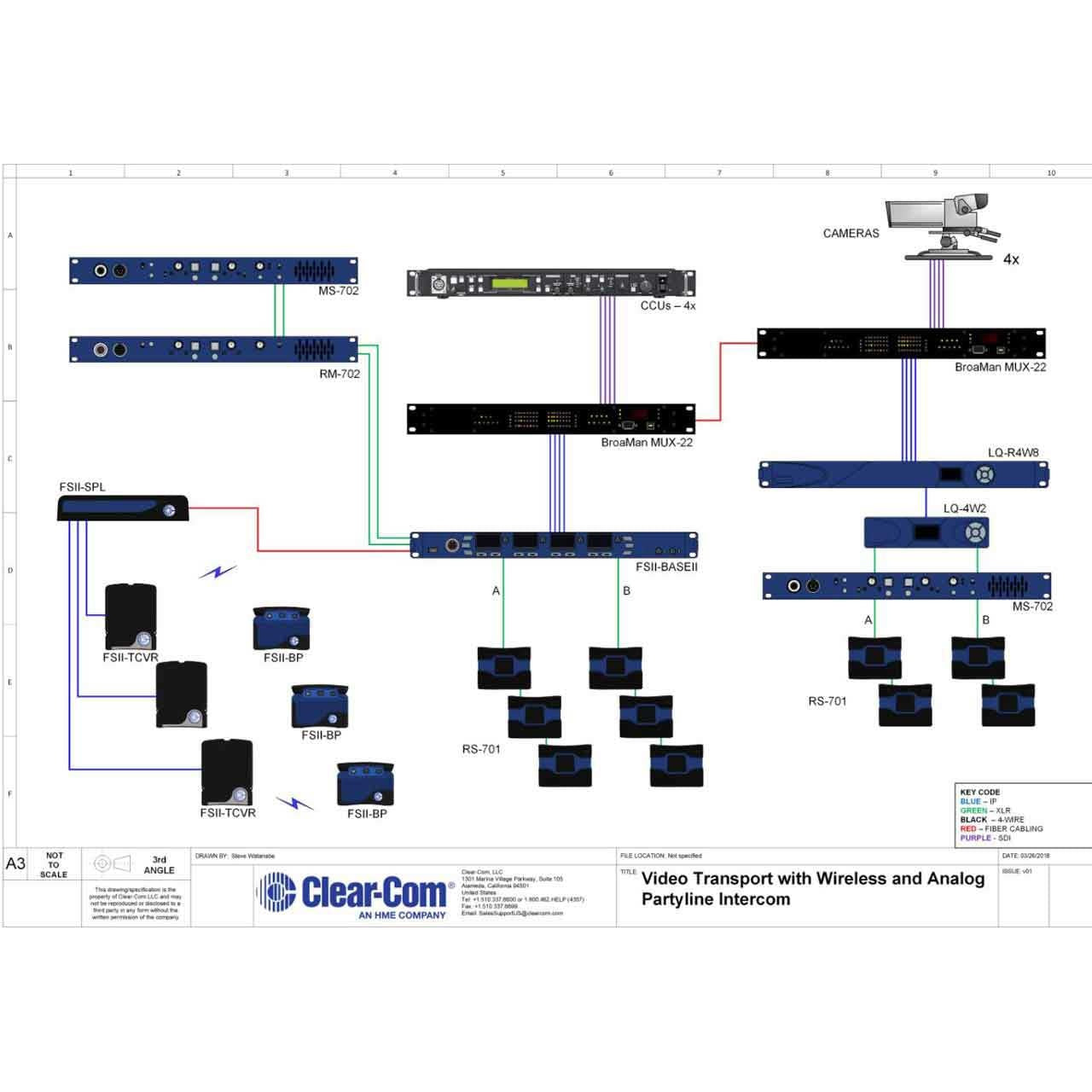

The Clear-Com LQ-R4W8 IP Interface provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

View full details
  • Audio
    • Resolution: 12 bit
    • Sample Rate: 24kHz
    • Frequency Response: 100 – 12kHz
    • CODEC: OPUS
  • 4-Wire Audio
    • Input Gain: -12dB to +12dB
    • Output Gain: -12dB to +12dB
  • Network
    • Bit Rates: 16, 32, 48, 64, 128kbps
    • Packet Size: 5, 10, 20, 40, 60ms
    • Jitter Buffers: 0 – 1000ms
  • Connectors
    • Network/LAN: EtherCON/RJ45 (female)
    • 4-wire Audio I/O: EtherCON/RJ45 (female)
  • Power Supply
    • In-line supply with sleeve locking connector
    • Input: 100-240V, 50-60Hz, 1.4A MAX
    • Output: DC 12V, 5A, 60W MAX
  • Environmental
    • Operating Temperature: +32°F – +104°F (0°C – +40°C)
    • Storage Temperature: -67°F – +158°F (-55°C – +70°C)
    • Humidity: 90%, non-condensing
  • Dimensions (WxHxD)19x1.79x8.8" (483x46x224mm)
  • Weight4.29lbs (1.95kg)
