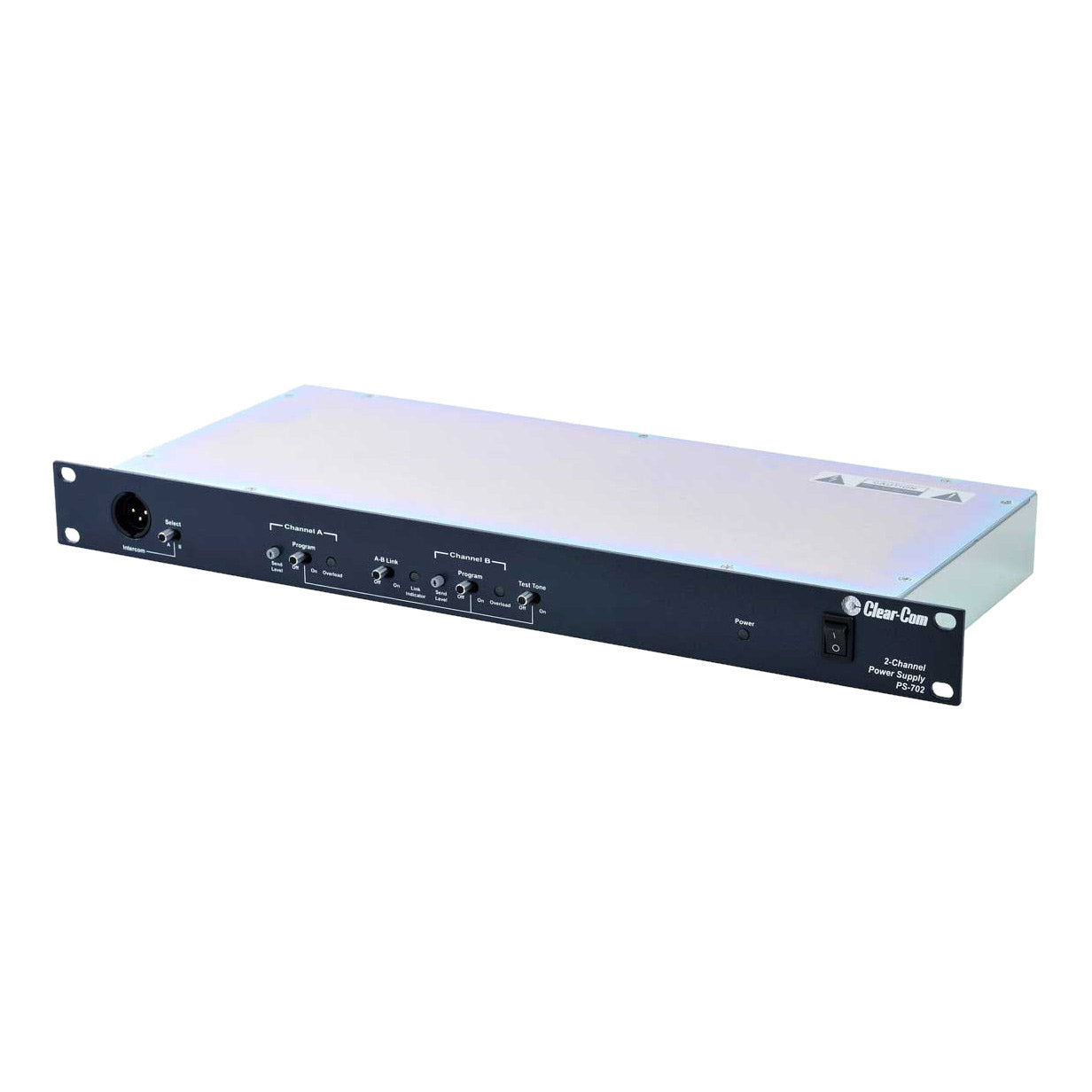

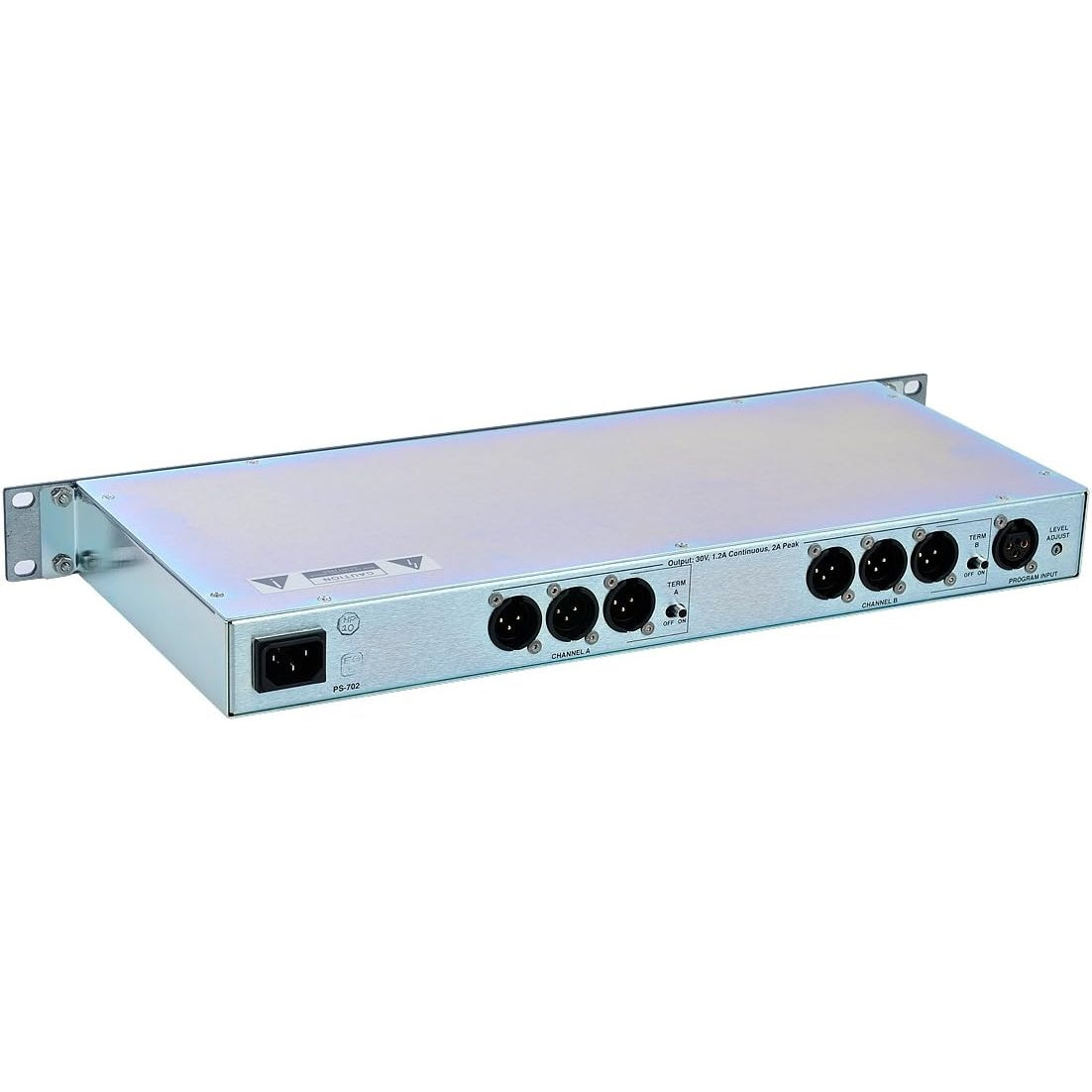

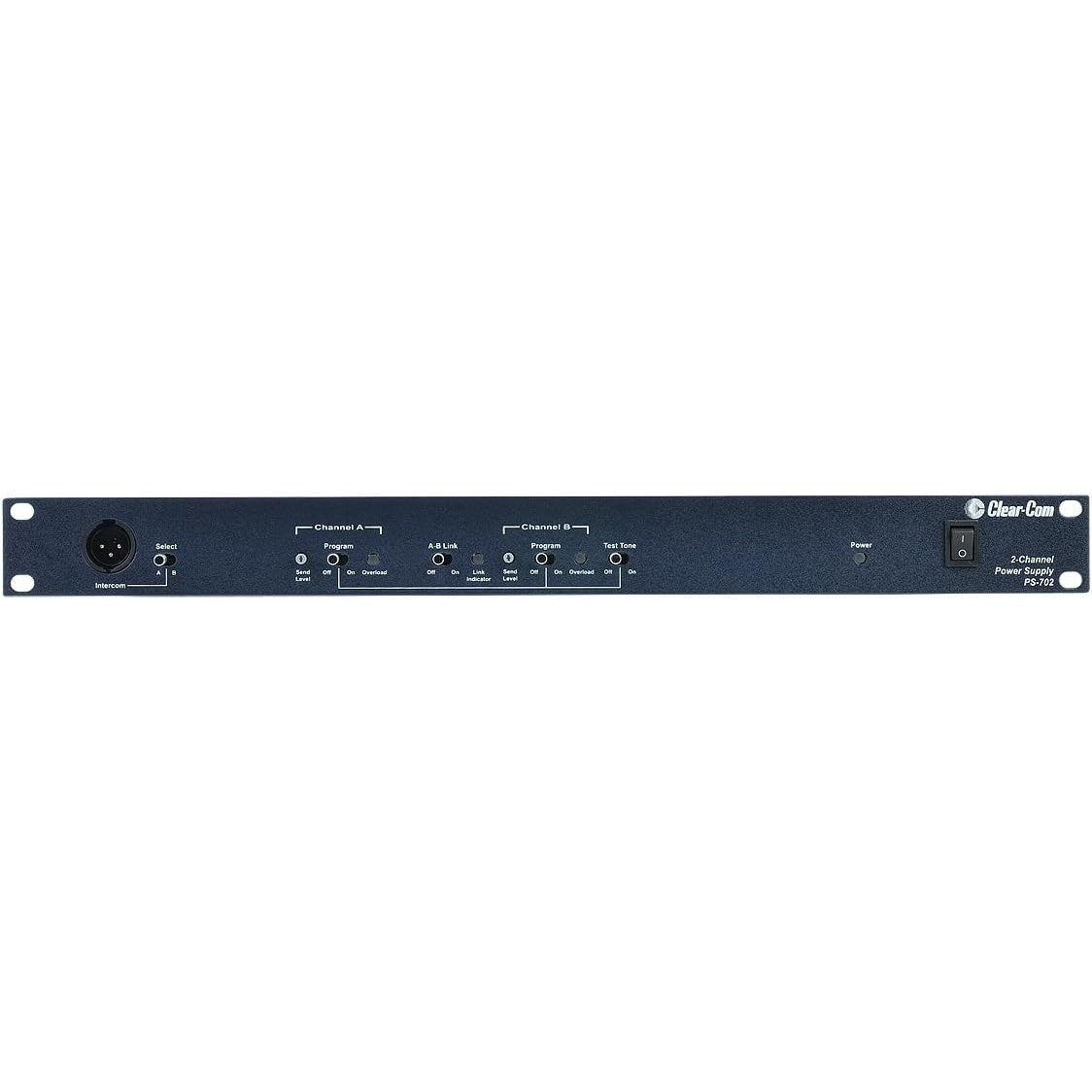

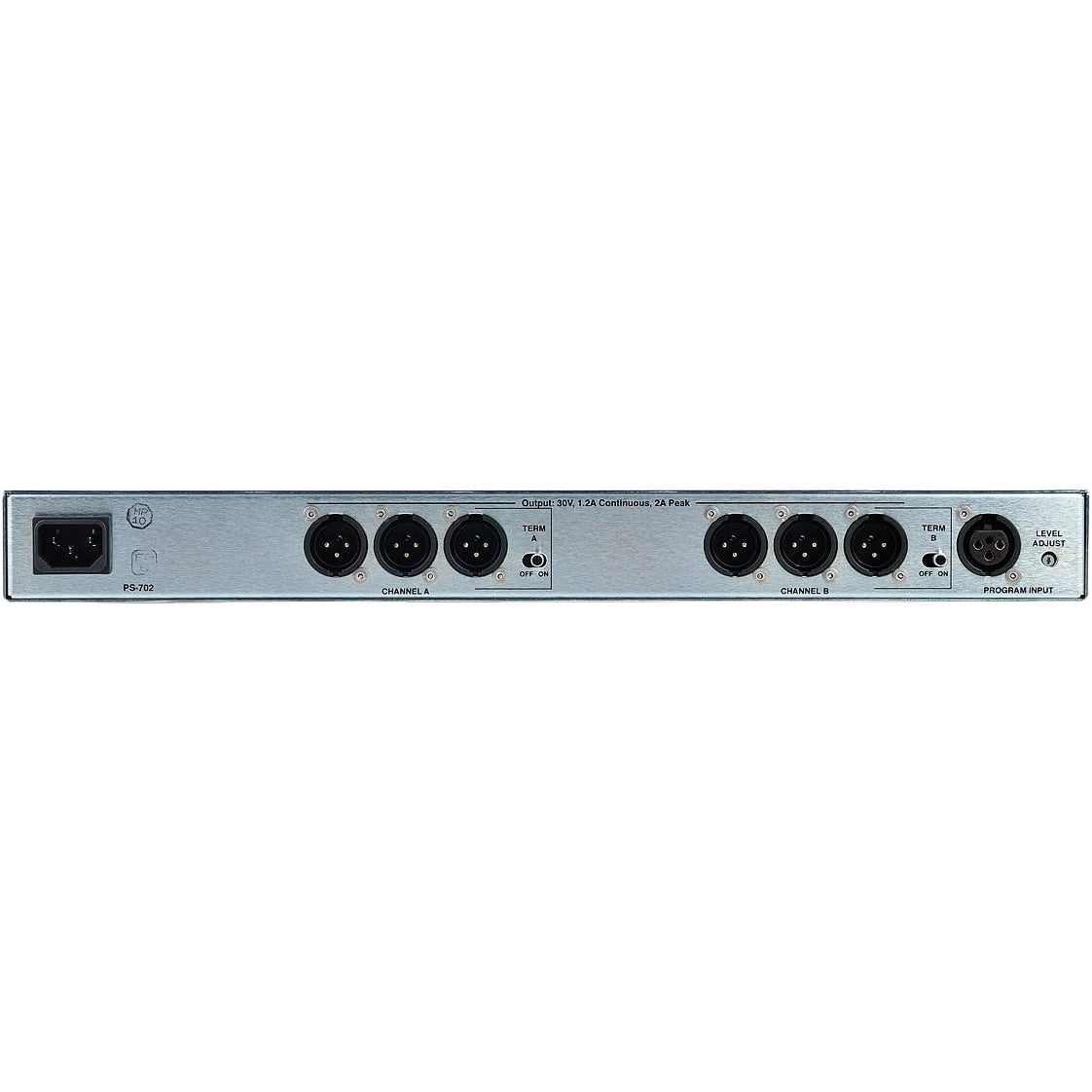

Clear-Com PS-702 Encore 2-Channel Power Supply

Clear-Com PS-702 Encore 2-Channel Power Supply

SoundPro Item: 33897 | Part Number: PS-702

$1,320.00
$1,320.00 $1,320.00
Your Price Sold out
MSRP: $1,320.00 | MAP: $1,320.00

Usually ships in 5-7 business days

  • Provides up to 2 amps at 30 Volts
  • Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations
  • Full current capacity can be divided between the two channels
  • Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset
  • A+B Link switch for single-channel operation
  • Built-in test tone generator for set up and diagnostics
  • UL listed and CE certified
  • Line and load regulated
  • Short-circuit protected
Log in or register for YOUR best price

The Clear-Com PS-702 Encore 2-Channel Power Supply can supply up to 2 amps at 30 volts DC to two channels in a 1-RU. This is sufficient to power up to 40 beltpacks, 10 speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels.

View full details
  • Program Line Input
    • Maximum Level before Clipping: >= 20dBu
    • Input Impedance: >= 5K
  • Frequency ResponseProgram Input – Partyline: 200 – 20kHz ± 3dB
  • Max DistortionProgram Input – Partyline: <= 0.2%
  • NoiseProgram Mic Input – Partyline: < -70dBu
  • Max GainProgram Input – Partyline: >= -16dB
  • Min GainProgram Input – Partyline: <= -20dB
  • Mains Power
    • Input Voltage Range: 100 – 240V AC
    • Input Frequency Range: 50 – 60Hz
    • Input Power: <= 60V AC
    • Output Voltage: 30V DC ± 0.5V
    • Output Current per Channel (Continuous): 1.2A
    • Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
    • Short Circuit Recovery Time (1st short):<= 0.5 sec
    • Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec
  • Environmental32° – 122°F (0° – 50°C)
  • Dimensions (HxWxD)1.75x19x7.5" (44x483x190mm)
  • Weight6.16lbs (2.80kg)
