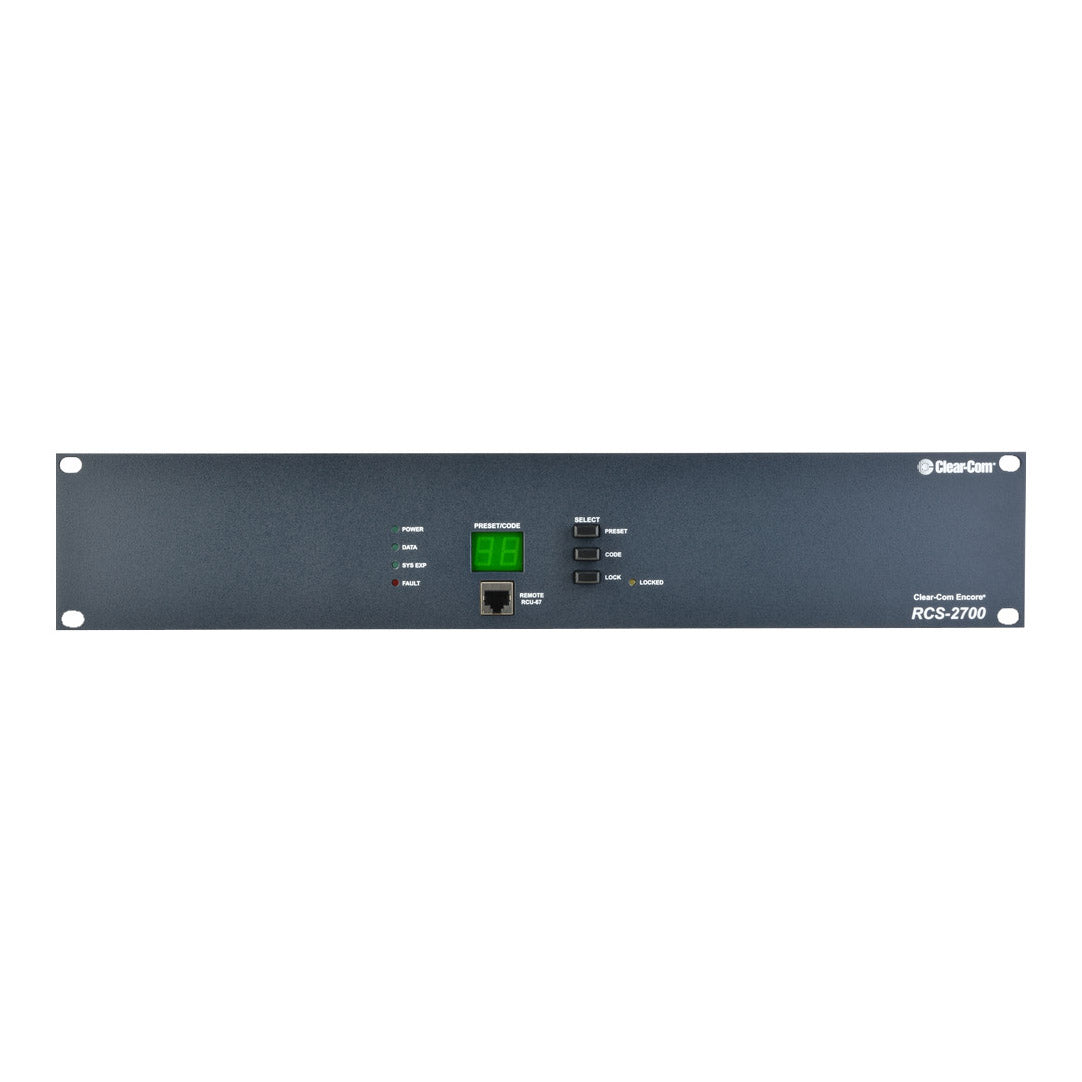

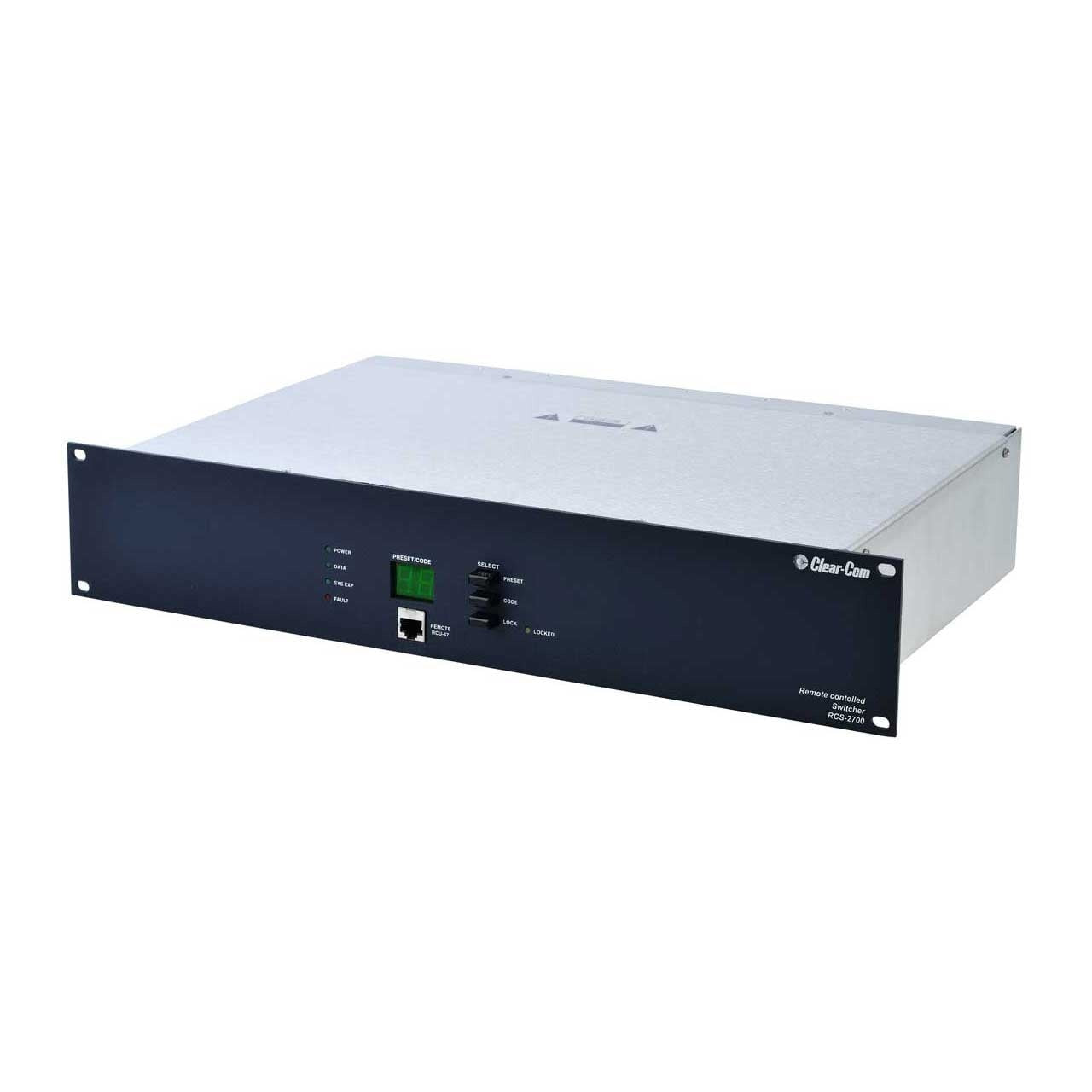

• Clear-Com RCS-2700 Encore Programmable Assignment Panel
1 1

Clear-Com RCS-2700 Encore Programmable Assignment Panel

Clear-Com RCS-2700 Encore Programmable Assignment Panel

SoundPro Item: 30694 | Part Number: RCS-2700

$4,980.00
$4,980.00 $4,980.00
Your Price Sold out
MSRP: $4,980.00 | MAP: $4,980.00

Usually ships in 5-7 business days

  • Expandable up to 15 sources x 72 destinations
  • Stores 14 presets in non-volatile memory
  • Multiple systems can be controlled from the same PC
  • Latching relays keep current draw extremely low
  • TW compatible
  • Front panel security lockout
  • Easy-to-wire Euro-terminal blocks for rear panel connections
  • External contact closure input for remote preset selection
Log in or register for YOUR best price

The RSC-2700 is an 8-source by 24-destination assignment panel that offers remote switching of partyline assignments for medium to large-size systems. The sources are the channels from a main station or paryline interface from a matrix or similar system. The destinations are the channels from a beltpack or another interface.

View full details
  • AudioPartyline Intercom: 20 – 20kHz (passive switching)
  • Crosstalk<-70dB
  • Frequency ResponsePort-Port: 20Hz – 20kHz
  • Power Requirements
    • Input Voltage: 27-33V DC
    • Input Current (max): <= 80mA
  • Dimensions (HxWxD)3.5x19x10.75" (89x483x273mm)
  • SizesSingle frame, 1×2, 2×1, 2×2, 1×3, 2×3
  • RCS-WIN hardware requirementsPentium I or better 16 MB RAM, 12 MB Hard Disk Space Monitor: 800 X 600 Minimum Resolution
  • RS-232 Data
    • Baud rate: 19.2 Kbps
    • Start Bits: 1 start bit
    • Stop Bits: 1 stop bit
    • Parity: no parity
  • Switching Matrix Latching RelaysSwitching Current: <=2A

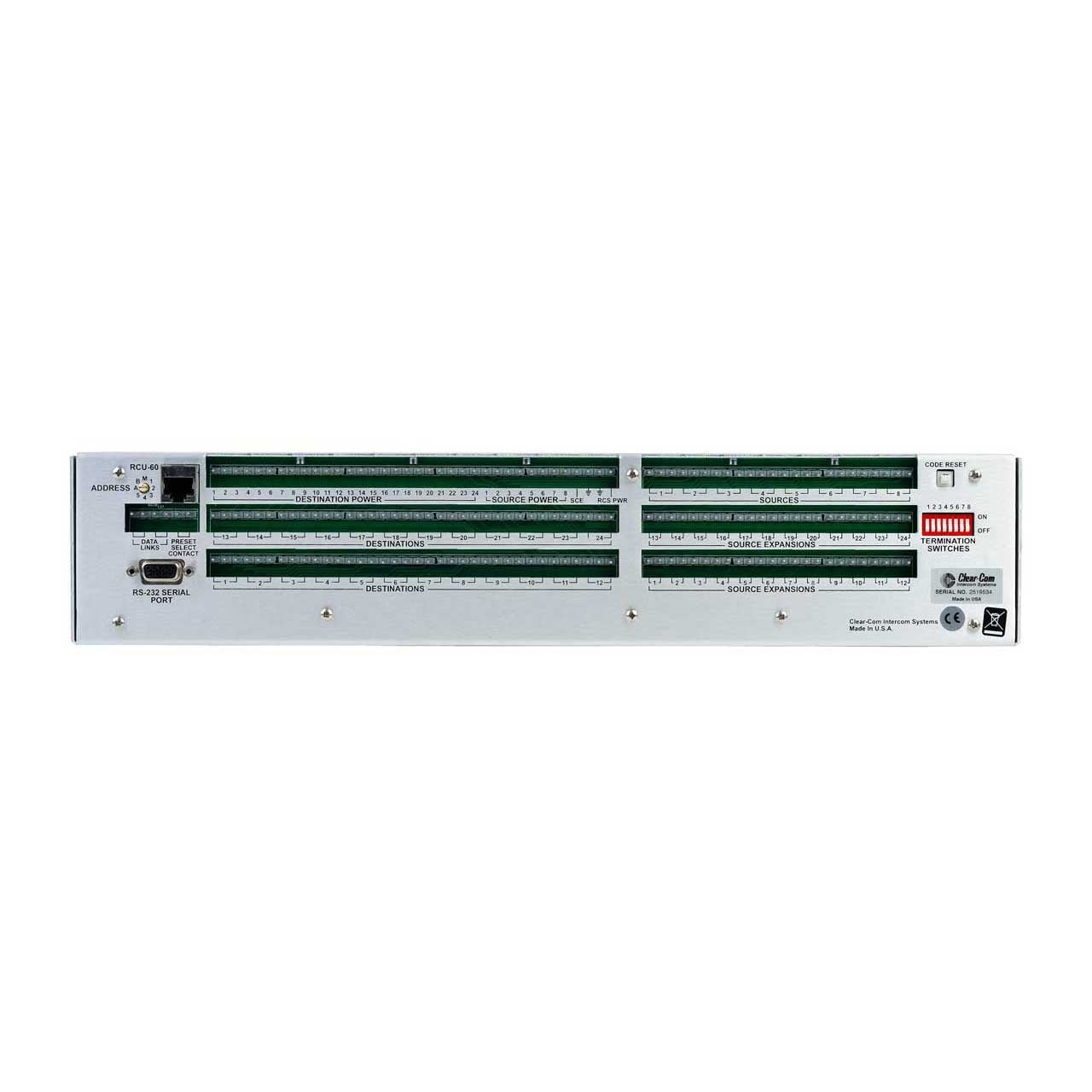

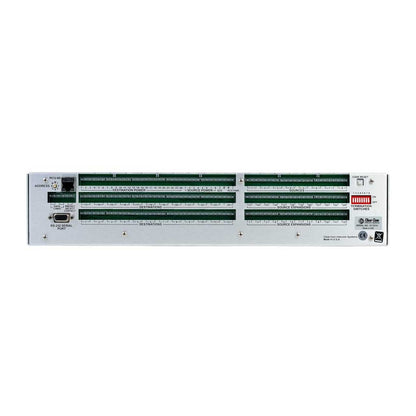

  • Euro-block pins for
    • Sources Source expansions Source power Destinations Destination power RCS power
    • Source 8 continuation Data links Matrix/contact closure
  • Environmental32° to 122°F (0° to 50°C)
  • Weight5.5lbs (2.5kg)
